SpheroidalPS

SpheroidalPS[n,m,γ,z]

gives the angular spheroidal function of the first kind.

Details

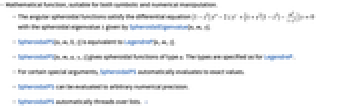

  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • The angular spheroidal functions satisfy the differential equation with the spheroidal eigenvalue given by SpheroidalEigenvalue[n,m,γ].
  • SpheroidalPS[n,m,0,z] is equivalent to LegendreP[n,m,z].
  • SpheroidalPS[n,m,a,γ,z] gives spheroidal functions of type . The types are specified as for LegendreP.
  • For certain special arguments, SpheroidalPS automatically evaluates to exact values.
  • SpheroidalPS can be evaluated to arbitrary numerical precision.
  • SpheroidalPS automatically threads over lists. »

Examples

open all close all

Basic Examples  (5)

Evaluate numerically:

Wolfram Language code: SpheroidalPS[3, 2, 1, 0.5]

Expansion about the spherical case:

Wolfram Language code: Series[SpheroidalPS[n, m, γ, x], {γ, 0, 3}]

Plot over a subset of the reals:

Wolfram Language code: Plot[SpheroidalPS[2, 0, 1, x], {x, -1, 1}]

Series expansion at Infinity:

Wolfram Language code: Series[SpheroidalPS[3 / 2, 1 / 2, 1, x], {x, ∞, 2}, Assumptions -> x > 1]//Normal

Series expansion at a singular point:

Wolfram Language code: Series[SpheroidalPS[3 / 2, 1 / 2, 1, x], {x, 1, 2}]//Normal//FullSimplify

Scope  (25)

Numerical Evaluation  (6)

Evaluate numerically:

Wolfram Language code: SpheroidalPS[5, 1, 0, .3]
Wolfram Language code: SpheroidalPS[1, 0, 4, 2.]

Evaluate to high precision:

Wolfram Language code: N[SpheroidalPS[7, 5, 4, 0], 50]
Wolfram Language code: N[SpheroidalPS[2, 1, 1 / 3, 1 / 2], 20]

The precision of the output tracks the precision of the input:

Wolfram Language code: SpheroidalPS[2, 2, 1 / 6, .211111111000111111111]

Complex number inputs:

Wolfram Language code: N[SpheroidalPS[3, 5 - I, 1 / 3, I + 1]]

Evaluate efficiently at high precision:

Wolfram Language code: SpheroidalPS[31, 5, 1 / 6, 2`100]//Timing
Wolfram Language code: SpheroidalPS[7, 5, 1, 2 / 7`1000];//Timing

Compute the elementwise values of an array using automatic threading:

Wolfram Language code: SpheroidalPS[1 / 2, 1 / 2, 0, {{1 / 2, 0}, {0, 1 / 2}}]

Or compute the matrix SpheroidalPS function using MatrixFunction:

Wolfram Language code: MatrixFunction[SpheroidalPS[1 / 2, 1 / 2, 0, #]&, {{1 / 2, 0}, {0, 1 / 2}}]

Compute average-case statistical intervals using Around:

Wolfram Language code: SpheroidalPS[1 / 2, 1 / 2, 0, Around[1 / 2, 0.01]]

Specific Values  (4)

Evaluate symbolically:

Wolfram Language code: SpheroidalPS[n, m, 0, x]//FunctionExpand

Find the first positive minimum of SpheroidalPS[4,0,1/2,x]:

Wolfram Language code: xmin = x /. FindRoot[D[SpheroidalPS[4, 0, 1 / 2, x], x] == 0, {x, .5}]
Wolfram Language code: Plot[SpheroidalPS[4, 0, 1 / 2, x], {x, -1, 1.5}, Epilog -> Style[Point[{xmin, SpheroidalPS[4, 0, 1 / 2, xmin ]}], PointSize[Large], Red]]

Evaluate the SpheroidalPS function for half-integer parameters:

Wolfram Language code: SpheroidalPS[3 / 2, 1 / 2, 1, x]
Wolfram Language code: SpheroidalPS[1 / 2, 1 / 2, 0, x]

Different SpheroidalPS types give different symbolic forms:

Wolfram Language code: Table[SpheroidalPS[n, m, 0, x], {m, 0, 2}, {n, 0, 2}]

Visualization  (3)

Plot the SpheroidalPS function for various orders:

Wolfram Language code: Plot[{SpheroidalPS[1, 0, 1, x], SpheroidalPS[2, 0, 1, x], SpheroidalPS[3, 0, 1, x], SpheroidalPS[4, 0, 1, x]}, {x, -1, 1}]

Plot the real part of TemplateBox[{3, 0, 1, z}, SpheroidalPS]:

Wolfram Language code: ComplexContourPlot[Re[SpheroidalPS[3, 0, 1, z]], {z, -1 - I, 1 + I}, Contours -> 24]

Plot the imaginary part of TemplateBox[{3, 0, 1, z}, SpheroidalPS]:

Wolfram Language code: ComplexContourPlot[Im[SpheroidalPS[3, 0, 1, z]], {z, -1 - I, 1 + I}, Contours -> 24]

Types 2 and 3 of SpheroidalPS functions have different branch cut structures:

Wolfram Language code: Plot3D[Im[SpheroidalPS[2, 1, 2, x + I y]], {x, -1.5, 1.5}, {y, -0.5, 0.5}, Exclusions -> {{y == 0, Abs[x] > 1}}]
Wolfram Language code: Plot3D[Im[SpheroidalPS[2, 1, 3, x + I y]], {x, -1.5, 1.5}, {y, -0.5, 0.5}, Exclusions -> {{y == 0, -1 < x < 1}}]

Function Properties  (8)

The real domain of TemplateBox[{1, 2, 2, x}, SpheroidalPS]:

Wolfram Language code: FunctionDomain[SpheroidalPS[1, 2, 2, x], x]

The complex domain of TemplateBox[{1, 2, 2, x}, SpheroidalPS]:

Wolfram Language code: FunctionDomain[SpheroidalPS[1, 2, 2, z], z, Complexes]

TemplateBox[{1, 2, gamma, 3}, SpheroidalPS] is an even function with respect to :

Wolfram Language code: SpheroidalPS[1, 2, -γ, 3] == -SpheroidalPS[1, 2, γ, 3]

TemplateBox[{1, 2, gamma, 3}, SpheroidalPS] has the mirror property TemplateBox[{1, 2, 3, {z, }}, SpheroidalPS]=TemplateBox[{1, 2, 3, z}, SpheroidalPS]:

Wolfram Language code: SpheroidalPS[1, 2, 3, Conjugate[z]] == Conjugate[SpheroidalPS[1, 2, 3, z]]

TemplateBox[{2, 0, 1, x}, SpheroidalPS] has no singularities or discontinuities:

Wolfram Language code: FunctionSingularities[SpheroidalPS[2, 0, 1, x], x]//Quiet
Wolfram Language code: FunctionDiscontinuities[SpheroidalPS[2, 0, 1, x], x]//Quiet

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is neither non-decreasing nor non-increasing:

Wolfram Language code: FunctionMonotonicity[SpheroidalPS[2, 0, 1, x], x]

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is not injective:

Wolfram Language code: FunctionInjective[SpheroidalPS[2, 0, 1, x], x]
Wolfram Language code: Plot[{SpheroidalPS[2, 0, 1, x], 4}, {x, -5, 5}]

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is neither non-negative nor non-positive:

Wolfram Language code: FunctionSign[SpheroidalPS[2, 0, 1, x], x]

TraditionalForm formatting:

Wolfram Language code: SpheroidalPS[n, m, c, η]//TraditionalForm

Differentiation  (2)

The first derivative with respect to z:

Wolfram Language code: D[SpheroidalPS[n, m, γ, z], z]

Higher derivatives with respect to z:

Wolfram Language code: Table[D[SpheroidalPS[n, m, γ, z], {z, k}], {k, 1, 3}]//FullSimplify

Plot the higher derivatives with respect to z when n=10, m=2 and γ=1/3:

Wolfram Language code: Plot[Evaluate[% /. { n -> 10, m -> 2, γ -> 1 / 3}], {z, -3, 3}, PlotLegends -> {"First Derivative", "Second Derivative", "Third Derivative"}]

Series Expansions  (2)

Find the Taylor expansion using Series:

Wolfram Language code: Series[SpheroidalPS[n, m, γ, x], {x, 0, 3}]

Plots of the first three approximations around :

Wolfram Language code: terms = Normal@Table[Series[SpheroidalPS[2, 0, 3, x], {x, 0, m}], {m, 1, 5, 2}]//N; Plot[{SpheroidalPS[2, 0, 3, x], terms}, {x, -1, 1}, PlotRange -> {-1.5, 1.5}]

The Taylor expansion at a generic point:

Wolfram Language code: Series[SpheroidalPS[n, m, γ, x], {x, x0, 2}]// FullSimplify

Generalizations & Extensions  (1)

The different types of SpheroidalPS have different branch cut structures:

Wolfram Language code: SpheroidalPS[n, m, 1, 0, x]
Wolfram Language code: SpheroidalPS[n, m, 2, 0, x]

Applications  (4)

Solve the spheroidal differential equation in terms of SpheroidalPS:

Wolfram Language code: DSolve[(1 - x ^ 2)y''[x] - 2x y'[x] + (SpheroidalEigenvalue[n, m, c] + c ^ 2(1 - x ^ 2) - (m ^ 2/1 - x ^ 2))y[x] == 0, y, x]

Plot prolate and oblate versions of the same angular function:

Wolfram Language code: Plot[{SpheroidalPS[2, 1, 3, x], SpheroidalPS[2, 1, 3I, x]}, {x, -1, 1}]

SpheroidalPS is a band-limited function with bandwidth proportional to :

Wolfram Language code: fourierCenter[f_List] := RotateLeft[f, Quotient[Length[f], 2]]

For spheroidicity parameter :

Wolfram Language code: With[{γ = 4.`20}, ListLinePlot[Abs[Fourier[Table[SpheroidalPS[2, 0, γ, x], {x, -10, 10, 1 / 10}]]]//fourierCenter, PlotRange -> All]]

For spheroidicity parameter , the bandwidth is higher:

Wolfram Language code: With[{γ = 8.`20}, ListLinePlot[Abs[Fourier[Table[SpheroidalPS[2, 0, γ, x], {x, -10, 10, 1 / 10}]]]//fourierCenter, PlotRange -> All]]

Build a near-spherical approximation to :

Wolfram Language code: nsLimitS1[n_, m_, z_, {c_, ord_Integer}] := (Normal[Series[SpheroidalPS[n1, -m1, c, x], {c, 0, ord}] /. LegendreP[k_, -m1, 2, x] :> SphericalBesselJ[k, z]](1 - c ^ 2 / z ^ 2)^m / 2 / SpheroidalRadialFactor[n, -m, c]) /. {n1 -> n, m1 -> m}

First few terms of the approximation:

Wolfram Language code: nsLimitS1[n, m, z, {c, 3}]//TraditionalForm

Compare numerically:

Wolfram Language code: (Table[nsLimitS1[3, 1, 1`30, {c, k}], {k, 2, 10, 2}] - SpheroidalS1[3, 1, c, 1 / c]) /. {c -> 1 / 100}

Properties & Relations  (1)

Spheroidal angular harmonics are eigenfunctions of the Sinc transform on the interval :

Wolfram Language code: Integrate[Sinc[c (t - x)]SpheroidalPS[2, 0, c, x], {x, -1, 1}]//TraditionalForm

Possible Issues  (2)

Spheroidal functions do not evaluate for half-integer values of n or generic values of m:

Wolfram Language code: SpheroidalPS[3 / 2, 1, 1, 0.5]

Angular spheroidal harmonics in the Wolfram Language adopt the Meixner–Schaefke normalization scheme:

Wolfram Language code: With[{c = 1}, Table[NIntegrate[SpheroidalPS[n, m, c, x] ^ 2, {x, -1, 1}], {n, 0, 2}, {m, -n, n}]]//Rationalize
Wolfram Language code: % == Table[(2/2n + 1)((n + m)!/(n - m)!), {n, 0, 2}, {m, -n, n}]

Flammer normalization is also common:

Wolfram Language code: FlammerSpheroidalS[n_Integer, m_Integer, c_, eta_] := SpheroidalPS[n, m, c, eta]If[EvenQ[n - m], LegendreP[n, m, 0] / SpheroidalPS[n, m, c, 0], Derivative[0, 0, 1][LegendreP][n, m, 0] / SpheroidalPSPrime[n, m, c, 0]]

Reconstruct table entries from Abramowitz and Stegun table 21.2:

Wolfram Language code: With[{m = 0}, Table[NumberForm[FlammerSpheroidalS[n, m, 1., Cos[th Degree]], {4, 4}], {n, m, m + 5}, {th, {0, 30, 45, 60, 90}}]]//TableForm
Wolfram Language code: With[{m = 1}, Table[NumberForm[FlammerSpheroidalS[n, m, 1., Cos[th Degree]], {4, 4}], {n, m, m + 5}, {th, {0, 30, 45, 60, 90}}]]//TableForm
