ToContinuousTimeModel

ToContinuousTimeModel[lsys]

gives the continuous-time approximation of the discrete-time systems models lsys.

ToContinuousTimeModel[tfm,s]

specifies the transform variable s.

Details and Options

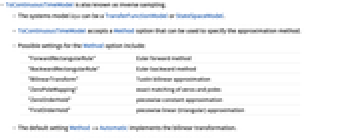

  • ToContinuousTimeModel is also known as inverse sampling.
  • The systems model lsys can be a TransferFunctionModel or StateSpaceModel.
  • ToContinuousTimeModel accepts a Method option that can be used to specify the approximation method.
  • Possible settings for the Method option include:
  • "ForwardRectangularRule"Euler forward method
    "BackwardRectangularRule"Euler backward method
    "BilinearTransform"Tustin bilinear approximation
    "ZeroPoleMapping"exact matching of zeros and poles
    "ZeroOrderHold"piecewise constant approximation
    "FirstOrderHold"piecewise linear (triangular) approximation
  • The default setting Method->Automatic implements the bilinear transformation.
  • The setting Method->"ZeroPoleMapping" does not support time delays.
  • A bilinear transform with critical frequency ω radians per time unit can be specified by setting Method->{"BilinearTransform","CriticalFrequency"->ω}.
  • The "FirstOrderHold" method gives the non-causal first-order hold equivalent.
  • When approximating TransferFunctionModel objects, "StateSpaceConversion" can be specified as a suboption.
  • The setting Method->{m,"StateSpaceConversion"->True} computes the approximation using the state-space representation and converts the result to the transfer-function representation.
  • The setting "StateSpaceConversion"->False computes using the transfer-function object.
  • The setting "StateSpaceConversion"->Automatic computes the approximation using the transfer-function representation, except for the "ZeroOrderHold" method.

Examples

open all close all

Basic Examples  (1)

A continuous-time approximation of a discrete-time system:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{10*(-0.9 + z)}}, -0.8 + z}, z, SamplingPeriod -> 0.5], s]

Scope  (6)

Convert a discrete-time transfer-function model to a continuous-time model:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{0.01*(0.03 + z)*(0.5 + z)}}, (-0.8 + z)*(-0.5 + z)*(-0.2 + z)}, z, SamplingPeriod -> 0.6], s]

Convert a discrete-time state-space model to a continuous-time model:

Wolfram Language code: ToContinuousTimeModel[StateSpaceModel[{{{0.5, 0.5, 0.1}, {-0.3, 1, 0.3}, {0, 0, 0.3}}, {{0}, {0}, {0.25}}, {{1, 0, 0}}, {{0}}}, SamplingPeriod -> 1, SystemsModelLabels -> None], s]

Convert a multiple-input, multiple-output system to a continuous-time system:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{z, -0.3 + z}, {-0.8 + z, 1}, {z, 1}}, {{-1 + z, 0.5 + z}, {0.8 + z, -0.3 + z}, {-0.5 + z, 1}}}, z, SamplingPeriod -> 0.5], s]

Convert a symbolic system:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{z}}, -a + z}, z, SamplingPeriod -> T], s]

Convert a time-delay StateSpaceModel:

Wolfram Language code: ToContinuousTimeModel[StateSpaceModel[{{{0.5, -SystemsModelDelay[3]}, {0, 0.25}}, {{0}, {1}}, {{1, SystemsModelDelay[20]}}, {{0}}}, SamplingPeriod -> 1, SystemsModelLabels -> None]]

Convert a singular descriptor StateSpaceModel:

Wolfram Language code: ToContinuousTimeModel[StateSpaceModel[{{{1, 0, 0}, {0, 1, 0}, {0, 0, -5/6}}, {{0}, {1}, {1}}, {{-1, 19/12, 193/144}}, {{0}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}}}, SamplingPeriod -> 1, SystemsModelLabels -> None]]

Options  (6)

Method  (6)

By default, the approximation is based on the bilinear transformation:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{-1/2 + z}}, -3/4 + z}, z, SamplingPeriod -> 1], s]

Specify the approximation method:

Wolfram Language code: ToContinuousTimeModel[TransferFunctionModel[{{{0.75*z}}, -0.65*z + z^2}, z, SamplingPeriod -> 1], s, Method -> "FirstOrderHold"]

Compare various approximation methods:

Wolfram Language code: tfm = TransferFunctionModel[{{{10*(-0.5 + z)}}, -0.8 + z}, z, SamplingPeriod -> 0.5];
Wolfram Language code: Grid[tfc = Table[{m, ToContinuousTimeModel[tfm, s, Method -> m]}, {m, {"ForwardRectangularRule", "BackwardRectangularRule", "BilinearTransform", "ZeroOrderHold", "FirstOrderHold"}}], Frame -> All]
Wolfram Language code: BodePlot[Join[{Tooltip[tfm]}, Apply[Tooltip, Reverse[#]]& /@ tfc], {0.05, (π/0.5)}]

An approximation that preserves the transmission at a specified frequency:

Wolfram Language code: tfm = TransferFunctionModel[{{{0.2066*(1 - 2*z + z^2)}}, 0.1958 + 0.3695*z + z^2}, z, SamplingPeriod -> 0.75];
Wolfram Language code: tfmc = ToContinuousTimeModel[tfm, Method -> {"BilinearTransform", "CriticalFrequency" -> 2}]
Wolfram Language code: pts = Point[{#}]& /@ Through@{{Log10[2], 20 Log10@Abs[#]}&, {Log10[2], (Arg[#]/Degree)}&}@tfm[Exp[I 2 0.75]][[1, 1]];
Wolfram Language code: BodePlot[{tfm, tfmc}, {0.1, (π/0.5)}, Epilog -> pts]

The backward Euler method adds states if the state and descriptor matrices are both singular:

Wolfram Language code: ss = StateSpaceModel[{{{1/2, 0}, {1/4, 0}}, {{1/4}, {1}}, {{1, 4}}, {{0}}, {{1, 2}, {0, 0}}}, SamplingPeriod -> 1, SystemsModelLabels -> None]; ToContinuousTimeModel[ss, s, Method -> "BackwardRectangularRule"]

The bilinear method adds states if the sum of the state and descriptor matrices is singular:

Wolfram Language code: ss = StateSpaceModel[{{{1/2, -2}, {1/4, 0}}, {{1/4}, {1}}, {{1, 4}}, {{0}}, {{1, 2}, {0, 0}}}, SamplingPeriod -> 1, SystemsModelLabels -> None]; ToContinuousTimeModel[ss, s, Method -> "BilinearTransform"]

Applications  (1)

Various continuous-time approximations to a fourth-order Chebyshev II bandstop filter:

Wolfram Language code: tfmch4 = TransferFunctionModel[{{{0.4207*(1 + 1.7994*z^2 + z^4)}}, 0.221 + 0.37773*z^2 + z^4}, z, SamplingPeriod -> 0.01];
Wolfram Language code: methods = {"ForwardRectangularRule", "BackwardRectangularRule", "BilinearTransform", {"BilinearTransform", "CriticalFrequency" -> 160}, "ZeroOrderHold", "FirstOrderHold"};
Wolfram Language code: Grid[tfmch4c = Table[{m, Chop[ToContinuousTimeModel[tfmch4, s, Method -> m]//Simplify, 10^-5]}, {m, methods}], Frame -> All]

Bode plots:

Wolfram Language code: BodePlot[Join[{Tooltip[tfmch4]}, Apply[Tooltip, Reverse[#]]& /@ tfmch4c], {1, 1000}, PlotRange -> All, ImageSize -> 300]

Properties & Relations  (2)

ToDiscreteTimeModel is essentially the inverse of ToContinuousTimeModel:

Wolfram Language code: d2c2d[sys_, method_] := ToDiscreteTimeModel[ToContinuousTimeModel[sys, Method -> method], 1, Method -> method]
Wolfram Language code: Table[d2c2d[TransferFunctionModel[{{{0.5}}, -0.5 + z}, z, SamplingPeriod -> 1], method], {method, {"ForwardRectangularRule", "BackwardRectangularRule", "BilinearTransform", "ZeroOrderHold", "FirstOrderHold"}}]

ToContinuousTimeModel may add states to systems with neutral time delays:

Wolfram Language code: ToContinuousTimeModel[StateSpaceModel[{{{0.5, 0}, {0, 0.1}}, {{0}, {1}}, {{2, 0}}, {{0}}, {{1, 0}, {0, 1 - SystemsModelDelay[2]}}}, SamplingPeriod -> 1, SystemsModelLabels -> None]]
