TransformationFunction

TransformationFunction[data]

represents a transformation function that applies geometric and other transformations.

Details

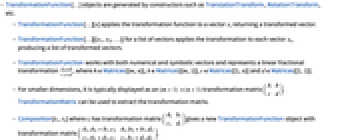

  • TransformationFunction[…] objects are generated by constructors such as TranslationTransform, RotationTransform, etc.
  • TransformationFunction[…][x] applies the transformation function to a vector x, returning a transformed vector.
  • TransformationFunction[…][{x1,x2,…}] for a list of vectors applies the transformation to each vector xi, producing a list of transformed vectors.
  • TransformationFunction works with both numerical and symbolic vectors and represents a linear fractional transformation , where A∈Matrices[{m,n}], b∈Matrices[{m,1}], c∈Matrices[{1,n}] and d∈Matrices[{1,1}].
  • For smaller dimensions, it is typically displayed as an transformation matrix . TransformationMatrix can be used to extract the transformation matrix.
  • Composition[t1,t2] where ti has transformation matrix gives a new TransformationFunction object with transformation matrix .

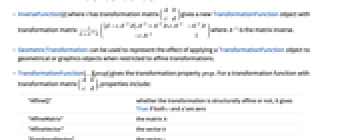

  • InverseFunction[t] where t has transformation matrix gives a new TransformationFunction object with transformation matrix where is the matrix inverse.
  • GeometricTransformation can be used to represent the effect of applying a TransformationFunction object to geometrical or graphics objects when restricted to affine transformations.
  • TransformationFunction[…][prop] gives the transformation property prop. For a transformation function with transformation matrix , properties include:
  • "AffineQ"whether the transformation is structurally affine or not, it gives True if both c and d are zero
    "AffineMatrix"the matrix A
    "AffineVector"the vector b
    "FractionalVector"the vector c
    "FractionalConstant"the constant d
    "ArgumentLength"the length n of the vector x
    "ResultLength"the length m of the result vector
    "TransformationMatrix"

Examples

open all close all

Basic Examples  (1)

Create a rotation transform:

Wolfram Language code: r = RotationTransform[θ]

This rotates the vector {x,y} by angle θ:

Wolfram Language code: r[{x, y}]

Scope  (15)

Constructing TransformationFunction  (10)

A translation by the vector {qx,qy,qz}:

Wolfram Language code: t = TranslationTransform[{qx, qy, qz}]
Wolfram Language code: t[{x, y, z}]

A rotation around the axis:

Wolfram Language code: r = RotationTransform[θ, {0, 0, 1}]
Wolfram Language code: r[{x, y, z}]

Scaling along the coordinate axes:

Wolfram Language code: ScalingTransform[{sx, sy}]

Shearing in the direction by an angle θ:

Wolfram Language code: ShearingTransform[θ, {1, 0}, {0, 1}]

Reflecting in the plane:

Wolfram Language code: ReflectionTransform[{0, 0, 1}]

Rescaling the box [xmin, xmax][ymin, ymax] to the unit square:

Wolfram Language code: RescalingTransform[{{xmin, xmax}, {ymin, ymax}}]

A general TransformationFunction:

Wolfram Language code: t = LinearFractionalTransform[{{1, 2, 3}, {4, 5, 6}, {7, 8, 9}}]
Wolfram Language code: t[{x, y}]

A linear transformation:

Wolfram Language code: tl = LinearFractionalTransform[{ Array[Subscript[a, #1, #2]&, {2, 2}] }]
Wolfram Language code: tl[{x, y}]

An affine transformation:

Wolfram Language code: ta = LinearFractionalTransform[{ Array[Subscript[a, #1, #2]&, {2, 2}], Array[Subscript[b, #]&, {2}] }]
Wolfram Language code: ta[{x, y}]

A linear fractional transformation:

Wolfram Language code: tlft = LinearFractionalTransform[{Array[Subscript[a, #1, #2]&, {2, 2}], Array[Subscript[b, #]&, {2}], Array[Subscript[c, #]&, {2}]}]
Wolfram Language code: tlft[{x, y}]

Working with TransformationFunction as a Function  (4)

Here is a rotation of around the axis:

Wolfram Language code: t = RotationTransform[π / 3., {0, 0, 1}]

This transforms the axis:

Wolfram Language code: t[{1, 0, 0}]

This transforms a list of vectors:

Wolfram Language code: vl = RandomReal[1, {10, 3}];
Wolfram Language code: t[vl]

Composing two transformations:

Wolfram Language code: t1 = RotationTransform[θ]
Wolfram Language code: t2 = RotationTransform[ϕ]
Wolfram Language code: Composition[t1, t2]//Simplify

Computing the inverse:

Wolfram Language code: t = RotationTransform[θ]
Wolfram Language code: it = InverseFunction[t]//Simplify

This shows they are inverses:

Wolfram Language code: Composition[it, t]//Simplify

Computing the partial derivative :

Wolfram Language code: f = TransformationFunction[{{1, 2, 3}, {4, 5, 6}, {7, 8, 9}}]
Wolfram Language code: Derivative[{1, 2}][f]

Working with TransformationFunction as a Formula  (1)

This defines a general transform:

Wolfram Language code: t = LinearFractionalTransform[{ {{1, 2}, {3, 4}}, {1, 2}, {3, 1} }]

This is the corresponding formula:

Wolfram Language code: f = t[{x, y}]

A derivative:

Wolfram Language code: D[f, {x, 2}]

A limit:

Wolfram Language code: Limit[f, x -> 1]

An integral:

Wolfram Language code: Integrate[f, x]

A plot:

Wolfram Language code: Plot3D[f, {x, -1, 1}, {y, -1, 1}, PlotStyle -> {Red, Green}, Exclusions -> {1 + 3x + y == 0}]

Applications  (2)

TransformationFunction can be used as an argument to GeometricTransformation:

Wolfram Language code: t = AffineTransform[{DiagonalMatrix[{2, 2, 1}], {1, 1, 1}}]
Wolfram Language code: Graphics3D[GeometricTransformation[Cylinder[], t], Axes -> True]

Integrate a function over a rhombic region:

Wolfram Language code: Integrate[(x ^ 3 + y ^ 3)Boole[x / 2 < y < x / 2 + 3 / 4 && y / 2 < x < y / 2 + 3 / 4], {x, 0, 3 / 2}, {y, 0, 3 / 2}]

defines a change of variables that maps the unit square to the integration region:

Wolfram Language code: t = AffineTransform[{{1, 1 / 2}, {1 / 2, 1}}]

The integrand in the new coordinates:

Wolfram Language code: fuv = x ^ 3 + y ^ 3 /. Thread[{x, y} -> t[{u, v}]]

The Jacobian:

Wolfram Language code: jac = Det[TransformationMatrix[t]]
Wolfram Language code: Integrate[fuv Abs[jac], {u, 0, 1}, {v, 0, 1}]

Properties & Relations  (1)

Find the ^(th) power of a transformation:

Wolfram Language code: t = LinearFractionalTransform[{{-3, 2, 1}, {0, 1, 1}, {4, -2, -4}}]
Wolfram Language code: tt[n_] := LinearFractionalTransform[MatrixPower[TransformationMatrix[t], n]]

Apply t five times:

Wolfram Language code: Nest[Together@t@#&, {x0, y0}, 5]

Apply tt[5]:

Wolfram Language code: tt[5][{x0, y0}]
Wolfram Language code: % == %%//Simplify

Find the ^(th) iteration using RSolve:

Wolfram Language code: RSolve[Thread /@ {{x[n + 1], y[n + 1]} == t[{x[n], y[n]}], {x[0], y[0]} == {x0, y0}}, {x, y}, n]
Wolfram Language code: {x[5], y[5]} /. %[[1]]//Simplify
