TreeExtract

TreeExtract[tree,pos]

extracts the subtree of tree at the position specified by pos.

TreeExtract[tree,{pos₁,pos₂,…}]

extracts a list of subtrees of tree.

TreeExtract[tree,pos,h]

extracts subtrees of tree, applying h to each subtree.

TreeExtract[pos]

represents an operator form of TreeExtract that can be applied to a tree.

Details

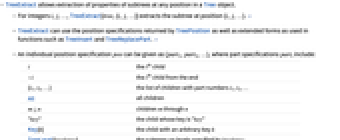

TreeExtract allows extraction of properties of subtrees at any position in a Tree object.
For integers i, j, …, TreeExtract[tree,{i,j,…}] extracts the subtree at position {i,j,…}. »
TreeExtract can use the position specifications returned by TreePosition as well as extended forms as used in functions such as TreeInsert and TreeReplacePart. »
An individual position specification pos can be given as {part₁,part₂,…}, where part specifications part_i include:

	i	the i child
	-i	the i child from the end
	{i₁,i₂,…}	the list of children with part numbers i₁, i₂, …
	All	all children
	m;;n	children m through n
	"key"	the child whose key is "key"
	Key[k]	the child with an arbitrary key k
	TreeLevel[levelspec]	the subtrees on levels specified by levelspec
	TreeCases[pattern]	the subtrees with data matching pattern
	TreeSelect[crit]	the subtrees for which crit gives True

In TreeExtract[tree,{p₁,p₂,…}], {p₁,p₂,…} is interpreted as a list of individual position specifications if all the p_i are lists. Otherwise, {p₁,p₂,…} will be taken to be an individual position specification. »
Specifications that extract multiple parts at one level retain the data at that level. »
TreeExtract works on trees containing an Association of subtrees, using the same specification for keys as in Part. »
TreeExtract[pos][tree] is equivalent to TreeExtract[tree,pos].

Examples

open all close all

Basic Examples (4)

Extract the second child of a tree:

Wolfram Language code: TreeExtract[[image], {2}]

Extract a subtree at any position:

Wolfram Language code: TreeExtract[[image], {3, 3}]

Extract a list of subtrees at several positions:

Wolfram Language code: TreeExtract[[image], {{1}, {2, 1}, {3, 3, 1}}]

Perform independent extractions at consecutive levels:

Wolfram Language code: TreeExtract[[image], {All, 2}]

Use the operator form of TreeExtract:

Wolfram Language code: TreeExtract[2][[image]]

Scope (23)

Part Specifications (9)

Extract the first child:

Wolfram Language code: TreeExtract[[image], 1]

Extract the second child from the end:

Wolfram Language code: TreeExtract[[image], -2]

Extract all children:

Wolfram Language code: TreeExtract[[image], All]

Extract the children at odd positions:

Wolfram Language code: TreeExtract[[image], 1 ;; -1 ;; 2]

Use Key to specify position:

Wolfram Language code: TreeExtract[[image], Key["b"]]

For string keys, Key is not needed:

Wolfram Language code: TreeExtract[[image], "b"]

Extract subtrees on a range of levels:

Wolfram Language code: TreeExtract[[image], TreeLevel[3]]

Extract subtrees matching a data pattern:

Wolfram Language code: TreeExtract[[image], TreeCases[_ ? OddQ]]

Extract subtrees with exactly two children:

Wolfram Language code: TreeExtract[[image], TreeSelect[Length[TreeChildren[#]] == 2&]]

Extract using different specifications:

Wolfram Language code: TreeExtract[[image], {TreeLevel[{2}], TreeCases[_ ? OddQ]}]

Single versus Multiple Positions (3)

Extract a single subtree from a tree:

Wolfram Language code: TreeExtract[[image], {3}]

Extract several subtrees from a tree:

Wolfram Language code: TreeExtract[[image], {{1}, {4}, {3}}]

Extract the subtree at position {1,3}:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {1, 3}]

Extract the first and third subtrees of a tree:

Wolfram Language code: TreeExtract[tree, {{1}, {3}}]

Extract a length-one list of positions from the tree:

Wolfram Language code: TreeExtract[tree, {{1, 3}}]

Extract several subtrees of the tree:

Wolfram Language code: TreeExtract[tree, {{1, 2}, {3, 3}, {2, 1}}]

Forms Involving All (2)

Extract the children of the second child:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {2}]

Equivalently:

Wolfram Language code: TreeExtract[tree, {2, All}]

Extract the second child of each child:

Wolfram Language code: TreeExtract[tree, {All, 2}]

Extract the first and third child of each child:

Wolfram Language code: TreeExtract[tree, {All, {1, 3}}]

Extract the first and third child of each child separately:

Wolfram Language code: TreeExtract[tree, {{All, 1}, {All, 3}}]

Extracting using All preserves the data at that level:

Wolfram Language code: TreeExtract[[image], {All, 1}]

Associations (5)

Extract a subtree from a tree containing an association by key:

Wolfram Language code: TreeExtract[[image], {Key[expr]}]

If the key is a string, the Key wrapper is optional:

Wolfram Language code: TreeExtract[[image], {"str"}]

Extract a subtree from a tree containing an association by key:

Wolfram Language code: TreeExtract[[image], {Key[1]}]

Extract a subtree from a tree containing an association by position:

Wolfram Language code: TreeExtract[[image], {1}]

Extract several subtrees from a tree containing an association:

Wolfram Language code: TreeExtract[[image], {{1}, {Key[1]}}]

Extract a nested subtree from a tree containing an association:

Wolfram Language code: TreeExtract[[image], {Key[3], 1}]

Extract several nested subtrees from a tree containing an association:

Wolfram Language code: TreeExtract[[image], {{Key[3], 1}, {3, 1}}]

Spans and Sublists (4)

Extract the third through fifth children of a list:

Wolfram Language code: TreeExtract[[image], {3 ;; 5}]

Extract the children at odd positions:

Wolfram Language code: TreeExtract[[image], {1 ;; -1 ;; 2}]

Extract the first three children from each child:

Wolfram Language code: TreeExtract[[image], {All, 1 ;; 3}]

Extract the first and last child from each child:

Wolfram Language code: TreeExtract[[image], {All, {1, -1}}]

Extract the first child of the second through fourth children:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {2 ;; 4, 1}]

Extract the second child of the first, third and fourth children:

Wolfram Language code: TreeExtract[tree, {{1, 3, 4}, 2}]

Extract the first, second and fifth children of the last three children:

Wolfram Language code: TreeExtract[tree, {-3 ;; -1, {1, 2, 5}}]

Extract the first and fifth children of each child:

Wolfram Language code: TreeExtract[tree, {All, {1, 5}}]

Properties & Relations (10)

Construct a tree from the heads in an expression:

Wolfram Language code: ExpressionTree[1[2[3, 4], 5[6, 7]], "Heads"]

TreeExtract extracts a subtree of a tree:

Wolfram Language code: TreeExtract[%, {1}]

This corresponds to extracting a subexpression of an expression:

Wolfram Language code: TreeExpression[%, "Heads"]

Extract can extract subexpressions directly:

Wolfram Language code: Extract[1[2[3, 4], 5[6, 7]], {1}]

If pos is not a list, pos and {pos} are equivalent specifications:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, 3] === TreeExtract[tree, {3}]

Wolfram Language code: TreeExtract[tree, 3 ;; 5] === TreeExtract[tree, {3 ;; 5}]

For a list of integers {i,j,…}, TreeExtract[tree,{i,j,…}] is equivalent to …@TreeExtract[j]@TreeExtract[i]@tree:

Wolfram Language code: TreeExtract[[image], {2, 3}] === TreeExtract[3]@TreeExtract[2]@[image]

TreeExtract[tree,{{i₁,j₁,…},{i₂,j₂,…},…}] is equivalent to {TreeExtract[tree,{i₁,j₁,…}],TreeExtract[tree,{i₂,j₂,…}],…}:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {{1 ;; 2, 1}, {2 ;; 3, 2}}] === {TreeExtract[tree, {1 ;; 2, 1}], TreeExtract[tree, {2 ;; 3, 2}]}

This extends to the empty list:

Wolfram Language code: TreeExtract[tree, {}] === {}

Extracting position {} extracts the whole tree:

Wolfram Language code: TreeExtract[[image], {{}}]

TreeExtract extracts subtrees repeatedly if a position is mentioned repeatedly:

Wolfram Language code: TreeExtract[[image], {{1}, {3}, {1}}]

TreeExtract can use the lists of positions returned by TreePosition:

Wolfram Language code: tree = NestTree[Range[3# - 1, 3# + 1]&, 1, 2]

Wolfram Language code: TreePosition[tree, _ ? PrimeQ]

Wolfram Language code: TreeExtract[tree, %]

In TreeExtract[tree,{pos₁,pos₂,…},h], h wraps the result of extracting the subtrees at each of the pos_i:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {{1, 2}, {3, 3}, {2, 1}}, h]

In TreeExtract[tree,pos,h], h wraps the result of extracting the subtree at position pos:

Wolfram Language code: TreeExtract[tree, {1, 2}, h]

Specifications that extract multiple parts at one level retain the data at that level:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {All, 1}]

Wolfram Language code: TreeExtract[tree, {1 ;; 3, 1}]

Wolfram Language code: TreeExtract[tree, {{2, 4}, 1}]

TreeExtract[tree,{p₁,p₂,…}] treats {p₁,p₂,…} as a list of individual position specifications if all the p_i are lists:

Wolfram Language code: tree = [image];

For {{1,2},{3,4}}, the subtrees at positions {1,2} and {3,4} are extracted:

Wolfram Language code: TreeExtract[tree, {{1, 2}, {3, 4}}]

If any p_i is not a list, {p₁,p₂,…} is treated as a list of part specifications:

Wolfram Language code: TreeExtract[tree, {{1, 2}, 3}]

Wolfram Language code: TreeExtract[tree, {1, {3, 4}}]

For {{{1,2},{3,4}}}, parts 3 and 4 of parts 1 and 2 are extracted:

Wolfram Language code: TreeExtract[tree, {{{1, 2}, {3, 4}}}]

Possible Issues (2)

TreeExtract[tree,{}] returns an empty list of subtrees because the list of positions is empty:

Wolfram Language code: TreeExtract[[image], {}]

TreeExtract[tree,{{}}] extracts the subtree at position {}, which is the whole tree:

Wolfram Language code: TreeExtract[[image], {{}}]

A list of lists in the second argument is always interpreted as a list of position specifications:

Wolfram Language code: tree = [image];

Wolfram Language code: TreeExtract[tree, {{1, 2}}]

As a result, specifications that are equivalent in Part may be treated differently by TreeExtract:

Wolfram Language code: Part[TreeChildren[tree], {1, 2}] === Part[TreeChildren[tree], 1 ;; 2]

Wolfram Language code: TreeExtract[tree, {{1, 2}}] === TreeExtract[tree, {1 ;; 2}]

Use a list of lists and remove the extra list at the end if consistency between Part and TreeExtract is needed:

Wolfram Language code: First@TreeExtract[tree, {{{1, 2}}}] === First@TreeExtract[tree, {{1 ;; 2}}]
