TreeSelect[tree,crit]

picks out all subtrees treei of tree for which crit[treei] is True.

TreeSelect[tree,crit,n]

picks out the first n subtrees for which crit[treei] is True.

TreeSelect[tree,crit,levelspec,n]

picks out subtrees on levels specified by levelspec.

TreeSelect[crit]

represents an operator form of TreeSelect that can be applied to a tree.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Options
TreeTraversalOrder
Properties & Relations
Possible Issues
See Also
Related Guides
History
Cite this Page

TreeSelect

TreeSelect[tree,crit]

picks out all subtrees treei of tree for which crit[treei] is True.

TreeSelect[tree,crit,n]

picks out the first n subtrees for which crit[treei] is True.

TreeSelect[tree,crit,levelspec,n]

picks out subtrees on levels specified by levelspec.

TreeSelect[crit]

represents an operator form of TreeSelect that can be applied to a tree.

Details and Options

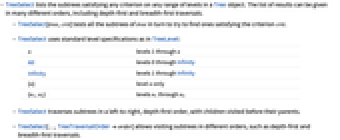

  • TreeSelect lists the subtrees satisfying any criterion on any range of levels in a Tree object. The list of results can be given in many different orders, including depth-first and breadth-first traversals.
  • TreeSelect[tree,crit] tests all the subtrees of tree in turn to try to find ones satisfying the criterion crit.
  • TreeSelect uses standard level specifications as in TreeLevel:
  • nlevels 1 through n
    Alllevels 0 through Infinity
    Infinitylevels 1 through Infinity
    {n}level n only
    {n1,n2}levels n1 through n2
  • TreeSelect traverses subtrees in a left-to-right, depth-first order, with children visited before their parents.
  • TreeSelect[…,TreeTraversalOrderorder] allows visiting subtrees in different orders, such as depth-first and breadth-first traversals.
  • TreeSelect[crit][tree] is equivalent to TreeSelect[tree,crit].

Examples

open all close all

Basic Examples  (4)

Select the subtrees whose root node has an even number as data:

Wolfram Language code: TreeSelect[[image], EvenQ @* TreeData]

Get the first six leaves of a tree:

Wolfram Language code: TreeSelect[[image], TreeLeafQ, 6]

Get the first two leaves on the second level:

Wolfram Language code: TreeSelect[[image], TreeLeafQ, {2}, 2]

Use the operator form of TreeSelect:

Wolfram Language code: TreeSelect[Length[TreeChildren[#]] == 3&][[image]]

Scope  (3)

Select all subtrees with three children:

Wolfram Language code: TreeSelect[[image], Length[TreeChildren[#]] == 3&]

Select the first two subtrees with two children:

Wolfram Language code: TreeSelect[[image], Length[TreeChildren[#]] == 2&, 2]

Use TreeSelect as an operator form in a tree position specification:

Wolfram Language code: TreeExtract[[image], {TreeSelect[Length[TreeChildren[#]] == 3&], 3}]

Options  (3)

TreeTraversalOrder  (3)

By default, subtrees are listed in a depth-first order, with parents visited after their children:

Wolfram Language code: TreeSelect[[image], True&, TreeTraversalOrder -> "DepthFirst"]

Specify a top-down, right-to-left variant:

Wolfram Language code: TreeSelect[[image], True&, TreeTraversalOrder -> {"DepthFirst", "TopDown", "RightLeft"}]

List subtrees in a breadth-first order, with nodes on the same level from the root visited before the nodes on the next level:

Wolfram Language code: TreeSelect[[image], True&, TreeTraversalOrder -> "BreadthFirst"]

List subtrees in a leaves-first order, with nodes on the same level from the leaves visited before the nodes on the next level:

Wolfram Language code: TreeSelect[[image], True&, TreeTraversalOrder -> "LeavesFirst"]

Properties & Relations  (1)

TreeSelect[tree,crit,Infinity,Infinity] is equivalent to TreeChildren@TreeExtract[tree,TreeSelect[crit]]:

Wolfram Language code: TreeSelect[[image], EvenQ @* TreeData, Infinity, Infinity]
Wolfram Language code: % === TreeChildren@TreeExtract[[image], TreeSelect[EvenQ @* TreeData]]

Possible Issues  (1)

TreeSelect by default starts at level 1, so does not visit the root:

Wolfram Language code: TreeSelect[[image], True&, 1, Infinity]
Wolfram Language code: TreeSelect[[image], True&, {0, 1}, Infinity]
