VertexNormals

VertexNormals

is an option for graphics primitives which specifies the normal directions to assign to 3D vertices.

Details

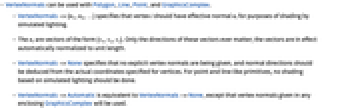

  • VertexNormals can be used with Polygon, Line, Point, and GraphicsComplex.
  • VertexNormals->{n1,n2,…} specifies that vertex i should have effective normal ni for purposes of shading by simulated lighting.
  • The ni are vectors of the form {vx,vy,vz}. Only the directions of these vectors ever matter; the vectors are in effect automatically normalized to unit length.
  • VertexNormals->None specifies that no explicit vertex normals are being given, and normal directions should be deduced from the actual coordinates specified for vertices. For point and line-like primitives, no shading based on simulated lighting should be done.
  • VertexNormals->Automatic is equivalent to VertexNormals->None, except that vertex normals given in any enclosing GraphicsComplex will be used.

Examples

open all close all

Basic Examples  (1)

A triangle with all normals pointing in the direction {1,-1,1}:

Wolfram Language code: {p1, p2, p3} = {{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}; n = {1, -1, 1}; Graphics3D[{Yellow, Polygon[{p1, p2, p3}, VertexNormals -> {n, n, n}]}]

Using a different normal for one of the triangle's vertices changes the effects of lighting:

Wolfram Language code: n2 = {-1, 0, 1}; Graphics3D[{Yellow, Polygon[{p1, p2, p3}, VertexNormals -> {n2, n, n}]}]

Specify vertex normals for 3D lines:

Wolfram Language code: Graphics3D[{Thickness[.04], Yellow, Line[{p1, p2, p3, p1}, VertexNormals -> {n2, n, n, n2}]}]

Specify vertex normals for 3D points:

Wolfram Language code: Graphics3D[{PointSize[.1], Yellow, Point[{p1, p2, p3}, VertexNormals -> {n2, n, n}]}, PlotRangePadding -> 0.1]

Scope  (2)

Define vertices and face indices of a cylindrical model:

Wolfram Language code: vl = Join[Table[{Cos[2π i / 20], Sin[2π i / 20], 0}, {i, 20}], Table[{Cos[2π i / 20], Sin[2π i / 20], 2}, {i, 20}]];
Wolfram Language code: il = Table[{i, Mod[i + 1, 20, 1], Mod[i + 21, 20, 21], i + 20}, {i, 1, 20}];

Without surface normals, the shading is constant or flat for each polygon face:

Wolfram Language code: Graphics3D[{Yellow, EdgeForm[], GraphicsComplex[vl, Polygon[il]]}]

With surface normals, the shading is interpolated or smooth across each polygon face:

Wolfram Language code: Graphics3D[{Yellow, EdgeForm[], GraphicsComplex[vl, Polygon[il], VertexNormals -> vl]}]

Plot functions automatically generate surface normals:

Wolfram Language code: Plot3D[Exp[-(x ^ 2 + y ^ 2)], {x, -2, 2}, {y, -2, 2}, NormalsFunction -> Automatic, Mesh -> None]

Without surface normals, you get flat or faceted shading:

Wolfram Language code: Plot3D[Exp[-(x ^ 2 + y ^ 2)], {x, -2, 2}, {y, -2, 2}, NormalsFunction -> None, Mesh -> None]

Applications  (3)

A function that visualizes the surface normals using lines:

Wolfram Language code: normalsShow[g_Graphics3D] := Module[{pl, vl, n}, {pl, vl} = First@Cases[g, GraphicsComplex[pl_, prims_, VertexNormals -> vl_, opts___ ? OptionQ] :> {pl, vl}, Infinity]; n = Length[pl]; Show[g, Graphics3D[GraphicsComplex@@{Join[pl, pl + vl / 3], {Black, Line[Table[{i, i + n}, {i, n}]]}}]] ];

Visualize the normals for some surfaces:

Wolfram Language code: Plot3D[Exp[-(x ^ 2 + y ^ 2)], {x, -2, 2}, {y, -2, 2}, Mesh -> None]//normalsShow
Wolfram Language code: ParametricPlot3D[{Cos[ϕ]Sin[θ], Sin[ϕ]Sin[θ], Cos[θ]}, {θ, 0, Pi}, {ϕ, 0, 2Pi}, Mesh -> None, PlotRange -> 1.3]//normalsShow

Vary the effective normals used on the surface:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, Mesh -> None, NormalsFunction -> Function[{x, y, z}, RandomReal[{0, 1}, {3}]]]

A shaded mesh line object with data from ExampleData:

Wolfram Language code: ExampleData[{"Geometry3D", "Beethoven"}] /. Polygon[pts_] :> Line[pts, VertexNormals -> Automatic]

Possible Issues  (1)

Normals in opposite directions may cause unwanted banding effects in some 3D renderers:

Wolfram Language code: {p1, p2, p3} = {{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}; n = Cross[p2 - p1, p3 - p1]; Style[Graphics3D[{Yellow, Polygon[{p1, p2, p3}, VertexNormals -> {-n, n, n}]}], RenderingOptions -> {"3DRenderingEngine" -> "Metal"}]
