VertexColors

VertexColors

is an option for graphics primitives which specifies the colors to assign to vertices.

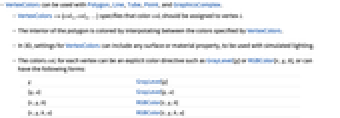

Details

Examples

open all close all

Basic Examples  (3)

Make a multicolored shape:

Wolfram Language code: Graphics[Polygon[{{0, 0}, {0, 1}, {1, 1}, {1, 0}}, VertexColors -> {Blue, Green, Brown, Purple}]]

Make a multicolored 3D shape:

Wolfram Language code: Graphics3D[{Polygon[{{0, 0, 0}, {1, 1, 0}, {0, 1, 1}}, VertexColors -> {Blue, Yellow, Orange}]}]

Make a multicolored line:

Wolfram Language code: Graphics[{Thick, Line[{{0, 0}, {1, 1}, {2, 0}}, VertexColors -> {StandardRed, StandardYellow, StandardGreen}]}]

Scope  (17)

Graphics Objects  (5)

Polygon:

Wolfram Language code: Graphics[Polygon[{{-1, 0}, {1, 0}, {0, Sqrt[3]}}, VertexColors -> {Red, Green, Blue}]]

Multi-polygons:

Wolfram Language code: Graphics[Polygon[{{{-1, 0}, {1, 0}, {0, Sqrt[3]}}, {{2, 0}, {4, 0}, {3, Sqrt[3]}}}, VertexColors -> {{Red, Green, Blue}, {Yellow, Cyan, Magenta}}]]

Line:

Wolfram Language code: Graphics[{Thick, Line[{{0, 0}, {2, 1}}, VertexColors -> {Red, Green}]}]
Wolfram Language code: Graphics[{Thick, Line[{{{0, 0}, {2, 1}}, {{1, 0}, {3, 1}}}, VertexColors -> {{Red, Green}, {Yellow, Blue}}]}]

Multi-points:

Wolfram Language code: Graphics[{PointSize[0.1], Point[{{0, 0}, {1, 1}, {2, 2}}, VertexColors -> {StandardRed, StandardYellow, StandardBlue}]}]

Triangle:

Wolfram Language code: Graphics[{Triangle[{{0, 0}, {0, 1}, {1, 1}}, VertexColors -> {Red, Green, Blue}]}]

Multi-triangles:

Wolfram Language code: Graphics[{Triangle[{{{0, 0}, {0, 1}, {1, 1}}, {{2, 0}, {2, 1}, {3, 1}}}, VertexColors -> {{Red, Green, Blue}, {Yellow, Cyan, Magenta}}]}]

In a GraphicsComplex, colors can be assigned for shared vertices:

Wolfram Language code: Graphics[{GraphicsComplex[{{0, 0}, {1, 0}, {0, 1}, {1, 1}, {.5, .5}}, {Polygon[{1, 2, 5}], Polygon[{3, 4, 5}]}, VertexColors -> {LightRed, DarkRed, LightBlue, DarkBlue, Purple}]}]

Graphics3D primitives and Shapes  (5)

Polygon:

Wolfram Language code: Graphics3D[Polygon[{{0, -1, 0}, {0, 1, 0}, {-1, 0, 1}}, VertexColors -> {Red, Green, Blue}]]

Multi-polygons:

Wolfram Language code: Graphics3D[Polygon[{{{0, -1, 0}, {0, 1, 0}, {-1, 0, 1}}, {{0, -1, 1}, {0, 1, 1}, {-1, 0, 2}}}, VertexColors -> {{Red, Green, Blue}, {Cyan, Magenta, Yellow}}]]

Line:

Wolfram Language code: Graphics3D[{Thick, Line[{{0, 0, 0}, {1, 1, 1}, {2, 2, 1}}, VertexColors -> {Red, Green, Yellow}]}]

Multilines:

Wolfram Language code: Graphics3D[{Thick, Line[{{{0, 0, 0}, {2, 1, 1}}, {{1, 0, 0}, {3, 1, 1}}}, VertexColors -> {{Red, Green}, {Blue, Yellow}}]}]

Tube:

Wolfram Language code: Graphics3D[{Tube[{{0, 0, 0}, {1, 1, 1}, {2, 2, 1}}, 0.1, VertexColors -> {Red, Green, Yellow}]}]

Multi-tubes:

Wolfram Language code: Graphics3D[{Tube[{{{0, 0, 0}, {2, 1, 1}}, {{1, 0, 0}, {3, 1, 1}}}, .2, VertexColors -> {{Red, Green}, {Blue, Yellow}}]}]

Points:

Wolfram Language code: Graphics3D[{PointSize[0.1], Point[{{0, 0, 0}, {1, 1, 1}, {2, 1, 0}}, VertexColors -> {StandardRed, StandardGreen, StandardOrange}]}, PlotRangePadding -> .1]

In a GraphicsComplex, colors can be assigned for shared vertices:

Wolfram Language code: v = {{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}};
Wolfram Language code: i = {{1, 2, 5}, {2, 3, 5}, {3, 4, 5}, {4, 1, 5}};
Wolfram Language code: Graphics3D[{GraphicsComplex[v, Polygon[i], VertexColors -> {Red, Green, Yellow, Blue, Opacity[.8, White]}]}]

Color Specification  (5)

Color directives can have different values for opacity:

Wolfram Language code: Graphics3D[Polygon[{{0, -1, 0}, {0, 1, 0}, {-1, 0, 1}}, VertexColors -> {RGBColor[0, 1, 0, .1], RGBColor[0, 1, 0, .4], RGBColor[0, 1, 0, .9]}]]

Directive can be used to combine a color with Opacity:

Wolfram Language code: Graphics3D[Polygon[{{0, -1, 0}, {0, 1, 0}, {-1, 0, 1}}, VertexColors -> {Red, Green, Directive[Blue, Opacity[.5]]}]]

Color directives representing different color spaces can be mixed:

Wolfram Language code: Graphics[Polygon[{{0, -1}, {0, 1}, {-1, 0}}, VertexColors -> {RGBColor[0, 1, 0], GrayLevel[.2], LABColor[.6, .5, 1]}]]

LightDarkSwitched specifications can be used:

Wolfram Language code: g = Graphics[{Thickness[.1], Line[{{0, 0}, {1, 1}}, VertexColors -> {LightDarkSwitched[LightRed, LightBlue], LightDarkSwitched[DarkRed, DarkBlue]}]}]; {Rasterize[g, LightDark -> "Light"], Rasterize[g, LightDark -> "Dark"]}

Use a raw number list to specify {red,green,blue} instead of RGBColor:

Wolfram Language code: Graphics[{Polygon[{{0, 0}, {0, 1}, {2, 0}}, VertexColors -> {{1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]}]

Similarly, specify {red,green,blue,opacity}:

Wolfram Language code: Graphics[{Polygon[{{0, 0}, {0, 1}, {2, 0}}, VertexColors -> {{1, 0, 0, .1}, {0, 1, 0.9}, {0, 0, 1, .5}}]}]

To specify gray levels, use {gray1,gray2,…}

Wolfram Language code: Graphics[{Polygon[{{0, 0}, {0, 1}, {2, 0}}, VertexColors -> {.1, .9, .4}]}]

Gray level with opacity is specified as {gray,opacity}

Wolfram Language code: Graphics[{Polygon[{{0, 0}, {0, 1}, {2, 0}}, VertexColors -> {{.5, 0}, {.5, 1}, {.5, .5}}]}]

Visualization Functions  (2)

ListPlot3D:

Wolfram Language code: ListPlot3D[{{0, 0, 1}, {1, 0, 0}, {0, 1, 0}}, VertexColors -> {Red, Green, Blue}, Lighting -> "Neutral"]

ListDensityPlot:

Wolfram Language code: ListDensityPlot[{{0, 0, 1}, {1, 0, 0}, {0, 1, 0}}, VertexColors -> {Red, Green, Blue}]

Possible Issues  (2)

Vertex colors specified within segments of a FilledCurve are ignored:

Wolfram Language code: Graphics[{EdgeForm[Thick], Pink, FilledCurve[Line[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexColors -> {Red, Green, Blue, Yellow}]]}]

A VertexColors list that is too short uses the default color for remaining points:

Wolfram Language code: Graphics[{Polygon[{{0, 0}, {1, 1}, {2, 0}}, VertexColors -> {StandardOrange, StandardBlue}]}]

If the default primitive color has been changed by a directive, that will be used:

Wolfram Language code: Graphics[{StandardPurple, Polygon[{{0, 0}, {1, 1}, {2, 0}}, VertexColors -> {StandardOrange, StandardBlue}]}]

Neat Examples  (2)

Create opacity gradients on 3D polygons:

Wolfram Language code: PolyhedronData["GreatRhombicosidodecahedron"] /. Polygon[x_] :> Polygon[x, VertexColors -> Map[Opacity[If[EvenQ[#], 0, 1], White]&, x, {-1}]]

Use an image from ExampleData:

Wolfram Language code: pic = Reverse[ExampleData[{"TestImage", "Sailboat"}, "Data"] / 255.];

Plot the dataset with vertex colors, simulating the texture:

Wolfram Language code: ListPlot3D[Table[x + Sin[x y], {x, -5, 5, .1}, {y, -5, 5, .1}], Mesh -> None, VertexColors -> {pic[[5 ;; -5 ;; 5, 5 ;; -5 ;; 5]]}, Lighting -> "Neutral"]
