VertexOutComponent[g,{v1,v2,…}]

gives the vertices in the graph g that have a directed path from at least one of v1, v2, ….

VertexOutComponent[g,{v1,v2,…},k]

gives the vertices with a directed path from at least one of v1, v2, … of at most length k.

VertexOutComponent[g,{v1,v2,…},{k}]

gives the vertices at length exactly k.

VertexOutComponent[{vw,…},…]

uses rules vw to specify the graph g.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Properties & Relations
See Also
Related Guides
History
Cite this Page

VertexOutComponent

VertexOutComponent[g,{v1,v2,…}]

gives the vertices in the graph g that have a directed path from at least one of v1, v2, ….

VertexOutComponent[g,{v1,v2,…},k]

gives the vertices with a directed path from at least one of v1, v2, … of at most length k.

VertexOutComponent[g,{v1,v2,…},{k}]

gives the vertices at length exactly k.

VertexOutComponent[{vw,…},…]

uses rules vw to specify the graph g.

Details

Examples

open all close all

Basic Examples  (1)

Find the out-component of a vertex:

Wolfram Language code: g = [image];
Wolfram Language code: VertexOutComponent[g, {4}]

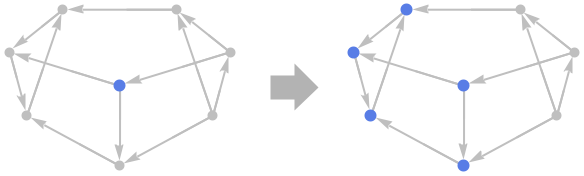

Highlight the out-component of a vertex:

Wolfram Language code: HighlightGraph[g, %]

Scope  (8)

VertexOutComponent works with undirected graphs:

Wolfram Language code: VertexOutComponent[[image], {1}]

Directed graphs:

Wolfram Language code: VertexOutComponent[[image], {3}]

Multigraphs:

Wolfram Language code: VertexOutComponent[[image], {2}]

Mixed graphs:

Wolfram Language code: VertexOutComponent[[image], {2}]

Use rules to specify the graph:

Wolfram Language code: VertexOutComponent[{1 -> 2, 1 -> 5, 2 -> 3, 3 -> 4, 4 -> 5, 6 -> 3, 4 -> 6}, {3}]

Use patterns to select a subset of vertices:

Wolfram Language code: VertexOutComponent[[image], _ ? EvenQ]

Find the out-component connected to a vertex by a path of at most length 2 in a graph:

Wolfram Language code: VertexOutComponent[[image], 3, 2]

VertexOutComponent works with large graphs:

Wolfram Language code: g = GridGraph[{10, 10, 10, 10}];
Wolfram Language code: VertexOutComponent[g, {1}] //Length// Timing

Properties & Relations  (1)

Use VertexInComponent to find the in-component for directed graphs:

Wolfram Language code: VertexInComponent[[image], {6}]
