ViewAngle

ViewAngle

is an option for Graphics3D and related functions that gives the opening angle for a simulated camera used to view the three-dimensional scene.

Details

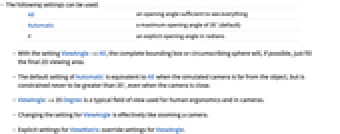

  • The following settings can be used:
  • Allan opening angle sufficient to see everything
    Automatica maximum opening angle of 35^◦ (default)
    θan explicit opening angle in radians
  • With the setting ViewAngle->All, the complete bounding box or circumscribing sphere will, if possible, just fill the final 2D viewing area.
  • The default setting of Automatic is equivalent to All when the simulated camera is far from the object, but is constrained never to be greater than 35^◦, even when the camera is close.
  • ViewAngle->35Degree is a typical field of view used for human ergonomics and in cameras.
  • Changing the setting for ViewAngle is effectively like zooming a camera.
  • Explicit settings for ViewMatrix override settings for ViewAngle.

Examples

open all close all

Basic Examples  (2)

Use a specific angle for a simulated camera:

Wolfram Language code: Table[Graphics3D[Cylinder[], ViewAngle -> d °], {d, {20, 35, 50}}]

The default 35° angle may not be enough for the particular ViewVector setting:

Wolfram Language code: Framed[Graphics3D[{Cylinder[], Sphere[{4, 0, 0}]}, ViewVector -> {{4, -6, 0}, {2, 0, 0}}, ViewAngle -> Automatic, SphericalRegion -> True]]

Choose the angle automatically, so that the view includes all the objects:

Wolfram Language code: Graphics3D[{Cylinder[], Sphere[{4, 0, 0}]}, ViewVector -> {{4, -6, 0}, {2, 0, 0}}, ViewAngle -> All]

Applications  (1)

Illustrate the relation between ViewAngle and the simulated camera view:

Wolfram Language code: cone[y_, θ_] := With[{r = Abs[y]Tan[θ / 2]}, Show[ParametricPlot3D[r{Cos[t], 0, Sin[t]}, {t, 0, 2Pi}, PlotStyle -> Red, Axes -> False], Graphics3D[{Red, PointSize[Large], Point[{0, y, 0}], Line[{{{0, y, 0}, {r, 0, 0}}, {{0, y, 0}, {-r, 0, 0}}}]}]]]
Wolfram Language code: Animate[Row[{Show[cone[-3, θ], Graphics3D[{Sphere[], Cuboid[], FaceForm[], EdgeForm[StandardGray], Cuboid[{-1, -1, -1}, {1, 1, 1}]}], PlotRange -> 3, BoxStyle -> Gray], Graphics3D[{Sphere[], Cuboid[]}, ViewVector -> {0, -3, 0}, ViewAngle -> θ]}], {θ, Pi / 4, Pi / 2}, SaveDefinitions -> True, AnimationRunning -> False, AnimationDirection -> ForwardBackward]
