ViewMatrix

ViewMatrix

is an option for Graphics3D and related functions that can be used to specify a pair of explicit homogeneous transformation and projection matrices for 3D coordinates.

Details

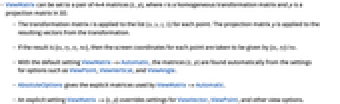

  • ViewMatrix can be set to a pair of 4×4 matrices {t,p}, where t is a homogeneous transformation matrix and p is a projection matrix in 3D.
  • The transformation matrix t is applied to the list {x,y,z,1} for each point. The projection matrix p is applied to the resulting vectors from the transformation.
  • If the result is {tx,ty,tz,tw}, then the screen coordinates for each point are taken to be given by {tx,ty}/tw.
  • With the default setting ViewMatrix->Automatic, the matrices {t,p} are found automatically from the settings for options such as ViewPoint, ViewVertical, and ViewAngle.
  • AbsoluteOptions gives the explicit matrices used by ViewMatrix->Automatic.
  • An explicit setting ViewMatrix->{t,p} overrides settings for ViewVector, ViewPoint, and other view options.

Examples

open all close all

Basic Examples  (2)

Define a rescaling transform t:

Wolfram Language code: t = TransformationMatrix[RescalingTransform[{{-2, 2}, {-2, 2}, {-3 / 2, 5 / 2}}]]

Define an orthographic projection p from the front:

Wolfram Language code: p = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}};

Display a 3D object using the orthographic view:

Wolfram Language code: Graphics3D[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1]}, ViewMatrix -> {t, p}, Boxed -> False, Lighting -> {{"Directional", White, {0, -2, 0}}}]

Define a transform t that rotates an object 45° around and axes, then rescales it:

Wolfram Language code: t = TransformationMatrix[RescalingTransform[{{-2, 2}, {-2, 2}, {-2, 2}}].RotationTransform[Pi / 4, {1, 0, 0}].RotationTransform[-Pi / 4, {0, 0, 1}]]

Define an orthographic projection p from the negative direction:

Wolfram Language code: p = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}};

Display a 3D object using the orthographic view:

Wolfram Language code: Graphics3D[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1]}, ViewMatrix -> {t, p}, Boxed -> False, Lighting -> {{"Directional", White, {0, -2, 0}}}]

Scope  (2)

Transformation matrices with different rotation angles around the axis:

Wolfram Language code: t[a_] := TransformationMatrix[RescalingTransform[{{-2, 2}, {-2, 2}, {-2, 2}}].RotationTransform[a, {1, 0, 0}]]
Wolfram Language code: p = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}};
Wolfram Language code: Table[Graphics3D[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1]}, ViewMatrix -> {t[a], p}, Boxed -> False, Lighting -> {{"Directional", White, {{0, -2, 0}, {0, 0, 0}}}}], {a, {0, Pi / 6, Pi / 4, Pi / 3}}]

Orthographic projections from different sides:

Wolfram Language code: t = TransformationMatrix[RescalingTransform[{{-2, 2}, {-2, 2}, {-2, 2}}]];
Wolfram Language code: p1 = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}}; p2 = {{1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, -1, 0}, {0, 0, 0, 1}}; p3 = {{0, 1, 0, 0}, {0, 0, 1, 0}, {-1, 0, 0, 0}, {0, 0, 0, 1}};
Wolfram Language code: Table[Graphics3D[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1 / 2], Cylinder[{{1, 0, 0}, {3 / 2, 0, 0}}, 1 / 2]}, ViewMatrix -> {t, p}, Boxed -> False, Lighting -> {{"Directional", White, {{2, -2, 0}, {0, 0, 0}}}}], {p, {p1, p2, p3}}]

Applications  (1)

Oblique Projection  (1)

Draw a simple 3D bar chart:

Wolfram Language code: g = BarChart3D[{1, 2, 3, 4, 5}, ColorFunction -> "Rainbow", Method -> {"Canvas" -> None}, Axes -> False, Boxed -> False, FaceGrids -> None]

Define a rescaling transform matrix that rescales the bar charts into a unit cube:

Wolfram Language code: tr = TransformationMatrix[RescalingTransform[{{-2, 7.5}, {0, 1}, {-2, 7}}]];

Define an orthographic view matrix from the front:

Wolfram Language code: p = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}};

Define an oblique projection matrix with an angle t and a scaling factor s:

Wolfram Language code: oblique[t_, s_] := {{1, 0, s Cos[t], 0}, {0, 1, s Sin[t], 0}, {0, 0, 1, 0}, {0, 0, 0, 1}};

Display the projected bar chart:

Wolfram Language code: Manipulate[Show[g, ViewMatrix -> {tr, oblique[t, s].p}], {{t, Pi / 4}, -Pi, Pi}, {{s, 1 / 10}, 0, 1 / 5}, SaveDefinitions -> True]

Properties & Relations  (1)

Define a transformation function with rotations and rescaling:

Wolfram Language code: tf = RescalingTransform[{{-2, 2}, {-2, 2}, {-2, 2}}].RotationTransform[Pi / 4, {1, 0, 0}].RotationTransform[-Pi / 4, {0, 0, 1}]

Define an orthographic projection matrix from the front:

Wolfram Language code: p = {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}};

Show the orthographic view with lighting from the front to the center, using ViewMatrix:

Wolfram Language code: Graphics3D[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1]}, ViewMatrix -> {TransformationMatrix[tf], p}, Boxed -> False, Lighting -> {{"Directional", White, {{0, -2, 0}, {0, 0, 0}}}}]

The same result can be achieved by using an explicit ViewPoint and transforming 3D objects and lighting:

Wolfram Language code: Graphics3D[GeometricTransformation[{Cuboid[{-1, -1, -1}, {1, 1, 1}], Sphere[{0, 0, 1}, 1]}, tf], ViewPoint -> {0, -Infinity, 0}, PlotRange -> {{0, 1}, {0, 1}, {0, 1}}, Boxed -> False, Lighting -> {{"Directional", White, tf[{0, -2, 0}]}}]
