FCS (.fcs, .lmd)

  • Import supports most popular variants of the FCS file format, including Versions 2.0, 3.0, and 3.1 with events stored as 8-, 16-, 24-, 32-, 64-, and 128-bit integers or 32- and 64-bit reals.
  • Export generates FCS3.1 files.

Background & Context

    • FCS molecular biology format.
    • Standard format for storing and exchanging flow cytometry data.
    • Mixed ASCII/binary format.
    • Stores signal intensities for cell events as an array.
    • Metainformation about the data acquisition is stored in the file.

Import & Export

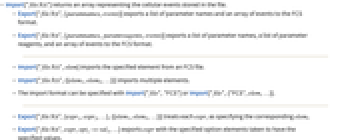

  • Import["file.fcs"] returns an array representing the cellular events stored in the file.
  • Export["file.fcs",{paramnames,events}] exports a list of parameter names and an array of events to the FCS format.
  • Export["file.fcs",{paramnames,paramreagents,events}] exports a list of parameter names, a list of parameter reagents, and an array of events to the FCS format.
  • Import["file.fcs",elem] imports the specified element from an FCS file.
  • Import["file.fcs",{{elem1,elem2,…}}] imports multiple elements.
  • The import format can be specified with Import["file","FCS"] or Import["file",{"FCS",elem,…}].
  • Export["file.fcs",{expr1,expr2,…},{{elem1,elem2,…}}] treats each expri as specifying the corresponding elemi.
  • Export["file.fcs",expr,opt1->val1,…] exports expr with the specified option elements taken to have the specified values.
  • Export["file.fcs",{elem1->expr1,elem2->expr2,…},"Rules"] uses rules to specify the elements to be exported.
  • See the following reference pages for full general information:
  • Import, Exportimport from or export to a file
    CloudImport, CloudExportimport from or export to a cloud object
    ImportString, ExportStringimport from or export to a string
    ImportByteArray, ExportByteArrayimport from or export to a byte array

Import Elements

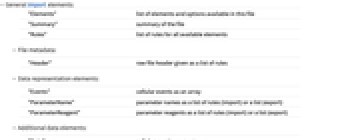

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • File metadata:
  • "Header"raw file header given as a list of rules
  • Data representation elements:
  • "Events"cellular events as an array
    "ParameterName"parameter names as a list of rules (import) or a list (export)
    "ParameterReagent"parameter reagents as a list of rules (import) or a list (export)
  • Additional data elements:
  • "Data"cellular events as an array
    "LabeledData"list of rules for data stored in the file
  • Import uses the "Events" element by default for the FCS format.
  • Export requires at least a list of parameter names and an array of events.
  • Export can optionally take a list of parameter reagents. All other optional keys must be specified via the "OptionalKeys" option.

Options

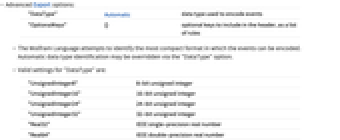

  • Advanced Export options:
  • "DataType"Automaticdata type used to encode events
    "OptionalKeys"{}optional keys to include in the header, as a list of rules
  • The Wolfram Language attempts to identify the most compact format in which the events can be encoded. Automatic data type identification may be overridden via the "DataType" option.
  • Valid settings for "DataType" are:
  • "UnsignedInteger8"8-bit unsigned integer
    "UnsignedInteger16"16-bit unsigned integer
    "UnsignedInteger24"24-bit unsigned integer
    "UnsignedInteger32"32-bit unsigned integer
    "Real32"IEEE single-precision real number
    "Real64"IEEE double-precision real number
  • The Wolfram Language will automatically overwrite certain protected keys (such as "$BEGINDATA" and "$BYTEORD") that are specified in "OptionalKeys". Thus, if you are re-exporting an imported FCS file, you may directly set "OptionalKeys" to the value of the "Header" element from the imported FCS file. Parameter reagents ("$PnS" keys) will be removed from "OptionalKeys" only if parameter reagents are provided in the main Export expression.

Examples

open all close all

Basic Examples  (7)

Read the file header from a sample FCS file:

Wolfram Language code: Import["ExampleData/5k.fcs", {"FCS", "Header"}]//Short[#, 3]&

Read the parameter names and reagents:

Wolfram Language code: Import["ExampleData/5k.fcs", {"FCS", {"ParameterReagent", "ParameterName"}}]

Read events and display the first several in a table:

Wolfram Language code: {events, params} = Import["ExampleData/5k.fcs", {"FCS", {"Events", "ParameterName"}}]; TableForm[Transpose[events[[ ;; 5]]], TableHeadings -> {params[[All, 2]], None}]

Export an array of event values with parameter names:

Wolfram Language code: ExportString[{{"FSC-A", "SSC-A"}, {{1, 2}, {1, 2}, {1, 3}, {1, 4}, {1, 5}}}, "FCS"]

Specify a data type to use when exporting:

Wolfram Language code: ExportString[{{"FSC-A", "SSC-A"}, {{1, 2}, {1, 2}, {1, 3}, {1, 4}, {1, 5}}}, "FCS", "DataType" -> "UnsignedInteger16"]

Export an array of event values with parameter names and parameter reagents:

Wolfram Language code: ExportString[{{"FSC-A", "SSC-A"}, {"P1", "P2"}, {{1, 2}, {1, 2}, {1, 3}, {1, 4}, {1, 5}}}, "FCS"]

Export a version of a data file with the same header, but with a small subset of the events:

Wolfram Language code: {pns, evs, head} = Import["ExampleData/5k.fcs", {"FCS", {"ParameterName", "Events", "Header"}}];
Wolfram Language code: ExportString[{"ParameterName" -> pns[[All, 2]], "Events" -> evs[[ ;; 5]]}, "FCS", "OptionalKeys" -> head]

Scope  (6)

Plot the untransformed events in a density histogram:

Wolfram Language code: events = Import["ExampleData/5k.fcs", {"FCS", "Events"}]; DensityHistogram[events[[All, {2, 1}]], 100, AspectRatio -> 1, AxesOrigin -> {-200, -200}, PlotRange -> Full, FrameLabel -> {"FSC-W", "FSC-A"}]

Plot the events with axes transformed by ArcSinh as a shaded contour plot:

Wolfram Language code: events = Import["ExampleData/5k.fcs", {"FCS", "Events"}]; ticks = {ArcSinh[# / 150], #, Scaled[0.00005]}& /@ {1, 10, 100, 1000, 10000, 100000}; scaling = {ArcSinh[# / 150]&, 150Sinh[#]&}; range = {ArcSinh[-200 / 150], ArcSinh[10000 / 150]};
Wolfram Language code: SmoothDensityHistogram[ ArcSinh[# / 150]& /@ events[[ ;; 5000, {6, 9}]], ColorFunction -> ColorData["Rainbow"], Mesh -> 10, FrameTicks -> {{ticks, None}, {ticks, None}}, RegionFunction -> (#3 > 0.01&), ScalingFunctions -> scaling, PlotRange -> {range, range}, FrameLabel -> Text /@ Style /@ {"B220", "CD90"}]

Use FindClusters to automatically detect similar groups of cells:

Wolfram Language code: events = Import["ExampleData/5k.fcs", {"FCS", "Events"}]; xticks = Join[ (*Major labeled ticks*) {ArcSinh[# / 150], #}& /@ (10 ^ Range[Log10[1], Log10[100000]]), -{ArcSinh[# / 150], #}& /@ (10 ^ Range[Log10[1], Log10[100000]]), (*Minor unlabeled ticks*) {ArcSinh[# / 150], ""}& /@ Flatten@Outer[Times, 10 ^ Range[0, 4], Join[Range[-9, -1], Range[9]]] ]; ListPlot[FindClusters[ArcSinh[# / 150]& /@ events[[All, {6, 9}]], 3], AspectRatio -> 1, AxesOrigin -> {ArcSinh[-200 / 150], ArcSinh[-200 / 150]}, PlotRange -> Full, AxesLabel -> {Text@Style@"B220", Text@Style@"CD90"}, Ticks -> {xticks, xticks}]

Create a grid of 25 of the possible biaxial plots:

Wolfram Language code: {params, events} = Import["ExampleData/5k.fcs", {"FCS", {"ParameterReagent", "Events"}}];
Wolfram Language code: (*Global plot range*) pr = Round[ArcSinh[# / 150]& /@ {Min[events[[All, 4 ;; 8]]], Max[events[[All, 4 ;; 8]]]}, 0.25]; labels = Text[Style[#]]& /@ params[[4 ;; 8, 2]]; Grid[ Join[Partition[{Null}~Join~(Rotate[#, π / 2]& /@ labels), 1], Join[{labels}, Table[ListPlot[ArcSinh[# / 150]& /@ events[[All, {y, x}]], AspectRatio -> 1, ImageSize -> {80, 80}, FrameTicks -> None, Frame -> True, PlotRange -> {pr, pr}, AxesOrigin -> {-0.5, -0.5}], {x, 4, 8}, {y, 4, 8}]], 2]]

Perform polygon gating of cell populations:

Wolfram Language code: {strings, params, events} = Import["ExampleData/5k.fcs", {"FCS", {"ParameterReagent", "ParameterName", "Events"}}];
Wolfram Language code: (*Ray casting algorithm*) PointInPolygonQ[{x_, y_}, poly_] := PointInPolygonQi[x, y, poly]; PointInPolygonQi = Compile[{{ptx, _Real}, {pty, _Real}, {poly, _Real, 2}}, Module[{i, j, c = False, vertx, verty}, {vertx, verty} = Transpose@poly; For[i = 1;j = Length[vertx], i ≤ Length[vertx], j = i++, If[(((verty[[i]] > pty) ≠ (verty[[j]] > pty)) && (ptx < (vertx[[j]] - vertx[[i]]) * (pty - verty[[i]]) / (verty[[j]] - verty[[i]]) + vertx[[i]])), c = !c]; ]; Return[c] ]];
Wolfram Language code: (*Use reagent names when available*) params = Table[strings[[i, 2]] /. " " -> params[[i, 2]], {i, Length@strings}];
Wolfram Language code: is = ImageSize -> {300, 300}; twoDopts = {PlotRange -> {{-.5, 7}, {-.5, 7}}, is, AspectRatio -> 1, AxesOrigin -> {-0.5, -0.5}}; Manipulate[ Column[ { Labeled[Overlay[{ ListPlot[Map[ArcSinh[# / 150]&, events[[All, {Position[params, x1][[1, 1]], Position[params, y1][[1, 1]]}]], {2}], twoDopts ], Graphics[{EdgeForm[Thick], Opacity[0.5], Red, Polygon[pt]}, Frame -> True, twoDopts] (*Note that we're showing the frame, ticks and labels for both parts of the overlay to provide visual verification that they're overlaid properly*) }, is], {x1, y1}, {Bottom, Left}, RotateLabel -> True], subpop = Pick[events[[All, {Position[params, x2][[1, 1]], Position[params, y2][[1, 1]]}]], Map[PointInPolygonQ[#, pt]&, Map[ArcSinh[# / 150]&, events[[All, {Position[params, x1][[1, 1]], Position[params, y1][[1, 1]]}]], {2}]]]; If[SecondDisplay == "2D", If[Length@subpop > 0, Labeled[ ListPlot[Map[ArcSinh[# / 150]&, subpop, {2}], twoDopts], {x2, y2}, {Bottom, Left}, RotateLabel -> True], Graphics[{White, Rectangle[]}, is]], Labeled[SmoothHistogram[Map[ArcSinh[# / 150]&, subpop[[All, 1]]], AspectRatio -> 1, is], x2, Bottom] ] } ] , {{pt, {{-.25, 1.55}, {-.25, 3.25}, {0.5, 3.75}, {1.1, 3.25}, {1.1, 1.75}, {.5, 1.5}}}, Locator, LocatorAutoCreate -> True}, {{x1, params[[6]]}, params, ControlType -> PopupMenu}, {{y1, params[[9]]}, params, ControlType -> PopupMenu}, {{x2, params[[11]]}, params, ControlType -> PopupMenu}, {{y2, params[[7]]}, params, ControlType -> PopupMenu}, {{SecondDisplay, "1D", "Secondary Plot Type"}, {"2D", "1D"}}, ControlPlacement -> {Automatic, Top, Top, Bottom, Bottom, Bottom}, SaveDefinitions -> True ]

The FCS standard does not support negative integers:

Wolfram Language code: ExportString[{"ParameterName" -> {"FSC-A", "SSC-A"}, "Events" -> {{1, -2}, {1, 2}, {1, 3}, {1, 4}, {1, 5}}}, "FCS"]

Alternatively, export negative integers as reals:

Wolfram Language code: ExportString[{"ParameterName" -> {"FSC-A", "SSC-A"}, "Events" -> {{1, -2}, {1, 2}, {1, 3}, {1, 4}, {1, 5}}}, "FCS", "DataType" -> "Real32"]
