"Class" (Net Decoder)

NetDecoder["Class"]

represents a decoder that interprets a vector as class probabilities.

NetDecoder[{"Class",{c1,c2,…}}]

represents a decoder with class labels ci.

Details

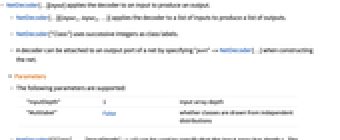

  • NetDecoder[…][input] applies the decoder to an input to produce an output.
  • NetDecoder[…][{input1,input2,…}] applies the decoder to a list of inputs to produce a list of outputs.
  • NetDecoder["Class"] uses successive integers as class labels.
  • A decoder can be attached to an output port of a net by specifying "port"->NetDecoder[…] when constructing the net.
    • Parameters
  • The following parameters are supported:
  • "InputDepth"1input array depth
    "Multilabel"Falsewhether classes are drawn from independent distributions

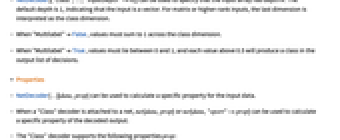

  • NetDecoder[{"Class",…,"InputDepth"->n}] can be used to specify that the input array has depth n. The default depth is 1, indicating that the input is a vector. For matrix or higher-rank inputs, the last dimension is interpreted as the class dimension.
  • When "Multilabel"False, values must sum to 1 across the class dimension.
  • When "Multilabel"True, values must lie between 0 and 1, and each value above 0.5 will produce a class in the output list of decisions.
    • Properties
  • NetDecoder[…][data,prop] can be used to calculate a specific property for the input data.
  • When a "Class" decoder is attached to a net, net[data,prop] or net[data,"oport"->prop] can be used to calculate a specific property of the decoded output.
  • The "Class" decoder supports the following properties prop:
  • "Decision"the class ci with the highest probability (default)
    "TopDecisions"nthe n classes with the highest probabilities
    "TopProbabilities"probabilities for the most likely ci, returned as a list of rules
    "TopProbabilities"nprobabilities for the n most likely ci
    "Probabilities"the association <|c1->p1,c2->p2,…|>
    "Probability"ciprobability for a specific ci
    "Entropy"the entropy of the probability distribution
    "RandomSample"sample each class proportionally to its probability
    "RandomSample"tsample using a positive temperature t
    "RandomSample"{param1val1,…}random sampling with specific behavior
    Nonebypass decoding and return the input
  • Possible setting for parami in "RandomSample"{param1val1,…} include:
  • "Temperature"tsample using a positive temperature t
    "TotalProbabilityCutoff"psample among the most probable classes with an accumulated probability of at least p (nucleus sampling)
    "TopProbabilities"ksample only among the k highest-probability classes

Examples

open all close all

Basic Examples  (1)

Create a class decoder:

Wolfram Language code: dec = NetDecoder[{"Class", {"a", "b", "c"}}]

Use the decoder on a probability vector to return the most probable class:

Wolfram Language code: dec[{0.1, 0.5, .4}]

Obtain the probability of getting each class:

Wolfram Language code: dec[{0.1, 0.5, .4}, "Probabilities"]

Scope  (3)

Decoders are most commonly used by attaching them to the output of a net:

Wolfram Language code: net = SoftmaxLayer["Output" -> NetDecoder[{"Class", {a, b, c}}]]

This allows the net to return a class label:

Wolfram Language code: net[{3, 4, 5}]

Create and attach a class decoder that uses successive integers as class labels:

Wolfram Language code: net = SoftmaxLayer["Output" -> NetDecoder["Class"]]
Wolfram Language code: net[{1, 2, 4, 0}]

Create a class decoder:

Wolfram Language code: dec = NetDecoder[{"Class", {a, b, c}}]

Use it on a probability vector to make a class prediction:

Wolfram Language code: dec[{0.1, 0.5, .4}]

Return the top two predictions:

Wolfram Language code: dec[{0.1, 0.5, 0.4}, "TopDecisions" -> 2]

Return the probabilities for all classes:

Wolfram Language code: dec[{0.1, 0.5, 0.4}, "Probabilities"]

Return the entropy of the distribution:

Wolfram Language code: dec[{0.1, 0.5, 0.4}, "Entropy"]

Return the entropy on a batch of inputs:

Wolfram Language code: dec[{{0.1, 0.8, 0.1}, {0.3, 0.4, 0.3}}, "Entropy"]

Sample a class according to the probabilities:

Wolfram Language code: dec[{0.1, 0.5, 0.4}, "RandomSample"]

Parameters  (2)

"InputDepth"  (1)

Create a class decoder that expects a matrix:

Wolfram Language code: dec = NetDecoder[{"Class", {a, b, c}, "InputDepth" -> 2}]

Apply the decoder to a matrix whose rows are probability vectors:

Wolfram Language code: dec[{{0.1, 0.8, 0.1}, {0.6, 0.3, 0.1}}]

Obtain the probabilities for each class:

Wolfram Language code: dec[{{0.1, 0.8, 0.1}, {0.6, 0.3, 0.1}}, "Probabilities"]

Attach the decoder to a net and apply it to an input:

Wolfram Language code: net = NetInitialize@NetChain[{LinearLayer[{2, 3}], SoftmaxLayer[]}, "Input" -> "Real", "Output" -> dec]
Wolfram Language code: net[9.2]

"Multilabel"  (1)

Create a multilabel class decoder:

Wolfram Language code: dec = NetDecoder[{"Class", {a, b, c}, "Multilabel" -> True}]

Apply the decoder to a vector of independent probabilities:

Wolfram Language code: dec[{0.1, 0.7, 0.6}]

Obtain the probabilities for each class:

Wolfram Language code: dec[{0.1, 0.7, 0.6}, "Probabilities"]

Obtain the entropy for each class:

Wolfram Language code: dec[{0.1, 0.7, 0.6}, "Entropy"]

Sample a list of classes according to the probabilities:

Wolfram Language code: dec[{0.1, 0.7, 0.6}, "RandomSample"]
