BSplineBasis

BSplineBasis[d,x]

gives the zeroth uniform B-spline basis function of degree d at x.

BSplineBasis[d,n,x]

gives the n^(th) uniform B-spline basis function of degree d.

BSplineBasis[{d,{u1,u2,…}},n,x]

gives the n^(th) non-uniform B-spline basis function of degree d with knots at positions ui.

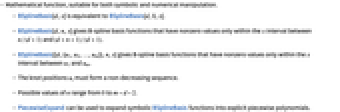

Details

  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • BSplineBasis[d,x] is equivalent to BSplineBasis[d,0,x].
  • BSplineBasis[d,n,x] gives B-spline basis functions that have nonzero values only within the x interval between and .
  • BSplineBasis[{d,{u1,u2,…,um}},n,x] gives B-spline basis functions that have nonzero values only within the x interval between u1 and um.
  • The knot positions ui must form a non-decreasing sequence.
  • Possible values of n range from 0 to m-d-2.
  • PiecewiseExpand can be used to expand symbolic BSplineBasis functions into explicit piecewise polynomials.

Examples

open all close all

Basic Examples  (4)

Evaluate a uniform cubic B-spline basis numerically:

Wolfram Language code: BSplineBasis[3, 0.5]

Plot it:

Wolfram Language code: Plot[BSplineBasis[3, x], {x, 0, 1}]

Evaluate the second cubic B-spline basis with given knots:

Wolfram Language code: knots = {0, 0, 0, 0, 1 / 3, 2 / 3, 1, 1, 1, 1};
Wolfram Language code: BSplineBasis[{3, knots}, 2, 0.5]

Plot all the cubic basis functions with given knots:

Wolfram Language code: Plot[Evaluate[Table[BSplineBasis[{3, knots}, i, x], {i, 0, 5}]], {x, 0, 1}]

Symbolic derivative of B-spline basis:

Wolfram Language code: knots = {0, 0, 0, 1 / 3, 2 / 3, 1, 1, 1};
Wolfram Language code: D[BSplineBasis[{2, knots}, 2, x], {x, 1}]

Plot of the derivatives:

Wolfram Language code: Table[Plot[Evaluate[D[BSplineBasis[{2, knots}, 2, x], {x, i}]], {x, 0, 1}], {i, 0, 2}]

Scope  (1)

TraditionalForm formatting:

Wolfram Language code: BSplineBasis[{3, {0, 0, 0, 0, 1 / 3, 2 / 3, 1, 1, 1, 1}}, 1, x]//TraditionalForm
Wolfram Language code: InputForm[%]

Properties & Relations  (3)

The nonzero part of a B-spline basis function is given by the range of knots:

Wolfram Language code: k1 = {0, 0, 0, 0, 1 / 3, 2 / 3, 1, 1, 1, 1}; k2 = 2 k1; k3 = k1 + 1;
Wolfram Language code: Table[Plot[BSplineBasis[{3, k}, 2, x], {x, 0, 2}, PlotRange -> {0, 1}, PlotLabel -> Style[k, Small]], {k, {k1, k2, k3}}]
Wolfram Language code: Table[Plot3D[BSplineBasis[{3, k}, 2, x]BSplineBasis[{3, k}, 2, y], {x, 0, 2}, {y, 0, 2}, PlotRange -> {0, 1 / 2}, Mesh -> None, Boxed -> False], {k, {k1, k2, k3}}]

The sum of all B-spline bases at points within the support is always one:

Wolfram Language code: knots = {0, 0, 0, 0, 1 / 3, 2 / 3, 1, 1, 1, 1};
Wolfram Language code: Plot[Evaluate[Sum[BSplineBasis[{3, knots}, i, x], {i, 0, 5}]], {x, 0, 1}, Axes -> False, Frame -> True]

At most, d+1 basis functions contribute to the sum where d is the degree:

Wolfram Language code: Plot[Evaluate[Table[BSplineBasis[{3, knots}, i, x], {i, 0, 5}]], {x, 0, 1}]

BSplineBasis can be used to build up BSplineCurve:

Wolfram Language code: knots = {0, 0, 0, 1 / 4, 1 / 2, 3 / 4, 1, 1, 1};
Wolfram Language code: pts = {{0, -1}, {1, 1}, {2, -1}, {3, -1}, {4, 1}, {5, -1}};
Wolfram Language code: f[t_] := Sum[pts[[i + 1]]BSplineBasis[{2, knots}, i, t], {i, 0, 5}]
Wolfram Language code: {ParametricPlot[f[t], {t, 0, 1}, Frame -> True, Axes -> False, PlotRange -> {All, {-1, 1}}], Graphics[BSplineCurve[pts, SplineDegree -> 2], Frame -> True]}
