BilateralZTransform

BilateralZTransform[expr,n,z]

gives the bilateral Z transform of expr.

BilateralZTransform[expr,{n1,…,nk},{z1,…,zk}]

gives the multidimensional bilateral Z transform of expr.

Details and Options

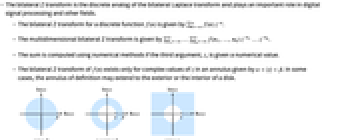

  • The bilateral Z transform is the discrete analog of the bilateral Laplace transform and plays an important role in digital signal processing and other fields.
  • The bilateral Z transform for a discrete function is given by .
  • The multidimensional bilateral Z transform is given by .
  • The sum is computed using numerical methods if the third argument, z, is given a numerical value.

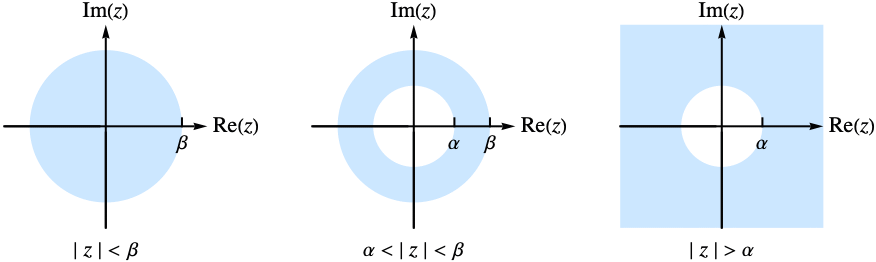

  • The bilateral Z transform of exists only for complex values of in an annulus given by alpha<TemplateBox[{z}, Abs]<beta. In some cases, the annulus of definition may extend to the exterior or the interior of a disk.
  • The following options can be given:
  • AccuracyGoalAutomaticdigits of absolute accuracy sought
    Assumptions $Assumptionsassumptions to make about parameters
    GenerateConditions Truewhether to generate answers that involve conditions on parameters
    MethodAutomaticmethod to use
    PerformanceGoal$PerformanceGoalaspects of performance to optimize
    PrecisionGoalAutomaticdigits of precision sought
    WorkingPrecision Automaticthe precision used in internal computations

Examples

open all close all

Basic Examples  (2)

Define an exponentially decaying sequence:

Wolfram Language code: x[n_] := 2^-Abs[n]

Compute its bilateral Z transform:

Wolfram Language code: BilateralZTransform[x[n], n, z]

Compute the transform at a single point:

Wolfram Language code: BilateralZTransform[x[n], n, 1.2]

Compute the bilateral Z transform of a multivariate function:

Wolfram Language code: BilateralZTransform[UnitStep[n]UnitStep[-m], {n, m}, {z, w}]

Scope  (8)

Bilateral Z transform of the UnitStep function:

Wolfram Language code: BilateralZTransform[UnitStep[n], n, z]

Discrete power function:

Wolfram Language code: BilateralZTransform[5^-nUnitStep[-n - 1], n, z]

Combination of power functions:

Wolfram Language code: x[n_] := 25(1 / 3)^nUnitStep[n] - (1 / 2)^nUnitStep[n + 5]
Wolfram Language code: DiscretePlot[x[n], {n, -10, 10}, PlotRange -> All]
Wolfram Language code: BilateralZTransform[x[n], n, z]
Wolfram Language code: ComplexPlot[%, {z, -1 - I, 1 + I}, Rule[...]]

DiscreteDelta:

Wolfram Language code: {BilateralZTransform[DiscreteDelta[n], n, z], BilateralZTransform[DiscreteDelta[n - 1], n, z], BilateralZTransform[DiscreteDelta[n + 1], n, z]}

Discrete-time, finite support function:

Wolfram Language code: x[n_] := Piecewise[{{a^n, -4 ≤ n ≤ 4}}]
Wolfram Language code: BilateralZTransform[x[n], n, z]

Trigonometric sequence:

Wolfram Language code: BilateralZTransform[2^nSin[n 5 Pi / 3]UnitStep[n], n, z]
Wolfram Language code: ComplexPlot[%, {z, -3 - 3I, 3 + 3I}, Rule[...]]

Calculate the bilateral Z transform at a single point:

Wolfram Language code: BilateralZTransform[n 2^-Abs[n], n, -0.6]

Alternatively, calculate the transform symbolically:

Wolfram Language code: BilateralZTransform[n 2^-Abs[n], n, z]

Then evaluate it for a specific value of :

Wolfram Language code: % /.  z -> -0.6

For some functions, the bilateral Z transform can be evaluated only numerically:

Wolfram Language code: F[z_ ? NumericQ] := BilateralZTransform[(Exp[-n^2]/Cos[n]^2 + 1), n, z]
Wolfram Language code: F[3.4]

Plot the bilateral Z transform using numerical values only:

Wolfram Language code: DiscretePlot[F[k / 100.], {k, -150, 150}, PlotRange -> {-1, 5}]

Options  (3)

Assumptions  (1)

Specify the range for a parameter using Assumptions:

Wolfram Language code: BilateralZTransform[2^k * Abs[n], n, z, Assumptions -> k < 0]

GenerateConditions  (1)

Set GenerateConditions to False to obtain a result without conditions:

Wolfram Language code: BilateralZTransform[5^nUnitStep[n]Mod[n, 2], n, z, GenerateConditions -> False]

WorkingPrecision  (1)

Use WorkingPrecision to obtain a result with arbitrary precision:

Wolfram Language code: BilateralZTransform[2^-Abs[10n - 1] + 2Cos[Cos[n]], n, 31 / 5.]
Wolfram Language code: BilateralZTransform[2^-Abs[10n - 1] + 2Cos[Cos[n]], n, 31 / 5, WorkingPrecision -> 10]
Wolfram Language code: BilateralZTransform[2^-Abs[10n - 1] + 2Cos[Cos[n]], n, 31 / 5, WorkingPrecision -> 20]

Applications  (2)

Define finite duration signals:

Wolfram Language code: x1[n_] := DiscreteDelta[n] - 2DiscreteDelta[n - 1] + DiscreteDelta[n - 2] x2[n_] := Piecewise[{{1, 0 <= n <= 5}}]

Plot the signals in the time domain:

Wolfram Language code: DiscretePlot[{x1[n], x2[n]}, {n, 0, 5}]

To find the convolution, first calculate the product of the transforms:

Wolfram Language code: BilateralZTransform[x1[n], n, z]BilateralZTransform[x2[n], n, z]

Then, perform inversion back to the time domain:

Wolfram Language code: InverseBilateralZTransform[%, z, n]

Plot the convolution in the time domain:

Wolfram Language code: DiscretePlot[%, {n, 0, 8}]

Alternatively, find the convolution using DiscreteConvolve:

Wolfram Language code: DiscreteConvolve[x1[k], x2[k], k, n]//Simplify

Define infinite duration signals:

Wolfram Language code: x1[n_] := UnitStep[n] x2[n_] := DiscreteDelta[n] + 2^-nUnitStep[n]

Plot the signals in the time domain:

Wolfram Language code: DiscretePlot[{x1[n], x2[n]}, {n, 0, 7}]

To find the convolution, first calculate product of the transforms:

Wolfram Language code: BilateralZTransform[x1[n], n, z]BilateralZTransform[x2[n], n, z]

Perform the inversion back to the time domain:

Wolfram Language code: InverseBilateralZTransform[%, z, n]

Plot the convolution in the time domain:

Wolfram Language code: DiscretePlot[%, {n, 0, 6}]

Alternatively, find the convolution using DiscreteConvolve:

Wolfram Language code: DiscreteConvolve[x1[k], x2[k], k, n]//Simplify

Properties & Relations  (7)

BilateralZTransform and InverseBilateralZTransform are mutual inverses:

Wolfram Language code: BilateralZTransform[InverseBilateralZTransform[X[z], z, n], n, z]
Wolfram Language code: InverseBilateralZTransform[BilateralZTransform[x[n], n, z], z, n]

BilateralZTransform is closely related to FourierSequenceTransform:

Wolfram Language code: {BilateralZTransform[UnitStep[n + 1]2^-n, n, Exp[I ω], Assumptions -> ω∈Reals], FourierSequenceTransform[UnitStep[n + 1]2^-n, n, ω]}
Wolfram Language code: {BilateralZTransform[3^-Abs[n + 1], n, Exp[I ω], Assumptions -> ω∈Reals], FourierSequenceTransform[3^-Abs[n + 1], n, ω]}

Linearity:

Wolfram Language code: BilateralZTransform[a x1[n] + b x2[n], n, z]

Time shifting:

Wolfram Language code: BilateralZTransform[x[n - 5], n, z]

Scaling in the -domain:

Wolfram Language code: BilateralZTransform[a^nx[n], n, z]

Convolution:

Wolfram Language code: BilateralZTransform[DiscreteConvolve[f[k], g[k], k, n], n, z]

Differentiation in the -domain:

Wolfram Language code: BilateralZTransform[n x[n], n, z]

Neat Examples  (1)

Create a table of basic bilateral Z transforms:

Wolfram Language code: flist = {...};
Wolfram Language code: Grid[Prepend[{#, BilateralZTransform[#1, n, z, Assumptions -> {ω∈ℝ}]}& /@ flist, {x[n], BilateralZTransform[x[n], n, z]}], IconizedObject[«Grid options»]]//TraditionalForm
