Blurring

Blurring[r]

is a two‐dimensional directive specifying that graphics objects are to be drawn with a blur effect of radius r.

Details

  • Blurring is also know as blur and Gaussian blur.
  • Blurring is typically used to soften images of graphics objects and to hide object features.

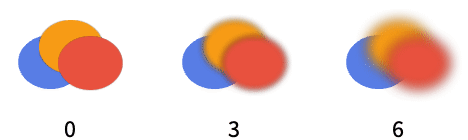

  • Blurring[r] specifies that r printer's points should be blended into each other.
  • The radius r is measured in units of printer's points, equal before magnification to of an inch.

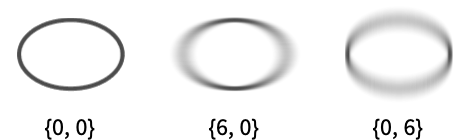

  • Blurring[{r1,r2}] uses radius r1 in width and radius r2 in height.
  • Blurring[r] is effectively equivalent to Blurring[{r,r}].
  • Blurring[] is effectively equivalent to Blurring[3].
  • ImageScaled can be used to specify the radius and is taken to be fractions of the default image size.

Examples

open all close all

Basic Examples  (3)

Apply blur to text:

Wolfram Language code: Graphics[{Blurring[], Text[Style["Wolfram", 32]]}]

Plot several functions:

Wolfram Language code: Plot[{Sin[Sqrt[2] x] + Sin[x], Style[Sin[x], Blurring[3]]}, {x, 0, 10}]

Highlight a region around Paris:

Wolfram Language code: GeoGraphics[{Gray, Blurring[5], GeoDisk[Entity["City", {"Paris", "IleDeFrance", "France"}]]}]

Scope  (12)

Basic Uses  (8)

Apply blurring to graphics primitives:

Wolfram Language code: Graphics[{Blurring[], #}]& /@ {Point[{{6, 3}, {0, 4}, {2, 0}, {3, 2}, {9, 5}}], BSplineCurve[{{3, 3}, {3, 4}, {2, 3}, {3, 2}, {4, 3}}], Polygon[{{3, 1}, {9, 8}, {0, 5}, {9, 3}, {4, 9}}]}

Apply blur to Text:

Wolfram Language code: Graphics[{Blurring[], Text[Style["Blurring", 24]]}]

Apply blur to a plot:

Wolfram Language code: Plot[{3Sin[x] + x, 3Cos[x] + x}, {x, 0, 15}, PlotStyle -> Blurring /@ {3, 0}]

Apply blur to a chart:

Wolfram Language code: BarChart[{1, 2, 3, 4}, ChartStyle -> Blurring /@ {6, 6, 0, 6}]

Style a geometric region:

Wolfram Language code: Region[Style[ImplicitRegion[y ^ 2 < x (-1 + x ^ 3), {x, y}], Blurring[]]]

Apply blur to an Image:

Wolfram Language code: Graphics[{Blurring[], [image]}]

Show a blurred schematic outline map:

Wolfram Language code: GeoGraphics[{GeoStyling["OutlineMap", Directive[Opacity[0.5, Red], Blurring[20]]], Polygon[["austria"]]}]

Summary box:

Wolfram Language code: Blurring[]

Specifications  (4)

Blurring[] applies a slight uniform blur:

Wolfram Language code: Graphics[{Blurring[], Annulus[]}]

Specify the blur radius:

Wolfram Language code: Graphics[{Blurring[#], Annulus[]}, PlotRangePadding -> 1 / 2]& /@ {0, 5, 20}

Specify separate blur radii for the horizontal and vertical directions:

Wolfram Language code: Graphics[{Blurring[#], Annulus[]}, PlotRangePadding -> 1 / 2]& /@ {{20, 20}, {0, 20}, {20, 0}}

The blur radius is specified in printer's points by default:

Wolfram Language code: Graphics[{Blurring[5], Annulus[]}, PlotRangePadding -> Scaled[.2], ImageSize -> #]& /@ {50, 100, 150}

Use an ImageScaled radius:

Wolfram Language code: Graphics[{Blurring[ImageScaled[0.05]], Annulus[]}, PlotRangePadding -> Scaled[.2], ImageSize -> #]& /@ {50, 100, 150}

Applications  (9)

Basic Applications  (3)

Show the blur extents:

Wolfram Language code: blur[{x_, y_}] := Graphics[{{Blurring[{x, y}], RGBColor[1., 3/4, 0.], Disk[{0, 0}, Offset[30]]}, {Thick, Dashed, RGBColor[0., 2/3, 1.], Circle[{0, 0}, Offset[30 + {x, y}]]}}]

Apply a uniform blur:

Wolfram Language code: Table[blur[{r, r}], {r, {0, 10, 16}}]

Use separate blur radii for the horizontal and vertical directions:

Wolfram Language code: GraphicsGrid[Table[blur[{rx, ry}], {rx, {0, 16, 24}}, {ry, {0, 16, 24}}]]

Blur objects with an EdgeForm:

Wolfram Language code: Graphics[{Blurring[6], EdgeForm[{RGBColor[0., 2/3, 1.], Thickness[0.05]}], RGBColor[1., 3/4, 0.], RegularPolygon[6]}, PlotRangePadding -> 0.2]

Blur object with Opacity:

Wolfram Language code: Graphics[{Blurring[6], Opacity[1 / 2], RGBColor[1., 3/4, 0.], RegularPolygon[6]}, PlotRangePadding -> 0.2]

Blur Effects  (4)

Simulate a depth-of-field effect with images:

Wolfram Language code: {a, b, c} = {[image], [image], [image]};
Wolfram Language code: Graphics[{Blurring[10], a, Blurring[4], b, Blurring[None], c}]

Simulate a depth-of-field effect with graphics primitives:

Wolfram Language code: tree = Polygon[{{-0.037585066407075374, -0.027697338275686434}, {-0.006255347454498406, -0.027847216854752332}, {-0.0061146007618049225, -0.04742416119182735}, {-0.0056195913354599725, -0.04841418004446041}, {-0.005015991050584034, -0.04898745733328 ... 03842425336586075, -0.02735820075878337}}, {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51}]; positions = Join@@Table[{(x + y / 2)3, y}, {y, 1, 0, -1 / 5}, {x, 0, 1, 1 / 5}];
Wolfram Language code: Graphics[{RGBColor[0., 2/3, 0], EdgeForm[Black], Table[{Blurring[6 * p[[2]]], Translate[Scale[tree, 3 * (1 - p[[2]]) + 5], p]}, {p, positions}]}]

Create a drop shadow:

Wolfram Language code: shape = Annulus[]; Graphics[{{Blurring[10], GrayLevel[0, 1/3], Translate[shape, {-0.2, -0.2}]}, shape}]

Use DropShadowing to get the same effect:

Wolfram Language code: Graphics[{DropShadowing[{-12, -12}, 10], shape}]

Emphasize part of a visualization:

Wolfram Language code: cloud = WordCloud[EntityValue[CountryData["Europe"], {"Name", "LandArea"}]]

Blur all country names except "Sweden":

Wolfram Language code: cloud /. x : Inset[Style[Except["Sweden"], __], __] :> {Blurring[5], x}

Visualization  (2)

Plot curves with blurring:

Wolfram Language code: Plot[{Sin[Sqrt[2] x] + Sin[x], Style[Sin[x], Blurring[3]]}, {x, 0, 10}]

Style bar charts:

Wolfram Language code: BarChart[{1, Style[2, Blurring[6]], 3, 4, 5}]

Properties & Relations  (2)

Blur gives a blurred version of an Image:

Wolfram Language code: img = [image];
Wolfram Language code: Blur[img, 6]

The equivalent effect using Blurring:

Wolfram Language code: Graphics[{Blurring[6], ImageMesh[ColorNegate[img]]}, PlotRangePadding -> Scaled[.06]]

Blurring applies a Gaussian blur:

Wolfram Language code: text = Text[Style["G", 80, FontFamily -> "Times"]]
Wolfram Language code: Graphics[{Blurring[8], text}]

Equivalent Gaussian filter:

Wolfram Language code: GaussianFilter[Rasterize[Graphics[{text}], RasterSize -> 100, ImageSize -> 100], 8]

Interactive Examples  (2)

Simulate a depth-of-field effect:

Wolfram Language code: Manipulate[ DynamicModule[{ts = Range[0, 1, 1 / 20], disks, blurs, opt = PlotRange -> 4}, disks = Table[Disk[{3t Sin[4Pi Sqrt[ t]], 2 - 4t}, t * 0.8 + 0.2], {t, ts}]; blurs = Table[Blurring[10 * Abs[1 - t - focus]], {t, ts}]; Graphics[{EdgeForm[Black], LightGray, Transpose[{blurs, disks}]}, opt] ], {focus, 0, 1} ]

Emphasize the country being moused over:

Wolfram Language code: EntityValue[CountryData[], {"Name", "LandArea"}]//Short
Wolfram Language code: WordCloud[%, MaxItems -> 50] /. x_Inset :> Mouseover[{Blurring[5], x}, x]
