Dashing[{r1,r2,…}]

is a two-dimensional graphics directive specifying that lines that follow are to be drawn dashed, with successive segments of lengths r1, r2, … (repeated cyclically). The ri are given as a fraction of the total width of the graph.

Dashing[r]

is equivalent to Dashing[{r,r}].

Dashing[{r1,r2,…},offset]

offsets the dashes by offset.

Dashing[{r1,r2,…},offset,capform]

sets the CapForm for individual dashes to capform.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Dashing Specifications
Primitives Affected
Properties & Relations
Possible Issues
Neat Examples
See Also
Tech Notes
Related Guides
History
Cite this Page

Dashing

Dashing[{r1,r2,…}]

is a two-dimensional graphics directive specifying that lines that follow are to be drawn dashed, with successive segments of lengths r1, r2, … (repeated cyclically). The ri are given as a fraction of the total width of the graph.

Dashing[r]

is equivalent to Dashing[{r,r}].

Dashing[{r1,r2,…},offset]

offsets the dashes by offset.

Dashing[{r1,r2,…},offset,capform]

sets the CapForm for individual dashes to capform.

Details

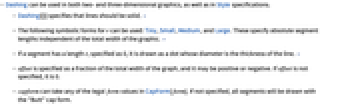

  • Dashing can be used in both two- and three-dimensional graphics, as well as in Style specifications.
  • Dashing[{}] specifies that lines should be solid. »
  • The following symbolic forms for r can be used: Tiny, Small, Medium, and Large. These specify absolute segment lengths independent of the total width of the graphic. »
  • If a segment has a length ri specified as 0, it is drawn as a dot whose diameter is the thickness of the line. »
  • offset is specified as a fraction of the total width of the graph, and it may be positive or negative. If offset is not specified, it is 0.
  • capform can take any of the legal form values in CapForm[form]. If not specified, all segments will be drawn with the "Butt" cap form.

Examples

open all close all

Basic Examples  (4)

Specify the dashing of lines as successive segments with scaled lengths:

Wolfram Language code: Table[Graphics[{Dashing[{r, 0.1 - r}], Line[{{0, 0}, {2, 1}}]}], {r, {0.01, 0.03, 0.05, 0.08}}]
Wolfram Language code: Table[Graphics3D[{Dashing[{r, 0.1 - r}], Line[{{0, 0, 0}, {2, 1, 1}}]}], {r, {0.01, 0.03, 0.05, 0.08}}]

Set the dashing of edges of polygons:

Wolfram Language code: p2 = Polygon[{{-1, 0}, {0, Sqrt[3]}, {1, 0}}];
Wolfram Language code: Table[Graphics[{Pink, EdgeForm[Dashing[r]], p2}], {r, {0.01, 0.05, 0.1}}]
Wolfram Language code: p3 = Polygon[{{1, 0, 0}, {0, 0, 1}, {1, 1, 1}}];
Wolfram Language code: Table[Graphics3D[{Pink, EdgeForm[{Dashing[r]}], p3}], {r, {0.01, 0.05, 0.1}}]

Set the dashing of lines in plots using PlotStyle:

Wolfram Language code: Plot[{Sin[x], Cos[x]}, {x, 0, 2 π}, PlotStyle -> {Dashing[Tiny], Dashing[Large]}]

Set the dashing of the frame:

Wolfram Language code: Grid[Table[x, {4}, {7}], Frame -> All, FrameStyle -> Dashing[Tiny]]

Scope  (8)

Dashing Specifications  (5)

No dashing:

Wolfram Language code: Graphics[{Dashing[{}], Line[{{0, 0}, {2, 1}}]}]

Dashing[r] is equivalent to Dashing[{r,r}]:

Wolfram Language code: Table[Graphics[{Dashing[r], Line[{{0, 0}, {2, 1}}]}], {r, {0.01, 0.03, 0.05, 0.08}}]

Symbolic values for predefined absolute dashings:

Wolfram Language code: Table[Graphics[{Dashing[r], Line[{{0, 0}, {2, 1}}]}], {r, {Tiny, Small, Medium, Large}}]

Specify multiple cyclic segments:

Wolfram Language code: Graphics[{Dashing[{0.1, 0.02, 0.05}], Line[{{0, 0}, {2, 1}}]}]

Specify offset to dashed segments:

Wolfram Language code: Table[Graphics[{Line[{{0, 0}, {2, 1}}], Dashing[{.1, .05}, o], Red, Opacity[.5], Thickness[.05], Line[{{0, 0}, {2, 1}}]}], {o, {-0.05, 0, 0.05}}]

Specify caps to dashed segments:

Wolfram Language code: Table[Graphics[{Line[{{0, 0}, {2, 1}}], Dashing[{.1, .1}, 0, CapForm[c]], Red, Opacity[.5], Thickness[.05], Line[{{0, 0}, {2, 1}}]}], {c, {"Round", "Butt", "Square"}}]

Primitives Affected  (3)

Specify the dashing of the shaft of an arrow:

Wolfram Language code: Graphics[{Dashing[0.02], Arrow[{{0, 0}, {2, 1}}]}]

Specify the dashing of edges of primitives using EdgeForm:

Wolfram Language code: Table[Graphics[{Pink, EdgeForm[Dashing[r]], Disk[]}], {r, {0.01, 0.05, 0.1}}]
Wolfram Language code: Table[Graphics[{Pink, EdgeForm[Dashing[r]], Rectangle[]}], {r, {0.01, 0.05, 0.1}}]

Specify the dashing of 3D primitive edges using EdgeForm:

Wolfram Language code: Table[Graphics3D[{Pink, EdgeForm[Dashing[r]], Cylinder[]}, Boxed -> False], {r, {0.01, 0.05, 0.1}}]
Wolfram Language code: Table[Graphics3D[{Pink, EdgeForm[Dashing[r]], Cuboid[]}, Boxed -> False], {r, {0.01, 0.05, 0.1}}]

Properties & Relations  (6)

Use Dashed, Dotted, and DotDashed to specify predefined absolute dashings:

Wolfram Language code: {Graphics[{Dashed, Line[{{0, 0}, {2, 1}}]}], Graphics[{Dotted, Line[{{0, 0}, {2, 1}}]}], Graphics[{DotDashed, Line[{{0, 0}, {2, 1}}]}]}

Dashing defines the length of a segment as a fraction of the total width of the graphic:

Wolfram Language code: Graphics[{Thick, Dashing[{0.05, 0.1}], Line[{{-1, 0}, {1, 0}}]}, Frame -> True]

Dashing depends on the image size:

Wolfram Language code: Table[Graphics[{Dashing[.05], Line[{{0, 0}, {2, 1}}]}, ImageSize -> s], {s, {50, 100, 150}}]

AbsoluteDashing defines the length of a segment in units of printer's points:

Wolfram Language code: Graphics[{Thickness[.02], AbsoluteDashing[{15}], Line[{{0, 0}, {1, 0}}], Text[Style["15 points", FontSize -> 15], {0.5, 0.1}]}]

AbsoluteDashing is independent of the image size:

Wolfram Language code: Table[Graphics[{AbsoluteDashing[10], Line[{{0, 0}, {2, 1}}]}, ImageSize -> s], {s, {50, 100, 150}}]

The thickness of segments can be specified by Thickness:

Wolfram Language code: Table[Graphics[{Thickness[r], Dashing[Medium], Line[{{0, 0}, {2, 1}}]}], {r, {0.01, 0.03, 0.05}}]

A segment with length 0 specifies a dot of the size defined by Thickness:

Wolfram Language code: Graphics[{Thickness[.05], Dashing[{0, 0.1}], Line[{{0, 0}, {2, 1}}]}]

Dashing overrides the CapForm directive:

Wolfram Language code: Graphics[{Dashing[{.2, .15}], CapForm["Round"], Thickness[.1], Line[{{0, 0}, {1, 1}}]}]

Specify the third argument to Dashing to set a cap form for all dashes:

Wolfram Language code: Graphics[{Dashing[{.2, .15}, 0, "Round"], Thickness[.1], Line[{{0, 0}, {1, 1}}]}]

Possible Issues  (1)

Line caps add to the length of individual dashes and may cause closely spaced dashes to overlap:

Wolfram Language code: Table[Graphics[{Dashing[{.2, .08}, 0, cap], Thickness[.1], Line[{{1, 0}, {0, 1}}]}], {cap, {None, "Round"}}]

Neat Examples  (3)

Randomly dashed circles:

Wolfram Language code: Graphics[Table[{Hue[RandomReal[]], Dashing[RandomReal[{0, 0.07}]], Circle[RandomReal[1, {2}], RandomReal[]]}, {20}]]

A curve with a random dash pattern:

Wolfram Language code: ParametricPlot[t{Cos[t], Sin[t]}, {t, 0, 50}, PlotStyle -> Directive[Thick, Dashing[RandomReal[{0, 0.05}, 100]]]]

Vary the offset for dashed rays out of the origin:

Wolfram Language code: Animate[Graphics[{Dashing[{.04, .04}, a], Table[Line[{{0, 0}, {Cos[b], Sin[b]}}], {b, 0, 2 π, π / 20}]}], {a, 0.64, 0}]
