FindMeshDefects

FindMeshDefects[mreg]

finds defects in the mesh region mreg.

FindMeshDefects[mreg,{def1,…}]

finds only the specified type of defects def1, ….

FindMeshDefects[mreg,defects,format]

formats the results according to format specification.

Details and Options

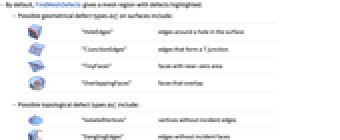

  • By default, FindMeshDefects gives a mesh region with defects highlighted.
  • Possible geometrical defect types defi on surfaces include:
  • "HoleEdges"edges around a hole in the surface
    "TJunctionEdges"edges that form a T junction
    "TinyFaces"faces with near-zero area
    "OverlappingFaces"faces that overlap

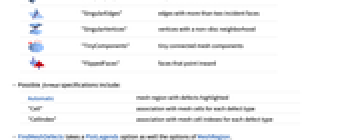

  • Possible topological defect types defi include:
  • "IsolatedVertices"vertices without incident edges
    "DanglingEdges"edges without incident faces
    "SingularEdges"edges with more than two incident faces
    "SingularVertices"vertices with a non-disc neighborhood
    "TinyComponents"tiny connected mesh components
    "FlippedFaces"faces that point inward
  • Possible format specifications include:
  • Automaticmesh region with defects highlighted
    "Cell"association with mesh cells for each defect type
    "CellIndex"association with mesh cell indexes for each defect type
  • FindMeshDefects takes a PlotLegends option as well the options of MeshRegion.
  • With the setting PlotLegendsAutomatic, a legend is produced for each type of defect.

Examples

open all close all

Basic Examples  (1)

Find defects in a 3D mesh:

Wolfram Language code: model = ExampleData[{"Geometry3D", "StanfordBunny"}, "MeshRegion"];
Wolfram Language code: FindMeshDefects[model]

Scope  (10)

Specification  (10)

"DanglingEdges":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "DanglingEdges"]

"FlippedFaces":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "FlippedFaces"]

"HoleEdges":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "HoleEdges"]

"IsolatedVertices":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "IsolatedVertices"]

"OverlappingFaces":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "OverlappingFaces"]

"SingularEdges":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "SingularEdges"]

"SingularVertices":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "SingularVertices"]

"TinyComponents":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "TinyComponents"]

"TinyFaces":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "TinyFaces"]

"TJunctionEdges":

Wolfram Language code: FindMeshDefects[\!\(\*Graphics3DBox[«7»]\), "TJunctionEdges"]

Options  (14)

MeshCellHighlight  (2)

MeshCellHighlight allows you to specify highlighting for parts of a MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellHighlight -> {{0, All} -> Red}]

Individual cells can be highlighted using their cell index:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellHighlight -> {{1, 1} -> {Thick, Yellow}, {1, 3} -> {Dashed, Black}}]

Or by the cell itself:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellHighlight -> {Line[{6, 5}] -> {Thick, Yellow}, Line[{4, 6}] -> {Dashed, Black}}]

MeshCellLabel  (2)

MeshCellLabel can be used to label parts of a MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellLabel -> {0 -> "Index"}]

Individual cells can be labeled using their cell index:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellLabel -> {{1, 1} -> "x", {1, 2} -> "y"}]

Or by the cell itself:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, "SingularEdges", MeshCellLabel -> {Line[{6, 5}] -> "x", Line[{5, 4}] -> "y"}]

MeshCellMarker  (1)

MeshCellMarker can be used to assign values to parts of a MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellMarker -> {{0, 1} -> 1, {0, 2} -> 2, {0, 3} -> 3, {0, 4} -> 4}]

Use MeshCellLabel to show the markers:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellMarker -> {{0, 1} -> 1, {0, 2} -> 2, {0, 3} -> 3, {0, 4} -> 4}, MeshCellLabel -> {0 -> "Marker"}]

MeshCellShapeFunction  (2)

MeshCellShapeFunction allows you to specify functions for parts of a MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellShapeFunction -> {0 -> (Sphere[#, .1]&)}]

Individual cells can be drawn using their cell index:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellShapeFunction -> {{0, 1} -> (Sphere[#, .1]&), {0, 2} -> (Sphere[#, .15]&)}]

Or by the cell itself:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellShapeFunction -> {Point[1] -> (Sphere[#, .1]&), Point[2] -> (Sphere[#, .15]&)}]

MeshCellStyle  (2)

MeshCellShapeFunction allows you to specify functions for parts of a MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellStyle -> {{1, All} -> Red, {0, All} -> Black}]

Individual cells can be highlighted using their cell index:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellStyle -> {{1, 1} -> {Thick, Red}, {1, 2} -> {Dashed, Black}}]

Or by the cell itself:

Wolfram Language code: ℛ = MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]];
Wolfram Language code: FindMeshDefects[ℛ, "FlippedFaces", MeshCellStyle -> {Line[{3, 2}] -> {Thick, Red}, Line[{2, 1}] -> {Dashed, Black}}]

PlotLegends  (3)

Use editable placeholders as the legend:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, {"SingularVertices", "DanglingEdges"}, PlotLegends -> Automatic]

Use the type being used as the legend:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, {"SingularVertices", "DanglingEdges"}, PlotLegends -> "Defects"]

Use Placed to control the placement of legends:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {1, 0, 0}, {2, 0, 0}, {3, 0, -1 / 2}, {3, 0, 1 / 2}, {4, -1 / 2, 0}, {4, 1 / 2, 0}}, {Point[1], Line[{2, 3}], Triangle[{3, 4, 5}], Tetrahedron[{4, 6, 5, 7}]}];
Wolfram Language code: FindMeshDefects[ℛ, {"SingularVertices", "DanglingEdges"}, PlotLegends -> Placed["Defects", Below]]

PlotTheme  (2)

Use a theme with grid lines and a legend:

Wolfram Language code: FindMeshDefects[MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]], "FlippedFaces", PlotTheme -> "Detailed"]

Use a theme to draw a wireframe:

Wolfram Language code: FindMeshDefects[MeshRegion[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}, Polygon[{{3, 2, 1}, {4, 3, 2}, {3, 1, 4}, {1, 2, 4}}]], "FlippedFaces", PlotTheme -> "Lines"]
