FourierDCTMatrix

FourierDCTMatrix[n]

returns an n×n discrete cosine transform matrix of type 2.

FourierDCTMatrix[n,m]

returns an n×n discrete cosine transform matrix of type m.

Details and Options

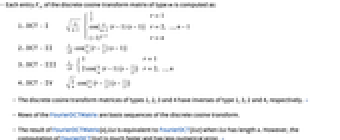

  • Each entry Frs of the discrete cosine transform matrix of type m is computed as:
  • 1.DCT-I
    2.DCT-II
    3.DCT-III
    4.DCT-IV
  • The discrete cosine transform matrices of types 1, 2, 3 and 4 have inverses of type 1, 3, 2 and 4, respectively. »
  • Rows of the FourierDCTMatrix are basis sequences of the discrete cosine transform.
  • The result of FourierDCTMatrix[n].list is equivalent to FourierDCT[list] when list has length n. However, the computation of FourierDCT[list] is much faster and has less numerical error. »
  • For type 4, the option TargetStructure is supported, which specifies the structure of the returned matrix. Possible settings for TargetStructure include:
  • Automaticautomatically choose the representation returned
    "Dense"represent the matrix as a dense matrix
    "Hermitian"represent the matrix as a Hermitian matrix
    "Orthogonal"represent the matrix as an orthogonal matrix
    "Symmetric"represent the matrix as a symmetric matrix
    "Unitary"represent the matrix as a unitary matrix
  • FourierDCTMatrix[…,TargetStructureAutomatic] is equivalent to FourierDCTMatrix[…,TargetStructure"Dense"].
  • FourierDCTMatrix[…,WorkingPrecision->p] gives a matrix with entries of precision p.

Examples

open all close all

Basic Examples  (1)

A 4×4 DCT matrix:

Wolfram Language code: FourierDCTMatrix[4]//MatrixForm

Scope  (1)

The discrete cosine transform's basis sequences of length 128:

Wolfram Language code: ArrayPlot[FourierDCTMatrix[128]]

Options  (2)

TargetStructure  (1)

Return the DCT matrix as a dense matrix:

Wolfram Language code: FourierDCTMatrix[4, "IV", TargetStructure -> "Dense"]

Return the DCT matrix as an orthogonal matrix:

Wolfram Language code: FourierDCTMatrix[4, "IV", TargetStructure -> "Orthogonal"]

Return the DCT matrix as a symmetric matrix:

Wolfram Language code: FourierDCTMatrix[4, "IV", TargetStructure -> "Symmetric"]

WorkingPrecision  (1)

Use machine precision:

Wolfram Language code: FourierDCTMatrix[3, WorkingPrecision -> MachinePrecision]//MatrixForm

Use arbitrary precision:

Wolfram Language code: FourierDCTMatrix[3, WorkingPrecision -> 20]//MatrixForm

Applications  (1)

Define 2D discrete cosine transform of size 8×8 using matrix formulation:

Wolfram Language code: DCT[x_ ? MatrixQ] := Transpose[FourierDCTMatrix[8]].x.FourierDCTMatrix[8] IDCT[x_ ? MatrixQ] := Transpose[FourierDCTMatrix[8, 3]].x.FourierDCTMatrix[8, 3] img = [image];

Simplified JPEG compression algorithm:

Wolfram Language code: jpeg = ImageAssemble[Map[Image[Threshold[DCT[ImageData[#]], {"LargestValues", 8}]]&, ImagePartition[ImageSubtract[img, 0.5], 8], {2}]]

Compare the original and compressed images:

Wolfram Language code: GraphicsRow[{img, ImageAdd[ImageAssemble[Map[Image[IDCT[ImageData[#]]]&, ImagePartition[jpeg, 8], {2}]], 0.5]}, ImageSize -> 250]

Properties & Relations  (2)

A DCT matrix multiplied by a vector is equivalent to the discrete cosine transform of that vector:

Wolfram Language code: data = RandomReal[1, 6]; data . FourierDCTMatrix[6] == FourierDCT[data, 2]

FourierDCT is much faster than the matrix-based computation:

Wolfram Language code: data = RandomReal[1, 1024]; {AbsoluteTiming[Do[FourierDCT[data], {10}];], AbsoluteTiming[Do[FourierDCTMatrix[1024, WorkingPrecision -> MachinePrecision].data, {10}];]}

A discrete cosine transform matrix of type 1 is its own inverse:

Wolfram Language code: FourierDCTMatrix[4, 1]. FourierDCTMatrix[4, 1] == IdentityMatrix[4]

A discrete cosine transform matrix of type 3 is an inverse of the type 2 matrix:

Wolfram Language code: FourierDCTMatrix[4, 2]. FourierDCTMatrix[4, 3] == IdentityMatrix[4]

A discrete cosine transform matrix of type 4 is its own inverse:

Wolfram Language code: FullSimplify[FourierDCTMatrix[4, 4]. FourierDCTMatrix[4, 4]] == IdentityMatrix[4]
