FourierDSTMatrix

FourierDSTMatrix[n]

returns an n×n discrete sine transform matrix of type 2.

FourierDSTMatrix[n,m]

returns an n×n discrete sine transform matrix of type m.

Details and Options

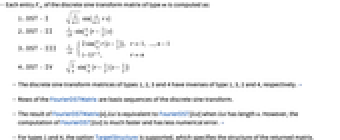

  • Each entry Frs of the discrete sine transform matrix of type m is computed as:
  • 1.DST-I
    2.DST-II
    3.DST-III
    4.DST-IV
  • The discrete sine transform matrices of types 1, 2, 3 and 4 have inverses of type 1, 3, 2 and 4, respectively. »
  • Rows of the FourierDSTMatrix are basis sequences of the discrete sine transform.
  • The result of FourierDSTMatrix[n].list is equivalent to FourierDST[list] when list has length n. However, the computation of FourierDST[list] is much faster and has less numerical error. »
  • For types 1 and 4, the option TargetStructure is supported, which specifies the structure of the returned matrix. Possible settings for TargetStructure include:
  • Automaticautomatically choose the representation returned
    "Dense"represent the matrix as a dense matrix
    "Hermitian"represent the matrix as a Hermitian matrix
    "Orthogonal"represent the matrix as an orthogonal matrix
    "Symmetric"represent the matrix as a symmetric matrix
    "Unitary"represent the matrix as a unitary matrix
  • FourierDSTMatrix[…,TargetStructureAutomatic] is equivalent to FourierDSTMatrix[…,TargetStructure"Dense"].
  • FourierDSTMatrix[…,WorkingPrecision->p] gives a matrix with entries of precision p.

Examples

open all close all

Basic Examples  (1)

A 4×4 DST matrix:

Wolfram Language code: FourierDSTMatrix[4]//MatrixForm

Scope  (1)

The discrete sine transform's basis sequences of length 128:

Wolfram Language code: ArrayPlot[FourierDSTMatrix[128]]

Options  (2)

TargetStructure  (1)

Return the DST matrix as a dense matrix:

Wolfram Language code: FourierDSTMatrix[4, "I", TargetStructure -> "Dense"]

Return the DST matrix as an orthogonal matrix:

Wolfram Language code: FourierDSTMatrix[4, "I", TargetStructure -> "Orthogonal"]

Return the DST matrix as a symmetric matrix:

Wolfram Language code: FourierDSTMatrix[4, "I", TargetStructure -> "Symmetric"]

WorkingPrecision  (1)

Use machine precision:

Wolfram Language code: FourierDSTMatrix[3, WorkingPrecision -> MachinePrecision]//MatrixForm

Use arbitrary precision:

Wolfram Language code: FourierDSTMatrix[3, WorkingPrecision -> 20]//MatrixForm

Applications  (1)

A tridiagonal Toeplitz matrix:

Wolfram Language code: n = 4; td = Normal[SparseArray[{Band[{1, 2}] -> a, Band[{1, 1}] -> b, Band[{2, 1}] -> c}, {n, n}]]
Wolfram Language code: MatrixForm[%]

The matrix of its eigenvectors can be expressed as a diagonal rescaling of the discrete sine transform matrix of type 1:

Wolfram Language code: evecs = DiagonalMatrix[(Sqrt[c] / Sqrt[a]) ^ Range[n]].FourierDSTMatrix[n, "I"];

Diagonalize the tridiagonal matrix:

Wolfram Language code: Inverse[evecs].td.evecs//FullSimplify

Properties & Relations  (2)

A DST matrix multiplied by a vector is equivalent to the discrete sine transform of that vector:

Wolfram Language code: data = RandomReal[1, 6]; data . FourierDSTMatrix[6] == FourierDST[data, 2]

FourierDST is much faster than the matrix-based computation:

Wolfram Language code: data = RandomReal[1, 1024]; {AbsoluteTiming[Do[FourierDST[data], {10}];], AbsoluteTiming[Do[FourierDSTMatrix[1024, WorkingPrecision -> MachinePrecision].data, {10}];]}

A discrete sine transform matrix of type 1 is its own inverse:

Wolfram Language code: FourierDSTMatrix[4, 1]. FourierDSTMatrix[4, 1] == IdentityMatrix[4]

A discrete sine transform matrix of type 3 is an inverse of the type 2 matrix:

Wolfram Language code: FourierDSTMatrix[4, 2]. FourierDSTMatrix[4, 3] == IdentityMatrix[4]

A discrete sine transform matrix of type 4 is its own inverse:

Wolfram Language code: FullSimplify[FourierDSTMatrix[4, 4]. FourierDSTMatrix[4, 4]] == IdentityMatrix[4]
