KroneckerModelDecomposition

KroneckerModelDecomposition[ssm]

yields the Kronecker decomposition of a descriptor state-space model ssm.

Details and Options

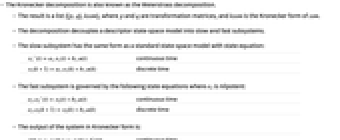

  • The Kronecker decomposition is also known as the Weierstrass decomposition.
  • The result is a list {{p,q},kssm}, where p and q are transformation matrices, and kssm is the Kronecker form of ssm.
  • The decomposition decouples a descriptor state-space model into slow and fast subsystems.
  • The slow subsystem has the same form as a standard state-space model with state equation:
  • continuous time
    discrete time
  • The fast subsystem is governed by the following state equations where e2 is nilpotent:
  • continuous time
    discrete time
  • The output of the system in Kronecker form is:
  • continuous time
    discrete time
  • The matrices a1 and e2 are both taken to be in Jordan form.
  • StateSpaceTransform[ssm,{p,q}] has the form StateSpaceModel[{,,,,}], with and , where and a2 are identity matrices with the dimensions of the slow and fast subsystems, and is a nilpotent matrix.

Examples

open all close all

Basic Examples  (1)

Compute the Kronecker decomposition of a state-space model:

Wolfram Language code: KroneckerModelDecomposition[StateSpaceModel[{{{2, 2, -1}, {-1, 0, 0}, {-1, 0, 1}}, {{-1}, {0}, {1}}, {{0, 0, 1}}, {{0}}, {{0, -1, 3}, {0, 0, -1}, {0, 0, -1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Scope  (4)

The Kronecker decomposition of a system with two fast states and two slow states:

Wolfram Language code: KroneckerModelDecomposition[StateSpaceModel[{{{0, 1, 0, 0}, {1, 0, 0, 0}, {-1, 0, 0, 1}, {0, -1, 2, -1}}, {{0}, {0}, {0}, {-1}}, {{0, 0, 1, 0}}, {{0}}, {{1, 0, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 0}, {0, 0, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The Kronecker decomposition of a discrete-time system:

Wolfram Language code: KroneckerModelDecomposition[StateSpaceModel[{{{0.1, -0.125}, {0.125, 0.25}}, {{0.5}, {-0.5}}, {{2, -2}}, {{0}}, {{1, 1}, {0, 0}}}, SamplingPeriod -> 0.5, SystemsModelLabels -> None]]

An algebraic system:

Wolfram Language code: KroneckerModelDecomposition[StateSpaceModel[{x1[t] == x2[t] + 3u[t], x2[t] == 1 / 2 x1[t]}, {x1[t], x2[t]}, {u[t]}, x2[t], t]]

An impulsive system:

Wolfram Language code: KroneckerModelDecomposition[StateSpaceModel[{{{1, 0, 2}, {2, -1, 0}, {0, 6, 6}}, {{0}, {1}, {1}}, {{5, 0, 1}}, {{0}}, {{2, -1, 0}, {0, 0, 0}, {0, 1, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Applications  (2)

KroneckerModelDecomposition decouples the fast and slow subsystems:

Wolfram Language code: ssm = StateSpaceModel[{{{1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, 0, 1}, {0, 0, -5, 6}}, {{0}, {1}, {0}, {1}}, {{-1, 3, -9, 3}}, {{0}}, {{0, 1, 0, 0}, {0, 0, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; kssm = Last[KroneckerModelDecomposition[ssm]]

The number of 1s on the diagonal of the descriptor matrix gives the number of slow states:

Wolfram Language code: e = Normal[kssm][[5]]; nslow = Total[Diagonal[e]]

Separate the slow and fast systems using SystemsModelExtract and SystemsModelDelete:

Wolfram Language code: e = Normal[kssm][[5]]; nslow = Total[Diagonal[e]]
Wolfram Language code: {SystemsModelExtract[kssm, All, All, 1 ;; nslow], SystemsModelDelete[kssm, None, None, 1 ;; nslow]}

An RLC circuit modeled as a descriptor state space:

Wolfram Language code: ss = StateSpaceModel[{L i'[t] == Subscript[v, l][t], Subscript[v, c]'[t] == 1 / C i[t], R i[t] == Subscript[v, r][t], Subscript[v, l][t] + Subscript[v, c][t] + Subscript[v, r][t] == Subscript[v, s][t]}, {i[t], Subscript[v, l][t], Subscript[v, c][t], Subscript[v, r][t]}, {Subscript[v, s][t]}, {i[t]}, t]
Wolfram Language code: Simplify@Last[KroneckerModelDecomposition[ss]]

Properties & Relations  (6)

The Kronecker decomposition and the original system are restricted equivalent systems:

Wolfram Language code: ssm = StateSpaceModel[{{{2, 2, -1}, {-1, 0, 0}, {-1, 0, 1}}, {{-1}, {0}, {1}}, {{0, 0, 1}}, {{0}}, {{0, -1, 3}, {0, 0, -1}, {0, 0, -1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; kssm = Last[KroneckerModelDecomposition[ssm]]

They have the same order:

Wolfram Language code: {SystemsModelOrder[ssm], SystemsModelOrder[kssm]}

They have the same controllability and observability properties:

Wolfram Language code: {ControllableModelQ[ssm], ControllableModelQ[kssm]}
Wolfram Language code: {ObservableModelQ[ssm], ObservableModelQ[kssm]}

They have the same transfer functions:

Wolfram Language code: {TransferFunctionModel[ssm], TransferFunctionModel[kssm]}

Nonsingular systems give an identity matrix for the descriptor matrix:

Wolfram Language code: Last@KroneckerModelDecomposition[StateSpaceModel[{{{-2., 1, 3}, {1, 0, -1}, {2, 0, 1}}, {{1}, {-1}, {0}}, {{1, 0, 0}}, {{0}}, {{1, 0, 3}, {2, 4, 1}, {-1., 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Find the Kronecker decomposition of a singular descriptor state-space model:

Wolfram Language code: ssm = StateSpaceModel[{{{1, 3, 0}, {2, -1, 1}, {6, 0, 6}}, {{0}, {1}, {1}}, {{8, -6, 6}}, {{0}}, {{2, -1, 1}, {0, 0, 0}, {1, 0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; {{p, q}, kssm} = Chop@KroneckerModelDecomposition[ssm];

The matrix pair {p,q} relates the original system to the Kronecker form:

Wolfram Language code: Chop@{kssm, StateSpaceTransform[ssm, {p, q}]}

The inverse matrices perform the opposite transformation:

Wolfram Language code: Chop@{ssm, StateSpaceTransform[kssm, Inverse /@ {p, q}]}

The slow and fast subsystems model the proper and improper parts of a transfer function:

Wolfram Language code: {proper, improper} = {TransferFunctionModel[{{{1}}, 3 + s}, s], TransferFunctionModel[{{{(1 + s)*(2 + s)}}, 1}, s]};
Wolfram Language code: StateSpaceModel /@ {proper, improper}
Wolfram Language code: Last[KroneckerModelDecomposition@StateSpaceModel[SystemsModelParallelConnect[proper, improper]]]

The state matrix in the slow subsystem is in Jordan form:

Wolfram Language code: ssm = StateSpaceModel[{{{-2, -6, 1}, {0, 4, -2}, {-15, 0, 5}}, {{0}, {1/2}, {-1/2}}, {{7, 2, -2}}, {{0}}, {{1, 2, 0}, {0, -2, 1}, {3, 0, -1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; {a, e} = Normal[ssm][[{1, -1}]];
Wolfram Language code: Last@KroneckerModelDecomposition[ssm]
Wolfram Language code: Last[JordanDecomposition[Inverse[e].a]]//MatrixForm

The descriptor matrix in the fast subsystem is in Jordan form with all zero eigenvalues:

Wolfram Language code: ssm = StateSpaceModel[{{{-2, -3, 0}, {0, 4, -5}, {-6, 3, 5}}, {{1}, {-3/2}, {1/2}}, {{1, 0, 2}}, {{0}}, {{0, 1, 0}, {0, 0, 0}, {0, 3, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; {a, e} = Normal[ssm][[{1, -1}]];
Wolfram Language code: Last@KroneckerModelDecomposition[ssm]
Wolfram Language code: Last[JordanDecomposition[e.Inverse[a]]]//MatrixForm
