Legended[expr,leg]

displays expr with legend leg.

Legended[expr,lbl]

indicates in plotting and charting functions that a legend entry for expr should be created, with label lbl.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Neat Examples
See Also
Related Guides
Related Links
History
Cite this Page

Legended

Legended[expr,leg]

displays expr with legend leg.

Legended[expr,lbl]

indicates in plotting and charting functions that a legend entry for expr should be created, with label lbl.

Details

  • The content expr and legend leg in Legended[expr,leg] can be be anything, including graphics, tables, and images.
  • Legended can be used as a symbolic wrapper for data elements and datasets in functions such as ListPlot and BarChart.
  • The legend entry associated with Legended[expr,lbl] includes an identifying prototype, such as a color swatch, for expr, displayed with the label lbl.
  • The label lbl in Legended[expr,lbl] can be any expression, including graphics.

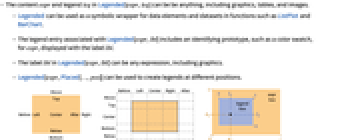

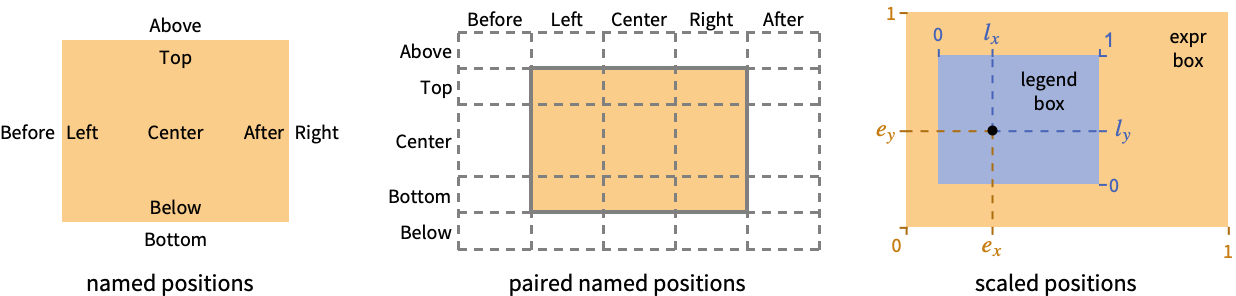

  • Legended[expr,Placed[…,pos]] can be used to create legends at different positions.
  • Possible forms for pos are:
  • Above,Below,Before,Afterpositions outside the bounding box for expr
    {h,v}horizontal h and vertical positions v
    {{ex,ey},{lx,ly}}scaled position {lx,ly} in the legend at scaled position {ex,ey} in expr
  • Possible horizontal positions include Before, Left, Center, Right and After.
  • Possible vertical positions include Below, Bottom, Center, Top and Above.
  • The legend leg will frequently be created by functions such as BarLegend and LineLegend.

Examples

open all close all

Basic Examples  (5)

Use Legended to provide legend entries for specific elements:

Wolfram Language code: PieChart[{1, Legended[2, "Bob"], 3, Legended[4, "John"]}]

Use Legended to provide a legend entry for a specific dataset:

Wolfram Language code: data1 = RandomReal[{0, 1}, 25]; data2 = RandomReal[{1, 2}, 25];
Wolfram Language code: ListLinePlot[{data1, data2, Legended[Mean[{data1, data2}], "mean"]}]

Place a legend inside a plot:

Wolfram Language code: Plot[{BesselJ[2, x], BesselJ[3, x]}, {x, 0, 20}, PlotLegends -> Placed["Expressions", {Right, Top}]]

Add a legend to a table of values:

Wolfram Language code: Legended[Grid[Partition[Table[If[PrimeQ[n], Item[n, Background -> StandardBlue], n], {n, 100}], 10], Frame -> All], SwatchLegend[{StandardBlue}, {"prime numbers"}]]

Legend a Graph object:

Wolfram Language code: g = RandomGraph[{20, 100}];
Wolfram Language code: h = FindHamiltonianCycle[g];
Wolfram Language code: Legended[HighlightGraph[g, Style[h, Directive[Thick, Red]]], LineLegend[{Directive[Thick, Red]}, {"Hamiltonian cycle"}]]

Scope  (6)

Construct a legend for a graphic:

Wolfram Language code: data = RandomVariate[NormalDistribution[], 100];
Wolfram Language code: Legended[Histogram[data], Column[{Row[{"max=", Max[data]}], Row[{"min=", Min[data]}]}]]

Construct a legend for an image:

Wolfram Language code: img = [image];
Wolfram Language code: Legended[img, Placed[ImageHistogram[img], Below]]

Use Legended as a wrapper to specify a legend label for a single dataset:

Wolfram Language code: ListLinePlot[{Sort[RandomReal[1, 100]], Legended[{{0, 0}, {1, 1}}, "reference"]}, DataRange -> {0, 1}]

Specify a legend for a single value:

Wolfram Language code: BarChart[{12, 23, 34, 38, 45, Legended[Style[56, Orange], "projected"]}, ChartStyle -> Gray]

Use Placed to position the legend:

Wolfram Language code: BarChart[{12, 23, 34, 38, 45, Legended[Style[56, Orange], Placed["projected", Below]]}, ChartStyle -> Gray]

Place legends outside the legended object:

Wolfram Language code: Table[Legended[Graphics3D[Sphere[]], Placed[Framed["legend"], p]], {p, {Before, After}}]
Wolfram Language code: Table[Legended[Graphics3D[Sphere[]], Placed[Framed["legend"], p]], {p, {Below, Above}}]

Place legends inside the legended object:

Wolfram Language code: Legended[Graphics3D[Sphere[]], Placed[Framed["legend", Background -> StandardGray], {{1, 1}, {1, 1}}]]

Neat Examples  (1)

Use Legended to add a legend to a stylized grid:

Wolfram Language code: Legended[Grid[Apply[Item[Row[{Quantity[#2, "Hours"], " at ", Quantity[#, "Celsius"] }], Background -> If[#3 == 1, None, StandardBlue]]&, Transpose[Partition[ExampleData[{"Statistics", "MotorFailures"}], 10]], {2}], Frame -> All], Placed[SwatchLegend[{StandardBlue}, {"motor failure"}], Below]]
