RangeFilter

RangeFilter[data,r]

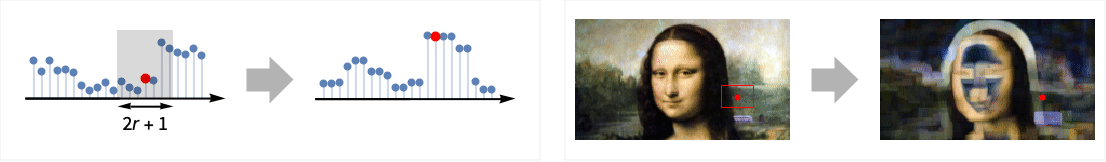

filters data by replacing every value by the difference of the maximum and minimum in its range-r neighborhood.

RangeFilter[data,{r1,r2,…}]

uses ri for filtering the ^(th)dimension in data.

Details

  • RangeFilter is used to detect local jumps in data, where the size of the local neighborhood is dependent on the value of r.
  • The function applied to each range-r neighborhood is the absolute difference of MinMax.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries, TemporalData, …
    imagearbitrary Image or Image3D object
    audioan Audio object
    videoa Video object

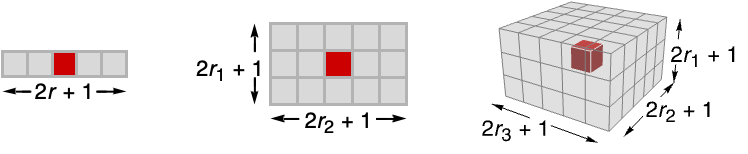

  • RangeFilter[data,{r1,r2,…}] computes the range of sample values in blocks centered on each sample.
  • RangeFilter assumes the index coordinate system for lists and images.
  • At the data boundaries, RangeFilter uses smaller neighborhoods.

Examples

open all close all

Basic Examples  (3)

Range filtering of a list:

Wolfram Language code: RangeFilter[{1, 2, -3, 4, 5, 4, 3, 2, 1}, 1]

Filter a TimeSeries:

Wolfram Language code: ts = TemporalData[TimeSeries, {{{0., -0.27267267057145633, -0.6672983789995302, -0.5338541947930846, -0.6117404489279314, -0.6755527076595494, -0.02125421294486496, -0.10792797291843935, -0.6138271235477938, -0.3248568606554575, -0.08843449054 ... 2053424, -0.49980440691873723, -0.5388679788215971, -0.4101602764645551}}, {{0, 1., 0.01}}, 1, {"Continuous", 1}, {"Continuous", 1}, 1, {ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 10.1];
Wolfram Language code: filtered = RangeFilter[ts, .1]
Wolfram Language code: ListLinePlot[{ts, filtered}, PlotLegends -> {"original data", "filtered"}]

Range filtering applied to a color image:

Wolfram Language code: RangeFilter[[image], 1]

Scope  (12)

Data  (7)

Range filtering of a numeric vector:

Wolfram Language code: RangeFilter[{1, -1, 0, 1, 1, 0}, 1]

Range filtering of a 2D array:

Wolfram Language code: RangeFilter[(⁠| | | | | | - | - | - | - | | 0 | 3 | 8 | 2 | | 2 | 1 | 9 | 6 | | 5 | 8 | 9 | 6 | | 3 | 5 | 9 | 6 |⁠), 1]//MatrixForm

Range filtering of a list of Quantity objects:

Wolfram Language code: data = {Quantity[9, "Feet"], Quantity[86, "Inches"], Quantity[27.1, "Meters"], Quantity[79, "Feet"], Quantity[90, "Feet"], Quantity[41, "Inches"], Quantity[99, "Inches"], Quantity[6, "Feet"], Quantity[38, "Feet"], Quantity[89, "Feet"], Quantity[53, "Feet"], Quantity[85, "Meters"], Quantity[92, "Meters"], Quantity[95, "Meters"], Quantity[49, "Feet"]};
Wolfram Language code: ListLinePlot[{data, RangeFilter[data, 3]}]

Filter an Audio signal:

Wolfram Language code: a = Import["ExampleData/rule30.wav"];
Wolfram Language code: b = RangeFilter[a, 35]
Wolfram Language code: AudioPlot[{a, b}]

Filter a 2D grayscale image:

Wolfram Language code: RangeFilter[[image], 1]

Filter video frames:

Wolfram Language code: RangeFilter[Video["ExampleData/fish.mp4"], 3]

Filter a 3D image:

Wolfram Language code: RangeFilter[[image], 2]

Parameters  (5)

Specify one radius to be used in all directions:

Wolfram Language code: RangeFilter[[image], 1]

Increasing the radius will result in brighter images and larger regions of uniform value:

Wolfram Language code: Table[Labeled[RangeFilter[[image], r], Text["*r* = " <> ToString@r]], {r, {1, 2, 4}}]

Range filtering just in the first direction:

Wolfram Language code: MedianFilter[[image], {5, 0}]

Filtering just in the second direction:

Wolfram Language code: RangeFilter[[image], {0, 5}]

Range filtering of a 3D image in the vertical direction only:

Wolfram Language code: RangeFilter[[image], {4, 0, 0}]

Filtering of a 3D image in the horizontal planes only:

Wolfram Language code: RangeFilter[[image], {0, 3, 3}]

Applications  (2)

Use range filtering for edge detection:

Wolfram Language code: RangeFilter[[image], 1]

Use range filter to detect borders in a binary image:

Wolfram Language code: RangeFilter[[image], 1]

Properties & Relations  (1)

Range filtering is the same as the difference of MaxFilter and MinFilter:

Wolfram Language code: RangeFilter[[image], 1] == ImageSubtract[MaxFilter[[image], 1], MinFilter[[image], 1]]
