ReactionPDETerm

ReactionPDETerm[vars,a]

represents a reaction term with reaction coefficient and with model variables vars.

ReactionPDETerm[{u,{x1,…,xn}},a,pars]

uses model parameters pars.

Details

  • Reaction terms are used to model absorption or emission in a number of domains, such as biology, chemistry and physics.
  • Reaction with a reaction coefficient is the process of absorbing of the dependent variable :
  • ReactionPDETerm returns differential operators term to be used as a part of partial differential equations:
  • ReactionPDETerm can be used to model reaction equations with dependent variable , independent variables and time variable .
  • Stationary model variables vars are vars={u[x1,…,xn],{x1,…,xn}}.
  • Time-dependent model variables vars are vars={u[t,x1,…,xn],{x1,…,xn}} or vars={u[t,x1,…,xn],t,{x1,…,xn}}.
  • The reaction term in context with other PDE terms is given by:
  • The reaction coefficient has the following form:
  • scalar a
  • For a system of PDEs with dependent variables {u1,…,um}, the reaction represents:

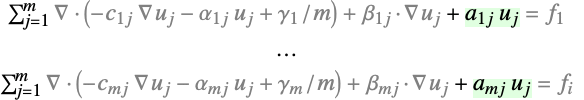

  • The reaction term in context systems of PDE terms:
  • The reaction coefficient is a tensor of rank 2 of the form where each submatrix is a scalar that can specified in the same way as for a single dependent variable.
  • The reaction coefficient can depend on time, space, parameters and the dependent variables.
  • The coefficient does not affect the meaning of NeumannValue.
  • All quantities that do not explicitly depend on the independent variables given are taken to have zero partial derivative.

Examples

open all close all

Basic Examples  (4)

Define a stationary reaction term:

Wolfram Language code: ReactionPDETerm[{u[x], {x}}, a]

Define a stationary reaction term with a parameter:

Wolfram Language code: ReactionPDETerm[{u[x], {x}}, a, <|a -> 2|>]

Solve a reaction diffusion equation build with basic terms:

Wolfram Language code: vars = {u[x, y], {x, y}}; NDSolveValue[{DiffusionPDETerm[vars, 1] + ReactionPDETerm[vars, 10] == SourcePDETerm[vars, -1], DirichletCondition[u[x, y] == 0, True]}, u[x, y], {x, y}∈Rectangle[]]

Visualize the result:

Wolfram Language code: Plot3D[%, {x, y}∈Rectangle[]]

Solve for the eigenvalues of a reaction diffusion equation:

Wolfram Language code: vars = {u[x, y], {x, y}}; NDEigenvalues[{ReactionPDETerm[vars, 4] + DiffusionPDETerm[vars, 1]}, u, {x, y}∈Disk[], 5]

Scope  (7)

Define a time-dependent reaction term:

Wolfram Language code: ReactionPDETerm[{u[t, x], t, {x}}, 1 + t]

Define a symbolic reaction term:

Wolfram Language code: ReactionPDETerm[{u[t, x], t, {x}}, a]

Define a 3D axisymmetric time-independent reaction term:

Wolfram Language code: ReactionPDETerm[{u[r, θ, z], {r, θ, z}}, 1, <|"RegionSymmetry" -> "Axisymmetric"|>]

Define a 2D stationary reaction term:

Wolfram Language code: ReactionPDETerm[{u[x, y], {x, y}}, a]

Define a reaction term with multiple dependent variables:

Wolfram Language code: ReactionPDETerm[{{u[x], v[x]}, {x}}, {{Subscript[a, 11], Subscript[a, 12]}, {Subscript[a, 21], Subscript[a, 22]}}]

Define a Helmholtz model:

Wolfram Language code: helmholtzModel[vars_, k_] := DiffusionPDETerm[vars, 1] + ReactionPDETerm[vars, k]

Solve for the eigenvalues of the Helmholtz equation:

Wolfram Language code: NDEigenvalues[{helmholtzModel[{u[x, y], {x, y}}, 4]}, u, {x, y}∈Disk[], 5]

Solve the Helmholtz equation with a source term:

Wolfram Language code: vars = {u[x, y], {x, y}}; NDSolveValue[{helmholtzModel[vars, 4] == SourcePDETerm[vars, 1], DirichletCondition[u[x, y] == 0, True]}, u[x, y], {x, y}∈Disk[]]

Visualize the solution:

Wolfram Language code: Plot3D[%, {x, y}∈Disk[]]

Solve a nonlinear reaction diffusion equation build with basic terms:

Wolfram Language code: vars = {u[x, y], {x, y}}; NDSolveValue[{DiffusionPDETerm[vars, 1] + ReactionPDETerm[vars, u[x, y] ^ 2] == SourcePDETerm[vars, -1], DirichletCondition[u[x, y] == 0, True]}, u[x, y], {x, y}∈Rectangle[]]

Visualize the result:

Wolfram Language code: Plot3D[%, {x, y}∈Rectangle[]]
