RegionSimilar

RegionSimilar[reg1,reg2]

tests whether the regions reg1 and reg2 are similar.

Details and Options

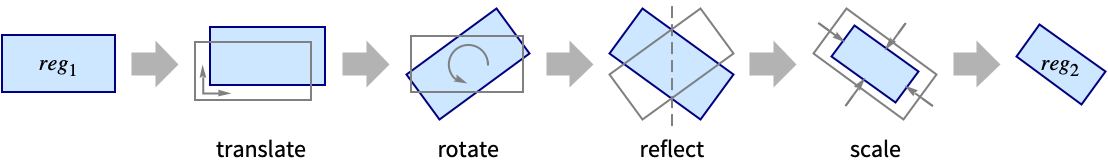

  • The regions reg1 and reg2 are similar if reg2 can be obtained from reg1 by a combination of translations, rotations, reflections and uniform scalings.
  • Typically used to test whether two regions have the same shape or whether one has the same shape as the mirror image of the other.
  • RegionSimilar[reg1,reg2] gives True if there is an affine transformation from reg1 to reg2 with matrix m satisfying TemplateBox[{m}, Transpose]=TemplateBox[{m}, Det] TemplateBox[{m}, Inverse].
  • Two regions reg1 and reg2 are similar if there is an affine transformation that maps reg1 into reg2 with a constant ratio between distance of two points and their images.

Examples

open all close all

Basic Examples  (1)

Check if two regions are similar:

Wolfram Language code: RegionSimilar[Rectangle[{1, 1}], Rectangle[{2, 2}, {4, 4}]]

Scope  (9)

Basic Uses  (2)

Test whether two regions are similar:

Wolfram Language code: Subscript[ℛ, 1] = Rectangle[{0, 0}, {2, 1}]; Subscript[ℛ, 2] = ImplicitRegion[0 ≤ x ≤ 2 && 0 ≤ y ≤ 1, {x, y}];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Show two regions are not similar:

Wolfram Language code: RegionSimilar[Disk[], Ellipsoid[{0, 0}, {3, 2}]]

Special Regions  (3)

RegionSimilar works in 1D:

Wolfram Language code: RegionSimilar[Ball[1], Interval[{-1, 1}]]

Line and Interval:

Wolfram Language code: RegionSimilar[Line[{{0}, {1}}], Interval[{0, 1}]]

RegionSimilar works in 2D:

Wolfram Language code: Subscript[ℛ, 1] = Point[Tuples[Range[3], 2]]; Subscript[ℛ, 2] = Point[Join@@Table[{i, j}, {j, 3}, {i, 3}]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Disk and Ball:

Wolfram Language code: Subscript[ℛ, 1] = Disk[]; Subscript[ℛ, 2] = Ball[2];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Polygon:

Wolfram Language code: Subscript[ℛ, 1] = Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]; Subscript[ℛ, 2] = Rectangle[];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

RegionSimilar works in 3D:

Wolfram Language code: Subscript[ℛ, 1] = Point[Tuples[Range[5], 3]]; Subscript[ℛ, 2] = Point[Flatten[Table[{i, j, k}, {j, 5}, {k, 5}, {i, 5}], 2]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Mesh Regions  (3)

Test whether two mesh regions are similar:

Wolfram Language code: Subscript[ℛ, 1] = MeshRegion[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, Polygon[{1, 2, 3, 4}]]; Subscript[ℛ, 2] = TriangulateMesh[Subscript[ℛ, 1]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Test whether two boundary mesh regions are similar:

Wolfram Language code: Subscript[ℛ, 1] = BoundaryMeshRegion[{{0}, {1}}, Point[{1, 2}]]; Subscript[ℛ, 2] = BoundaryMeshRegion[{{0}, {1}}, Point[{2, 1}]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]
Wolfram Language code: Subscript[ℛ, 1] = BoundaryMeshRegion[{{0, 0}, {2, 0}, {2, 2}, {0, 2}}, Line[{1, 2, 3, 4, 1}]]; Subscript[ℛ, 2] = BoundaryMeshRegion[{{0, 0}, {1, 0}, {2, 0}, {2, 2}, {0, 2}}, Line[{1, 2, 3, 4, 5, 1}]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Test whether a mesh region and a boundary mesh region are similar:

Wolfram Language code: Subscript[ℛ, 1] = DelaunayMesh[RandomReal[{-1, 1}, {25, 2}]]; Subscript[ℛ, 2] = BoundaryMesh[Subscript[ℛ, 1]];
Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]}
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

In :

Wolfram Language code: Subscript[ℛ, 1] = DelaunayMesh[RandomReal[{-1, 1}, {25, 3}]]; Subscript[ℛ, 2] = BoundaryMesh[Subscript[ℛ, 1]];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Derived Regions  (1)

Test whether Boolean regions are similar:

Wolfram Language code: Subscript[ℛ, 1] = BooleanRegion[Xnor, {Disk[], Disk[{1, 0}]}]; Subscript[ℛ, 2] = BooleanRegion[(!#1 || #2) && (#1 || !#2)&, {Disk[], Disk[{1, 0}]}];
Wolfram Language code: RegionSimilar[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Applications  (1)

Two polygons are similar if they have the same vertex angles:

Wolfram Language code: RegionSimilar[Polygon[{{0, 0}, {1, 0}, {1, 1}}], Polygon[{{0, 0}, {2, 0}, {2, 2}}]]
Wolfram Language code: PolygonAngle[Polygon[{{0, 0}, {1, 0}, {1, 1}}]] === PolygonAngle[Polygon[{{0, 0}, {2, 0}, {2, 2}}]]
