FindRegionTransform

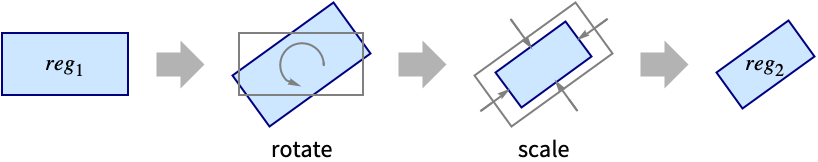

FindRegionTransform[reg1,reg2]

gives the transformation function that maps the region reg1 to the region reg2.

Details and Options

  • FindRegionTransform is typically used to get transformations between regions that preserve geometric properties such as lines and parallelism.
  • FindRegionTransform[reg1,reg2] gives the affine transformation that maps reg1 to reg2.
  • The following option can be given:
  • WorkingPrecisionAutomaticthe precision to use in internal computations

Examples

open all close all

Basic Examples  (2)

Determine the transformation between two regions:

Wolfram Language code: tf = FindRegionTransform[Rectangle[], Parallelogram[]]

Apply the transformation:

Wolfram Language code: tf[Rectangle[]]

Find an affine transformation that aligns two sets of positions:

Wolfram Language code: FindRegionTransform[{{0., 0.}, {0., 1.}}, {{0, 0}, {-0.5, 0.5}}]

Scope  (11)

Basic Uses  (4)

Find an affine transformation between two regions:

Wolfram Language code: FindRegionTransform[Rectangle[], Parallelogram[]]

An affine transformation on a random sample of points:

Wolfram Language code: p = RandomReal[1, {10, 2}]; q = RandomSample[p, 10];
Wolfram Language code: FindRegionTransform[p, q]

FindRegionTransform works in:

2D:

Wolfram Language code: FindRegionTransform[Rectangle[], Parallelogram[]]

3D:

Wolfram Language code: FindRegionTransform[Cuboid[], Cube[]]

nD:

Wolfram Language code: FindRegionTransform[Ball[{0, 0, 0, 0, 0}], Ellipsoid[{0, 0, 0, 0, 0}, {1, 2, 3, 4, 5}]]

FindRegionTransform works with nonconstant regions:

Wolfram Language code: FindRegionTransform[Point[{a, 1}], Point[{2, 0}]]

Special Regions  (4)

A transformation between a rectangle and a parallelogram:

Wolfram Language code: FindRegionTransform[Rectangle[], Parallelogram[]]

Triangles and polygons:

Wolfram Language code: FindRegionTransform[Triangle[], Polygon[{{0, 0}, {0, 1}, {1 / 2, 1 / 2}}]]

Balls and ellipsoids:

Wolfram Language code: FindRegionTransform[Ball[{1, 1}], Ellipsoid[{0, 0}, {3, 2}]]

Polygons:

Wolfram Language code: FindRegionTransform[Polygon[{{-Sqrt[5/8 + Sqrt[5]/8], (-1 + Sqrt[5])/4}, {-Sqrt[5/8 - Sqrt[5]/8], (-1 - Sqrt[5])/4}, {0, 1}, {Sqrt[5/8 - Sqrt[5]/8], (-1 - Sqrt[5])/4}, {Sqrt[5/8 + Sqrt[5]/8], (-1 + Sqrt[5])/4}}, {1, 2, 4, 5, 3}], Polygon[{{1 - Sqrt[(5/8 + Sqrt[5]/8)/2] + (-1/4*1/Sqrt[2])*(-1 + Sqrt[5]), 2 - Sqrt[(5/8 + Sqrt[5]/8)/2] + (1/(4*Sqrt[2]))*(-1 + Sqrt[5])}, {1 + (-1/4*1/Sqrt[2])*(-1 - Sqrt[5]) - Sqrt[(5/8 - Sqrt[5]/8)/2], 2 + (1/(4*Sqrt[2]))*(-1 - Sqrt[ ... [(5/8 - Sqrt[5]/8)/2], 2 + (1/(4*Sqrt[2]))*(-1 - Sqrt[5]) + Sqrt[(5/8 - Sqrt[5]/8)/2]}, {1 + Sqrt[(5/8 + Sqrt[5]/8)/2] + (-1/4*1/Sqrt[2])*(-1 + Sqrt[5]), 2 + Sqrt[(5/8 + Sqrt[5]/8)/2] + (1/(4*Sqrt[2]))*(-1 + Sqrt[5])}}, {1, 2, 4, 5, 3}]]

Mesh Regions  (3)

A transformation between mesh regions:

Wolfram Language code: FindRegionTransform[MeshRegion[{{0, 0}, {0, 1}, {1, 0}, {1, 1}}, Polygon[{1, 3, 4, 2}]], MeshRegion[{{0, 0}, {1, 0}, {1, 1}, {2, 1}}, Polygon[{1, 2, 4, 3}]]]

A transformation between boundary mesh regions:

Wolfram Language code: FindRegionTransform[BoundaryMeshRegion[{{0, 0}, {0, 1}, {1, 0}, {1, 1}}, Line[{1, 3, 4, 2, 1}]], BoundaryMeshRegion[{{0, 0}, {1, 0}, {1, 1}, {2, 1}}, Line[{1, 2, 4, 3, 1}]]]

A transformation between mesh regions and boundary mesh regions:

Wolfram Language code: FindRegionTransform[MeshRegion[{{0, 0}, {0, 1}, {1, 0}, {1, 1}}, Polygon[{1, 3, 4, 2}]], BoundaryMeshRegion[{{0, 0}, {1, 0}, {1, 1}, {2, 1}}, Line[{1, 2, 4, 3, 1}]]]

Applications  (1)

Basic Applications  (1)

FindRegionTransform finds affine transformations:

Wolfram Language code: p = Rectangle[];

Translation:

Wolfram Language code: q = Translate[p, {1, 1}];
Wolfram Language code: FindRegionTransform[p, q]

Rotation:

Wolfram Language code: q = Rotate[p, Pi / 2];
Wolfram Language code: FindRegionTransform[p, q]

Scaling:

Wolfram Language code: q = Scale[p, {2, 2}];
Wolfram Language code: FindRegionTransform[p, q]
