RegionCongruent

RegionCongruent[reg1,reg2]

tests whether the regions reg1 and reg2 are congruent.

Details and Options

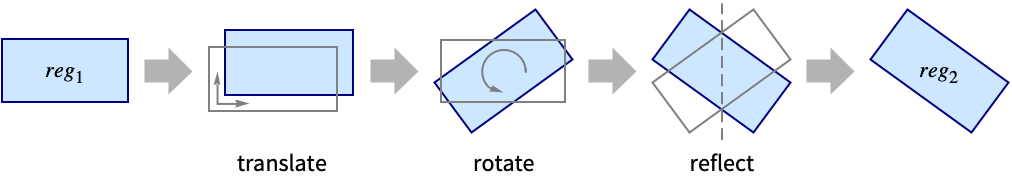

  • The regions reg1 and reg2 are congruent if reg2 can be obtained from reg1 by a combination of translations, rotations and reflections.
  • Typically used to test whether two regions have the same shape and size or whether one has the same shape and size as the mirror image of the other.
  • RegionCongruent[reg1,reg2] gives True if there is an affine transformation from reg1 to reg2 with matrix m satisfying TemplateBox[{m}, Transpose]=TemplateBox[{m}, Inverse].

Examples

open all close all

Basic Examples  (1)

Test whether two regions are congruent:

Wolfram Language code: RegionCongruent[Rectangle[], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]]
Wolfram Language code: RegionCongruent[Rectangle[], Parallelogram[]]

Scope  (10)

Basic Uses  (2)

Test whether two regions are congruent:

Wolfram Language code: RegionCongruent[Rectangle[], Parallelogram[]]

Show two regions are not congruent:

Wolfram Language code: RegionCongruent[Rectangle[{1, 1}], Rectangle[{2, 3}]]

Special Regions  (3)

RegionCongruent works in 1D:

Wolfram Language code: RegionCongruent[Line[{{0}, {1}}], Interval[{0, 1}]]

Point:

Wolfram Language code: RegionCongruent[Point[{1, 1}], Point[{2, 2}]]

Ball:

Wolfram Language code: RegionCongruent[Ball[1], Interval[{-1, 1}]]

InfiniteLine:

Wolfram Language code: RegionCongruent[InfiniteLine[{0}, {1}], FullRegion[1]]

RegionCongruent works in 2D:

Wolfram Language code: Subscript[ℛ, 1] = Point[Tuples[Range[3], 2]]; Subscript[ℛ, 2] = Point[Join@@Table[{i, j}, {j, 3}, {i, 3}]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Disk and Ball:

Wolfram Language code: Subscript[ℛ, 1] = Disk[]; Subscript[ℛ, 2] = Ball[2];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Polygon:

Wolfram Language code: Subscript[ℛ, 1] = Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]; Subscript[ℛ, 2] = Rectangle[];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

RegionCongruent works in 3D:

Wolfram Language code: Subscript[ℛ, 1] = Point[Tuples[Range[5], 3]]; Subscript[ℛ, 2] = Point[Flatten[Table[{i, j, k}, {j, 5}, {k, 5}, {i, 5}], 2]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Formula Regions  (1)

Compare two formula regions:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[-1 ≤ x ≤ 1 && y^2 ≤ x^4 - 2x^2 + 1, {x, y}]; Subscript[ℛ, 2] = ParametricRegion[{t, s (1 - t^2)}, {{s, -1, 1}, {t, -1, 1}}];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Mesh Regions  (3)

Test whether two mesh regions are congruent:

Wolfram Language code: Subscript[ℛ, 1] = MeshRegion[{{0}, {1}}, Line[{1, 2}]]; Subscript[ℛ, 2] = MeshRegion[{{0}, {1 / 2}, {1}}, Line[{3, 2, 1}]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]
Wolfram Language code: Subscript[ℛ, 1] = MeshRegion[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, Polygon[{1, 2, 3, 4}]]; Subscript[ℛ, 2] = TriangulateMesh[Subscript[ℛ, 1]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Test whether two boundary mesh regions are congruent:

Wolfram Language code: Subscript[ℛ, 1] = BoundaryMeshRegion[{{0}, {1}}, Point[{1, 2}]]; Subscript[ℛ, 2] = BoundaryMeshRegion[{{0}, {1}}, Point[{2, 1}]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]
Wolfram Language code: Subscript[ℛ, 1] = BoundaryMeshRegion[{{0, 0}, {2, 0}, {2, 2}, {0, 2}}, Line[{1, 2, 3, 4, 1}]]; Subscript[ℛ, 2] = BoundaryMeshRegion[{{0, 0}, {1, 0}, {2, 0}, {2, 2}, {0, 2}}, Line[{1, 2, 3, 4, 5, 1}]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Test whether a mesh region and a boundary mesh region are congruent:

Wolfram Language code: Subscript[ℛ, 1] = DelaunayMesh[RandomReal[{-1, 1}, {25, 2}]]; Subscript[ℛ, 2] = BoundaryMesh[Subscript[ℛ, 1]];
Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]}
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

In :

Wolfram Language code: Subscript[ℛ, 1] = DelaunayMesh[RandomReal[{-1, 1}, {25, 3}]]; Subscript[ℛ, 2] = BoundaryMesh[Subscript[ℛ, 1]];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Derived Regions  (1)

Test whether Boolean regions are congruent:

Wolfram Language code: Subscript[ℛ, 1] = BooleanRegion[Xnor, {Disk[], Disk[{1, 0}]}]; Subscript[ℛ, 2] = BooleanRegion[(!#1 || #2) && (#1 || !#2)&, {Disk[], Disk[{1, 0}]}];
Wolfram Language code: RegionCongruent[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Applications  (3)

Two disks with the same radius are congruent:

Wolfram Language code: RegionCongruent[Disk[{0, 0}, 2], Disk[{2, 2}, 2]]
Wolfram Language code: RegionCongruent[Disk[{0, 0}, 2], Disk[{2, 2}, 3]]

Two rectangles with the same width and height are congruent:

Wolfram Language code: RegionCongruent[Rectangle[{0, 0}, {1, 3}], Rectangle[{2, 2}, {3, 5}]]
Wolfram Language code: RegionCongruent[Rectangle[{0, 0}, {1, 3}], Rectangle[{2, 1}, {4, 2}]]

Two polygons with the same vertex angles and edge lengths are congruent:

Wolfram Language code: p = RandomPolygon[{"Convex", 5}]; q = TransformedRegion[p, RotationTransform[Pi / 4]];
Wolfram Language code: RegionCongruent[p, q]
Wolfram Language code: r = TransformedRegion[p, ScalingTransform[Pi / 4, {1, 1}]];
Wolfram Language code: RegionCongruent[p, r]

Properties & Relations  (3)

RegionSimilar returns True for congruent regions:

Wolfram Language code: RegionCongruent[Rectangle[], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]]
Wolfram Language code: RegionSimilar[Rectangle[], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]]

Regions that are similar are not always congruent:

Wolfram Language code: RegionSimilar[Rectangle[], Parallelogram[]]
Wolfram Language code: RegionCongruent[Rectangle[], Parallelogram[]]

Two equal regions are congruent:

Wolfram Language code: RegionEqual[Disk[], Ball[2]]
Wolfram Language code: RegionCongruent[Disk[], Ball[2]]

FindRegionTransform gives an affine transformation m of the form TemplateBox[{m}, Transpose]=TemplateBox[{m}, Inverse] between two congruent regions:

Wolfram Language code: RegionCongruent[Rectangle[{0, 0}, {2, 2}], Rectangle[{2, 2}, {4, 4}]]

The affine transformation:

Wolfram Language code: tr = FindRegionTransform[Rectangle[{0, 0}, {2, 2}], Rectangle[{2, 2}, {4, 4}]]

Its affine matrix:

Wolfram Language code: m = tr["AffineMatrix"]
Wolfram Language code: Transpose[m] == Inverse[m]
