SierpinskiCurve

SierpinskiCurve[n]

gives the line segments representing the n^(th)-step Sierpiński curve.

Details and Options

Examples

open all close all

Basic Examples  (2)

A 2D Sierpiński curve:

Wolfram Language code: Graphics[SierpinskiCurve[2]]

Lengths of the approximations to the Sierpiński curve:

Wolfram Language code: Table[RegionMeasure[SierpinskiCurve[n]], {n, 5}]

The formula:

Wolfram Language code: FindSequenceFunction[%, n]

Visualize the Sierpiński curve in 2D with splines:

Wolfram Language code: Graphics[{Thickness[Large], SierpinskiCurve[3] /. Line -> BSplineCurve}]

Scope  (6)

Curve Specification  (2)

A 2D Sierpiński curve:

Wolfram Language code: Graphics[SierpinskiCurve[1]]

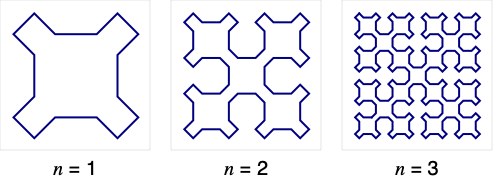

The ^(th) approximation of the Sierpiński curve:

Wolfram Language code: Table[Graphics[SierpinskiCurve[n]], {n, 1, 4}]

Curve Styling  (4)

Sierpiński curves with different thicknesses:

Wolfram Language code: Table[Graphics[{Thickness[i], SierpinskiCurve[3]}], {i, {Medium, Large}}]

Thickness in scaled size:

Wolfram Language code: Table[Graphics[{Thickness[i], SierpinskiCurve[2]}], {i, {.005, .05, .1}}]

Thickness in printer's points:

Wolfram Language code: Table[Graphics[{AbsoluteThickness[i], SierpinskiCurve[2]}], {i, {1, 5, 10}}]

Dashed curves:

Wolfram Language code: Table[Graphics[{Dashing[i], SierpinskiCurve[3]}], {i, {Tiny, Small, Medium, Large}}]
Wolfram Language code: Table[Graphics[{d, SierpinskiCurve[3]}], {d, {Dotted, Dashed, DotDashed}}]

Colored curves:

Wolfram Language code: Table[Graphics[{c, SierpinskiCurve[3]}], {c, {Red, Green, Blue, Yellow}}]

Options  (1)

DataRange  (1)

DataRange allows you to specify the range of mesh coordinates to generate:

Wolfram Language code: SierpinskiCurve[1]

Specify a different range:

Wolfram Language code: SierpinskiCurve[1, DataRange -> {{0, 1}, {0, 1}}]

Applications  (4)

SierpinskiCurve is constructed recursively by transforming segments into curves linked together by lines:

Wolfram Language code: cups[curve_, i_] := With[{part = Most@Partition[First[curve], UpTo[i + 1], i]}, Graphics[Apply[{{Thick, Line[#1]}, {Dotted, Line[#2]}}&, Map[Partition[#, UpTo[i], i - 1]&, part], {1}]]]
Wolfram Language code: Row[{cups[SierpinskiCurve[1], 4], cups[SierpinskiCurve[2], 16]}, Spacer[40]]

Next iteration:

Wolfram Language code: color[curve_, i_, n_ : 1] := With[{color = ColorData[97, "ColorList"], data = First[cups[curve, i]]}, Graphics[MapIndexed[{color[[First[#2]]], #1}&, Partition[data, n]]]]
Wolfram Language code: Row[{color[SierpinskiCurve[2], 16], color[SierpinskiCurve[3], 64, 1]}, Spacer[40]]

Visualize the Sierpiński curve in 2D:

Wolfram Language code: Graphics[SierpinskiCurve[2]]

With splines:

Wolfram Language code: % /. Line -> BSplineCurve

Build a polygon:

Wolfram Language code: Graphics[Polygon @@ SierpinskiCurve[4]]

Apply a Sierpiński curve texture to a surface:

Wolfram Language code: ParametricPlot3D[{1.16 ^ v Cos[v](1 + Cos[u]), -1.16 ^ v Sin[v](1 + Cos[u]), -2 1.16 ^ v(1 + Sin[u])}, {u, 0, 2Pi}, {v, -15, 6}, PlotStyle -> Directive[Specularity[White, 30], Texture[Graphics[SierpinskiCurve[4]]]], TextureCoordinateFunction -> ({#4, 2#5}&), Lighting -> "Neutral", Mesh -> None, PlotRange -> All, Boxed -> False, Axes -> False]

Properties & Relations  (3)

SierpinskiCurve consists of lines:

Wolfram Language code: SierpinskiCurve[1]

Find the perimeter of the 2D Sierpiński curve:

Wolfram Language code: Table[Graphics[SierpinskiCurve[n]], {n, 3}]
Wolfram Language code: Table[RegionMeasure[SierpinskiCurve[n]], {n, 5}]
Wolfram Language code: FindSequenceFunction[%, n]

DataRangerange is equivalent to using RescalingTransform[{…},range]:

Wolfram Language code: Region[SierpinskiCurve[2, DataRange -> {{1, 2}, {1, 3}}], Frame -> True]

Use RescalingTransform:

Wolfram Language code: coor = First[SierpinskiCurve[2]]; {x, y} = {coor[[All, 1]], coor[[All, 2]]};
Wolfram Language code: box = TransformedRegion[SierpinskiCurve[2], RescalingTransform[{{Min[x], Max[x]}, {Min[y], Max[y]}}, {{1, 2}, {1, 3}}]];
Wolfram Language code: Region[box, Frame -> True]

Possible Issues  (2)

By default, the coordinates of the Sierpiński curve are not in the unit square:

Wolfram Language code: SierpinskiCurve[1]

Using DataRange to generate the Sierpiński curve in the unit square:

Wolfram Language code: SierpinskiCurve[1, DataRange -> {{0, 1}, {0, 1}}]

SierpinskiCurve can be too large to generate:

Wolfram Language code: SierpinskiCurve[30]

Neat Examples  (1)

Traversal animations:

Wolfram Language code: With[{curve = SierpinskiCurve[6]}, Manipulate[Graphics[{curve, Red, Thick, Line[Take[First[curve], i]]}, ImageSize -> Medium], {i, 1, 16385, 1}]]
