WeierstrassSigma

WeierstrassSigma[u,{g2,g3}]

gives the Weierstrass sigma function TemplateBox[{u, {g, _, 2}, {g, _, 3}}, WeierstrassSigma].

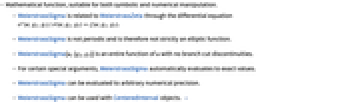

Details

Examples

open all close all

Basic Examples  (4)

Evaluate numerically:

Wolfram Language code: WeierstrassSigma[2.2, {1, 2}]

Plot over a subset of the reals:

Wolfram Language code: Plot[WeierstrassSigma[x, {1, 2}], {x, -6, 6}]

Plot over a subset of the complexes:

Wolfram Language code: ComplexPlot3D[WeierstrassSigma[z, {1 / 2, 1 / 2}], {z, -2 - 2I, 2 + 2I}, PlotLegends -> Automatic]

Series expansion at the origin:

Wolfram Language code: Series[WeierstrassSigma[x, {g2, g3}], {x, 0, 12}]

Scope  (30)

Numerical Evaluation  (7)

Evaluate numerically:

Wolfram Language code: WeierstrassSigma[.7, {1, 2}]//Chop
Wolfram Language code: WeierstrassSigma[32., {3, 2}]

Evaluate to high precision:

Wolfram Language code: N[WeierstrassSigma[2 / 3, {1, 2}], 50]//Chop

The precision of the output tracks the precision of the input:

Wolfram Language code: WeierstrassSigma[2.111111111111111111111111, {1, 2}]//Chop

Complex number inputs:

Wolfram Language code: WeierstrassSigma[2. + I, {I, I + 2}]

Evaluate efficiently at high precision:

Wolfram Language code: WeierstrassSigma[12`100, {3, 2}]//Timing
Wolfram Language code: WeierstrassSigma[13`10000, {4, 2}];//Timing//Quiet

WeierstrassSigma can be used with CenteredInterval objects:

Wolfram Language code: WeierstrassSigma [CenteredInterval[1 / 2 + I / 3, (1 + I) / 10 ^ 9], {CenteredInterval[1 + I, (1 + I) / 10 ^ 9], CenteredInterval[3 / 4, 1 / 10 ^ 9]}]

Compute average-case statistical intervals using Around:

Wolfram Language code: WeierstrassSigma[ Around[2, 0.01], {12, -8}]

Compute the elementwise values of an array:

Wolfram Language code: WeierstrassSigma[{{1 / 2, -1}, {1, 1 / 2}}, {12, -8}]

Or compute the matrix WeierstrassSigma function using MatrixFunction:

Wolfram Language code: MatrixFunction[WeierstrassSigma[#, {12, -8}]&, {{1 / 2, 1}, {0, 1 / 2}}]//FullSimplify

Specific Values  (5)

Value at zero:

Wolfram Language code: WeierstrassSigma[0, {1, 1}]

WeierstrassSigma automatically evaluates to simpler functions for certain parameters:

Wolfram Language code: WeierstrassSigma[1, {12, -8}]

WeierstrassSigma evaluates to zero at the periods of WeierstrassP:

Wolfram Language code: WeierstrassSigma[2WeierstrassHalfPeriodW1[{g2, g3}], {g2, g3}]
Wolfram Language code: WeierstrassSigma[2WeierstrassHalfPeriodW2[{g2, g3}], {g2, g3}]
Wolfram Language code: WeierstrassSigma[2WeierstrassHalfPeriodW3[{g2, g3}], {g2, g3}]

Values of WeierstrassSigma at the half-periods of WeierstrassP:

Wolfram Language code: WeierstrassSigma[{WeierstrassHalfPeriodW1[{1, 0}], WeierstrassHalfPeriodW2[{1, 0}], WeierstrassHalfPeriodW3[{1, 0}]}, {1, 0}]
Wolfram Language code: WeierstrassSigma[{WeierstrassHalfPeriodW1[{0, 1}], WeierstrassHalfPeriodW2[{0, 1}], WeierstrassHalfPeriodW3[{0, 1}]}, {0, 1}]

Find the first positive maximum of WeierstrassSigma[x,1/2,1/2]:

Wolfram Language code: xmax = x /. FindRoot[D[WeierstrassSigma[x, {1 / 2, 1 / 2} ], x] == 0, {x, 2}]//Chop
Wolfram Language code: Plot[WeierstrassSigma[x, {1 / 2, 1 / 2} ], {x, -5, 5}, Epilog -> Style[Point[{xmax, WeierstrassSigma[xmax, {1 / 2, 1 / 2} ]}], PointSize[Large], Red]]

Visualization  (2)

Plot the WeierstrassSigma function for various parameters:

Wolfram Language code: Plot[{WeierstrassSigma[u, {2, 3}], WeierstrassSigma[u, {4, 3}], WeierstrassSigma[u, {4, 5}]}, {u, -6, 6}]

Plot the real part of TemplateBox[{z, 2, 1}, WeierstrassSigma]:

Wolfram Language code: ComplexContourPlot[Re[WeierstrassSigma[z, {2, 1}]], {z, -4 - 4 I, 4 + 4 I}, Contours -> 20]

Plot the imaginary part of TemplateBox[{z, 2, 1}, WeierstrassSigma]:

Wolfram Language code: ComplexContourPlot[Im[WeierstrassSigma[z, {2, 1}]], {z, -4 - 4 I, 4 + 4 I}, Contours -> 20]

Function Properties  (11)

WeierstrassSigma is defined for all real and complex inputs:

Wolfram Language code: FunctionDomain[WeierstrassSigma[x, {a, b}], {x, a, b}]
Wolfram Language code: FunctionDomain[WeierstrassSigma[x, {a, b}], {x, a, b}, Complexes]

Approximate function range of TemplateBox[{x, 1, 2}, WeierstrassSigma]:

Wolfram Language code: FunctionRange[WeierstrassSigma[x, {1, 2}], x, y]//Quiet

WeierstrassSigma is an odd function with respect to x:

Wolfram Language code: WeierstrassSigma[-x, {Subscript[``g``, 2], Subscript[``g``, 3]}]

WeierstrassSigma threads elementwise over lists in its first argument:

Wolfram Language code: WeierstrassSigma[{u1, u2}, {g2, g3}]

TemplateBox[{x, 1, 2}, WeierstrassSigma] is an analytic function of :

Wolfram Language code: FunctionAnalytic[WeierstrassSigma[x, {1, 2}], x]

It has no singularities or discontinuities:

Wolfram Language code: FunctionSingularities[WeierstrassSigma[x, {1, 2}], x]
Wolfram Language code: FunctionDiscontinuities[WeierstrassSigma[x, {1, 2}], x]

TemplateBox[{x, 1, 0}, WeierstrassSigma] is neither nondecreasing nor nonincreasing:

Wolfram Language code: FunctionMonotonicity[WeierstrassSigma[x, {1, 0}], x]

TemplateBox[{x, 1, 2}, WeierstrassSigma] is not injective:

Wolfram Language code: FunctionInjective[WeierstrassSigma[x, {1, 2}], x]
Wolfram Language code: Plot[{WeierstrassSigma[x, {1, 2}], 2}, {x, -4, 4}]

TemplateBox[{x, 3, 1}, WeierstrassSigma] is surjective:

Wolfram Language code: FunctionSurjective[WeierstrassSigma[x, {3, 1}], x]
Wolfram Language code: Plot[{WeierstrassSigma[x, {3, 1}], -20}, {x, -5, 5}]

TemplateBox[{x, 1, 2}, WeierstrassSigma] is neither non-negative nor non-positive:

Wolfram Language code: FunctionSign[WeierstrassSigma[x, {1, 2}], x]

TemplateBox[{x, 1, 0}, WeierstrassSigma] is neither convex nor concave:

Wolfram Language code: FunctionConvexity[WeierstrassSigma[x, {1, 0}], x]

TraditionalForm formatting:

Wolfram Language code: WeierstrassSigma[z, {Subscript[g, 2], Subscript[g, 3]}]//TraditionalForm

Differentiation  (2)

First derivative with respect to :

Wolfram Language code: D[WeierstrassSigma[u, {Subscript[``g``, 2], Subscript[``g``, 3]}], u]

Higher derivatives with respect to :

Wolfram Language code: Table[D[WeierstrassSigma[u, {Subscript[``g``, 2], Subscript[``g``, 3]}], {u, k}], {k, 1, 4}]//FullSimplify

Plot the higher derivatives with respect to :

Wolfram Language code: Plot[Evaluate [% /. { Subscript[``g``, 2] -> 2, Subscript[``g``, 3] -> 3}, {u, -2.5, 2.5}, PlotLegends -> {"First Derivative", "Second Derivative", "Third Derivative", "Fourth Derivative"}]]

Series Expansions  (3)

Find the Taylor expansion using Series:

Wolfram Language code: Series[WeierstrassSigma[x, {g2, g3}], {x, 0, 10}]

Plots of the first three approximations around :

Wolfram Language code: terms = Normal@Table[Series[WeierstrassSigma[x, {2, 3}], {x, 0, m}], {m, 1, 15, 5}]; Plot[{WeierstrassSigma[x, {2, 3}], terms}, {x, -8, 8}]

Find series expansion for an arbitrary symbolic direction :

Wolfram Language code: Series[WeierstrassSigma[x, {g2, g3}], {x, DirectedInfinity[z], 1}, Assumptions -> x > 0]// Normal//FullSimplify

Taylor expansion at a generic point:

Wolfram Language code: Series[WeierstrassSigma[x, {g2, g3}], {x, x0, 2}]//Normal// FullSimplify

Applications  (2)

The system of coupled nonlinear differential equations for a heavy symmetric top:

Wolfram Language code: topODEs = {ω1'[t] == -m ω2[t] ω3[t] - x2[t], ω2'[t] == m ω3[t] ω1[t] + x1[t], ω3'[t] == 0, x1'[t] == x2[t] ω3[t] - x3[t] ω2[t], x2'[t] == x3[t] ω1[t] - x1[t] ω3[t], x3'[t] == x1[t] ω2[t] - x2[t] ω1[t]};

The solutions can be expressed through Weierstrass sigma and zeta functions:

Wolfram Language code: {ω1[t_], ω2[t_], ω3[t_], x1[t_], x2[t_], x3[t_]} = With[{σ = WeierstrassSigma[#, {g2, g3}]&, ζ = WeierstrassZeta[#, {g2, g3}]&}, Module[{α = (-(-1 + m) (ζ[c1] + ζ[c2]) + 2 m ζ[c1 + c2]/1 + m)}, {((-1)^3 / 4 E^-t α - β (E^2 (t α + β) σ[-c1 - c2 + t] + I σ[c1 + c2 + t])/σ[c1 + c2] σ[t]), ((-1)^1 / 4 E^-t α - β (-E^2 (t α + β) σ[-c1 - c2 + t] + I σ[c1 + c2 + t])/σ[c1 + c2] σ[t]), -I (α + ζ[c1] + ζ[c2] - 2 ζ[c1 + c2]), -((-1)^1 / 4 E^-t α - β (E^2 (t α + β) σ[-c1 + t] σ[-c2 + t] + I σ[c1 + t] σ[c2 + t])) / (σ[c1] σ[c2] σ[t]^2), ((-1)^3 / 4 E^-t α - β (-E^2 (t α + β) σ[-c1 + t] σ[-c2 + t] + I σ[c1 + t] σ[c2 + t])) / (σ[c1] σ[c2] σ[t]^2), (σ[c2]^2 σ[-c1 + t] σ[c1 + t] + σ[c1]^2 σ[-c2 + t] σ[c2 + t]/σ[c1]^2 σ[c2]^2 σ[t]^2)}]];

Numerically check the correctness of the solutions:

Wolfram Language code: topODEs /. (# -> RandomReal[WorkingPrecision -> 50]& /@ {c1, c2, β, g2, g3, t, m})

Form any elliptic function with given periods, poles and zeros as a rational function of WeierstrassSigma:

Wolfram Language code: makeEllipticFunction[z_, {ω1_, ω3_}, zeros_List, poles_List] := Module[{g2, g3, σ}, g2 = WeierstrassInvariantG2[{ω1, ω3}]; g3 = WeierstrassInvariantG3[{ω1, ω3}];σ = WeierstrassSigma[#, {g2, g3}]&;(Times @@σ[z - zeros]) / (Times @@σ[z - poles])σ[z - Last[poles]] / σ[z - Last[poles] - (Total[zeros] - Total[poles])]] /; Length[zeros] == Length[poles] && Resolve[Exists[{μ, ν}, Element[{μ, ν}, Integers], Total[zeros] - Total[poles] == μ ω1 + ν ω3]]

Form an elliptic function with a single and a double zero and a triple pole:

Wolfram Language code: f[z_] = makeEllipticFunction[z, {1, I}, {1 / 3 + 1 / 3 I, 1 / 3 + 1 / 3 I, -2 / 3 - 2 / 3 I}, {0, 0, 0}]

Plot the resulting elliptic function:

Wolfram Language code: ComplexPlot[f[z], {z, -1.5 - 1.5I, 1.5 + 1.5I}, ColorFunction -> "CyclicReImLogAbs"]

Properties & Relations  (2)

Derivatives:

Wolfram Language code: D[WeierstrassSigma[z, {Subscript[g, 2], Subscript[g, 3]}], {z, 3}]

Argument reduction formulas for WeierstrassSigma:

Wolfram Language code: WeierstrassSigma[z + 2WeierstrassHalfPeriodW1[{g2, g3}], {g2, g3}]
Wolfram Language code: WeierstrassSigma[z + 2WeierstrassHalfPeriodW2[{g2, g3}], {g2, g3}]
Wolfram Language code: WeierstrassSigma[z + 2WeierstrassHalfPeriodW3[{g2, g3}], {g2, g3}]

Neat Examples  (1)

Plot WeierstrassSigma over the complex plane:

Wolfram Language code: Module[{g2 = 2, g3 = 1 + I, ω1, ω3}, {ω1, ω3} = WeierstrassHalfPeriods[{g2, g3}]//N;ParametricPlot3D[{Re[x ω1 + y ω3], Im[x ω1 + y ω3], Re[WeierstrassSigma[x ω1 + y ω3, {g2, g3}]]}, {x, -3, 3}, {y, -3, 3}, PlotRange -> {-3, 3}, BoxRatios -> {1, 1, 1 / 2}, Mesh -> False]]
