"AlgebraicValue" (Comparison Method)

"AlgebraicValue" (Comparison Method)

Compare mathematical expressions in a way suitable for exercises demanding algebraic solutions, allowing computation that does not include operations of algebra.

Details

  • The algebra solution comparison method considers two expressions to be equivalent if they are mathematically equal without performing any solving operations, e.g. Solve, SolveValues, Fit, Reduce, etc.
  • The values of the key and answer can both be specified as held expressions with Hold[expr] to maintain the values exactly as provided. However, even when the values are held, evaluation of non-algebra functions (i.e. excluding Solve and similar functions) is performed during assessment. It is recommended to always hold the answer.
  • "AlgebraicValue" assessments accept the setting "OptionalResultName" for specifying the variable of interest in a question: AssessmentFunction[key,<|"ComparisonMethod""AlgebraicValue","OptionalResultName"setting|>]
  • The supported values of setting include:
  • varaccept the variable var in the submitted result
    False(default) only match answers provided as ans
    Trueattempt to infer var from the key
  • When using "OptionalResultName"var, any of the following forms are accepted as correct for an answer ans:
  • ans
    Hold[var=ans]
    Hold[var==ans]
    varans
  • Equations and inequalities are supported in the answer key, and any equivalent form is considered correct.

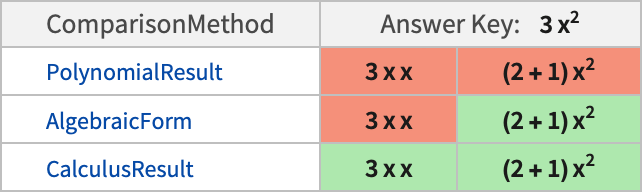

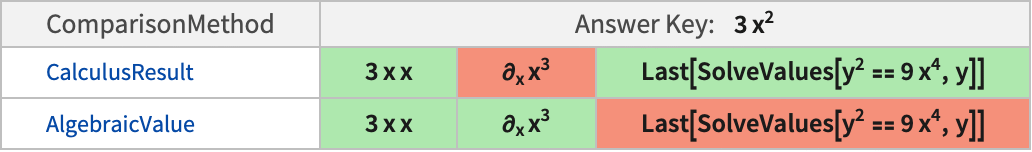

  • The following tables show comparisons of "AlgebraicValue" with other comparison methods for typical answer keys:

Examples

open all close all

Basic Examples  (1)

Create an AssessmentFunction for an algebra question:

Wolfram Language code: solvetest = AssessmentFunction[{(-b - Sqrt[b^2 - 4 a c]/2 a), (-b + Sqrt[b^2 - 4 a c]/2 a)}, "AlgebraicValue"]

Use it to assess an equivalent form of the answer:

Wolfram Language code: solvetest[-(b/2 a) - (Sqrt[b^2 - 4 a c]/2 a)]

Scope  (5)

Create an assessment function to find where a line intersects a circle:

Wolfram Language code: geometryassess = AssessmentFunction[SolveValues[{x, y}∈InfiniteLine[{{0, 0}, {2, 1}}] && {x, y}∈Circle[], {x, y}], "AlgebraicValue"]

Check a correct answer:

Wolfram Language code: geometryassess[{(2/Sqrt[5]), (1/Sqrt[5])}]

Define code that finds a solution:

Wolfram Language code: heldSolutionCode = Hold[First@SolveValues[Norm[{x, y}] == 1 && y == x / 2, {x, y}]];

The code is not marked as correct because it contains algebraic solving code:

Wolfram Language code: geometryassess[heldSolutionCode]

Allowing the code to evaluate to a correct answer before assessment gives a correct marking:

Wolfram Language code: geometryassess[ReleaseHold@heldSolutionCode]

Calculate a solution to an equation:

Wolfram Language code: solution = SolveValues[x + 3 a == 5, x]

Create an assessment that accepts alternate forms of answers containing the variable x as the result name:

Wolfram Language code: solvetest = AssessmentFunction[solution, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> x|>]

The regular answer does not need to include the variable name that is searched for:

Wolfram Language code: solvetest[Hold[-3a + 5]]

The alternate forms accepted are:

Wolfram Language code: solvetest[Hold[x = 5 - 3a]]
Wolfram Language code: solvetest[Hold[x -> 5 - 3a]]
Wolfram Language code: solvetest[Hold[x == 5 - 3a]]

The use of any other variable name results in a false assessment:

Wolfram Language code: solvetest[Hold[z == 5 - 3a]]

The variable name can be inferred from the answer key if it uses any of the allowed alternate forms:

Wolfram Language code: infered = AssessmentFunction[Hold[x = 5 - 3a], <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> True|>]
Wolfram Language code: infered[Hold[x -> 5 - 3a]]

The variable name needs not to figure in the answer:

Wolfram Language code: AssessmentFunction[Hold[x = 5 - 3a], <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> True|>][Hold[5 - 3a]]

Compute the solution to an equation reduction problem:

Wolfram Language code: answerkey = Eliminate[{x == 2 + y, y == z}, y]

Define an assessment function:

Wolfram Language code: equationtest = AssessmentFunction[answerkey, "AlgebraicValue"]

All equations equivalent to the correct answer are accepted:

Wolfram Language code: equationtest[Hold[2 + z == x]]
Wolfram Language code: equationtest[Hold[2 + z - x == 0]]

The original question is not accepted as an answer:

Wolfram Language code: equationtest[Hold[Eliminate[{x == 2 + y, y == z}, y]]]

Create an assessment function for an inequality:

Wolfram Language code: af = AssessmentFunction[Hold[y - x > 8], "AlgebraicValue"]

Equivalent inequalities are marked as correct:

Wolfram Language code: af[Hold[x + 5 < y - 3]]

Use "AlgebraicForm" to more tightly limit accepted answers:

Wolfram Language code: AssessmentFunction[Hold[y - x > 8], "AlgebraicForm"][Hold[x + 5 < y - 3]]

Applications  (3)

Create a QuestionObject for an algebra problem with multiple correct answers:

Wolfram Language code: QuestionObject["Find a root of a x^2==b+1", AssessmentFunction[ {(-Sqrt[1 + b]/Sqrt[a]), (Sqrt[1 + b]/Sqrt[a])}, "AlgebraicValue" ]]

Create a QuestionObject for a geometry question:

Wolfram Language code: QuestionObject[Column[{ StringForm["Find a point of intersection {x,y} for a circle at the origin of radius one and the line ``", y == (1 / a) x], Graphics[{Red, InfiniteLine[{0, 0}, {2, 1}], Blue, Circle[]}, Rule[...]] }], AssessmentFunction[SolveValues[{x, y}∈InfiniteLine[{{0, 0}, {a, 1}}] && {x, y}∈Circle[], {x, y}, Rule[...]], "AlgebraicValue"]]

Create a polynomial solving problem including a plot to help find values. Setting "OptionalResultName" allows flexibility in the accepted answer forms:

Wolfram Language code: QuestionObject[Column[{StringForm["Find all the roots of the polynomial p(x) = ``", pol = Expand[(x - 1) (x - 2) (x - 3) (x - 4)]], OpenerView[{Style["Helper:", Blue, Smaller], Plot[...]}]}], AssessmentFunction[{{1, 2, 3, 4}}, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> HoldPattern@x, "ListAssessment" -> "AllElementsOrderless"|>]]

Properties & Relations  (3)

Evaluation for operations not considered to be algebra occurs even when the answer is held:

Wolfram Language code: AssessmentFunction[Hold[10x], "AlgebraicValue"][Hold[Echo[5x + 5x]]]

When values are held, global definitions are ignored during assessment:

Wolfram Language code: x = 0; AssessmentFunction[Hold[10x], "AlgebraicValue"][Hold[0]]

Global definitions may also conflict with the name specified for the "OptionalResultName", if the variable is not held:

Wolfram Language code: z = 0;
Wolfram Language code: AssessmentFunction[10, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> z|>][Hold[z = 10]]

Wrap the variable into Hold or HoldPattern to ignore the global definition:

Wolfram Language code: AssessmentFunction[10, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> HoldPattern@z|>][Hold[z = 10]]
Wolfram Language code: AssessmentFunction[10, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> Hold@z|>][Hold[z = 10]]

"AlgebraicValue" method allows functions, like Plus, that do not solve algebraic problems to evaluate:

Wolfram Language code: AssessmentFunction[-1, "AlgebraicValue"][Hold[-3 + 2]]

Functions that do solve algebraic problems do not evaluate and are marked incorrect:

Wolfram Language code: AssessmentFunction[-1, "AlgebraicValue"][Hold[SolveValues[x + 1 == 0, {x}][[1, 1]]]]

"CalculusResult" allows the algebraic solving functions to evaluate:

Wolfram Language code: AssessmentFunction[-1, "CalculusResult"][Hold[SolveValues[x + 1 == 0, {x}][[1, 1]]]]

Possible Issues  (1)

Create an answer key using Solve for multiple variables:

Wolfram Language code: sol = Solve[{x, y}∈InfiniteLine[{{0, 0}, {2, 1}}] && {x, y}∈Circle[], {x, y}]

Creating an AssessmentFunction with the default "ListAssessment" setting treats each list in the key as a single answer:

Wolfram Language code: wholelistassessment = AssessmentFunction[sol, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> True|>]

Only answers identical to the keys are considered as correct:

Wolfram Language code: wholelistassessment[{x -> -(2/Sqrt[5]), y -> -(1/Sqrt[5])}]

Even with the setting "OptionalResultName"True, values without variable names are marked as incorrect:

Wolfram Language code: wholelistassessment[{-(2/Sqrt[5]), -(1/Sqrt[5])}]

Instead, use "AllElementsOrderless" or "AllElementsOrdered" as the "ListAssessment" setting to assess each subvalue independently:

Wolfram Language code: elementassessment = AssessmentFunction[sol, <|"ComparisonMethod" -> "AlgebraicValue", "OptionalResultName" -> True, "ListAssessment" -> "AllElementsOrdered"|>]

Each individual element of the key and answer is matched separately, and the "OptionalResultName" setting works as expected:

Wolfram Language code: elementassessment[{x -> -(2/Sqrt[5]), y == -(1/Sqrt[5])}]

Mathematically equivalent results that differ only by arithmetic are accepted:

Wolfram Language code: elementassessment[{Hold[-2Sqrt[5] / 5], -Hold[Sqrt[5] / 5]}]

To provide answers using an equal sign, use Hold to prevent setting values:

Wolfram Language code: elementassessment[{Hold[x = -2Sqrt[5] / 5], Hold[y = -Sqrt[5] / 5]}]
