"CUDA" (External Evaluation System)

Details

CUDA 12.0+ is supported.
The Wolfram Language will automatically use an installed CUDA GPU. If no CUDA GPU is available, then CUDA execution cannot work. For advanced configuration, follow the instructions from the CUDAProgramming workflow.

ExternalEvaluate Usage

ExternalEvaluate["CUDA",func] uses the Wolfram Compiler to compile function func to an ExternalFunction representing a kernel that can execute on a CUDA GPU.
ExternalEvaluate["CUDA",str] uses a CUDA toolkit to compile a string of C++ code to an ExternalFunction representing a kernel that can execute on a CUDA GPU.
ExternalEvaluate["CUDA",file] uses a CUDA toolkit to compile a file of C++ code to an ExternalFunction representing a kernel that can execute on a CUDA GPU.
Code compiled to run on the CUDA GPU is also known as a CUDA kernel.
CUDA kernels that are stored in ExternalFunction objects can be executed by applying them to their arguments.
When CUDA kernels run on the GPU, the functions are executed in parallel on multiple GPU processors in a way that is controlled by the options "BlockDimensions" and "GridDimensions":
The following options are supported:
"BlockDimensions" Automatic specify how threads are run on each block

"GridDimensions" Automatic specify how blocks are run on a grid
Possible settings for "BlockDimensions" and "GridDimensions" include:

	Automatic	choose a value by inspecting the size of the input
	x	a 1-dimensional setting
	{x,y}	a 2-dimensional setting
	{x,y,z}	a 3-dimensional setting

Wolfram Language Data Types

Wolfram Language functions that are compiled to CUDA require arguments with low-level types representing scalars and arrays.

"CArray"::[ty]	GPUArray	arrays of numeric data stored on the GPU
"CArray"::[ty]	NumericArray	arrays of numeric data stored on the CPU
"CArray"::[ty]	ExternalObject	arrays of numeric data stored in an ExternalObject
"Integer64","Integer32", etc.	Integer	integer
"Real64","Real32", etc.	Real	real number
"ComplexReal32","ComplexReal64",etc.	Complex	complex number

The types used by Wolfram Language functions compiled to CUDA are those used by the Wolfram Compiler.

C++ Data Types

C++ code that is compiled to CUDA requires arguments with low-level types representing scalars and arrays.

ty*	GPUArray	arrays of numeric data stored on the GPU
ty*	NumericArray	arrays of numeric data stored on the CPU
ty*	ExternalObject	arrays of numeric data stored in an ExternalObject
int, long, etc.	Integer	integer
double,float, etc.	Real	real number

Supported External Operations

ExternalOperation["Function","code"] compiles Wolfram Language or C++ code to an ExternalFunction representing a kernel that can execute on a CUDA GPU.
ExternalOperation["Program","code"] compiles Wolfram Language or C++ code to an external object that contains multiple external function objects representing kernels that can execute on a CUDA GPU.
ExternalOperation["HostFunction","code"] compiles C++ code to an ExternalFunction representing host code that can execute on the host (typically a CPU).
ExternalOperation["HostProgram","code"] compiles C++ code to an external object that contains multiple external function objects representing host code that can execute on the host (typically a CPU).

Examples

open all close all

Basic Examples (4)

Compile Wolfram Language code to an ExternalFunction that contains a CUDA kernel that can execute on a CUDA GPU:

Wolfram Language code:

gpuFun = ExternalEvaluate["CUDA", Function[{Typed[x, "CArray"::["Integer64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, FromRawPointer[ x, id] + 5]
	];
	]
	]]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Integer64"]];

Execute the function on the GPU:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

Compile C++ code to an ExternalFunction that contains a CUDA kernel that can execute on a CUDA GPU:

Wolfram Language code:

code = "#include \"WolframLibrary.h\"
__global__ void addFun(double *x, mint N) {
    const int tid =  blockIdx.x * blockDim.x + threadIdx.x;
    if (tid < N) {
        x[tid] = x[tid] + 5;
    }
}";
gpuFun = ExternalEvaluate["CUDA", code]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

The function can be called by passing in arguments:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

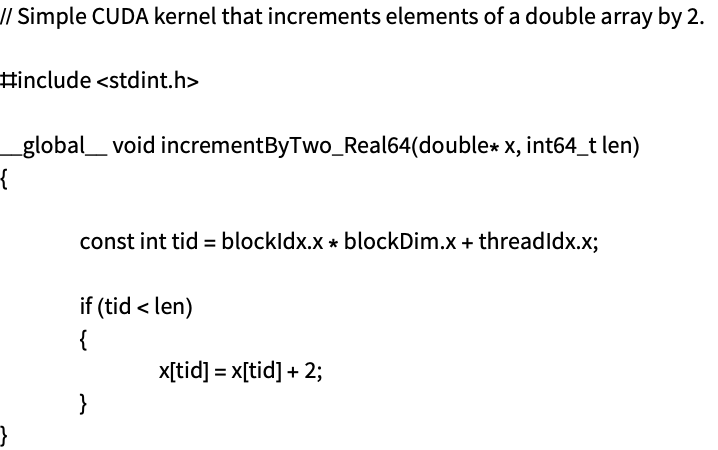

A file of C++ code that can execute on a CUDA GPU:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "increment_kernel.cu"}]];
FilePrint[file]

Compile the C++ code in the file to an ExternalFunction that contains a CUDA kernel that can execute on a CUDA GPU:

Wolfram Language code: gpuFun = ExternalEvaluate["CUDA", file]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

The function can be called by passing in arguments:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

An external session for CUDA can be created:

Wolfram Language code: session = StartExternalSession["CUDA"]

Use the external session in ExternalEvaluate to compile Wolfram Language code to an ExternalFunction that contains a CUDA kernel that can execute on a CUDA GPU:

Wolfram Language code:

gpuFun = ExternalEvaluate[session, Function[{Typed[x, "CArray"::["Integer64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, FromRawPointer[ x, id] + 5]
	];
	]
	]]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Integer64"]];

Execute the function on the GPU:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

Starting the external session can be useful to get information about problems with the CUDA installation. Also, the instructions in the CUDAProgramming workflow are also quite useful.

Scope (11)

Wolfram Language Code (1)

Wolfram Language code to execute on a CUDA GPU:

Wolfram Language code:

func = Function[{Typed[x, "CArray"::["Real64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, FromRawPointer[ x, id] + 2]
	];
	]
	];

Compilation can be done with the ExternalOperation "Function":

Wolfram Language code: gpuFun = ExternalEvaluate["CUDA", ExternalOperation["Function", func]]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

Execute the function:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

Extra code declarations can be given with FunctionDeclaration:

Wolfram Language code: decl = FunctionDeclaration[increment, Typed[{"Real64"} -> "Real64"]@Function[arg, arg + 1]];

A Wolfram Language function that uses the declaration:

Wolfram Language code:

func = Function[{Typed[x, "CArray"::["Real64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, increment[FromRawPointer[ x, id]]]
	];
	]
	];

Compilation can be done with the ExternalOperation "Function" using both the declaration and a function:

Wolfram Language code: gpuFun = ExternalEvaluate["CUDA", ExternalOperation["Function", decl, func]]

Create an argument for the function:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

Execute the function:

Wolfram Language code: gpuFun[data, 10]

The actual result of the operation was written in the argument:

Wolfram Language code: data//Normal

C++ Code (4)

C++ code to execute on a CUDA GPU:

Wolfram Language code:

code = "#include \"WolframLibrary.h\"
__global__ void addFun(double *x, mint N) {
    const int tid =  blockIdx.x * blockDim.x + threadIdx.x;
    if (tid < N) {
        x[tid] = x[tid] + 5;
    }
}";

Compilation can be done with the ExternalOperation "Function":

Wolfram Language code: gpuFun = ExternalEvaluate["CUDA", ExternalOperation["Function", code]]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

Execute the function:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

A file of C++ code that can execute on a CUDA GPU:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "increment_kernel.cu"}]];
FilePrint[file]

Compilation can be done with the ExternalOperation "Function":

Wolfram Language code: gpuFun = ExternalEvaluate["CUDA", ExternalOperation["Function", file]]

Use GPUArray to store data on the GPU that can be used as an argument to the CUDA code:

Wolfram Language code: data = GPUArray[NumericArray[Range[10], "Real64"]];

Execute the function:

Wolfram Language code: gpuFun[data, 10]

The result was written into the array argument:

Wolfram Language code: Normal[data]

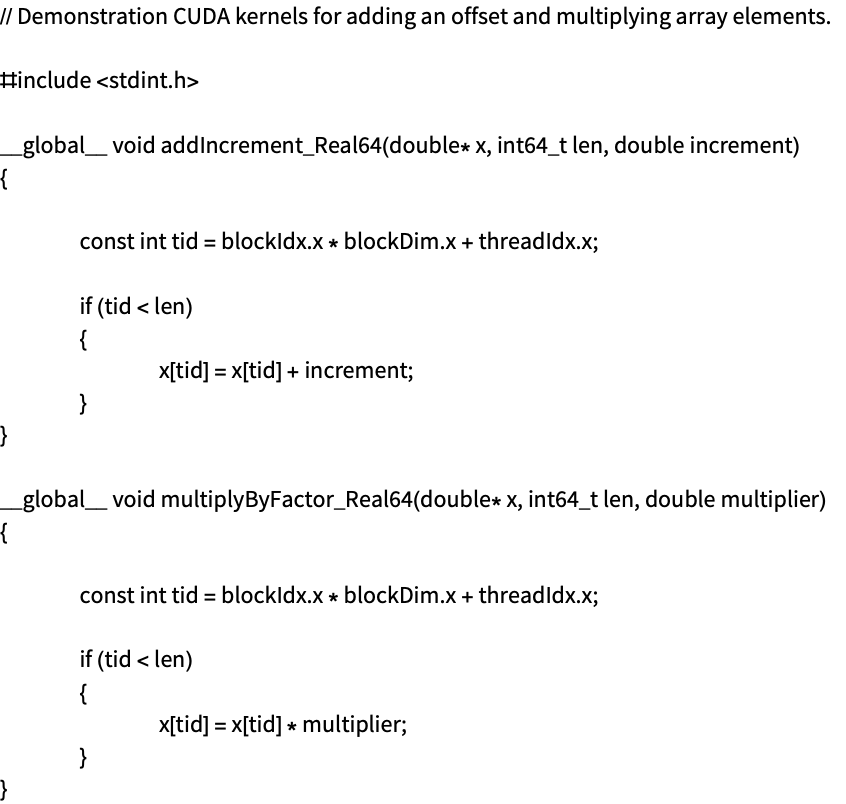

A file of C++ code that contains two functions that can execute on the GPU:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "arithmetic_kernels.cu"}]];
FilePrint[file]

Use the ExternalOperation "Program" to compile the code to an ExternalObject:

Wolfram Language code: compFuns = ExternalEvaluate["CUDA", ExternalOperation["Program", file]]

The functions with their names:

Wolfram Language code: compFuns["Functions"]

Execute one of the functions:

Wolfram Language code:

data = GPUArray[NumericArray[Range[10], "Real64"]];
compFuns["Functions"]["addIncrement_Real64"][data, 10, 42]

The argument array is overwritten with the result:

Wolfram Language code: Normal[data]

Execute the other function:

Wolfram Language code:

data = GPUArray[NumericArray[Range[10], "Real64"]];
compFuns["Functions"]["multiplyByFactor_Real64"][data, 10, 42]

The argument array is overwritten with the result:

Wolfram Language code: Normal[data]

In the case that the functions are overloaded with the same name, an association using the mangled names is available:

Wolfram Language code: compFuns["FunctionsByMangledName"]

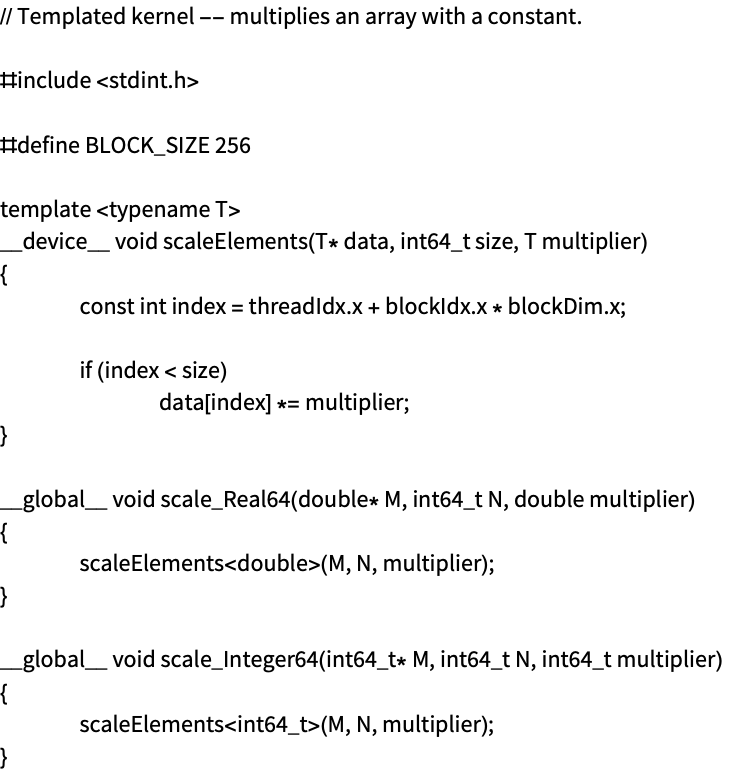

A file of C++ code that contains functions that use C++ templates:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "scale_kernel.cu"}]];
FilePrint[file]

Use ExternalOperation with "Program" to compile the code to an ExternalObject:

Wolfram Language code: compFuns = ExternalEvaluate["CUDA", ExternalOperation["Program", file]]

The functions with their names:

Wolfram Language code: compFuns["Functions"]

Execute one of the functions:

Wolfram Language code:

data = GPUArray[NumericArray[Range[10], "Integer64"]];
compFuns["Functions"]["scale_Integer64"][data, 10, 42]

The argument array is overwritten with the result:

Wolfram Language code: Normal[data]

Grid and Block Dimensions (1)

When CUDA kernels run on the GPU, the functions are executed in parallel on multiple GPU processors. These are arranged by the block and grid dimensions for the actual call. In code, these are reflected in the "BlockDimensions", "BlockID" and "ThreadID" intrinsics.

Compile a function that explores the setup of the processors by storing the computed position of each data point into an array:

Wolfram Language code:

gpuFun = ExternalEvaluate["CUDA", Function[{Typed[x, "CArray"::["Integer64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, Cast[id, "Integer64"]]
	];
	]
	]];

Create an argument for the function:

Wolfram Language code:

len = 10;
data = GPUArray[NumericArray[ConstantArray[0, len], "Integer64"]];

Execute the function:

Wolfram Language code: gpuFun[data, len]

This shows how the array has been filled in the expected way:

Wolfram Language code: Normal[data]

Create a much larger dataset:

Wolfram Language code:

len = 10000;
data = GPUArray[NumericArray[ConstantArray[0, len], "Integer64"]];

Execute the function:

Wolfram Language code: gpuFun[data, len]

This shows that this data is such that each element contains its index:

Wolfram Language code: Take[Normal[data], -10]

Generate larger data and execute the function but set the grid and block dimensions so that only one block that has 256 threads is actually used:

Wolfram Language code:

len = 10000;
data = GPUArray[NumericArray[ConstantArray[0, len], "Integer64"]];
gpuFun[data, len, "GridDimensions" -> 1, "BlockDimensions" -> 256]

The first part of the data has been filled in as expected:

Wolfram Language code: Take[Normal[data], 10]

But the end of the data has not been filled in because of how the grid and block dimensions were set:

Wolfram Language code: Take[Normal[data], -10]

Typically the code makes an estimate of the grid and block dimensions based on the input. This works in simple cases such as these.

Grid and Block Intrinsics (1)

When CUDA kernels run on the GPU, the functions are executed in parallel on multiple GPU processors. These are arranged by the grid and block dimensions for the actual call. In code these are reflected in the "BlockDimensions", "BlockID" and "ThreadID" intrinsics.

Compile a function that explores the setup of the processors by storing the thread ID into an array:

Wolfram Language code:

gpuFun = ExternalEvaluate["CUDA", Function[{Typed[x, "CArray"::["Integer64"]], Typed[n, "MachineInteger"]},
	Module[{id},
	id = LibraryFunction["BlockDimensions.x"][] * LibraryFunction["BlockID.x"][] + LibraryFunction["ThreadID.x"][];
	If[id < n,
	ToRawPointer[ x, id, Cast[LibraryFunction["ThreadID.x"][], "Integer64"]]
	];
	]
	]];

Create a dataset:

Wolfram Language code:

len = 10000;
data = GPUArray[NumericArray[ConstantArray[0, len], "Integer64"]];
gpuFun[data, len]

This shows that 256 threads were used (this is the default setting):

Wolfram Language code: Take[Normal[data], 500]

Setting the grid and block dimensions to only run 32 threads in each block:

Wolfram Language code:

len = 10000;
data = GPUArray[NumericArray[ConstantArray[0, len], "Integer64"]];
gpuFun[data, len, "GridDimensions" -> Quotient[len, 32], "BlockDimensions" -> 32]

This shows that only 32 threads were used:

Wolfram Language code: Take[Normal[data], 500]

Host Functions and Programs (4)

CUDA programming also involves code that executes on the host (typically the CPU), and this code takes care of launching the CUDA kernels on the GPU. This is supported with ExternalOperation with "HostFunction" and "HostProgram" when the input is CUDA C++. Note that these are not pure CUDA kernels, but code that executes on the host.

C++ code to execute on the host:

Wolfram Language code:

code = "#include \"WolframLibrary.h\"
#include <cuda_runtime.h>

__global__ void addKernel(double* out, const double* in, int n)
{
	int id = blockDim.x * blockIdx.x + threadIdx.x;
	if (id < n)
		out[id] = in[id] + 1.0;
}

extern \"C\" DLLEXPORT int runAdd(double* out, const double* in, int n)
{
	double *d_in, *d_out;
	cudaMalloc((void**)&d_in, n * sizeof(double));
	cudaMalloc((void**)&d_out, n * sizeof(double));
	cudaMemcpy(d_in, in, n * sizeof(double), cudaMemcpyHostToDevice);
	addKernel<<<(n + 255) / 256, 256>>>(d_out, d_in, n);
	cudaMemcpy(out, d_out, n * sizeof(double), cudaMemcpyDeviceToHost);
	cudaFree(d_in);
	cudaFree(d_out);
	return 0;
}";

Create an external function object:

Wolfram Language code: hostFun = ExternalEvaluate["CUDA", ExternalOperation["HostFunction", code]]

The code is written to expect data stored on the host, and this can be done by passing NumericArray objects that are created here:

Wolfram Language code:

dataIn = NumericArray[Range[10], "Real64"];
dataOut = NumericArray[ConstantArray[0, 10], "Real64"];

Execute the function:

Wolfram Language code: hostFun[dataOut, dataIn, Length[dataIn]]

The result was written into the array argument:

Wolfram Language code: Normal[dataOut]

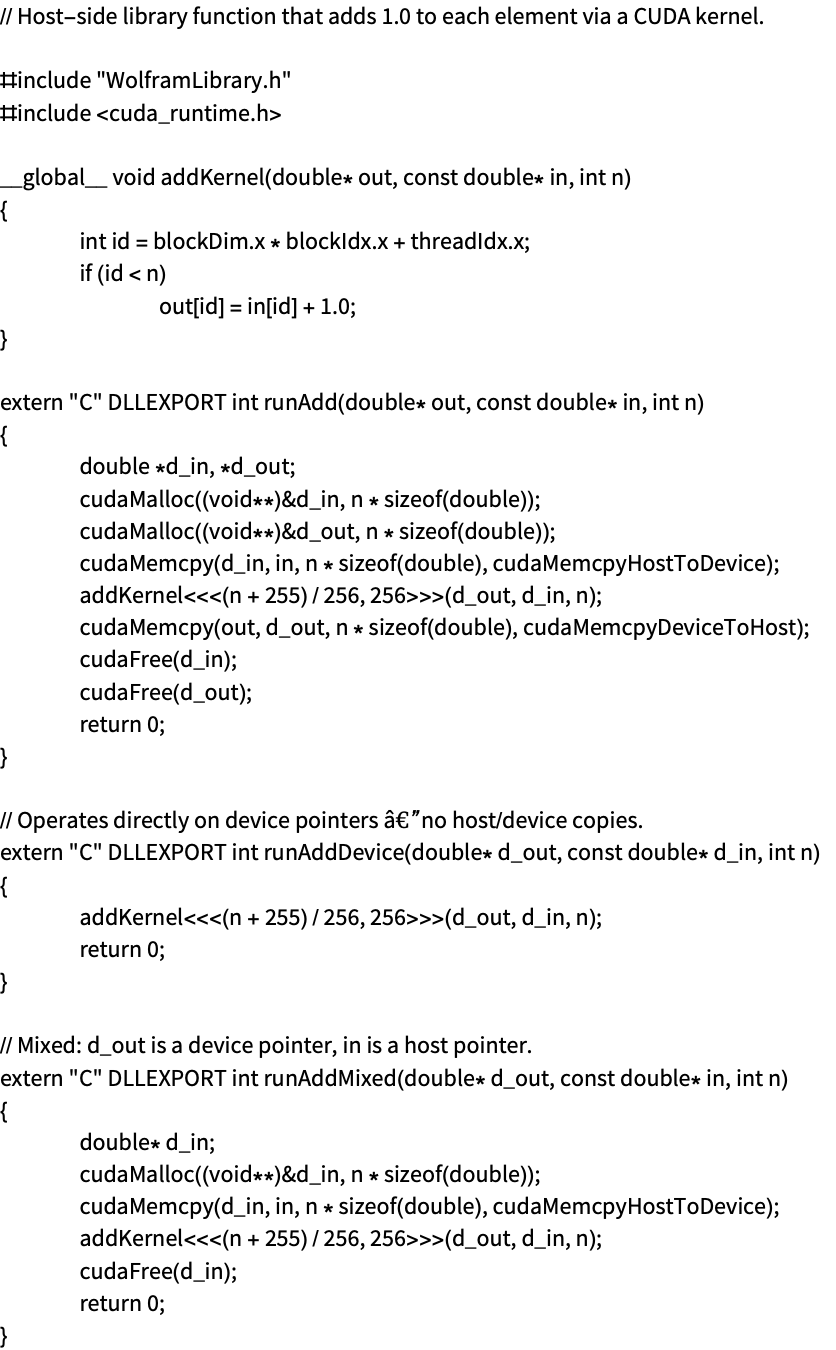

Host code can also be loaded from a file. For example, this is a file of C++ code that can execute on the host:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "add_library.cu"}]];
FilePrint[file]

Compile the function runAddDevice with the ExternalOperation "HostFunction":

Wolfram Language code: hostFun = ExternalEvaluate["CUDA", ExternalOperation["HostFunction", file, "runAddDevice"]]

This function is written to take data that already lives on the CUDA device, which is done by using GPUArray. Data on the GPU that can be used as an argument function is given here:

Wolfram Language code:

dataIn = GPUArray[NumericArray[Range[10], "Real64"]];
dataOut = GPUArray[NumericArray[ConstantArray[0, 10], "Real64"]];

Execute the function:

Wolfram Language code: hostFun[dataOut, dataIn, 10]

The result was written into the array argument:

Wolfram Language code: Normal[dataOut]

It is also possible to compile multiple functions in the input code, and this is done with the ExternalOperation "HostProgram".

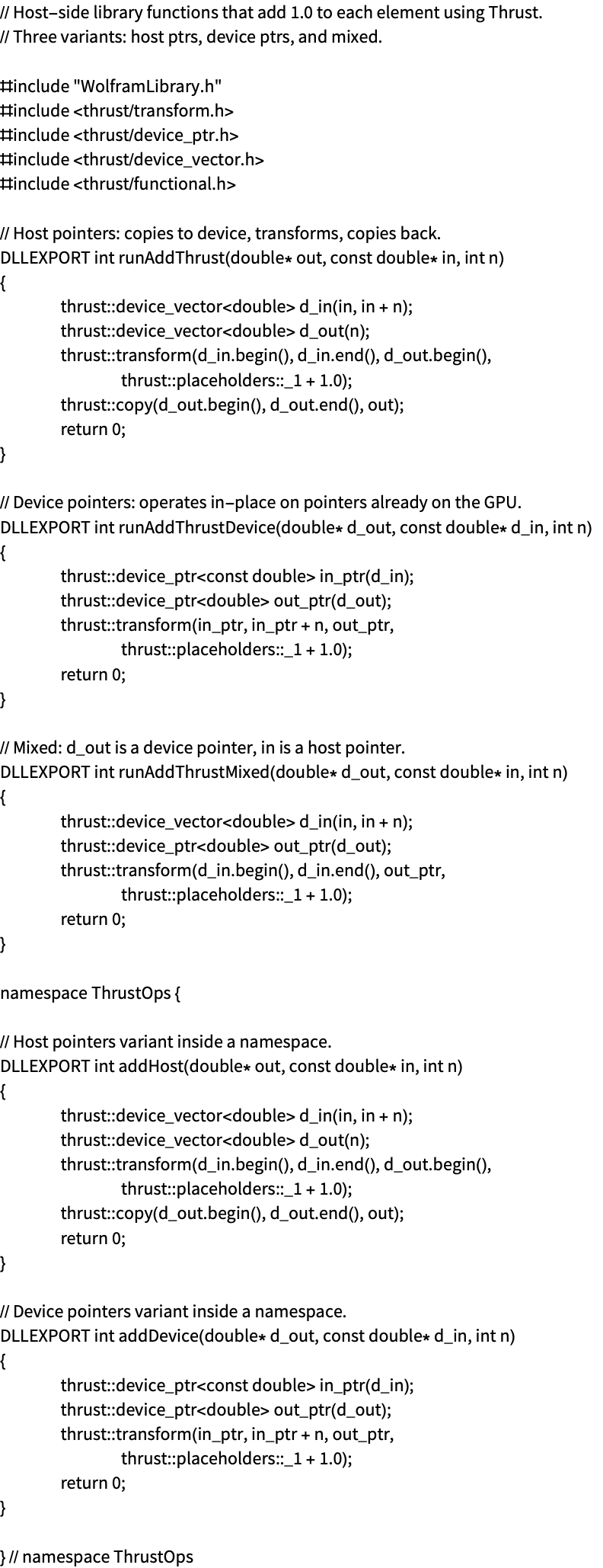

An example file that uses the thrust library is shown here:

Wolfram Language code:

file = File[FileNameJoin[{PacletObject["CUDALink"]["Location"], "CUDACode", "add_thrust_library.cu"}]];
FilePrint[file]

Use the ExternalOperation "HostProgram" to compile the code to an ExternalObject:

Wolfram Language code: compFuns = ExternalEvaluate["CUDA", ExternalOperation["HostProgram", file]]

The functions with their names:

Wolfram Language code: compFuns["Functions"]

Execute one of the functions:

Wolfram Language code:

dataIn = NumericArray[Range[10], "Real64"];
dataOut = NumericArray[ConstantArray[0, 10], "Real64"];
compFuns["Functions"]["runAddThrust"][dataOut, dataIn, 10]

The argument array is overwritten with the result:

Wolfram Language code: Normal[dataOut]

The host execution functionality can take data that lives on the host or on the device. Host data is given as a NumericArray, and device data is given as a GPUArray. The system analyzes the code to decide automatically whether arguments are expected on the host or device. However, it is possible to use LibraryFunctionDeclaration to specify the type signature of the functions:

Wolfram Language code:

code = "#include \"WolframLibrary.h\"
#include <cuda_runtime.h>

__global__ void addKernel(double* out, const double* in, int n)
{
	int id = blockDim.x * blockIdx.x + threadIdx.x;
	if (id < n)
		out[id] = in[id] + 1.0;
}

extern \"C\" DLLEXPORT int runAdd(double* out, const double* in, int n)
{
	double *d_in, *d_out;
	cudaMalloc((void**)&d_in, n * sizeof(double));
	cudaMalloc((void**)&d_out, n * sizeof(double));
	cudaMemcpy(d_in, in, n * sizeof(double), cudaMemcpyHostToDevice);
	addKernel<<<(n + 255) / 256, 256>>>(d_out, d_in, n);
	cudaMemcpy(out, d_out, n * sizeof(double), cudaMemcpyDeviceToHost);
	cudaFree(d_in);
	cudaFree(d_out);
	return 0;
}";

The signature of the "runAdd" function is given. Since the data arguments are given to use the "NumericArray" type, they are specified to be data that lives on the host:

Wolfram Language code:

ExternalEvaluate["CUDA", ExternalOperation["HostFunction", code, LibraryFunctionDeclaration["runAdd", {"NumericArray"::["Real64", 1], "NumericArray"::["Real64", 1], "CInt"} -> "CInt"]]]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

"CUDA" (External Evaluation System)

Details

ExternalEvaluate Usage

Wolfram Language Data Types

C++ Data Types

Supported External Operations

Examples

Basic Examples (4)

Scope (11)

Wolfram Language Code (1)

C++ Code (4)

Grid and Block Dimensions (1)

Grid and Block Intrinsics (1)

Host Functions and Programs (4)

"CUDA" (External Evaluation System)

Details

ExternalEvaluate Usage

Wolfram Language Data Types

C++ Data Types

Supported External Operations

Examples

Basic Examples (4)

Scope (11)

Wolfram Language Code (1)

C++ Code (4)

Grid and Block Dimensions (1)

Grid and Block Intrinsics (1)

Host Functions and Programs (4)

See Also

Tech Notes

Related Guides

History
