AudioGenerator

AudioGenerator[model]

generates one second of audio of a given model.

AudioGenerator[model,t]

generates t seconds of audio.

AudioGenerator[model,t,"type"]

generates audio samples of the specified "type".

Details and Options

AudioGenerator can generate different types of audio, including oscillators or noises.
Possible settings for model include:

	f	sample an arbitrary function f of time (in seconds)
	proc	generate samples from a random process proc
	tseries	generate samples from a TimeSeries tseries
	"model"	generate sample from a named function "model"

Silence:
"Silence" silence (zero) signal
Oscillators:

		{"Sin",freq,phase}	sine wave
		{"Triangle",freq,phase}	triangle wave
		{"Sawtooth",freq,phase}	sawtooth wave
		{"Square",freq,phase}	square wave
		{"Pulse",freq,phase,width}	rectangular wave using the duty cycle width
		{"Impulse",freq,phase}	impulse signal

By default, , , and are used.
The parameters freq, phase, and width can be a scalar value, a Quantity, an Audio object, a TimeSeries, or a pure function.
Noise:

		"White"	constant power spectral density
		"Pink"	power spectral density that follows
		"Brown"	power spectral density that follows
		"Blue"	power spectral density that follows
		{"Color",α}	power spectral density that follows with
		{"White",dist}	random noise with values sampled from dist
		"PeriodicRandomNoise"	sum of sinusoidal components with constant amplitude and random phase

Other:
AudioGenerator generates an audio object of "Real32" type. See the reference page for Audio for possible settings of "type".
AudioGenerator has the same options as Audio.

List of all options

Appearance	Automatic	appearance of the generated player
AnnotationRules	None	a list of named annotations
AudioChannelAssignment	Automatic	how to assign audio channels to outputs
AudioOutputDevice	$DefaultAudioOutputDevice	audio output device to use for playback
AudioLabel	Automatic	the label to show on the audio object
MetaInformation		metainformation associated with the audio
SampleRate	Automatic	sampling rate
SoundVolume	1	sound volume

Examples

open all close all

Basic Examples (3)

Generate one second of sinusoidal audio:

Wolfram Language code: AudioGenerator["Sin"]

Generate a signal from an arbitrary function:

Wolfram Language code: AudioGenerator[Sin[800 # ^ 2 ]&, 3]

Generate two seconds of white noise:

Wolfram Language code: AudioGenerator["White", 2]

Scope (17)

Basic Uses (2)

By default, 1 second of audio is generated:

Wolfram Language code: AudioGenerator["Sin"]//Duration

Specify the duration:

Wolfram Language code: AudioGenerator["Sin", 5]//Duration

Specify the duration as a time quantity:

Wolfram Language code: AudioGenerator["Sin", Quantity[100, "ms"]]//Duration

Specify the number of samples to generate:

Wolfram Language code: AudioGenerator["Sin", Quantity[4410, "samples"]]//Duration

By default, the generated audio is of "Real32" type:

Wolfram Language code: AudioGenerator["Sin", 1]//AudioType

Specify a different data type:

Wolfram Language code: AudioGenerator["Sin", 5, "SignedInteger8"]//AudioType

Model Specifications (15)

Oscillators (5)

Sinusoidal oscillator at 2000 Hz:

Wolfram Language code: AudioGenerator[{"Sin", Quantity[2000, "Hertz"]}]

Control the frequency of the sine wave with a function:

Wolfram Language code: AudioGenerator[{"Sin", 1000 + 1000Sin[2 * Pi#]&}]

Visualize the spectrogram:

Wolfram Language code: Spectrogram[%, PlotRange -> {All, {0, 3000}}]

Control the frequency of the sine wave with another Audio object:

Wolfram Language code:

freqMod = Import["ExampleData/rule30.wav"];
AudioGenerator[{"Sin", 440 + 2000 * freqMod}]

Visualize a spectrogram of the generated audio:

Wolfram Language code: Spectrogram[%, PlotRange -> {All, {0, 2000}}]

Control the frequency of the sine wave with a TimeSeries:

Wolfram Language code:

frequencies = {378, 366, 287, 482, 595, 522, 227, 412, 481, 390};
times = {0.2, 0.5, 0.7, 1.1, 1.4, 1.7, 1.9, 2., 2.4, 2.7};
freqMod = TimeSeries[frequencies, {times}]

Wolfram Language code: AudioGenerator[{"Sin", freqMod}]

Generate different oscillators:

Wolfram Language code: waveforms = {"Sin", "Triangle", "Sawtooth", "Square", "Pulse", "Impulse"};

Wolfram Language code:

Table[AudioPlot[AudioGenerator[i, .01], PlotTheme -> "Minimal", PlotLabel -> i],
	{i, waveforms}]//Multicolumn

Noise Generators (5)

Generate white noise:

Wolfram Language code: AudioGenerator["White"]

The values for the white noise can be sampled from a distribution:

Wolfram Language code: Histogram@AudioData@AudioGenerator[{"White", NormalDistribution[]}]

Generate different kinds of noises:

Wolfram Language code: noises = {"White", "Pink", "Brown", "Blue", {"Color", 1.5}, "PeriodicRandomNoise"};

Wolfram Language code: Table[AudioPlot[AudioGenerator[i, .01], PlotLabel -> i, PlotTheme -> "Minimal"], {i, noises}]//Multicolumn

The spectra of pink, brown, and blue noises follow a distribution of f^-α, with α equal to 1, 2, and , respectively:

Wolfram Language code:

colors = {"Pink", "Brown", "Blue"};
Periodogram[AudioGenerator /@ colors, 4000, ScalingFunctions -> {"Log10", Automatic}, PlotRange -> {-50, 25}, PlotLegends -> colors, PlotStyle -> {RGBColor[1, 0.5, 0.5], RGBColor[0.772079, 0.431554, 0.102387], RGBColor[0.368417, 0.506779, 0.709798]}]

The spectrum of "PeriodicRandomNoise" is perfectly flat:

Wolfram Language code: Periodogram[AudioGenerator["PeriodicRandomNoise"]]

Using Functions (1)

AudioGenerator supports functions of time:

Wolfram Language code:

f[x_] := Sin[440 2Pi x];
AudioGenerator[f, 2]

Using Processes (2)

Generate audio from a noise process:

Wolfram Language code: AudioGenerator[FractionalGaussianNoiseProcess[.2]]//AudioNormalize

Use an audio object generated from a random process to control the amplitude of a sinusoid:

Wolfram Language code: telegraph = AudioGenerator[TelegraphProcess[4], 4];

Wolfram Language code: (1 + telegraph) * \!$\*AudioBox["![Embedded Audio Player](audio://content-ifz6q)"]$

Using TimeSeries (2)

Generate an audio object from a TimeSeries:

Wolfram Language code: AudioGenerator[TimeSeries[Range[10] / 10.]]//AudioPlot

Generate an audio object from an irregular TimeSeries:

Wolfram Language code:

amplitudes = AudioGenerator[TimeSeries[{{0, 1}, {1, 0}, {1.5, .3}, {3, 0}}]];
amplitudes * AudioGenerator["Sin", 3]

Wolfram Language code: AudioPlot@%

Options (1)

SampleRate (1)

By default, SampleRate->44100 is used:

Wolfram Language code: AudioGenerator["Sin"]//AudioSampleRate

Specify a different sample rate:

Wolfram Language code: AudioGenerator["Sin", SampleRate -> 1000]//AudioSampleRate

Applications (8)

Noise Applications (2)

Add noise to an audio object:

Wolfram Language code: a = ExampleData[{"Audio", "Cello"}, "Audio"];

Wolfram Language code: noisy = .5a + .03AudioGenerator["White", Duration[a]]

Use "PeriodicRandomNoise" to test the frequency response of a linear system:

Wolfram Language code: Periodogram[LowpassFilter[AudioGenerator["PeriodicRandomNoise", .1], 2 Pi 10000]]

Audio Generation from Temporal Data (2)

Compare the stock price trends of two companies:

Wolfram Language code:

msft = TimeSeriesRescale[TimeSeries@FinancialData["MSFT", {"Jan. 1, 1990", "Jan. 1, 2018"}], {0, 10}];
aapl = TimeSeriesRescale[TimeSeries@FinancialData["AAPL", {"Jan. 1, 1990", "Jan. 1, 2018"}], {0, 10}];

Resample and smooth the data:

Wolfram Language code:

resampledMSFT = QuantityMagnitude@TimeSeriesResample[Round[MovingAverage[msft, 60]], 1 / 8];
resampledAAPL = QuantityMagnitude@TimeSeriesResample[Round[MovingAverage[aapl, 60]], 1 / 8];
ListLinePlot[{resampledMSFT, resampledAAPL}, PlotStyle -> {Automatic, Automatic, PointSize[Large]}, PlotLegends -> {"MSFT", "AAPL"}]

Wolfram Language code: midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.;

Generate audio controlled by the two time series:

Wolfram Language code:

res = .8Mean[{AudioGenerator[{"Sin", midiToFreq[.5resampledMSFT + 40]}], AudioGenerator[{"Triangle", midiToFreq[.5resampledAAPL + 40]}]}]

Use a list of TimeSeries to control the amplitudes of a list of harmonic sine waves:

Wolfram Language code: duration = 5;

Wolfram Language code: sineBank = Table[AudioGenerator[{"Sin", Quantity[100, "Hertz"] * i, 0}, duration], {i, 10}];

Wolfram Language code:

amplitudes = Table[AudioGenerator[TimeSeries[RandomInteger[{0, 1}, 40], {RandomReal[{0, duration}, 40]}], duration, SampleRate -> 200], 10];

Wolfram Language code: Mean[amplitudes * sineBank]

Wolfram Language code: AudioPlot@%

Multi-Frequency Generation (3)

Generate a series of DTMF tones to simulate the dialing of a phone number:

Wolfram Language code:

keys = {1 -> {697, 1209}, 2 -> {697, 1336}, 3 -> {697, 1477}, 4 -> {770, 1209}, 5 -> {770, 1336}, 6 -> {770, 1477}, 7 -> {852, 1209}, 8 -> {852, 1336}, 9 -> {852, 1477}, 0 -> {941, 1336}};

Wolfram Language code:

dtmf[str_String] := AudioJoin[Table[{Mean[AudioGenerator[{"Sin", #}, Quantity[200, "Milliseconds"]]& /@ (key /. keys)], Quantity[50, "Milliseconds"]}, {key, ToExpression /@ Characters[str]}]]

Wolfram Language code: phoneNumber = "6345789";

Wolfram Language code: dtmf[phoneNumber]

Create a numeric keypad:

Wolfram Language code:

Grid[Partition[MapIndexed[Labeled[Audio[Mean[AudioGenerator[{"Sin", #}, .1]& /@ #], Appearance -> "Minimal"], First@#2]&, Flatten[Outer[List, {697, 770, 852}, {1209, 1336, 1477}], 1]], 3]]

Create an auditory illusion:

Wolfram Language code:

range = 12;
duration = 20;
lfoFreq = .05;
basePitch = 30;
numOsc = 8;
midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.

Generate ramps to control frequencies and amplitudes of the oscillators:

Wolfram Language code:

phasors = Table[AudioGenerator[{"Sawtooth", lfoFreq, 2.Pi / numOsc(i - 1.)}, duration, SampleRate -> 500] / 2. + .5, {i, numOsc}];
AudioPlot[phasors, PlotLayout -> "Overlaid", PlotRange -> All]

Create frequencies that will control the oscillators. The frequencies are exactly one octave apart from each other and increase exponentially, so that pitch increases linearly:

Wolfram Language code:

freqs = Table[midiToFreq[(phasors[[i]]) * 12 * numOsc + basePitch], {i, numOsc}];
AudioPlot[freqs, PlotLayout -> "Overlaid", PlotRange -> All]

Create amplitudes that will control the oscillators. Amplitudes go to 0 when the frequencies drop to the minimum value:

Wolfram Language code:

amps = Cos[# * Pi - Pi / 2.]& /@ phasors;
AudioPlot[amps, PlotLayout -> "Overlaid", PlotRange -> All]

Show the relation between frequency and amplitude of one oscillator:

Wolfram Language code: AudioPlot[AudioNormalize /@ {freqs[[2]], amps[[2]]}, PlotRange -> All]

Combine a bank of oscillators using the created frequencies and amplitudes:

Wolfram Language code:

res = Mean[
	Table[amps[[i]]AudioGenerator[{"Sin",   freqs[[i]]}, SampleRate -> 24000], {i, numOsc}]]

Wolfram Language code: Spectrogram[res, 8192, 4096, HannWindow]

Frequency and Amplitude Modulation (1)

Generation and reconstruction of an AM signal:

Wolfram Language code: a = \!$\*AudioBox["![Embedded Audio Player](audio://content-eufg8)"]$;

Wolfram Language code: Periodogram[a, 2000, PlotRange -> {{0, 10000}, All}]

Modulate the amplitude with a 22050 Hz sinusoid to shift the content at the high end of the spectrum. The result should be already inaudible for most people:

Wolfram Language code: amsignal = a×AudioGenerator[{"Sin", Quantity[22050, "Hertz"]}, Duration@a, SampleRate -> 96000]

Wolfram Language code: Periodogram[amsignal, 2200]

Demodulate the AM signal by multiplying the result by another sinusoid at 22050 Hz with the same phase:

Wolfram Language code:

result = LowpassFilter[amsignal * AudioGenerator[{"Sin", Quantity[22050, "Hertz"]}, Duration@amsignal, SampleRate -> 96000], Quantity[5000, "Hertz"], 201]

Possible Issues (2)

With oscillators, the frequency should be less than or equal to half of the sample rate:

Wolfram Language code: AudioGenerator[{"Sin", 5001}, SampleRate -> 10000]

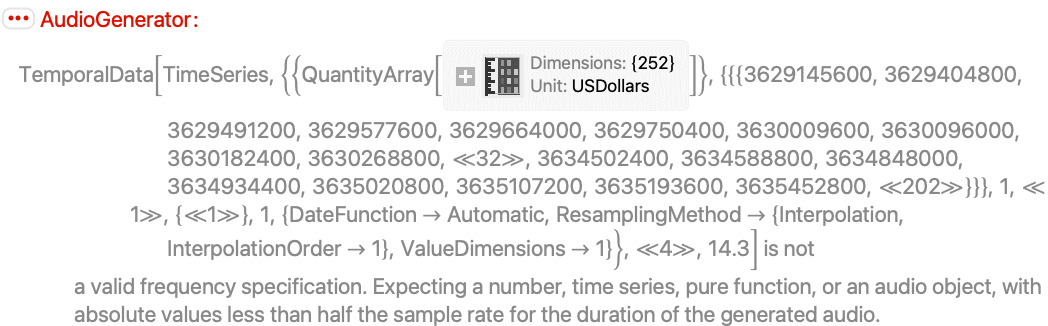

If a TimeSeries is used as an input, it needs to have numeric non-negative time stamps:

Wolfram Language code: ts = TimeSeries[FinancialData["GE", {"Jan. 1, 2015", "Jan. 1, 2016"}]]

Wolfram Language code: AudioGenerator[{"Sin", ts}]//Head

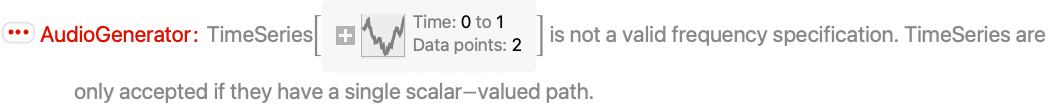

The TimeSeries needs to have a single scalar-valued path:

Wolfram Language code: ts = TimeSeries[{{0, {600, 300}}, {1, {400, 300}}}]

Wolfram Language code: AudioGenerator[{"Sin", ts}]//Head

Interactive Examples (3)

Control frequency and phase of an oscillator:

Wolfram Language code:

Manipulate[
	AudioPlot[
	AudioGenerator[{"Sin", freq, phase}, .1]
	], {freq, 10, 100}, {phase, 0, 10}, ContinuousAction -> False]

The spectrum of AudioGenerator[{"Color",α}] follows a distribution of f^-α:

Wolfram Language code:

Manipulate[
	Periodogram[AudioGenerator[{"Color", α}], 2000, ScalingFunctions -> {"Log10", Automatic}, PlotRange -> {-60, 30}], {α, -2, 2}, ContinuousAction -> False]

Create a complex audio signal using frequency modulation:

Wolfram Language code:

Manipulate[
	Periodogram[
	AudioGenerator[{"Sin", freq + freqModAmount * modFreq * AudioGenerator[{"Sin", modFreq}]}],
	ScalingFunctions -> "Absolute", PlotRange -> {{0, 1000}, All}, ImageSize -> Medium],
	{{freq, 440, "Carrier Frequency"}, -500, 500},
	{{modFreq, 100, "Modulation Frequency"}, -200, 200},
	{{freqModAmount, 0, "Amount of Frequency Modulation"}, 0, 10},
	ControlPlacement -> Top, ContinuousAction -> False
	]

Neat Examples (4)

Sweep the frequency of the modulating signal:

Wolfram Language code: AudioGenerator[{"Sin", 400 + 300 * AudioGenerator[{"Sin", 100 * #&}, 4]}, SampleRate -> 8000]

Use the digits of Pi in base 24 to generate a sequence of frequencies for a sinusoidal oscillator:

Wolfram Language code: digits = First@RealDigits[π, 24, 100]

Wolfram Language code:

midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.
AudioGenerator[{"Sin", TimeSeries[midiToFreq[50 + digits], {0, 10}]}, SampleRate -> 8000]

Create a melody using DiscreteMarkovProcess:

Wolfram Language code:

𝒫 = DiscreteMarkovProcess[12, (⁠|          |         |          |         |          |          |         |          |         |          |         |          |
| -------- | ------- | -------- | ------- | -------- | -------- | ------- | -------- | ------- | -------- | ------- | -------- |
| (7/153)  | 0       | (31/153) | (2/153) | (23/153) | (2/51)   | (8/153) | (1/9)    | (1/153) | (25/153) | (5/153) | (28/153) |
| 0        | 0       | (1/3)    | 0       | 0        | 0        | 0       | (1/2)    | 0       | (1/6)    | 0       | 0        |
| (31/111) | 0       | 0        | 0       | (29/111) | (2/37)   | (1/37)  | (8/111)  | 0       | (11/111) | (1/37)  | (20/111) |
| (1/4)    | 0       | (1/12)   | (1/6)   | 0        | 0        | 0       | (1/4)    | 0       | (1/4)    | 0       | 0        |
| (25/128) | (1/128) | (27/128) | 0       | (3/128)  | (23/128) | (5/128) | (21/128) | (1/128) | (5/64)   | (5/128) | (7/128)  |
| (4/113)  | 0       | (19/113) | 0       | (23/113) | 0        | 0       | (35/113) | 0       | (13/113) | 0       | (19/113) |
| (7/29)   | 0       | (2/29)   | (1/29)  | (5/29)   | 0        | 0       | (7/29)   | (2/29)  | (1/29)   | 0       | (4/29)   |
| (15/166) | (3/166) | (2/83)   | (2/83)  | (27/166) | (37/166) | (7/166) | (19/166) | 0       | (15/83)  | (1/166) | (19/166) |
| 0        | 0       | 0        | 0       | (1/14)   | 0        | (1/7)   | (1/14)   | 0       | (1/2)    | 0       | (3/14)   |
| (5/32)   | 0       | (1/16)   | (3/128) | (3/64)   | (11/64)  | (1/128) | (29/128) | (3/64)  | 0        | (1/64)  | (31/128) |
| (5/16)   | 0       | (1/16)   | 0       | (5/16)   | 0        | 0       | (1/8)    | 0       | (3/16)   | 0       | 0        |
| (36/131) | (2/131) | (16/131) | 0       | (6/131)  | (19/131) | (3/131) | (21/131) | (4/131) | (24/131) | 0       | 0        |⁠)];

Wolfram Language code:

midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.;AudioGenerator[{"Sin", midiToFreq[59 + TimeSeriesRescale[RandomFunction[𝒫, {0, 50}], {0, 6}]]}, SampleRate -> 8000]

Generate an audio signal using Morse code:

Wolfram Language code:

code = <|"a" -> ".-", "b" -> "-...", "c" -> "-.-.", "d" -> "-..", "e" -> ".", "f" -> "..-.", "g" -> "--.", "h" -> "....", "i" -> "..", "j" -> ".---", "k" -> "-.-", "l" -> ".-..", "m" -> "--", "n" -> "-.", "o" -> "---", "p" -> ".--.", "q" -> "--.-", "r" -> ".-.", "s" -> "...", "t" -> "-", "u" -> "..-", "v" -> "...-", "w" -> ".--", "x" -> "-..-", "y" -> "-.--", "z" -> "--..", "1" -> ".----", "2" -> "..---", "3" -> "...--", "4" -> "....-", "5" -> ".....", "6" -> "-....", "7" -> "--...", "8" -> "---..", "9" -> "----.", "0" -> "-----", "." -> ".-.-.-", "," -> "--..--", "!" -> "-.-.--", "?" -> "..--.."|>;
withgaps = Map[StringRiffle[Characters[#], "_"]&, code];
withpauses = Map[StringInsert[#, "___", -1]&, withgaps];
withspace = AssociateTo[withpauses, " " -> "_______"];
replacements = Map[StringReplace[#, {"-" -> "111", "." -> "1", "_" -> "0"}]&, withspace];

Create a function to translate a message to an audio signal using the dictionary:

Wolfram Language code:

createMorseSignal[s_String, t_] := Module[{events = Characters[StringReplace[ToLowerCase[s], Normal@replacements]], ts, amps},
	ts = TimeSeries[ToExpression@events, {0, (Length[events] - 1) * t, t}];
	amps = AudioGenerator[ts, SampleRate -> 1000];AudioGenerator[{"Sin", 800}, Duration@amps, SampleRate -> 8000]amps
	]

Encode a string into an audio signal:

Wolfram Language code: morse = createMorseSignal["hello world", .05]

Wolfram Language code: AudioPlot@%

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

AudioGenerator

Details and Options

List of all options

Examples

Basic Examples (3)

Scope (17)

Basic Uses (2)

Model Specifications (15)

Oscillators (5)

Noise Generators (5)

Using Functions (1)

Using Processes (2)

Using TimeSeries (2)

Options (1)

SampleRate (1)

Applications (8)

Noise Applications (2)

Audio Generation from Temporal Data (2)

Multi-Frequency Generation (3)

Frequency and Amplitude Modulation (1)

Possible Issues (2)

Interactive Examples (3)

Neat Examples (4)

Text

CMS

APA

BibTeX

BibLaTeX

AudioGenerator

Details and Options

List of all options

Examples

Basic Examples (3)

Scope (17)

Basic Uses (2)

Model Specifications (15)

Oscillators (5)

Noise Generators (5)

Using Functions (1)

Using Processes (2)

Using TimeSeries (2)

Options (1)

SampleRate (1)

Applications (8)

Noise Applications (2)

Audio Generation from Temporal Data (2)

Multi-Frequency Generation (3)

Frequency and Amplitude Modulation (1)

Possible Issues (2)

Interactive Examples (3)

Neat Examples (4)

See Also

Tech Notes

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
