CMYKColor[c,m,y,k]

represents a color in the CMYK color space with cyan, magenta, yellow and black components.

CMYKColor[c,m,y,k,a]

specifies opacity a.

CMYKColor["string"]

returns a color from an HTML color name etc.

CMYKColor[color]

returns the CMYK representation of color.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Colors in 3D
Color Operations
Generalizations & Extensions
Properties & Relations
Possible Issues
Neat Examples
See Also
Related Guides
History
Cite this Page

CMYKColor

CMYKColor[c,m,y,k]

represents a color in the CMYK color space with cyan, magenta, yellow and black components.

CMYKColor[c,m,y,k,a]

specifies opacity a.

CMYKColor["string"]

returns a color from an HTML color name etc.

CMYKColor[color]

returns the CMYK representation of color.

Details

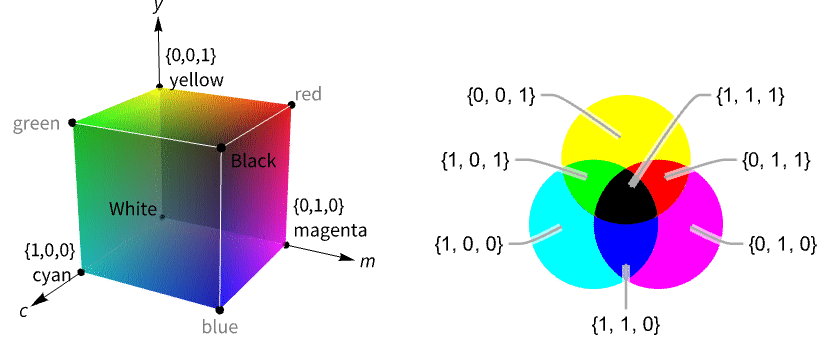

  • CMYKColor is a subtractive color model, typically used in printing. CMYK refers to the cyan, magenta, yellow and black inks used in printing.
  • For any positive value of , the same color can be produced by subtracting from other color components. This is commonly used to save on color ink consumption by using more black ink.
  • Color and opacity levels outside the range 0 to 1 will be clipped. »
  • If no black component is specified, CMYKColor[c,m,y] is equivalent to CMYKColor[c,m,y,0].
  • CMYKColor specifications are automatically converted to RGBColor when simulated lighting calculations are done. »
  • If no opacity has been specified, CMYKColor[c,m,y,k] is equivalent to CMYKColor[c,m,y,k,1].
  • CMYKColor[c,m,y,k,a] is equivalent to {CMYKColor[c,m,y,k],Opacity[a]}.
  • The alternative forms CMYKColor[{c,m,y,k}] and CMYKColor[{c,m,y,k,a}] can also be used.
  • ColorConvert can be used to convert CMYKColor to other color spaces.
  • The following wrappers can be used around colors:
  • ColorsNear[color,…]specifies a region around color
    Directive[…,color,…]specifies a color in combination with other directives »
    Glow[color]specifies color independent of lighting »
    Opacity[a,color]specifies a color with an opacity a
    Style[expr,color]displays expr with the specified color »
  • For 3D surfaces, explicit CMYKColor directives define surface colors; the final shading depends on lighting and contributions from specularity and glow. »

Examples

open all close all

Basic Examples  (4)

Specify the color of graphics primitives:

Wolfram Language code: Graphics[{CMYKColor[0, 1, 1, .25], Disk[]}]

Specify the color with opacity:

Wolfram Language code: Graphics3D[{CMYKColor[1, 0, 1, 0, .5], Sphere[]}]

Specify the output color of expressions:

Wolfram Language code: Style[x ^ 2 + y ^ 2, CMYKColor[1, .8, 0, .25]]

Specify the color of plots:

Wolfram Language code: Plot[Sin[x ^ 2], {x, 0, 2Pi}, PlotStyle -> CMYKColor[0.3, 1, 0, .25]]

Scope  (3)

Colors in 3D  (1)

Use diffuse surface color:

Wolfram Language code: Graphics3D[{CMYKColor[0, 0.4, 1, 0], Sphere[]}]

Use diffuse and specular surface color:

Wolfram Language code: Graphics3D[{CMYKColor[0, 0.4, 1, 0], Specularity[White, 20], Sphere[]}]

Use glow color, setting the diffuse surface color to black:

Wolfram Language code: Graphics3D[{Black, Glow[CMYKColor[0, 0.4, 1, 0]], Sphere[]}]

Color Operations  (2)

Use Blend to mix two or more colors:

Wolfram Language code: {Graphics[{CMYKColor[0, 1, 0, 0], Disk[]}], Graphics[{Blend[{CMYKColor[0, 1, 0, 0], CMYKColor[0, 0, 1, 0]}], Disk[]}], Graphics[{CMYKColor[0, 0, 1, 0], Disk[]}]}

Use Lighter and Darker to mix with white and black, respectively:

Wolfram Language code: {Graphics[{Lighter[CMYKColor[0, 0, 1, 0], .4], Disk[]}], Graphics[{CMYKColor[0, 0, 1, 0], Disk[]}], Graphics[{Darker[CMYKColor[0, 0, 1, 0], .4], Disk[]}]}

Generalizations & Extensions  (2)

CMYKColor[{c,y,m,k}] is equivalent to CMYKColor[c,y,m,k]:

Wolfram Language code: {Graphics[{CMYKColor[{1, 0, 0, .25}], Disk[]}], Graphics[{CMYKColor[1, 0, 0, .25], Disk[]}]}
Wolfram Language code: Map[Graphics[{CMYKColor[#], Disk[]}]&, {{1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}}]

Use Opacity with CMYKColor:

Wolfram Language code: Table[Graphics[{CMYKColor[1, 0, 0, 0], Disk[{1, 0}], Opacity[a], CMYKColor[0, 1, 0, 0], Disk[]}], {a, 0, 1, .33}]

Use the opacity argument in CMYKColor directly:

Wolfram Language code: Table[Graphics[{CMYKColor[1, 0, 0, 0], Disk[{1, 0}], CMYKColor[0, 1, 0, 0, a], Disk[]}], {a, 0, 1, .33}]

Properties & Relations  (3)

CMYKColor is related to RGBColor in the following way:

Wolfram Language code: RGBToCMY[RGBColor[r_, g_, b_]] := CMYKColor[1 - r, 1 - g, 1 - b, 0]
Wolfram Language code: c = RGBColor@@RandomReal[{0, 1}, 3]; {Graphics[{c, Rectangle[]}], Graphics[{RGBToCMY[c], Rectangle[]}]}

For economy of printing, black is usually separated out:

Wolfram Language code: RGBToCMYK[RGBColor[r_, g_, b_]] := Block[{k = Min[1 - r, 1 - g, 1 - b]}, CMYKColor[1 - r - k, 1 - g - k, 1 - b - k, k]]
Wolfram Language code: c = RGBColor@@RandomReal[{0, 1}, 3]; {Graphics[{c, Rectangle[]}], Graphics[{RGBToCMYK[c], Rectangle[]}]}

By using the same parameters in CMYKColor and RGBColor, you get complementary colors:

Wolfram Language code: DynamicModule[{m = (1/2), y = (1/2)}, {Slider2D[Dynamic[{m, y}], {{0, 0}, {1, 1}}], Dynamic[Graphics[{{CMYKColor[0, m, y, 0], Rectangle[{0, 0}]}, {RGBColor[0, m, y], Rectangle[{1, 0}]}}]]}]

CMY values are complementary to RGB values:

Wolfram Language code: {Graphics[{CMYKColor[0, 1, 1, 0], Disk[]}], Graphics[{RGBColor[1, 0, 0], Disk[]}]}
Wolfram Language code: {Graphics[{CMYKColor[1, 0, 1, 0], Disk[]}], Graphics[{RGBColor[0, 1, 0], Disk[]}]}
Wolfram Language code: {Graphics[{CMYKColor[1, 1, 0, 0], Disk[]}], Graphics[{RGBColor[0, 0, 1], Disk[]}]}

Possible Issues  (1)

Values outside of the 0, 1 range will be clipped:

Wolfram Language code: Graphics[Table[{CMYKColor[c, 0, 0, 0], EdgeForm[Gray], Rectangle[{4c, 0}]}, {c, 0 - 1 / 4, 1 + 1 / 4, 1 / 4}]]

In plot functions, use ColorFunctionScaling to control global scaling of variables:

Wolfram Language code: Table[DensityPlot[x, {x, -1, 2}, {y, 0, 1}, FrameTicks -> None, ColorFunction -> (CMYKColor[#, 0, 0, 0]&), ColorFunctionScaling -> t], {t, {False, True}}]

Neat Examples  (2)

Visualizing the CMY color space:

Wolfram Language code: Graphics3D[{Opacity[.7], {CMYKColor[#], Cuboid[#, # + .1]}& /@ Tuples[Range[0, 1, .2], 3]}, Axes -> True, AxesLabel -> {"Cyan", "Magenta", "Yellow"}, Lighting -> "Neutral"]

CMYK noise with opacity:

Wolfram Language code: Graphics[{Pink, Disk[{100, 100}, 40], Raster[RandomReal[1, {200, 200, 5}], ColorFunction -> CMYKColor]}]
