EstimatorGains

EstimatorGains[ssm,{p₁,p₂,…,p_n}]

gives the estimator gain matrix for the StateSpaceModel ssm, such that the poles of the estimator are p_i.

EstimatorGains[{ssm,{out₁,…}},…]

specifies the measured outputs out_i to use.

Details and Options

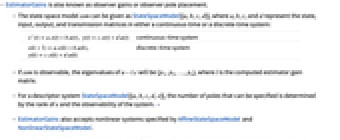

EstimatorGains is also known as observer gains or observer pole placement.
The state-space model ssm can be given as StateSpaceModel[{a,b,c,d}], where a, b, c, and d represent the state, input, output, and transmission matrices in either a continuous-time or a discrete-time system:
continuous-time system

discrete-time system
If ssm is observable, the eigenvalues of will be {p₁,p₂,…,p_n}, where is the computed estimator gain matrix.
For a descriptor system StateSpaceModel[{a,b,c,d,e}], the number of poles that can be specified is determined by the rank of e and the observability of the system. »
EstimatorGains also accepts nonlinear systems specified by AffineStateSpaceModel and NonlinearStateSpaceModel.
For nonlinear systems, the operating values of state and input variables are taken into consideration, and the gains are computed based on the approximate Taylor linearization.
EstimatorGains[{ssm,{out₁,…}},…] is equivalent to EstimatorGains[ssm₁,…], where ssm₁SystemsModelExtract[ssm,All,{out₁,…}].

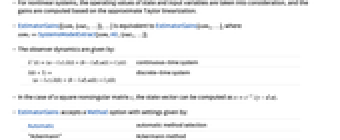

The observer dynamics are given by:
continuous-time system

discrete-time system
In the case of a square nonsingular matrix , the state vector can be computed as .
EstimatorGains accepts a Method option with settings given by:
Automatic automatic method selection

"Ackermann" Ackermann method

"KNVD" Kautsky–Nichols–Van Dooren method
The estimator gains are computed as the state feedback gains of the dual system.

Examples

open all close all

Basic Examples (3)

Compute estimator gains for a continuous-time system:

Wolfram Language code:

EstimatorGains[StateSpaceModel[{{{2, 3}, {-1, 4}}, {{0}, {1}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None], {-8 - 6 I, -8 + 6I}]

A discrete-time system:

Wolfram Language code:

EstimatorGains[StateSpaceModel[{{{0.9641, 0.2462, 0.0303}, {-0.2462, 0.9641, 0.1934}, {0, 0, 0.6065}},
  {{0.0503}, {0.0296}, {0.0887}}, {{1, 0, 0}}, {{0}}}, SamplingPeriod -> 0.1,
 SystemsModelLabels -> None], {0.3, 0.6, 0.7}]

Estimator gains for a two-output system with only the second output measured:

Wolfram Language code:

EstimatorGains[{StateSpaceModel[{{{3, 0, -1}, {0, 2, 1}, {1, -1, 2}}, {{1, 1}, {0, 3}, {1, -1}},
  {{1, -1, 0}, {0, 1, -1}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], 2}, {-1 + 1.5I, -1 - 1.5I, -0.3}]

Scope (6)

A set of gains for a SISO system:

Wolfram Language code:

{a, b, c} = {(|    |   |
| -- | - |
| -1 | 0 |
| 1  | 2 |), (|   |
| - |
| 0 |
| 1 |), (0	1)};

Wolfram Language code: EstimatorGains[StateSpaceModel[{a, b, c}], {-5 + 2I, -5 - 2I}]

Verify the solution:

Wolfram Language code: Eigenvalues[a - %.c]

An observer gain matrix for a two-output system:

Wolfram Language code:

EstimatorGains[StateSpaceModel[{{{-21, 0, 0, 0}, {0.1, -5, 0, 0}, {0, -1.5, 0, 0}, {0, -4, 0, 0}},
  {{6000, 0}, {0, 0}, {0, 2.3}, {0, 0.1}}, {{0, 0, 1, 0}, {0, 0, 0, 1}}, {{0, 0}, {0, 0}}},
 SamplingPeriod -> None, SystemsModelLabels -> None], {-3, -4.7, -8, -12}]

Estimator gain matrix for a three-output system with specified measurements:

Wolfram Language code:

EstimatorGains[{StateSpaceModel[{{{-16, 0, 4, 0}, {0, -10, 0, 1}, {0, -6.6, 1.5, 0}, {0, 0, 2, 0}},
  {{11, 0}, {0, -4}, {0, 1.8}, {5, 0}}, {{0, 0, 1, 0}, {0, 0, 0, 1}, {1, -0.1, 3, 1}},
  {{0, 0}, {0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {1, 3}}, {-12, -6.1, -8 + I, -8 - I}]//MatrixForm

Compute the estimator gains with poles specified as the roots of a polynomial:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, 1}, {-2, -3}}, {{0}, {1}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None];

Wolfram Language code: poly = λ^2 + 2 0.5 10λ + 100;

Wolfram Language code: EstimatorGains[ssm, λ /. Solve[poly == 0, λ]]

Determine estimator gains symbolically:

Wolfram Language code:

l = EstimatorGains[StateSpaceModel[
 {{{0, 1, 0, 0}, {0, 0, -3*g*(m/(4*m + 7*M)),
    0}, {0, 0, 0, 1}, {0, 0, 6*g*((m + M)/
      (4*L*m + 7*L*M)), 0}},
  {{0}, {7/(4*m + 7*M)}, {0},
   {-6/(4*L*m + 7*L*M)}}, {{1, 0, 0, 0}},
  {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {Subscript[p, 1], Subscript[p, 2], Subscript[p, 3], Subscript[p, 4]}];

Wolfram Language code: Simplify[MatrixForm[l]]

Compute the gains for an AffineStateSpaceModel:

Wolfram Language code:

asys = AffineStateSpaceModel[{{-Sin[0.5 - Subscript[x, 1]],
   Subscript[x, 1] - Subscript[x, 2]}, {{1}, {0}},
  {Subscript[x, 1]}, {{0}}}, {{Subscript[x, 1], 0.5},
  {Subscript[x, 2], 0}}, {u}, {Automatic}, Automatic,
 SamplingPeriod -> None];

Wolfram Language code: ℓ = EstimatorGains[asys, {-1, -2}]

Assemble the estimator:

Wolfram Language code: estim = StateOutputEstimator[asys, ℓ]

The estimator poles are at the desired location:

Wolfram Language code: Eigenvalues[First[Normal[StateSpaceModel[estim]]]]

Options (6)

Method (6)

For systems with more outputs than states, Automatic finds the gains using LinearSolve:

Wolfram Language code:

EstimatorGains[StateSpaceModel[{{{a}}, {{b}}, {{Subscript[c, 1]},
   {Subscript[c, 2]}}, {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {p}, Method -> Automatic]

Wolfram Language code: LinearSolve[{{Subscript[c, 1]}, {Subscript[c, 2]}}, {{a - p}}]

The Ackermann method is used by default for systems with exact values:

Wolfram Language code:

ssm = StateSpaceModel[{{{-1, 1, 1}, {0, -3, 2}, {0, 1, 1}}, {{1}, {2}, {1}}, {{1, 0, 0}, {0, 1, 0}},
  {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];

Wolfram Language code: EstimatorGains[ssm, {-7, -9, -11}]

Wolfram Language code: EstimatorGains[ssm, {-7, -9, -11}, Method -> "Ackermann"] == %

The Ackermann method is also used for symbolic values:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, 1}, {-c, -b}}, {{0}, {1}},
  {{Subscript[k, 1], Subscript[k, 2]}}, {{0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None];

Wolfram Language code: EstimatorGains[ssm, {Subscript[p, 1], Subscript[p, 2]}]

Wolfram Language code: EstimatorGains[ssm, {Subscript[p, 1], Subscript[p, 2]}, Method -> "Ackermann"] == %

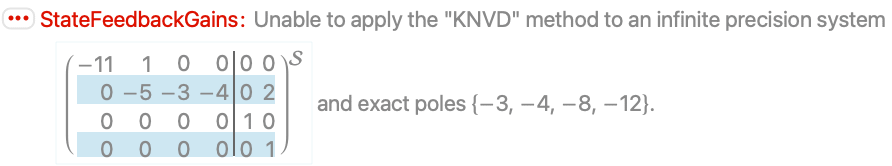

For systems with numeric values, Automatic uses the "KNVD" method:

Wolfram Language code:

ssm = StateSpaceModel[{{{-1.2, 1.}, {0.2, -4.1}}, {{1.}, {1.1}}, {{2., 0.}, {0, 1.}}, {{0}, {0}}},
 SamplingPeriod -> None, SystemsModelLabels -> None];
EstimatorGains[ssm, {-1., -2.}, Method -> Automatic]

Wolfram Language code: EstimatorGains[ssm, {-1., -2.}, Method -> "KNVD"] === %

An inexact, multiple-output state-space model and desired estimator pole locations:

Wolfram Language code:

ssm = StateSpaceModel[{{{-20, 0, -20, 0}, {0, -0.79, 9.5, 0}, {0, -1.5, -0.79, 0}, {1, 0, 0, 0}},
  {{20, 2.8}, {0, -3.13}, {0, 0}, {0, 0}}, {{2.7, 1, 0, -4.3}, {0, -6.1, -7.7, 0.345}},
  {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
poles = {-40 + 10I, -40 - 10I, -40, -40};

Find the condition number of the observability matrix for the first input:

Wolfram Language code:

ObservabilityMatrix[SystemsModelExtract[ssm, All, 1]];
SingularValueList[%, Tolerance -> 0];
(%[[1]]/%[[-1]])

Find the condition number of the observability matrix for the second input:

Wolfram Language code:

ObservabilityMatrix[SystemsModelExtract[ssm, All, 2]];
SingularValueList[%, Tolerance -> 0];
(%[[1]]/%[[-1]])

By default, the output with the lowest condition number is chosen:

Wolfram Language code: EstimatorGains[ssm, poles, Method -> "Ackermann"]

Find gains for estimation through the first output:

Wolfram Language code: EstimatorGains[{ssm, 1}, poles, Method -> "Ackermann"]

The KNVD method uses all available outputs to estimate the states:

Wolfram Language code:

EstimatorGains[StateSpaceModel[{{{1.38, -0.2077, 6.715, -5.676}, {-0.5814, -4.29, 0, 0.675},
   {1.067, 4.273, -6.654, 5.893}, {0.048, 4.273, 1.342, -2.104}},
  {{0, 1}, {2, 0}, {1.2, -3.7}, {2.1, 0}}, {{0, 5.679, 1.136, 1.136}, {0, 0, -3.146, 0}},
  {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {-0.2, -0.5, -5, -8.67}]

Applications (2)

Construct an observer for a continuous-time system:

Wolfram Language code:

ssm = StateSpaceModel[{{{-3, -2, 2}, {1, -1, 0}, {-2, -1, 0}}, {{1}, {0}, {-1}},
  {{1, 0, 0}, {0.5, 0.5, -1}}, {{1}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];

Wolfram Language code: l = EstimatorGains[ssm, {-5 + 2I , -5 - 2I , -8}];

Wolfram Language code: ssmobsv = SystemsModelExtract[StateOutputEstimator[ssm, l], All, {1, 2, 3}]

Simulate the system with input Sin[t] and from a random initial condition:

Wolfram Language code: ic = RandomReal[2, 3];

Wolfram Language code: stateResp = StateResponse[{ssm, ic}, Sin[t], {t, 2}];

Compare each state and its estimate:

Wolfram Language code: y = OutputResponse[{ssm, ic}, Sin[t], {t, 2}];

Wolfram Language code: obsvResp = OutputResponse[ssmobsv, Join[{Sin[t]}, y], {t, 2}];

Wolfram Language code:

MapIndexed[Plot[#, {t, 0, 2}, PlotLabel -> "State " <> ToString[First[#2]], PlotRange -> All, PlotStyle -> {Automatic, Dashed}]&, Thread[{stateResp, obsvResp}]]

Construct an observer for a zero-input sampled-data system:

Wolfram Language code:

ssm = StateSpaceModel[{{{0.81, -0.23, -0.045}, {0.09, 0.98, -0.0023}, {0.005, 0.1, 1}},
  {{0.09}, {0.0047}, {0.00016}}, {{1, 3.5, 3}}, {{0}}}, SamplingPeriod -> 0.1,
 SystemsModelLabels -> None];

Wolfram Language code: l = EstimatorGains[ssm, {0.5, 0.6, 0.75}];

Wolfram Language code: ssobsv = SystemsModelExtract[StateOutputEstimator[{ssm, All, None}, l, Method -> "PredictionEstimator"], All, {1, 2, 3}]

Compute the actual and estimated states for initial states {1,–0.75,0.5} and initial observer states {0,0,0}:

Wolfram Language code: stateResp = StateResponse[{ssm, {1, -0.75, 0.5}}, {0}, {t, 6}];

Wolfram Language code: y = OutputResponse[{ssm, {1, -0.75, 0.5}}, {0}, {t, 6}];

Wolfram Language code: obsvResp = OutputResponse[ssobsv, y];

Examine the state tracking achieved by the observer:

Wolfram Language code: tspan = Range[0, 6, 0.1];

Wolfram Language code:

ListLinePlot[Replace[Riffle[stateResp, obsvResp], pts : {__} :> Thread[{tspan, pts}], {1}], PlotRange -> All, ImageSize -> Medium, PlotMarkers -> Automatic,
	PlotLegends -> {"SubscriptBox[x, 1]", "SubscriptBox[x, 1  obs]", "SubscriptBox[x, 2]", "SubscriptBox[x, 2  obs]", "SubscriptBox[x, 3]", "SubscriptBox[x, 3  obs]"}]

Properties & Relations (7)

The error dynamics:

Wolfram Language code:

a = (⁠|    |    |
| -- | -- |
| -1 | 2  |
| 1  | -4 |⁠);
c = (⁠1	0⁠);

Wolfram Language code: l = EstimatorGains[StateSpaceModel[{a, Array[Subscript[b, ##]&, {2, 1}], c}], {-7 + I, -7 - I}];

Wolfram Language code: StateSpaceModel[{a - l.c, ConstantArray[0, {2, 1}], IdentityMatrix[2]}]

StateOutputEstimator assembles an observer that estimates both the states and outputs:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}, {-35.52, -54.32, -34.56, -9.8}},
  {{0}, {0}, {0}, {1}}, {{1, 1, 1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];

Wolfram Language code: l = EstimatorGains[ssm, {-8 + 4 I, -8 - 4I, -12, -14}];

Wolfram Language code: StateOutputEstimator[ssm, l]

The prediction estimator dynamics for a discrete-time system:

Wolfram Language code:

Subscript[ssm, d] = StateSpaceModel[{{{0, 1, 0}, {0, 0, 1}, {-0.234, 0.64, 0.01}}, {{0}, {0}, {1}}, {{-0.3, 1, 0}},
  {{0}}}, SamplingPeriod -> 0.25, SystemsModelLabels -> None];

Wolfram Language code: l = EstimatorGains[Subscript[ssm, d], {-0.3, -0.2, 0}];

Wolfram Language code: StateOutputEstimator[Subscript[ssm, d], l, Method -> "PredictionEstimator"]

Estimator gains are the conjugate transpose of state feedback gains of the dual system:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, 1, 0, 0}, {0, 0, -1, 0}, {0, 0, 0, 1}, {0, 0, 11, 0}}, {{0}, {1}, {0}, {1}},
  {{1, 2, 3, 4}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];

Wolfram Language code: poles = {-1, -2, -1 + I, -1 - I};

Wolfram Language code: EstimatorGains[ssm, poles] == ConjugateTranspose[StateFeedbackGains[DualSystemsModel[ssm], poles]]

Or vice versa:

Wolfram Language code: StateFeedbackGains[ssm, poles] == ConjugateTranspose[EstimatorGains[DualSystemsModel[ssm], poles]]

For an observable, nonsingular descriptor system, all the estimator poles can be placed:

Wolfram Language code:

nonsingularSS = StateSpaceModel[{{{1, 0, 0, 2}, {-1, -1, 0, 0}, {0, -1, 1, 1}, {11, 11, 0, 0}},
  {{0}, {1}, {0}, {1}}, {{5, 0, 3, 8}}, {{0}}, {{0, 1, -1, 0}, {1, 0, 0, 2}, {1, 1, 0, 0},
   {0, -1, 1, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
ObservableModelQ[nonsingularSS]

Wolfram Language code: EstimatorGains[nonsingularSS, {-1., -2., -3., -4.}]

For a singular system that is observable, only MatrixRank[e] poles can be placed:

Wolfram Language code:

singularSS = StateSpaceModel[{{{0, 1, 0}, {0, 0, 1}, {0, 0, -1}}, {{0, 0}, {1, 0}, {0, 1}},
  {{0, 1, 0}, {1, 0, 1}, {0, 0, -1}}, {{0, 0}, {1, 0}, {0, 1}}, {{1, 0, 0}, {0, 1, 0}, {0, 0, 0}}},
 SamplingPeriod -> None, SystemsModelLabels -> None];
ObservableModelQ[singularSS]

Wolfram Language code: EstimatorGains[singularSS, {-1., -2.}]

An impulsive system where only the slow subsystem is observable:

Wolfram Language code:

impulseSS = StateSpaceModel[{{{-5, 0, 0, 0, 0}, {0, 1, 0, 0, 0}, {0, 0, 1, 0, 0}, {0, 0, 0, 1, 0},
   {0, 0, 0, 0, 1}}, {{1}, {0}, {0}, {0}, {-1}}, {{8, 0, 0, 1, -1}}, {{0}},
  {{1, 0, 0, 0, 0}, {0, 0, 1, 0, 0}, {0, 0, 0, 1, 0}, {0, 0, 0, 0, 1}, {0, 0, 0, 0, 0}}},
 SamplingPeriod -> None, SystemsModelLabels -> None];
{ObservableModelQ[impulseSS], ControllableModelQ[{impulseSS, "Slow"}]}

Only the estimator pole for the slow system can be placed:

Wolfram Language code: EstimatorGains[impulseSS, {-1.}]

Possible Issues (4)

The KNVD method does not handle exact systems with fewer outputs than states:

Wolfram Language code:

ssm = StateSpaceModel[{{{-11, 0, 0, 0}, {1, -5, 0, 0}, {0, -3, 0, 0}, {0, -4, 0, 0}},
  {{80, 0}, {0, 0}, {0, 20}, {0, 1}}, {{0, 0, 1, 0}, {0, 2, 0, 1}}, {{0, 0}, {0, 0}}},
 SamplingPeriod -> None, SystemsModelLabels -> None];

Wolfram Language code: EstimatorGains[ssm, {-3, -4, -8, -12}, Method -> "KNVD"]

Evaluate numerically:

Wolfram Language code: EstimatorGains[ssm, {-3, -4, -8, -12}//N, Method -> "KNVD"]

The KNVD method does not support a pole multiplicity greater than the number of outputs:

Wolfram Language code:

ssm = StateSpaceModel[{{{9, 5.7, 0, 2}, {0, 0, -1, 0}, {-4, 0, 1, 0}, {0, 1, 12, 0}},
  {{0}, {-1}, {0}, {1.6}}, {{1, 2, 3, 4}}, {{0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None];

Wolfram Language code: EstimatorGains[ssm, {-1, -7, -2.5, -2.5}]

Use the Ackermann method:

Wolfram Language code: EstimatorGains[ssm, {-1, -7, -2.5, -2.5}, Method -> "Ackermann"]

The KNVD method can give different sets of gains on different computer systems:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, 1, 0, 0, 2, 0}, {2, 0, 1, 0, 0, 0}, {0, 0, 0, 0, 0, -1}, {0, 0, 0, 3, 1, 0},
   {-2, 0, 0, 0, 0, 1}, {0, -1, 0, 0, 0, 0}}, {{1, 0}, {0, 0}, {1, 0}, {0, 1}, {0, 0}, {0, -1}},
  {{1, 0, 0, 0, 0, 0}, {2, 0, 1, -1, 1, 0}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None];

Wolfram Language code: poles = {-1, -2, -3, -4, -5, -7};

Wolfram Language code: {$SystemID, Subscript[l, 1] = EstimatorGains[ssm//N, poles, Method -> "KNVD"]}

Wolfram Language code: {$SystemID, Subscript[l, 2] = EstimatorGains[ssm//N, poles, Method -> "KNVD"]}

The observer's eigenvalues are the same:

Wolfram Language code: {$SystemID, With[{ssN = Normal[ssm]}, Eigenvalues[ssN[[1]] - Subscript[l, 1].ssN[[3]]]]}

Wolfram Language code: {$SystemID, With[{ssN = Normal[ssm]}, Eigenvalues[ssN[[1]] - Subscript[l, 2].ssN[[3]]]]}

The system must be observable:

Wolfram Language code:

ssm = StateSpaceModel[{{{0, -1}, {-1, 0}}, {{1}, {-1}}, {{1, -1}}, {{0}}}, SamplingPeriod -> None,
 SystemsModelLabels -> None];

Wolfram Language code: EstimatorGains[ssm, {-2, -3}]

It is not observable:

Wolfram Language code: ObservableModelQ[ssm]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

EstimatorGains

Details and Options

Examples

Basic Examples (3)

Scope (6)

Options (6)

Method (6)

Applications (2)

Properties & Relations (7)

Possible Issues (4)

Text

CMS

APA

BibTeX

BibLaTeX

EstimatorGains

Details and Options

Examples

Basic Examples (3)

Scope (6)

Options (6)

Method (6)

Applications (2)

Properties & Relations (7)

Possible Issues (4)

See Also

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
