StateOutputEstimator

StateOutputEstimator[ssm,l]

constructs an estimator for the StateSpaceModel ssm, with estimator gain matrix l.

StateOutputEstimator[{ssm,sensors},l]

uses only sensors as the measurements of ssm.

StateOutputEstimator[{ssm,sensors,dinputs},l]

specifies dinputs as the deterministic inputs of ssm.

Details and Options

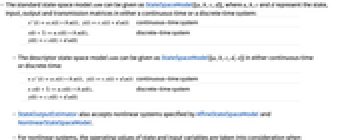

  • The standard state-space model ssm can be given as StateSpaceModel[{a,b,c,d}], where a, b, c and d represent the state, input, output and transmission matrices in either a continuous-time or a discrete-time system:
  • continuous-time system
    discrete-time system
  • The descriptor state-space model ssm can be given as StateSpaceModel[{a,b,c,d,e}] in either continuous-time or discrete-time:
  • continuous-time system
    discrete-time system
  • StateOutputEstimator also accepts nonlinear systems specified by AffineStateSpaceModel and NonlinearStateSpaceModel.
  • For nonlinear systems, the operating values of state and input variables are taken into consideration when constructing the estimator.

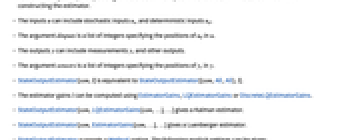

  • The inputs can include stochastic inputs and deterministic inputs .
  • The argument dinputs is a list of integers specifying the positions of in .
  • The outputs can include measurements and other outputs.
  • The argument sensors is a list of integers specifying the positions of in .
  • StateOutputEstimator[ssm,l] is equivalent to StateOutputEstimator[{ssm,All,All},l].
  • The estimator gains l can be computed using EstimatorGains, LQEstimatorGains or DiscreteLQEstimatorGains.
  • StateOutputEstimator[ssm,LQEstimatorGains[ssm,…],…] gives a Kalman estimator.
  • StateOutputEstimator[ssm,EstimatorGains[ssm,…],…] gives a Luenberger estimator.

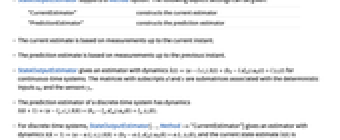

  • StateOutputEstimator supports a Method option. The following explicit settings can be given:
  • "CurrentEstimator"constructs the current estimator
    "PredictionEstimator"constructs the prediction estimator
  • The current estimate is based on measurements up to the current instant.
  • The prediction estimate is based on measurements up to the previous instant.
  • StateOutputEstimator gives an estimator with dynamics for continuous-time systems. The matrices with subscripts and are submatrices associated with the deterministic inputs and the sensors .
  • The prediction estimator of a discrete-time system has dynamics .
  • For discrete-time systems, StateOutputEstimator[…,Method->"CurrentEstimator"] gives an estimator with dynamics , and the current state estimate is obtained from the current measurement as .
  • For discrete-time systems, the prediction gain and the current gain have the relationship .

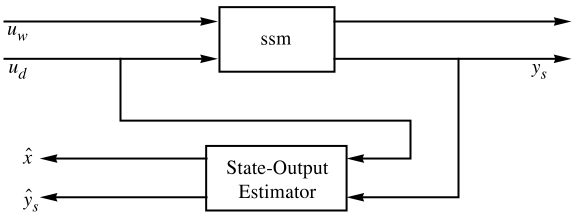

  • Block diagram for the system with estimator:
  • The inputs to the estimator model are the deterministic inputs and the measurements .
  • The outputs of the estimator model consist of the estimated states and estimates of the measurements .

Examples

open all close all

Basic Examples  (3)

The output and state estimator for a continuous-time system:

Wolfram Language code: StateOutputEstimator[StateSpaceModel[{{{-2}}, {{0.6, 0.4}}, {{0.5}, {-0.4}}, {{1, -1}, {0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None], (-0.67 -0.33)]

An estimator of a system with unity estimator gain and a sensor at the second output:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], 2}, (⁠1⁠)]

For a discrete-time system, StateOutputEstimator assembles a discrete‐time estimator:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> τ, SystemsModelLabels -> None], 1}, (⁠1⁠)]

Scope  (8)

A linear estimator for a system with one measured output and one deterministic input:

Wolfram Language code: StateOutputEstimator[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], (⁠L⁠)]

Specify that the input is stochastic:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], All, None}, (⁠L⁠)]

The estimator for a system in which all the outputs are measured and all inputs are deterministic:

Wolfram Language code: StateOutputEstimator[StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], (Subscript[L, 1] Subscript[L, 2])]

Only the first output is measured:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], 1}, (⁠Subscript[L, 1]⁠)]

The first output is measured and the first input is stochastic:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], 1, 1}, (⁠Subscript[L, 1]⁠)]

All the outputs are measured and all inputs are stochastic:

Wolfram Language code: StateOutputEstimator[{StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], All, None}, (Subscript[L, 1] Subscript[L, 2])]

An estimator for a descriptor state-space model:

Wolfram Language code: StateOutputEstimator[StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 1], 0}, {0, Subscript[d, 2]}}, {{e}}}, SamplingPeriod -> None, SystemsModelLabels -> None], (⁠Subscript[l, 1] Subscript[l, 2]⁠)]

An estimator for an AffineStateSpaceModel:

Wolfram Language code: asys = AffineStateSpaceModel[{{-Sin[0.5 - Subscript[x, 1]], Subscript[x, 1] - Subscript[x, 2]}, {{1}, {0}}, {Subscript[x, 1]}, {{0}}}, {{Subscript[x, 1], 0.5}, {Subscript[x, 2], 0}}, {u}, {Automatic}, Automatic, SamplingPeriod -> None];

Compute a set of gains based on the linearized system:

Wolfram Language code: ℓ = EstimatorGains[asys, {-1, -2}]

Construct the estimator:

Wolfram Language code: estim = StateOutputEstimator[asys, ℓ]

Compute the actual and estimated responses:

Wolfram Language code: Subscript[y, a] = OutputResponse[{asys, {-3, 0}}, Sin[t], {t, 0, 25}];
Wolfram Language code: Subscript[y, e] = OutputResponse[estim, Join[{Sin[t]}, Subscript[y, a]], {t, 0, 25}][[-1]];

Plot the responses:

Wolfram Language code: Plot[{Subscript[y, a], Subscript[y, e]}, {t, 0, 4}, PlotLegends -> {"actual", "estimated"}, PlotRange -> All]

Options  (2)

Method  (2)

By default, the estimator is based on the current measurements:

Wolfram Language code: ssm = StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> τ, SystemsModelLabels -> None];
Wolfram Language code: gains = (⁠Subscript[g, 1] Subscript[g, 2]⁠);
Wolfram Language code: StateOutputEstimator[ssm, gains]

The prediction estimator:

Wolfram Language code: StateOutputEstimator[ssm, gains, Method -> "PredictionEstimator"]

For continuous-time systems, the current and prediction estimates are equivalent:

Wolfram Language code: Table[StateOutputEstimator[StateSpaceModel[{{{a}}, {{Subscript[b, 1], Subscript[b, 2]}}, {{Subscript[c, 1]}, {Subscript[c, 2]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None], (⁠Subscript[g, 1] Subscript[g, 2]⁠), Method -> m], {m, {"CurrentEstimator", "PredictionEstimator"}}]
Wolfram Language code: Equal@@%

Applications  (1)

An observer for a continuous-time system:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, 0, 0}, {0, -2, 0}, {0, 0, -3}}, {{-1}, {0}, {1}}, {{1, -1, 0}, {1.5, 0, -1}}, {{1}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: l = EstimatorGains[ssm, {-3 + 4I , -3 - 4I , -12}];
Wolfram Language code: obsv = StateOutputEstimator[ssm, l];

Simulate the system with input -t and from a random initial condition:

Wolfram Language code: ic = RandomReal[2, 3];
Wolfram Language code: x = StateResponse[{ssm, ic}, E^-t, {t, 5}];
Wolfram Language code: y = OutputResponse[{ssm, ic}, E^-t, {t, 5}];

Compare each state and its estimate:

Wolfram Language code: xhat = OutputResponse[SystemsModelExtract[obsv, All, {1, 2, 3}], Join[{E^-t}, y], {t, 5}];
Wolfram Language code: Grid[{MapIndexed[Plot[#, {t, 0, 5}, PlotLabel -> "State " <> ToString[First[#2]], PlotRange -> All, PlotStyle -> {Automatic, Dashed}]&, Thread[{x, xhat}]]}]

Compare the outputs:

Wolfram Language code: yhat = OutputResponse[SystemsModelExtract[obsv, All, {4, 5}], Join[{E^-t}, y], {t, 5}];
Wolfram Language code: MapIndexed[Plot[#, {t, 0, 5}, PlotLabel -> "Output " <> ToString[First[#2]], PlotRange -> All, PlotStyle -> {Automatic, Dashed}]&, Thread[{y, yhat}]]

Properties & Relations  (2)

StateOutputEstimator estimates the states and outputs of a system:

Wolfram Language code: ssm = StateSpaceModel[{{{0.2, 0}, {0, 0.5}}, {{0.1, 0}, {-1, -0.5}}, {{0.001, 0.001}}, {{0, 0}}}, SamplingPeriod -> 0.1, SystemsModelLabels -> None];
Wolfram Language code: l = EstimatorGains[ssm, {0.1, 0.4}];
Wolfram Language code: est = StateOutputEstimator[ssm, l]

Extract the state estimator:

Wolfram Language code: SystemsModelExtract[est, All, {1, 2}]

The output estimator:

Wolfram Language code: SystemsModelExtract[est, All, {3}]

Construct a Kalman estimator for a discrete-time system:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1}, {-1, 2}}, {{0, 0}, {1, 1}}, {{0.005, 0.003}}, {{0, 0}}}, SamplingPeriod -> 0.1, SystemsModelLabels -> None];
Wolfram Language code: l = LQEstimatorGains[{ssm, All, 1}, {(⁠0.001), (⁠0.1)}];
Wolfram Language code: kest = StateOutputEstimator[{ssm, All, 1}, l]

Use KalmanEstimator directly:

Wolfram Language code: KalmanEstimator[{ssm, All, 1}, {(⁠0.001), (⁠0.1)}]
