GaborFilter

GaborFilter[data,r,k]

filters data by convolving with a Gabor kernel of pixel radius r and wave vector k.

GaborFilter[data,r,k,ϕ]

uses a Gabor kernel with phase shift ϕ.

GaborFilter[data,{r,σ},…]

uses a Gabor kernel with radius r and standard deviation σ.

Details and Options

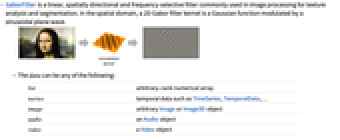

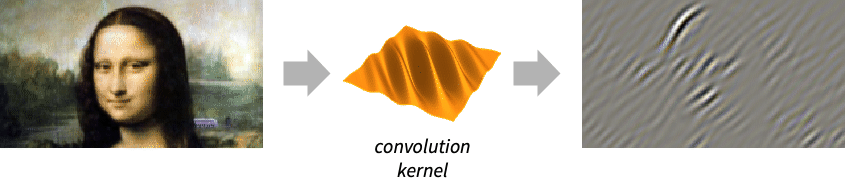

  • GaborFilter is a linear, spatially directional and frequency-selective filter commonly used in image processing for texture analysis and segmentation. In the spatial domain, a 2D Gabor filter kernel is a Gaussian function modulated by a sinusoidal plane wave.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries, TemporalData, …
    imagearbitrary Image or Image3D object
    audioan Audio object
    videoa Video object
  • GaborFilter[data,r,k] is equivalent to GaborFilter[data,{r,r/2},k,0].
  • Either of the r or σ can be lists, specifying different values for different directions.
  • GaborFilter[image,…] by default gives an image of a real type of the same dimensions as image.
  • The following options can be specified:
  • Padding "Fixed"padding method
    StandardizedTruewhether to rescale the Gabor kernel to account for truncation
    WorkingPrecision Automaticthe precision to use
  • With a setting Padding->None, GaborFilter[data,…] normally gives a result smaller than data.

Examples

open all close all

Basic Examples  (3)

Filter an image:

Wolfram Language code: GaborFilter[[image], 20, {.5, .5}]//ImageAdjust

Gabor filtering of a 3D image:

Wolfram Language code: 10GaborFilter[[image], 5, {0, 0, 1}]

Apply a Gabor filter to a list of values:

Wolfram Language code: list = N@Table[Sin[ π t^2 + 2π], {t, 0, 5, (1/30)}]; ListLinePlot[{list, GaborFilter[ list, 20, {.5}]}]

Scope  (8)

Data  (5)

Gabor filtering of a 2D array:

Wolfram Language code: mat = Array[KroneckerDelta, {20, 20}]; res = GaborFilter[mat, 10, {.5, -.5}]; ArrayPlot /@ {mat, res}

Filter a TimeSeries object:

Wolfram Language code: ts = TemporalData[TimeSeries, {{{0., -0.27267267057145633, -0.6672983789995302, -0.5338541947930846, -0.6117404489279314, -0.6755527076595494, -0.02125421294486496, -0.10792797291843935, -0.6138271235477938, -0.3248568606554575, -0.08843449054 ... 2053424, -0.49980440691873723, -0.5388679788215971, -0.4101602764645551}}, {{0, 1., 0.01}}, 1, {"Continuous", 1}, {"Continuous", 1}, 1, {ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 10.1];
Wolfram Language code: filtered = GaborFilter[ts, 10, {.1}]
Wolfram Language code: ListLinePlot[{ts, filtered}, PlotLegends -> {"original data", "filtered"}]

Filter an Audio signal:

Wolfram Language code: a = Import["ExampleData/rule30.wav"]; b = AudioNormalize[GaborFilter[a, 20, {1}]]
Wolfram Language code: AudioPlot[{a, b}]

Filter a color image:

Wolfram Language code: GaborFilter[[image], 20, {0.3, 0.3}]//ImageAdjust

Filter video frames:

Wolfram Language code: GaborFilter[Video["ExampleData/fish.mp4"], 10, {0.3, 0.3}]

Parameters  (3)

Gabor filtering of a noisy signal using different kernel radii:

Wolfram Language code: ts = TemporalData[TimeSeries, {{{0., -0.27267267057145633, -0.6672983789995302, -0.5338541947930846, -0.6117404489279314, -0.6755527076595494, -0.02125421294486496, -0.10792797291843935, -0.6138271235477938, -0.3248568606554575, -0.08843449054 ... 2053424, -0.49980440691873723, -0.5388679788215971, -0.4101602764645551}}, {{0, 1., 0.01}}, 1, {"Continuous", 1}, {"Continuous", 1}, 1, {ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 10.1];
Wolfram Language code: filtered = GaborFilter[ts, #, {0}]& /@ {1, 3, 9}; ListLinePlot[filtered, PlotLegends -> {"r=1", "r=3", "r=9"}]

Use different standard deviations:

Wolfram Language code: filtered = GaborFilter[ts, {9, #}, {0}]& /@ {1, 5}; ListLinePlot[filtered, PlotLegends -> {"σ=1", "σ=5"}]

Use different wave vectors:

Wolfram Language code: filtered = Table[GaborFilter[ts, 3, {k}], {k, {0., π / 3., 2π / 3.}}]; ListLinePlot[filtered, PlotLegends -> {"k={0}", "k={π/3}", "k={2π/3}"}]

Gabor filtering in the vertical direction:

Wolfram Language code: GaborFilter[[image], 6, {π / 3, 0}]//ImageAdjust

Filtering in the horizontal direction:

Wolfram Language code: GaborFilter[[image], 6, {0, π / 3}]//ImageAdjust

Filtering in a diagonal direction:

Wolfram Language code: GaborFilter[[image], 6, {π, π} / 4]//ImageAdjust

The cosine part of a Gabor filter is computed when :

Wolfram Language code: GaborFilter[[image], 3, {1, 1}, 0]//ImageAdjust

The sine part of a Gabor filter is computed when :

Wolfram Language code: GaborFilter[[image], 3, {1, 1}, π / 2]//ImageAdjust

Options  (6)

Padding  (3)

Gabor filtering using different padding schemes:

Wolfram Language code: v = Table[SawtoothWave[(n/10)], {n, -10, 10}]; pad = {"Fixed", "Periodic", "Reversed"};
Wolfram Language code: ListLinePlot[GaborFilter[v, 5, {0}, Padding -> #]& /@ pad, PlotRange -> All, PlotLegends -> pad]

Gabor filtering of a grayscale image using different padding schemes:

Wolfram Language code: ImageAdjust[GaborFilter[[image], 20, {Pi, Pi} / 2, Padding -> #]]& /@ {"Fixed", "Periodic"}

Padding->None normally returns an image smaller than the input image:

Wolfram Language code: GaborFilter[[image], 20, {0, 0}, Padding -> None]

WorkingPrecision  (3)

MachinePrecision is by default used with integer arrays:

Wolfram Language code: GaborFilter[{3, 4, 4, 3}, 1, {1}]

Perform exact computation instead:

Wolfram Language code: GaborFilter[{3, 4, 4, 3}, 1, {1}, WorkingPrecision -> ∞]

With real arrays, by default the precision of the input is used:

Wolfram Language code: GaborFilter[{1.0000000000000000000, 2.0000000000000000000, 3.0000000000000000000, 4.0000000000000000000}, 1, {1}]

Specify the precision to use:

Wolfram Language code: GaborFilter[{1.0000000000000000000, 2.0000000000000000000, 3.0000000000000000000, 4.0000000000000000000}, 1, {1}, WorkingPrecision -> MachinePrecision]

WorkingPrecision is ignored when filtering images:

Wolfram Language code: GaborFilter[[image], 2, {1, 1}, WorkingPrecision -> Infinity]

An image of a real type is always returned:

Wolfram Language code: ImageType[%]

Applications  (3)

Gabor filtering of an image to detect vertical lines in an image:

Wolfram Language code: GaborFilter[[image], {9, {3, 1}}, {0, 2}]//ImageAdjust

Detect edges in the specified direction in a noisy image:

Wolfram Language code: GaborFilter[[image], 6, {1, 1} / 2, Pi / 2]//ImageAdjust

The magnitude of the Gabor filter is computed as the squared norm of the sine and cosine components:

Wolfram Language code: gaborMagnitude[image_, r_, k_] := With[{data = ImageData[image]}, Image[GaborFilter[image, r, k, 0] ^ 2 + GaborFilter[image, r, k, Pi / 2] ^ 2]]

Extract regions with the dominant direction parallel to and :

Wolfram Language code: i = [image]; λ = .5;r = 10; {t1, t2} = Table[ImageAdjust[gaborMagnitude[i, r, λ k]], {k, {{1, -1}, {1, 1}}}]

Highlight two texture segments on the image:

Wolfram Language code: ImageCompose[i, {ImageAdd@@MapThread[ImageMultiply[MorphologicalBinarize[#1], #2]&, {{t1, t2}, {Red, Green}}], .3}]

Properties & Relations  (5)

GaborFilter is equivalent to a convolution with a GaborMatrix:

Wolfram Language code: i = [image]; g1 = GaborFilter[i, 10, .5{1, -1}]//ImageAdjust
Wolfram Language code: g2 = ImageConvolve[i, GaborMatrix[10, .5{1, -1}]]//ImageAdjust
Wolfram Language code: g1 === g2

Gabor filtering with a zero-valued wave vector is equivalent to Gaussian smoothing:

Wolfram Language code: GaborFilter[{1, 1, 1, 1, 1, 0, 0, 3, 12, 1, 0, 0, 0, 0, 0}, 1, {0}] == GaussianFilter[{1, 1, 1, 1, 1, 0, 0, 3, 12, 1, 0, 0, 0, 0, 0}, 1, Method -> "Gaussian"]

Impulse response of a Gabor filter:

Wolfram Language code: h = GaborFilter[ArrayPad[{{1}}, 10], 10, .75{1, 1}]; ListPlot3D[h, Mesh -> False, PlotRange -> All]

Magnitude spectrum of the filter:

Wolfram Language code: Plot3D[Evaluate[Abs@ListFourierSequenceTransform[h, {u, v}]], {u, 0, π}, {v, 0, π}, Mesh -> False, PlotRange -> All]

Gabor filtering of an image gives a real-valued image:

Wolfram Language code: GaborFilter[[image], 5, {1, 1}]//ImageAdjust

GaborFilter is a linear filter:

Wolfram Language code: list1 = {1, 1, 1, 1, 1, 0, 0, 3, 12, 1, 0, 0, 0, 0, 0}; list2 = {2, 2, 2, 2, 1, 5, 4, 6, 2, 2, 1, 1, 1, 1, 1}; GaborFilter[list1 + list2, 1, {1}] == GaborFilter[list1, 1, {1}] + GaborFilter[list2, 1, {1}]
