InternallyBalancedDecomposition

InternallyBalancedDecomposition[ssm]

yields the internally balanced decomposition of the state-space model ssm.

Details and Options

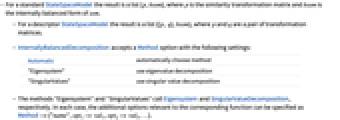

  • For a standard StateSpaceModel the result is a list {p,bssm}, where p is the similarity transformation matrix and bssm is the internally balanced form of ssm.
  • For a descriptor StateSpaceModel the result is a list {{p, q},bssm}, where p and q are a pair of transformation matrices.
  • InternallyBalancedDecomposition accepts a Method option with the following settings:
  • Automaticautomatically choose method
    "Eigensystem"use eigenvalue decomposition
    "SingularValues"use singular value decomposition
  • The methods "Eigensystem" and "SingularValues" call Eigensystem and SingularValueDecomposition, respectively. In each case, the additional options relevant to the corresponding function can be specified as Method->{"name",opt1-> val1,opt2-> val2,…}.

Examples

open all close all

Basic Examples  (1)

The internally balanced realization of a state-space model:

Wolfram Language code: InternallyBalancedDecomposition[StateSpaceModel[{{{0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}, {-50, -79, -33, -5}}, {{0}, {0}, {0}, {1}}, {{50.5, 15.25, 1.5, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Scope  (3)

The internally balanced realization of a SISO system:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, -2, 1}, {0, -2, 1}, {-1, 0, -1}}, {{2}, {-1}, {1}}, {{1, 0, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {p, ib} = InternallyBalancedDecomposition[N@ssm]

The two realizations are different forms of the same model:

Wolfram Language code: TransferFunctionModel /@ {ssm, ib}//Simplify

The balanced realization of a MIMO system:

Wolfram Language code: InternallyBalancedDecomposition[StateSpaceModel[{{{-0.2, 0}, {0, -0.4}}, {{1, 0}, {0, 1}}, {{0.012, 0.004}, {-0.05, -0.004}}, {{-0.08, 0}, {0, 0.02}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The balanced realization of a descriptor system:

Wolfram Language code: Chop@InternallyBalancedDecomposition[StateSpaceModel[{{{1, 0, 0}, {0, 1, 0}, {0, 0, -5.}}, {{0}, {1.}, {1.}}, {{-1., 11., 64.}}, {{0}}, {{0, 1, 0}, {0., 0., 0}, {0, 0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Applications  (1)

In a balanced realization, each state is just as controllable as it is observable:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}, {-50, -79, -33, -5}}, {{0}, {0}, {0}, {1}}, {{50.5, 15.25, 1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: ib = Last@InternallyBalancedDecomposition@ssm;
Wolfram Language code: MatrixForm /@ Chop@Through@{ControllabilityGramian, ObservabilityGramian}@ib

Get an approximation to the model by truncating the least controllable and observable mode:

Wolfram Language code: Subscript[ssm, Truncated] = SystemsModelDelete[ib, None, None, 4]

Get submatrices of the balanced model:

Wolfram Language code: {aa, bb, cc, dd} = Normal@ib; {{Subscript[a, 11], Subscript[a, 12]}, {Subscript[a, 21], Subscript[a, 22]}} = Partition[aa, {3, 3}, 3, 1, {}] /. {} :> Sequence[]; {Subscript[b, 1], Subscript[b, 2]} = Partition[bb, 3, 3, 1, {}]; {{Subscript[c, 1], Subscript[c, 2]}} = Partition[cc, {3, 3}, 3, 1, {}] /. {} :> Sequence[];

Get an approximation by residualizing the least controllable and observable mode:

Wolfram Language code: Subscript[ssm, Residualized] = With[{a22Inv = Inverse[Subscript[a, 22]]}, StateSpaceModel[{Subscript[a, 11] - Subscript[a, 12].a22Inv.Subscript[a, 21], Subscript[b, 1] - Subscript[a, 12].a22Inv.Subscript[b, 2], Subscript[c, 1] - Subscript[c, 2].a22Inv.Subscript[a, 21], dd - Subscript[c, 2].a22Inv.Subscript[b, 2]}]]

The truncated model better approximates the system during the transients, and the residualized model better approximates the system at steady state:

Wolfram Language code: outputs = Table[OutputResponse[sys, UnitStep[t], {t, 7}], {sys, {ssm, Subscript[ssm, Truncated], Subscript[ssm, Residualized]}}];
Wolfram Language code: res = Plot[outputs, {t, 0, 7}, PlotLegends -> {"Original", "Truncated", "Residualized"}]
Wolfram Language code: {Show[res, PlotRange -> {{0, 0.36}, {-0.04, 0.1}}, AxesOrigin -> {0, -0.0384288}], Show[res, PlotRange -> {{6, 7}, {0.8, 1.05}}, AxesOrigin -> {6, 0.8}]}

Properties & Relations  (2)

The ControllabilityGramian and ObservabilityGramian are equal for a balanced system:

Wolfram Language code: ssm = N@StateSpaceModel[{{{-1., -3.}, {1., -2.}}, {{1.}, {1.}}, {{2., 3.}}, {{0.}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {p, bssm} = N@InternallyBalancedDecomposition[ssm];
Wolfram Language code: MatrixForm /@ {ControllabilityGramian[bssm], ObservabilityGramian[bssm]}

The diagonal entries are given by Hankel singular values for the original system:

Wolfram Language code: Sqrt@SingularValueList[ControllabilityGramian[ssm].ObservabilityGramian[ssm]]

The original and balanced realizations are related by a similarity transformation:

Wolfram Language code: ssm = StateSpaceModel[{{{-13, -1.5, 4.5}, {-24.3, -5.5, 9.6}, {-32.1, -4.5, 11.2}}, {{3.1}, {10.6}, {11}}, {{1.2, 0.2, -0.5}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {p, bssm} = InternallyBalancedDecomposition[ssm];

Use StateSpaceTransform to transform the original system:

Wolfram Language code: tssm = StateSpaceTransform[ssm, p];

The system matrices from the balanced and transformed system are identical:

Wolfram Language code: {ba, bb, bc, bd} = Normal@bssm; {ta, tb, tc, td} = Normal@tssm;
Wolfram Language code: {Norm[ba - ta], Norm[bb - tb], Norm[bc - tc], Norm[bd - td]}

Possible Issues  (2)

The state-space model must be both completely controllable and observable:

Wolfram Language code: InternallyBalancedDecomposition[StateSpaceModel[{{{-2, 0}, {0, -1}}, {{1}, {-1}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

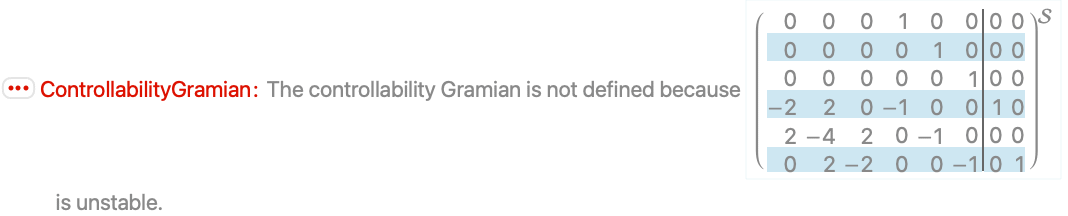

The state-space model must be asymptotically stable:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, 0, 1, 0, 0}, {0, 0, 0, 0, 1, 0}, {0, 0, 0, 0, 0, 1}, {-2, 2, 0, -1, 0, 0}, {2, -4, 2, 0, -1, 0}, {0, 2, -2, 0, 0, -1}}, {{0, 0}, {0, 0}, {0, 0}, {1, 0}, {0, 0}, {0, 1}}, {{0, 1, 0, 0, 0, 0}, {0, 0, 0, 0, 1, 0}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: InternallyBalancedDecomposition[ssm]

It is only marginally stable:

Wolfram Language code: Eigenvalues@First@Normal@ssm
