ObservabilityGramian

ObservabilityGramian[ssm]

gives the observability Gramian of the state-space model ssm.

Details and Options

  • The state-space model ssm can be given as StateSpaceModel[{a,b,c,d}], where a, b, c, and d represent the state, input, output, and transmission matrices in either a continuous-time or a discrete-time system:
  • continuous-time system
    discrete-time system
  • The observability Gramian:
  • continuous-time system
    discrete-time system
  • For asymptotically stable systems, the Gramian can be computed as the solution of a Lyapunov equation:
  • continuous-time system
    discrete-time system
  • For a StateSpaceModel with a descriptor matrix, ObservabilityGramian returns a pair of matrices {wos,wof}, where wos is associated with the slow subsystem, and wof is associated with the fast subsystem.
  • The observability Gramians only exist for descriptor systems in which Det[λ e-a]≠0 for some λ.

Examples

open all close all

Basic Examples  (1)

The observability Gramian of a system:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{-1, 0, 0}, {0, -5, 0}, {0, 0, -6}}, {{1}, {2}, {-1}}, {{1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{0}, {0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Scope  (4)

The observability Gramian of a continuous-time system:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{-0.5, -0.5, 0}, {0.5, -0.5, 0}, {0, 0, -1}}, {{0}, {0}, {1}}, {{1, 2, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The observability Gramian of a discrete-time system:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{0.9512, 0}, {0, 0.9048}}, {{4.88, 4.88}, {-0.019, 0.0095}}, {{0.01, 0}, {0, 1}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> 5, SystemsModelLabels -> None]]

The observability Gramian of a symbolic system:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{-a, 0}, {0, -a}}, {{1}, {1}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]; FunctionExpand[%, a∈Reals]

The observability Gramian of a descriptor system:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{-3, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{1}, {0}, {2}}, {{1, 4, 0}}, {{0}}, {{1, 0, 0}, {0, 0, 1}, {0, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Applications  (1)

Check if a system is observable:

Wolfram Language code: MatrixRank[ObservabilityGramian[StateSpaceModel[{{{-1, 0}, {0, -2}}, {{1}, {0}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]] == 2

Properties & Relations  (7)

The observability Gramian is the controllability Gramian of the dual system:

Wolfram Language code: ssm = StateSpaceModel[{{{-5, -0.9, 0}, {0.9, -5, 0}, {0, 0, -3}}, {{1}, {0}, {-1}}, {{1, 0, -1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; ObservabilityGramian[ssm] == ControllabilityGramian[DualSystemsModel[ssm]]

The observability Gramian has the dimension of the state matrix:

Wolfram Language code: Dimensions@ObservabilityGramian[StateSpaceModel[{{{0, 1}, {-Subscript[a, 2], -Subscript[a, 1]}}, {{0}, {1}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

If the observability Gramian has full rank, the system is observable:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, 0}, {0, -4}}, {{1}, {3}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; {ObservableModelQ[ssm], MatrixRank[ObservabilityGramian[ssm]] == 2}

The observability Gramian of an observable and asymptotically stable system is symmetric and positive definite:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{-3, 0}, {0, -2}}, {{1}, {-1}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]; SymmetricMatrixQ[%] && PositiveDefiniteMatrixQ[%]

The observability Gramian of a continuous-time (discrete-time) system satisfies a continuous (discrete) Lyapunov equation:

Wolfram Language code: {aa, bb, cc} = {{{-3, 1}, {-5, 0}}, {{1}, {5}}, {{1, 0}}}; ssm = StateSpaceModel[{aa, bb, cc}];
Wolfram Language code: Chop[ObservabilityGramian[ssm] - LyapunovSolve[aa, -cc.cc]]
Wolfram Language code: {aa, bb, cc} = {{{0, 1, 0}, {0, 0, 1}, {0.1054, -1.0183, 1.9052}}, {{0}, {0}, {1}}, {{0.002664, 0.01983, 0.0080859}}}; ssm = StateSpaceModel[{aa, bb, cc}, SamplingPeriod -> 1];
Wolfram Language code: Chop[ObservabilityGramian[ssm] - DiscreteLyapunovSolve[aa, -cc.cc]]

Descriptor systems give two observability Gramians:

Wolfram Language code: Subscript[ssm, 1] = StateSpaceModel[{{{1, 0, 0}, {0, -3, 0}, {0, 0, -2}}, {{0}, {1}, {0}}, {{1, 3, 0}}, {{0}}, {{0, 0, 0}, {0, 3, 0}, {1, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; gramians = ObservabilityGramian[Subscript[ssm, 1]];

The system is completely observable if and only if the sum is positive definite:

Wolfram Language code: PositiveDefiniteMatrixQ[Plus@@gramians]
Wolfram Language code: ObservableModelQ[Subscript[ssm, 1]]
Wolfram Language code: Subscript[ssm, 2] = StateSpaceModel[{{{1, 0, 0}, {0, -3, 0}, {0, 0, -2}}, {{1}, {1}, {0}}, {{1, 3, -2}}, {{0}}, {{0, 0, 0}, {0, 3, 0}, {1, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: PositiveDefiniteMatrixQ[Plus@@ObservabilityGramian[Subscript[ssm, 2]]]
Wolfram Language code: ObservableModelQ[Subscript[ssm, 2]]

The fast and slow subsystem Gramians are computed from the Kronecker decomposition:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, 0, 0}, {0, -1, 1}, {0, 0, 1}}, {{1}, {1}, {1}}, {{1, 2, 5}}, {{0}}, {{1, 0, 0}, {0, 0, 1}, {0, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {{p, q}, kssm} = KroneckerModelDecomposition[ssm]

Split the decoupled states:

Wolfram Language code: {slowssm, fastssm} = {SystemsModelExtract[kssm, All, All, 1], SystemsModelExtract[kssm, All, All, {2, 3}]}

The slow subsystem yields a Gramian for the slow states and a zero matrix:

Wolfram Language code: {slowgramian, zeromat} = ObservabilityGramian[slowssm]

The fast subsystem yields a Gramian for the fast states and a zero matrix:

Wolfram Language code: {zeromat, fastgramian} = ObservabilityGramian[fastssm]

Inversing the Kronecker transformation gives the Gramians for the original system:

Wolfram Language code: Inverse[p].PadRight[slowgramian, {3, 3}].Inverse[p]
Wolfram Language code: Inverse[p].PadLeft[fastgramian, {3, 3}].Inverse[p]

This gives the same result as using ObservabilityGramian directly:

Wolfram Language code: ObservabilityGramian[ssm]

Possible Issues  (1)

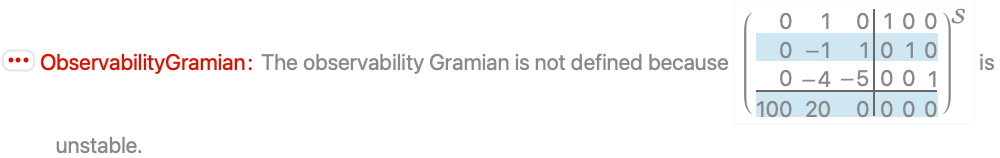

The observability Gramian is not defined for a system that is not asymptotically stable:

Wolfram Language code: ObservabilityGramian[StateSpaceModel[{{{0, 1, 0}, {0, -1, 1}, {0, -4, -5}}, {{0}, {0}, {1}}, {{100, 20, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]
