ControllabilityGramian

ControllabilityGramian[ssm]

gives the controllability Gramian of the state-space model ssm.

Details and Options

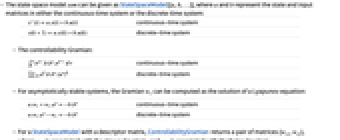

  • The state-space model ssm can be given as StateSpaceModel[{a,b,…}], where a and b represent the state and input matrices in either the continuous-time system or the discrete-time system:
  • continuous-time system
    discrete-time system
  • The controllability Gramian:
  • continuous-time system
    discrete-time system
  • For asymptotically stable systems, the Gramian can be computed as the solution of a Lyapunov equation:
  • continuous-time system
    discrete-time system
  • For a StateSpaceModel with a descriptor matrix, ControllabilityGramian returns a pair of matrices {wcs,wcf}, where wcs is associated with the slow subsystem, and wcf is associated with the fast subsystem.
  • The controllability Gramians only exist for descriptor systems in which Det[λ e-a]≠0 for some λ.

Examples

open all close all

Basic Examples  (1)

The controllability Gramian of a state-space model:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{-1, -1}, {1, -1}}, {{-1}, {-2}}, {{0, 2}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]// MatrixForm

Scope  (4)

The controllability Gramian of a continuous-time system:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{0, -1, 1}, {1, -1, -1}, {-2, 0, -1}}, {{-2}, {-2}, {-2}}, {{1, 1, -2}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The controllability Gramian of a discrete-time system:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{0.9512, 0}, {0, 0.9048}}, {{4.88, 4.88}, {-0.019, 0.0095}}, {{0.01, 0}, {0, 1}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> 2, SystemsModelLabels -> None]]

The controllability Gramian of a symbolic system:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{-1, a}, {-a, -1}}, {{1}, {a}}}, SamplingPeriod -> None, SystemsModelLabels -> None]];
Wolfram Language code: Simplify[%, a∈Reals]

The controllability Gramian of a descriptor system:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{-3, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{1}, {0}, {2}}, {{1, 1, 1}}, {{0}}, {{1, 0, 0}, {0, 0, 1}, {0, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Applications  (1)

Check if a system is controllable:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, -1}, {1, -3}}, {{1}, {2}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: MatrixRank[ControllabilityGramian[ssm]] == SystemsModelOrder[ssm]

Properties & Relations  (7)

The controllability Gramian has the dimension of the state matrix:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1}, {-10, -11}}, {{0}, {1}}, {{5, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: Dimensions /@ {ControllabilityGramian[ssm], First[Normal[ssm]]}

If the controllability Gramian has full rank, the system is controllable:

Wolfram Language code: ssm = StateSpaceModel[{{{-3, 0}, {1, -5}}, {{-2}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {ControllableModelQ[ssm], MatrixRank[ControllabilityGramian[ssm]] == 2}
Wolfram Language code: ssm = StateSpaceModel[{{{-5/2, 1/2}, {1/2, -5/2}}, {{1}, {-1}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {ControllableModelQ[ssm], MatrixRank[ControllabilityGramian[ssm]] == 2}

The controllability Gramian of a controllable and asymptotically stable system is symmetric and positive definite:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{-3, 0}, {0, -5}}, {{-1}, {-1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]
Wolfram Language code: SymmetricMatrixQ[%] && PositiveDefiniteMatrixQ[%]

The controllability Gramians of asymptotically stable systems satisfy the corresponding Lyapunov equations:

Wolfram Language code: ssm = StateSpaceModel[{{{-0.5, 0}, {0, -1}}, {{0.5}, {1}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {Subscript[a, c], Subscript[b, c]} = Normal[ssm][[1 ;; 2]];
Wolfram Language code: Chop[ControllabilityGramian[ssm] - LyapunovSolve[Subscript[a, c], -Subscript[b, c].Subscript[b, c]]]
Wolfram Language code: Subscript[ssm, 1] = StateSpaceModel[{{{0.85, -0.56, 0.22}, {0.2, 0.11, 1}, {-0.25, 0.5, 0}}, {{1}, {0}, {0}}}, SamplingPeriod -> 0.1, SystemsModelLabels -> None];
Wolfram Language code: {Subscript[a, d], Subscript[b, d]} = Normal[Subscript[ssm, 1]][[1 ;; 2]];
Wolfram Language code: Chop[ControllabilityGramian[Subscript[ssm, 1]] - DiscreteLyapunovSolve[Subscript[a, d], -Subscript[b, d].Subscript[b, d]]]

The controllability Gramian is the observability Gramian of the dual system:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, -1}, {1, -1}}, {{1}, {0}}, {{1, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: ControllabilityGramian[ssm] == ObservabilityGramian[DualSystemsModel[ssm]]

A descriptor state-space model gives two Gramians:

Wolfram Language code: Subscript[ssm, 1] = StateSpaceModel[{{{1, 0, 0}, {0, -3, 0}, {0, 0, -2}}, {{0}, {1}, {0}}, {{1, 3, -2}}, {{0}}, {{0, 0, 0}, {0, 3, 0}, {1, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; gramians = ControllabilityGramian[Subscript[ssm, 1]];

The systems is completely controllable if and only if the sum is positive definite:

Wolfram Language code: PositiveDefiniteMatrixQ[Plus@@gramians]
Wolfram Language code: ControllableModelQ[Subscript[ssm, 1]]
Wolfram Language code: Subscript[ssm, 2] = StateSpaceModel[{{{1, 0, 0}, {0, -3, 0}, {0, 0, -2}}, {{1}, {1}, {0}}, {{1, 3, -2}}, {{0}}, {{0, 0, 0}, {0, 3, 0}, {1, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: PositiveDefiniteMatrixQ[Plus@@ControllabilityGramian[Subscript[ssm, 2]]]
Wolfram Language code: ControllableModelQ[Subscript[ssm, 2]]

The fast and slow subsystem Gramians are computed from the Kronecker decomposition:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, 0, 0}, {0, -1, 1}, {0, 0, 1}}, {{1}, {0}, {5}}, {{1, 1, 1}}, {{0}}, {{1, 0, 0}, {0, 0, 1}, {0, 0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {{p, q}, kssm} = KroneckerModelDecomposition[ssm]

Split the decoupled states:

Wolfram Language code: {slowssm, fastssm} = {SystemsModelExtract[kssm, All, All, 1], SystemsModelExtract[kssm, All, All, {2, 3}]}

The slow subsystem yields a Gramian for the slow states and a zero matrix:

Wolfram Language code: {slowgramian, zeromat} = ControllabilityGramian[slowssm]

The fast subsystem yields a Gramian for the fast states and a zero matrix:

Wolfram Language code: {zeromat, fastgramian} = ControllabilityGramian[fastssm]

Inversing the Kronecker transformation gives the Gramians for the original system:

Wolfram Language code: Inverse[p].PadRight[slowgramian, {3, 3}].Inverse[p]//MatrixForm
Wolfram Language code: Inverse[p].PadLeft[fastgramian, {3, 3}].Inverse[p]//MatrixForm

This gives the same result as using ControllabilityGramian directly:

Wolfram Language code: MatrixForm /@ ControllabilityGramian[ssm]

Possible Issues  (1)

The controllability Gramian is not defined for a system that is not asymptotically stable:

Wolfram Language code: ControllabilityGramian[StateSpaceModel[{{{0, 0, 0}, {0, -1, 0}, {0, 0, -2}}, {{1}, {-1}, {1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]
