PeakDetect[list]

gives a binary list in which 1s correspond to peak positions in list.

PeakDetect[list,σ]

detects peaks that survive Gaussian blurring up to scale σ.

PeakDetect[list,σ,s]

detects peaks with minimum sharpness s.

PeakDetect[list,σ,s,t]

detects only peaks with values greater than t.

PeakDetect[list,σ,{s,σs},{t,σt}]

uses different scales for thresholding sharpness and value.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Data
Parameters
Options
Padding
Applications
Possible Issues
See Also
Related Guides
History
Cite this Page

PeakDetect

PeakDetect[list]

gives a binary list in which 1s correspond to peak positions in list.

PeakDetect[list,σ]

detects peaks that survive Gaussian blurring up to scale σ.

PeakDetect[list,σ,s]

detects peaks with minimum sharpness s.

PeakDetect[list,σ,s,t]

detects only peaks with values greater than t.

PeakDetect[list,σ,{s,σs},{t,σt}]

uses different scales for thresholding sharpness and value.

Details and Options

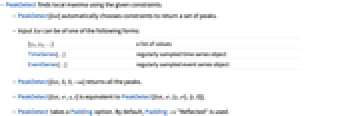

  • PeakDetect finds local maxima using the given constraints.
  • PeakDetect[list] automatically chooses constraints to return a set of peaks.
  • Input list can be of one of the following forms:
  • {y1,y2,…}a list of values
    TimeSeries[…]regularly sampled time series object
    EventSeries[…]regularly sampled event series object
  • PeakDetect[list,0,0,-∞] returns all the peaks.
  • PeakDetect[list,σ,s,t] is equivalent to PeakDetect[list,σ,{s,σ},{t,0}].
  • PeakDetect takes a Padding option. By default, Padding->"Reflected" is used.

Examples

open all close all

Basic Examples  (1)

Find dominant peaks in a list:

Wolfram Language code: data = {2, 1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 3, 2, 4, 2, 2, 1};
Wolfram Language code: PeakDetect[data]

Visualize detected peaks:

Wolfram Language code: ListPlot[{data, data PeakDetect[data]}, Joined -> {True, False}, Filling -> {2 -> 0}, FillingStyle -> Opacity[1]]

Scope  (12)

Data  (4)

Peaks of a 1D list:

Wolfram Language code: list = {1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 3, 2, 4, 2, 2};
Wolfram Language code: ListPlot[{list, list PeakDetect[list]}, Joined -> {True, False}, Filling -> {2 -> 0}, FillingStyle -> Opacity[1]]

Peaks of a TimeSeries object:

Wolfram Language code: ts = TemporalData[TimeSeries, {{{54.75, 54.09, 53.89, 55.86, 55.9, 55.63, 53.63, 53.46, 54.15, 57.9, 56.9, 56.63, 56.2, 57.04, 58.32, 57.63, 59.21, 61.06, 62.48, 63.5, 62.74, 62.52, 64.4, 64.96, 64.06, 64.87, 67.06, 69.04, 68.12, 72.64, 73.5, ... 75.04, 75.59, 76.79, 76.86, 77.28, 78.76, 79.4, 79.81, 80.63, 80.88, 81.04, 81.15}}, {TemporalData`DateSpecification[{2013, 1, 2, 0, 0, 0.}, {2013, 11, 27, 0, 0, 0}, {1, "Week"}]}, 1, {"Discrete", 1}, {"Discrete", 1}, 1, {}}, True, 10.];
Wolfram Language code: peaks = PeakDetect[ts, 0, 0, 0]
Wolfram Language code: ps = TimeSeries[ts["Values"] peaks["Values"], {ts["Times"]}];
Wolfram Language code: DateListPlot[{ts, ps}, Filling -> {2 -> 0}, Joined -> {True, False}]

Peaks of an EventSeries object:

Wolfram Language code: v = RandomInteger[{-10, 10}, n = 500]; t = Range[n] / N[n];
Wolfram Language code: es = EventSeries[v, {t}]

Find peaks:

Wolfram Language code: peaks = PeakDetect[es, 1, 0, 0]
Wolfram Language code: ps = TimeSeriesThread[#[[1]] * #[[2]]&, {es, peaks}]
Wolfram Language code: ListPlot[es, Filling -> {1 -> Axis}, Epilog -> {PointSize[.02], Orange, Point[ps["Path"]]}]

Peaks of a list of Quantity objects:

Wolfram Language code: data = {Quantity[9, "Feet"], Quantity[86, "Inches"], Quantity[27, "Meters"], Quantity[79, "Feet"], Quantity[90, "Feet"], Quantity[41, "Inches"], Quantity[99, "Inches"], Quantity[6, "Feet"], Quantity[38, "Feet"], Quantity[89, "Feet"], Quantity[53, "Feet"], Quantity[85, "Meters"], Quantity[92, "Meters"], Quantity[95, "Meters"], Quantity[49, "Feet"]};
Wolfram Language code: peaks = PeakDetect[data]
Wolfram Language code: ListPlot[{data, data peaks}, Joined -> {True, False}, PlotStyle -> {Automatic, Orange}]

Threshold for values greater than 30 meters:

Wolfram Language code: peaks30 = PeakDetect[data, Automatic, Automatic, Quantity[30, "Meters"]]
Wolfram Language code: ListPlot[{data, data peaks30}, Joined -> {True, False}, PlotStyle -> {Automatic, Orange}, PlotRange -> All]

Parameters  (8)

By default, an automatic scale is used:

Wolfram Language code: v = {2, 1, 6, 5, 7, 4}; PeakDetect[v]

Find all peaks at scale :

Wolfram Language code: v = {2, 1, 6, 5, 7, 4}; PeakDetect[v, 0]

Compute peaks at different scales:

Wolfram Language code: list = Table[ Sin[x] + RandomReal[.5{-1, 1}], {x, 0, 3 Pi, 0.1}]; ListLinePlot[list]
Wolfram Language code: Table[ListPlot[{list, list PeakDetect[list, σ]}, Joined -> {True, False}, PlotStyle -> {Automatic, Red}, Axes -> {True, False}], {σ, {1, 2, 4}}]

When finding peaks at scale , only peaks that sustain a blur up to scale are returned:

Wolfram Language code: values = {2, 1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 3, 4, 2, 2, 1};
Wolfram Language code: peaks = PeakDetect[values, 1]

Signal and its blurred version at scale :

Wolfram Language code: ListLinePlot[ {values, GaussianFilter[values, {3, 1}], values peaks}, PlotStyle -> {Medium, Dashed, Red}, Joined -> {True, True, False}, Filling -> {3 -> 0}, PlotLegends -> {"original", "smoothed", "peaks"} ]

By default, peaks are not filtered based on their sharpness, equivalent to :

Wolfram Language code: v = {2, 1, 3, 5, 6, 6, 4, 3, 2, 3, 7, 2, 3, 4, 3, 2};
Wolfram Language code: PeakDetect[v, 0, 0]

Specify minimum sharpness value :

Wolfram Language code: v = {2, 1, 3, 5, 6, 6, 4, 3, 2, 3, 7, 2, 3, 4, 3, 2};
Wolfram Language code: p = PeakDetect[v, 0, 3]

Sharpness, defined by the negative second derivative, should be greater than the specified :

Wolfram Language code: ListLinePlot[ {v, ListConvolve[{1, -2, 1}, ArrayPad[v, 1, "Reversed"]], v p}, Joined -> {True, True, False}, PlotStyle -> {Automatic, Dashed, {Red, PointSize[0.03]}}, PlotRange -> All, Epilog -> {Dashed, Red, Line[{{0, -3}, {16, -3}}]}]

Specify a minimum height value :

Wolfram Language code: list = {2, 1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 1, 4, 2, 2, 1};
Wolfram Language code: peaks = PeakDetect[list, 0, 0, 5.1]
Wolfram Language code: ListPlot[{list, list peaks}, Joined -> {True, False}, PlotStyle -> {Automatic, {Red, PointSize[0.04]}}, Epilog -> Line[{{0, 5.1}, {20, 5.1}}]]

Apply the value threshold after smoothing the data using a scale :

Wolfram Language code: list = {2, 1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 1, 4, 2, 2, 1};
Wolfram Language code: peaks = PeakDetect[list, 2, 0, {5.1, 1}]
Wolfram Language code: ListPlot[{list, GaussianFilter[list, 1{3, 1}], list peaks}, Joined -> {True, True, False}, PlotStyle -> {Automatic, Dashed, {Red, PointSize[0.04]}}, Epilog -> Line[{{0, 5.1}, {20, 5.1}}]]

Options  (1)

Padding  (1)

By default, Padding->"Reflected" is used:

Wolfram Language code: values = {2, 1, 3, 5, 6, 6, 4, 3, 2, 4, 7, 3, 4, 2, 2, 1};
Wolfram Language code: peaks = PeakDetect[values, 0]
Wolfram Language code: ListPlot[{values, values peaks}, Joined -> {True, False}, Filling -> {2 -> 0}, FillingStyle -> Opacity[1]]

Specify a different padding:

Wolfram Language code: peaks2 = PeakDetect[values, 0, Padding -> 4]
Wolfram Language code: ListPlot[{values, values peaks2}, Joined -> {True, False}, Filling -> {2 -> 0}, FillingStyle -> Opacity[1]]

Applications  (3)

Find peaks of the recent sunspot activity:

Wolfram Language code: data = WolframAlpha["sun spot", {{"SunspotsPartialTimeSeries:SpaceWeatherData", 1}, "TimeSeriesData"}][[All, 2]];
Wolfram Language code: ListLinePlot[data, PlotRange -> {10, All}]
Wolfram Language code: peaks = PeakDetect[data, 5, 0, 0];
Wolfram Language code: Total[peaks]
Wolfram Language code: ListLinePlot[data, Epilog -> {PointSize[Medium], Orange, Point[Transpose[{Range[Length[data]], data peaks}]]}, PlotRange -> {10, All}]

Peaks in a discrete-time Fourier transform:

Wolfram Language code: a = LeastSquaresFilterKernel[{"Hilbert", 3}, 32]; data = Table[Abs@ListFourierSequenceTransform[a, x], {x, 0, π, .01}]; ListLinePlot[{data, data PeakDetect[data]}, PlotRange -> All]

Mean daily temperatures for Chicago during a period of two months:

Wolfram Language code: temp = WeatherData["Chicago", "MeanTemperature", {{2014, 11, 1}, {2014, 12, 31}, "Day"}]
Wolfram Language code: DateListPlot[temp]

Find peaks in the temperature:

Wolfram Language code: peaks = PeakDetect[QuantityMagnitude /@ temp["Values"], 0, 0, 0];

Create a new time series with peaks stored using MetaInformation:

Wolfram Language code: res = TimeSeries[temp, MetaInformation -> {"Events" -> EventSeries[QuantityMagnitude /@ (peaks * temp["Values"]), {temp["Dates"]}]}]

Plot the mean temperatures with warmer days marked:

Wolfram Language code: DateListPlot[res, Epilog -> {PointSize[Medium], Point[Select[res["Events"]["Path"], (#[[2]] != 0)&]]}]

Possible Issues  (1)

Symmetric twin peaks that merge under Gaussian blurring may survive as peaks:

Wolfram Language code: data = {0, 0, 0, 0, 3, 7, 9, 8, 6, 5, 6, 8, 9, 7, 3, 0, 0, 0, 0};
Wolfram Language code: gdata = GaussianFilter[data, 3{3, 1}, Padding -> "Fixed"];
Wolfram Language code: ListLinePlot[{data, gdata}]
Wolfram Language code: peaks = PeakDetect[data, 3, Padding -> "Fixed"]
Wolfram Language code: ListPlot[{data, gdata, data peaks}, Joined -> {True, True, False}, Filling -> {3 -> 0}, FillingStyle -> Opacity[1]]
