PoissonPDEComponent

PoissonPDEComponent[vars,pars]

yields a Poisson PDE term with model variables vars and model parameters pars.

Details

  • PoissonPDEComponent returns a sum of differential operators to be used as a part of partial differential equations:
  • PoissonPDEComponent can be used to model Poisson equations with dependent variable , independent variables and time variable .
  • Stationary model variables vars are vars={u[x1,…,xn],{x1,…,xn}}.
  • Time-dependent model variables vars are vars={u[t,x1,…,xn],t,{x1,…,xn}}.
  • The PoissonPDEComponent is based on a diffusion and source term:
  • The Poisson PDE term is realized as a DiffusionPDETerm with –1 as a diffusion coefficient and a SourcePDETerm with coefficient resulting in .
  • The following model parameters pars can be given:

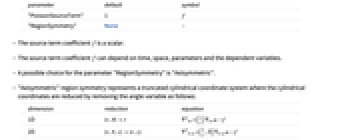

  • parameterdefaultsymbol
    "CoordinateChart""Cartesian"
    "PoissonSourceTerm"1
    "RegionSymmetry"None
  • The source term coefficient is a scalar.
  • The source term coefficient can depend on time, space, parameters and the dependent variables.
  • A possible choice for the parameter "RegionSymmetry" is "Axisymmetric".
  • "Axisymmetric" region symmetry represents a truncated cylindrical coordinate system where the cylindrical coordinates are reduced by removing the angle variable as follows:
  • dimensionreductionequation
    1D
    2D
  • The diffusion coefficient 1 affects the meaning of NeumannValue.
  • If the PoissonPDEComponent depends on parameters that are specified in the association pars as …,keypi…,pivi,…, the parameters are replaced with .

Examples

open all close all

Basic Examples  (4)

Define a Poisson PDE component:

Wolfram Language code: PoissonPDEComponent[{u[x], {x}}, <||>]

Define a Poisson PDE component with a symbolic coefficient:

Wolfram Language code: PoissonPDEComponent[{u[x], {x}}, <|"PoissonSourceTerm" -> κ|>]

Find the eigenvalues of a Poisson PDE component:

Wolfram Language code: NDEigenvalues[PoissonPDEComponent[{u[x], {x}}, <||>], u, {x}∈Line[{{0}, {1}}], 3]

Solve a Poisson equation:

Wolfram Language code: NDSolveValue[{PoissonPDEComponent[{u[x, y], {x, y}}, <|"PoissonSourceTerm" -> 1|>] == 0, DirichletCondition[u[x, y] == 0, True]}, u[x, y], {x, y}∈Disk[]]

Visualize the result:

Wolfram Language code: Plot3D[%, {x, y}∈Disk[]]

Scope  (2)

Define a 2D axisymmetric Poisson equation:

Wolfram Language code: PoissonPDEComponent[{u[r, z], {r, z}}, <|"RegionSymmetry" -> "Axisymmetric", "PoissonSourceTerm" -> f|>]

Activate the equation:

Wolfram Language code: Activate[%]

Set up a Poisson equation in polar coordinates:

Wolfram Language code: PoissonPDEComponent[{u[r, θ], {r, θ}}, <|"CoordinateChart" -> "Polar"|>]

Activate the equation:

Wolfram Language code: Activate[%]

Applications  (1)

Solve an axisymmetric Poisson problem in a solid cylinder. Define the variables and parameters:

Wolfram Language code: vars = {u[r, z], {r, z}}; pars = <|"PoissonSourceTerm" -> -Sin[r] / (r Exp[z]), "RegionSymmetry" -> "Axisymmetric"|>;

The solid cylinder can be approximated by a 2D rectangle that represents a cross section of the solid. Create the 2D rectangle using Polygon:

Wolfram Language code: Ω = Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}];

Set up the boundary conditions:

Wolfram Language code: bc = {DirichletCondition[u[r, z] == Cos[r], z == 0], DirichletCondition[u[r, z] == Exp[-1] * Cos[r], z == 1], DirichletCondition[u[r, z] == Exp[-z]Cos[1], r == 1]};

Set up the PDE:

Wolfram Language code: pde = {PoissonPDEComponent[vars, pars] == 0, bc};

Solve the PDE:

Wolfram Language code: ufun = NDSolveValue[pde, u, {r, z}∈ Ω]

Visualize the solution with DensityPlot:

Wolfram Language code: DensityPlot[ufun[r, z], {r, z}∈ Ω, ...]

The exact solution is given by . Visualize the error between the exact solution and the 2D axisymmetric solution:

Wolfram Language code: Plot3D[Exp[-z] * Cos[r] - ufun[r, z], {r, z}∈Ω]
