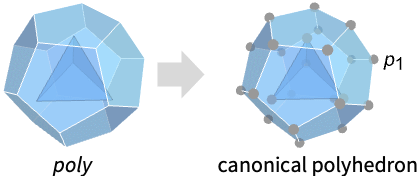

PolyhedronCoordinates[poly]

gives a list of coordinates in the polyhedron poly.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Properties & Relations
See Also
Related Guides
History
Cite this Page

PolyhedronCoordinates

PolyhedronCoordinates[poly]

gives a list of coordinates in the polyhedron poly.

Details

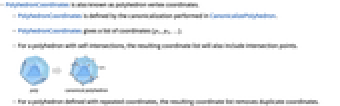

  • PolyhedronCoordinates is also known as polyhedron vertex coordinates.
  • PolyhedronCoordinates is defined by the canonicalization performed in CanonicalizePolyhedron.
  • PolyhedronCoordinates gives a list of coordinates {p1,p2,…}.

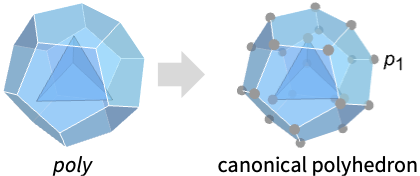

  • For a polyhedron with self-intersections, the resulting coordinate list will also include intersection points.
  • For a polyhedron defined with repeated coordinates, the resulting coordinate list removes duplicate coordinates.

Examples

open all close all

Basic Examples  (1)

Get the vertex coordinates from a Polyhedron:

Wolfram Language code: 𝒫 = Polyhedron[{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}, {0, 0, 1}, {0, 1, 1}, {1, 1, 1}, {1, 0, 1}}, {{2, 3, 4, 1}, {1, 4, 8, 5}, {4, 3, 7, 8}, {3, 2, 6, 7}, {2, 1, 5, 6}, {5, 8, 7, 6}}];
Wolfram Language code: PolyhedronCoordinates[𝒫]

Scope  (3)

PolyhedronCoordinates works on polyhedrons:

Wolfram Language code: Polyhedron[{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}, {0, 0, 1}, {0, 1, 1}, {1, 1, 1}, {1, 0, 1}}, {{2, 3, 4, 1}, {1, 4, 8, 5}, {4, 3, 7, 8}, {3, 2, 6, 7}, {2, 1, 5, 6}, {5, 8, 7, 6}}];
Wolfram Language code: PolyhedronCoordinates[%]

Tetrahedron:

Wolfram Language code: PolyhedronCoordinates[Tetrahedron[]]
Wolfram Language code: Graphics3D[Tetrahedron[]]

Cube:

Wolfram Language code: PolyhedronCoordinates[Cube[]]

Polyhedron with holes:

Wolfram Language code: 𝒫 = Polyhedron[{{0, 0, 0}, {0, 3, 0}, {3, 3, 0}, {3, 0, 0}, {0, 0, 3}, {0, 3, 3}, {3, 3, 3}, {3, 0, 3}, {1, 1, 1}, {1, 2, 1}, {2, 2, 1}, {2, 1, 1}, {1, 1, 2}, {1, 2, 2}, {2, 2, 2}, {2, 1, 2}}, {{2, 3, 4, 1}, {1, 4, 8, 5}, {4, 3, 7, 8}, {3, 2, 6, 7}, {2, 1, 5, 6}, {5, 8, 7, 6}} -> {{{10, 11, 12, 9}, {9, 12, 16, 13}, {12, 11, 15, 16}, {11, 10, 14, 15}, {10, 9, 13, 14}, {13, 16, 15, 14}}}];
Wolfram Language code: PolyhedronCoordinates[𝒫]
Wolfram Language code: Region[Style[𝒫, Opacity[.5]]]

Polyhedrons with disconnected components:

Wolfram Language code: 𝒫 = Polyhedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}, {1, 1, 1}, {2, 1, 1}, {1, 2, 1}, {1, 1, 2}}, {{{1, 2, 3}, {1, 2, 4}, {2, 3, 4}, {1, 3, 4}}, {{5, 6, 7}, {5, 6, 8}, {6, 7, 8}, {5, 7, 8}}}]
Wolfram Language code: PolyhedronCoordinates[𝒫]

Properties & Relations  (2)

Using CanonicalizePolyhedron to get polyhedron coordinates:

Wolfram Language code: 𝒫 = Polyhedron[{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}, {0, 0, 1}, {0, 1, 1}, {1, 1, 1}, {1, 0, 1}}, {{2, 3, 4, 1}, {1, 4, 8, 5}, {4, 3, 7, 8}, {3, 2, 6, 7}, {2, 1, 5, 6}, {5, 8, 7, 6}}];
Wolfram Language code: First[CanonicalizePolyhedron[𝒫]]
Wolfram Language code: PolyhedronCoordinates[𝒫]

A simple polyhedron has the same polyhedron coordinates as its OuterPolyhedron:

Wolfram Language code: 𝒫 = Polyhedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{1, 2, 3}, {1, 2, 4}, {2, 3, 4}, {1, 3, 4}}];
Wolfram Language code: SimplePolyhedronQ[𝒫]
Wolfram Language code: PolyhedronCoordinates[𝒫]
Wolfram Language code: PolyhedronCoordinates[OuterPolyhedron[𝒫]]
