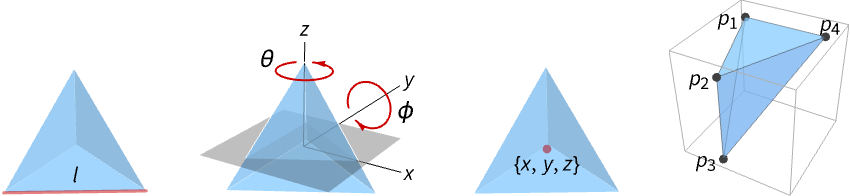

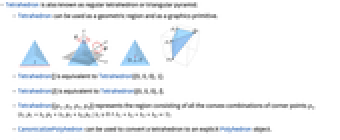

Tetrahedron[] is equivalent to Tetrahedron[{0,0,0},1].
Tetrahedron[l] is equivalent to Tetrahedron[{0,0,0},l].
Tetrahedron[{p₁,p₂,p₃,p₄}] represents the region consisting of all the convex combinations of corner points p_i, .
CanonicalizePolyhedron can be used to convert a tetrahedron to an explicit Polyhedron object.
Tetrahedron can be used in Graphics3D.
In graphics, the points and edge lengths can be Scaled and Dynamic expressions.
Graphics rendering is affected by directives such as FaceForm, EdgeForm, Opacity, Texture, and color.
The following options and settings can be used in graphics:

VertexColors	Automatic	vertex colors to be interpolated
VertexNormals	Automatic	effective vertex normals for shading
VertexTextureCoordinates	None	coordinates for textures

Examples

open all close all

Basic Examples (3)

A standard unit tetrahedron:

Wolfram Language code: Graphics3D[Tetrahedron[]]

A styled tetrahedron:

Wolfram Language code: ℛ = Tetrahedron[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}];

Wolfram Language code:

{Graphics3D[{Pink, ℛ}], Graphics3D[{EdgeForm[Thick], ℛ}], Graphics3D[{EdgeForm[Dashed], ℛ}], Graphics3D[{EdgeForm[Directive[Thick, Dashed, Blue]], Pink, ℛ}]}

Volume and centroid:

Wolfram Language code: ℛ = Tetrahedron[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}];

Wolfram Language code: Volume[ℛ]

Wolfram Language code: RegionCentroid[ℛ]

Scope (22)

Graphics (12)

Specification (6)

A unit tetrahedron:

Wolfram Language code: Graphics3D[Tetrahedron[]]

A single tetrahedron:

Wolfram Language code: Graphics3D[Tetrahedron[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}]]

Multiple tetrahedra:

Wolfram Language code:

v1 = {{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}};
v2 = v1 + 1;

Wolfram Language code: Graphics3D[Tetrahedron[{v1, v2}]]

A unit tetrahedron with explicitly specified edge length:

Wolfram Language code: Graphics3D[Tetrahedron[1], PlotRange -> 1.5]

A tetrahedron with edge length 2:

Wolfram Language code: Graphics3D[Tetrahedron[2], PlotRange -> 1.5]

A tetrahedron with edge length 1/2 centered at (1/2, 1/2, 1/2):

Wolfram Language code: Graphics3D[Tetrahedron[{1, 1, 1} / 2, 1 / 2], PlotRange -> 1.1]

A unit tetrahedron rotated by 45° around the axis:

Wolfram Language code: Graphics3D[Tetrahedron[{45°, 0}], PlotRange -> 2]

A unit tetrahedron rotated by 45° around the axis:

Wolfram Language code: Graphics3D[Tetrahedron[{0, 45°}], PlotRange -> 2]

A tetrahedron of edge length 2 rotated by 45° around the axis and 45° around the axis:

Wolfram Language code: Graphics3D[Tetrahedron[{45°, 45°}, 2], PlotRange -> 2]

A tetrahedron of edge length 1 centered at (1/2, 1/2, 1/2) rotated by 45° around the axis and 45° around the axis:

Wolfram Language code: Graphics3D[Tetrahedron[{1, 1, 1} / 2, {45°, 45°}, 1], PlotRange -> 2]

Styling (3)

FaceForm and EdgeForm can be used to specify the styles of the faces and edges:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: Graphics3D[{EdgeForm[{Thick, Dashed, Blue}], FaceForm[{Pink, Opacity[0.7]}], ℛ}, Boxed -> False]

Apply a Texture to the faces:

Wolfram Language code:

ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}];

Wolfram Language code: Graphics3D[{Texture[[image]], ℛ}, Lighting -> "Neutral"]

Assign VertexColors to vertices:

Wolfram Language code:

Graphics3D[Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, VertexColors -> {Red, Green, Blue, Opacity[.1, White]}]]

Coordinates (3)

Specify coordinates by fractions of the plot range:

Wolfram Language code:

Graphics3D[Tetrahedron[{Scaled[{0, 0, 0}], Scaled[{0.5, 0, 0}], Scaled[{0, 0.5, 0}], Scaled[{0, 0, 0.5}]}], PlotRange -> {{0, 10}, {0, 10}, {0, 10}}, Axes -> True]

Specify scaled offsets from the ordinary coordinates:

Wolfram Language code:

Graphics3D[Tetrahedron[{Scaled[{0, 0, 0.5}, {0, 0, 0}], Scaled[{0, 0, 0.5}, {1, 0, 0}], Scaled[{0, 0, 0.5}, {0, 1, 0}], Scaled[{0, 0, 0.5}, {0, 0, 1}]}], PlotRange -> {{0, 2}, {0, 2}, {0, 2}}, Axes -> True]

Points can be Dynamic:

Wolfram Language code:

DynamicModule[{x}, {Slider[Dynamic[x], {0, 1}], Graphics3D[Tetrahedron[{Dynamic[{1, 1, 1}x], {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]]}]

Regions (10)

Embedding dimension is the dimension of the space in which the tetrahedron lives:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: RegionEmbeddingDimension[ℛ]

Geometric dimension is the dimension of the shape itself:

Wolfram Language code: RegionDimension[ℛ]

Membership testing:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: {RegionMember[ℛ, {(1/3), (1/3), (1/3)}], RegionMember[ℛ, {1, 1, 1}]}

Get conditions for membership:

Wolfram Language code: RegionMember[ℛ, {x, y, z}]

Volume:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: {Volume[ℛ], RegionMeasure[ℛ]}

Centroid:

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Graphics3D[{{Opacity[0.5], LightBlue, ℛ}, {PointSize[Large], Red, Point[c]}}]

Distance from a point:

Wolfram Language code: ℛ = Tetrahedron[{{1, 0, 0}, {1, 0, 1}, {1, 1, 1}, {0, 0, 1}}];

Wolfram Language code: {RegionDistance[ℛ, {1, 1, 1}], RegionDistance[ℛ, {0, 0, 0}]}

The equidistance contours for a tetrahedron:

Wolfram Language code:

ContourPlot3D[Evaluate@RegionDistance[ℛ, {x, y, z}], {x, -1, 2.5}, {y, -2, 2}, {z, -1, 2.5}, Mesh -> None, Contours -> {0.25, 0.5, 1}, ContourStyle -> ColorData[94, "ColorList"], Lighting -> "Neutral", BaseStyle -> Opacity[0.5], BoxRatios -> Automatic]

Signed distance from a point:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: {SignedRegionDistance[ℛ, {1, 1, 1}], SignedRegionDistance[ℛ, {(1/3), (1/4), (1/5)}]}

Nearest point in the region:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: {RegionNearest[ℛ, {1, 1, 1}], RegionNearest[ℛ, {(1/3), (1/4), (1/5)}]}

Nearest points to an enclosing sphere:

Wolfram Language code:

spherePoints[{n_, m_}, c_, r_] :=
	Flatten[Table[c + r{Cos[k 2π / n]Sin[l π / m], Sin[k 2π / n]Sin[l π / m], Cos[l π / m]}, {k, 0., n - 1}, {l, 0., m - 1}], 1];

Wolfram Language code:

pl = spherePoints[{16, 8}, RegionCentroid[ℛ], 1];
npl = Table[RegionNearest[ℛ, p], {p, pl}];

Wolfram Language code:

Legended[Graphics3D[{ℛ, {Thin, Gray, Line[Transpose[{pl, npl}]]}, {Red, Point[pl]}, {PointSize[Medium], Blue, Point[npl]}}, Lighting -> "Neutral", Boxed -> False], PointLegend[{Red, Blue}, {"start", "nearest"}]]

A tetrahedron is bounded:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: BoundedRegionQ[ℛ]

Find its range:

Wolfram Language code: r = RegionBounds[ℛ]

Wolfram Language code: Graphics3D[{{EdgeForm[White], Opacity[0.2, Yellow], Cuboid@@Transpose[r]}, ℛ}, Boxed -> False]

Integrate over a tetrahedron region:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: Integrate[x + y + z, {x, y, z}∈ℛ]

Optimize over a tetrahedron region:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: MinValue[{x y z - x y, {x, y, z}∈ℛ}, {x, y, z}]

Solve equations in a tetrahedron region:

Wolfram Language code: ℛ = Tetrahedron[{{0, 0, 0}, {2, 0, 0}, {0, 2, 0}, {0, 0, 2}}];

Wolfram Language code: Reduce[x^2 + y^2 + z^2 == 1 && x - y - z == -(1/2) && z^2 == x y + (1/4) && {x, y, z}∈ℛ, {x, y, z}]

Applications (5)

The standard tetrahedron is given by points :

Wolfram Language code: Graphics3D[Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}], Axes -> True, AxesLabel -> {x, y, z}]

A Kuhn tetrahedron is given by points :

Wolfram Language code: Graphics3D[Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {1, 1, 0}, {1, 1, 1}}], Axes -> True, AxesLabel -> {x, y, z}]

Define a regular tetrahedron by a radius from its center to a corner:

Wolfram Language code:

RegularTetrahedron[r_] := Tetrahedron[r{{1, 0, -(1/Sqrt[2])}, {-1, 0, -(1/Sqrt[2])}, {0, -1, (1/Sqrt[2])}, {0, 1, (1/Sqrt[2])}}]

Compute its volume:

Wolfram Language code: Volume[RegularTetrahedron[r]]

Visualize it:

Wolfram Language code: Graphics3D[RegularTetrahedron[3]]

Create a compound of two regular tetrahedra:

Wolfram Language code: pts = {{1, 0, -(1/Sqrt[2])}, {-1, 0, -(1/Sqrt[2])}, {0, -1, (1/Sqrt[2])}, {0, 1, (1/Sqrt[2])}};

Wolfram Language code: ct = {Tetrahedron[pts], Tetrahedron[-pts]};

Wolfram Language code: Graphics3D[ct]

If the four faces of a tetrahedron have the same area, then it is an isosceles tetrahedron:

Wolfram Language code: ℛ = Tetrahedron[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 1}, {0, 1, -1}}];

Get the faces of the region:

Wolfram Language code: faces = MeshPrimitives[BoundaryDiscretizeRegion[ℛ], "Faces"];

Compare the area of each face:

Wolfram Language code: SameQ[Area /@ faces]

Visualize the region:

Wolfram Language code: Region[ℛ]

A tetrahedron can be subdivided into eight sub-tetrahedra:

Wolfram Language code:

SymmetricSubdivision[Tetrahedron[pl_], k_] /; 0 ≤ k < 2 ^ Length[pl] :=
	Module[{n = Length[pl] - 1, i0, bl, pos},
	i0 = DigitCount[k, 2, 1]; bl = IntegerDigits[k, 2, n];
	pos = FoldList[If[#2 == 0, #1 + {0, 1}, #1 + {1, 0}]&, {0, i0}, Reverse[bl]];
	Tetrahedron@Map[Mean, Extract[pl, #]& /@ Map[{#}&, pos + 1, {2}]]
	]

Wolfram Language code:

Graphics3D[SymmetricSubdivision[Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {1, 1, 0}, {1, 1, 1}}], #]& /@ Range[0, 7], BaseStyle -> Opacity[0.5]]

This can be done recursively:

Wolfram Language code:

NestedSymmetricSubdivision[Tetrahedron[pl_], level_Integer] /; level == 0 := Tetrahedron[pl]
NestedSymmetricSubdivision[Tetrahedron[pl_], level_Integer] /; level > 0 := Flatten[NestedSymmetricSubdivision[SymmetricSubdivision[Tetrahedron[pl], #], level - 1]& /@ Range[0, 7]]

Wolfram Language code:

Graphics3D[NestedSymmetricSubdivision[Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {1, 1, 0}, {1, 1, 1}}], 3], BaseStyle -> Opacity[0.5]]

Properties & Relations (8)

TriangulateMesh can be used to decompose a volume mesh into tetrahedra:

Wolfram Language code: Subscript[ℛ, 1] = DiscretizeGraphics[Cuboid[]]

Wolfram Language code: Subscript[ℛ, 2] = TriangulateMesh[Subscript[ℛ, 1]]

Wolfram Language code: MeshCells[Subscript[ℛ, 2], 3]//Short

Use options such as MaxCellMeasure to control the number of tetrahedra:

Wolfram Language code: TriangulateMesh[Subscript[ℛ, 1], MaxCellMeasure -> 1]

A hexahedron can be represented as the union of five tetrahedra:

Wolfram Language code: pts = {{-1, -1, -1}, {1, -1, -1}, {1, 1, -1}, {-1, 1, -1}, {-1, -1, 1}, {1, -1, 1}, {1, 1, 1}, {-1, 1, 1}};

Wolfram Language code: Graphics3D[Hexahedron[pts], Boxed -> False]

Point index list of tetrahedra vertices:

Wolfram Language code: ti = {{1, 2, 3, 6}, {1, 3, 8, 6}, {1, 3, 4, 8}, {1, 6, 8, 5}, {3, 8, 6, 7}};

Wolfram Language code: Graphics3D[{Opacity@0.4, Table[Tetrahedron[pts[[i]]], {i, ti}]}, Boxed -> False]

A hexahedron can also be represented as the union of six tetrahedra:

Wolfram Language code: pts = {{-1, -1, -1}, {1, -1, -1}, {1, 1, -1}, {-1, 1, -1}, {-1, -1, 1}, {1, -1, 1}, {1, 1, 1}, {-1, 1, 1}};

Wolfram Language code: ti = {{1, 6, 8, 5}, {1, 2, 8, 6}, {2, 7, 8, 6}, {1, 8, 3, 4}, {1, 8, 2, 3}, {1, 8, 7, 3}};

Wolfram Language code: Graphics3D[{Opacity@0.4, Table[Tetrahedron[pts[[i]]], {i, ti}]}, Boxed -> False]

Any tetrahedron is an affine transformation of the standard tetrahedron:

Wolfram Language code: {p0, p1, p2, p3} = {{1, 1, 1}, {1, 2, 3}, {2, 1, 3}, {3, 2, 1}};

The transformation is given by , where $A=TemplateBox[{{{, {{{p, _, 1}, -, {p, _, 0}}, ,, ..., ,, {{p, _, 3}, -, {p, _, 0}}}, }}}, Transpose]$ :

Wolfram Language code: A = {p1 - p0, p2 - p0, p3 - p0};

Wolfram Language code: t = AffineTransform[{A, p0}];

Compare original and transformed unit tetrahedron:

Wolfram Language code:

Subscript[ℛ, 1] = Tetrahedron[{p0, p1, p2, p3}];
Subscript[ℛ, 2] = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code:

{Graphics3D[{Opacity[.35], Blue, Subscript[ℛ, 1]}], Graphics3D[{Opacity[.35], Red, GeometricTransformation[Subscript[ℛ, 2], t]}]}

Tetrahedron is a special case of Simplex:

Wolfram Language code:

Subscript[ℛ, 1] = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Subscript[ℛ, 2] = Simplex[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

ImplicitRegion can represent any Tetrahedron region:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[Subscript[t, 1] ≥ 0 && Subscript[t, 2] ≥ 0 && Subscript[t, 3] ≥ 0 && Subscript[t, 1] + Subscript[t, 2] + Subscript[t, 3] ≤ 1, {Subscript[t, 1], Subscript[t, 2], Subscript[t, 3]}];
Subscript[ℛ, 2] = Tetrahedron[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Tetrahedron is the set of convex combinations of its vertices:

Wolfram Language code:

{Subscript[p, 1], Subscript[p, 2], Subscript[p, 3], Subscript[p, 4]} = {{1, 2, 3}, {1, 2, 4}, {1, 3, 4}, {2, 3, 4}};
Subscript[ℛ, 1] = ParametricRegion[{Subscript[t, 1]Subscript[p, 1] + Subscript[t, 2]Subscript[p, 2] + Subscript[t, 3]Subscript[p, 3] + Subscript[t, 4]Subscript[p, 4], Subscript[t, 1] ≥ 0 && Subscript[t, 2] ≥ 0 && Subscript[t, 3] ≥ 0 && Subscript[t, 4] ≥ 0  && Subscript[t, 1] + Subscript[t, 2] + Subscript[t, 3] + Subscript[t, 4] == 1}, {Subscript[t, 1], Subscript[t, 2], Subscript[t, 3], Subscript[t, 4]}];
Subscript[ℛ, 2] = Tetrahedron[{Subscript[p, 1], Subscript[p, 2], Subscript[p, 3], Subscript[p, 4]}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Vertices of a Tetrahedron can be used to form an enclosing Circumsphere:

Wolfram Language code: pts = {{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}};

Wolfram Language code: Graphics3D[{Tetrahedron[pts], Opacity@0.5, Circumsphere[pts]}]

Neat Examples (2)

Random collection of tetrahedra:

Wolfram Language code: Graphics3D[Table[{Hue[RandomReal[]], Tetrahedron[RandomReal[1, {4, 3}]]}, {10}]]

Sweep a tetrahedron around an axis:

Wolfram Language code:

Graphics3D[{Opacity[0.3], EdgeForm[], Table[{ColorData["Rainbow"][Rescale[c, {0, 2Pi}]], GeometricTransformation[Tetrahedron[], RotationTransform[c, {0, 0, 1}, {0.5, 0, 0}]]}, {c, 0, 2Pi, 2Pi / 30}]}]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

Tetrahedron

Details and Options

Examples

Basic Examples (3)

Scope (22)

Graphics (12)

Specification (6)

Styling (3)

Coordinates (3)

Regions (10)

Applications (5)

Properties & Relations (8)

Neat Examples (2)

Text

CMS

APA

BibTeX

BibLaTeX

Tetrahedron

Details and Options

Examples

Basic Examples (3)

Scope (22)

Graphics (12)

Specification (6)

Styling (3)

Coordinates (3)

Regions (10)

Applications (5)

Properties & Relations (8)

Neat Examples (2)

See Also

Related Guides

Related Links

History

Text

CMS

APA

BibTeX

BibLaTeX
