Raster[{{a11,a12,…},…}]

is a two-dimensional graphics primitive which represents a rectangular array of gray cells.

Raster[{{{r11,g11,b11},…},…}]

represents an array of RGB color cells.

Raster[{{{r11,g11,b11,α11},…},…}]

represents an array of color cells with opacity αij.

Raster[{{{a11,α11},…},…}]

represents an array of gray cells with the specified opacities.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Raster Specification
Raster Styling
Generalizations & Extensions
Options
ColorFunction
Applications
Properties & Relations
Possible Issues
Neat Examples
See Also
Related Guides
Related Links
History
Cite this Page

Raster

Raster[{{a11,a12,…},…}]

is a two-dimensional graphics primitive which represents a rectangular array of gray cells.

Raster[{{{r11,g11,b11},…},…}]

represents an array of RGB color cells.

Raster[{{{r11,g11,b11,α11},…},…}]

represents an array of color cells with opacity αij.

Raster[{{{a11,α11},…},…}]

represents an array of gray cells with the specified opacities.

Details and Options

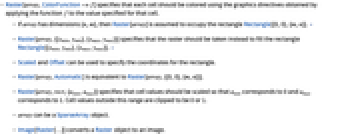

  • Raster[array,ColorFunction->f] specifies that each cell should be colored using the graphics directives obtained by applying the function f to the value specified for that cell.
  • If array has dimensions {n,m}, then Raster[array] is assumed to occupy the rectangle Rectangle[{0,0},{m,n}]. »
  • Raster[array,{{xmin,ymin},{xmax,ymax}}] specifies that the raster should be taken instead to fill the rectangle Rectangle[{xmin,ymin},{xmax,ymax}]. »
  • Scaled and Offset can be used to specify the coordinates for the rectangle.
  • Raster[array,Automatic] is equivalent to Raster[array,{{0,0},{m,n}}].
  • Raster[array,rect,{amin,amax}] specifies that cell values should be scaled so that amin corresponds to 0 and amax corresponds to 1. Cell values outside this range are clipped to be 0 or 1.
  • array can be a SparseArray object.
  • Image[Raster[…]] converts a Raster object to an image.

Examples

open all close all

Basic Examples  (4)

Rectangular array of gray cells:

Wolfram Language code: Graphics[Raster[{{0, 0.2, 0.4}, {0.6, 0.8, 1}}]]

Array of RGB color cells:

Wolfram Language code: Graphics[Raster[{{{0, 1, 1}, {1, 0, 1}, {1, 1, 0}}, {{1, 0, 0}, {0, 1, 0}, {0, 0, 1}}}]]

Array of gray cells with opacity:

Wolfram Language code: Graphics[{{Red, Disk[{5, 5}, 4]}, Raster[Table[{1 - x, y}, {x, .1, 1, .1}, {y, .1, 1, .1}]]}]

Array of RGB cells with opacity:

Wolfram Language code: Graphics[{{Red, Disk[{5, 5}, 4]}, Raster[Table[{x, y, x, y}, {x, .1, 1, .1}, {y, .1, 1, .1}]]}]

Scope  (14)

Raster Specification  (3)

For an × matrix, the raster occupies the rectangle {0,0} to {m,n}:

Wolfram Language code: a = {{0, 0.2, 0.4}, {0.6, 0.8, 1}};
Wolfram Language code: Graphics[Raster[a], Frame -> True, FrameTicks -> False]

Specify the shape of the raster explicitly, using ordinary coordinates:

Wolfram Language code: Graphics[Raster[a, {{0, 1}, {5, 4}}], PlotRange -> {{0, 5}, {0, 5}}, Frame -> True]

Use Scaled and ImageScaled:

Wolfram Language code: a = {{0, 0.2, 0.4}, {0.6, 0.8, 1}};
Wolfram Language code: Graphics[Raster[a, {Scaled[{0, .3}], Scaled[{1, .7}]}], PlotRange -> {{0, 5}, {0, 5}}, Frame -> True]
Wolfram Language code: Graphics[Raster[a, {ImageScaled[{0, .3}], ImageScaled[{1, .7}]}], PlotRange -> {{0, 5}, {0, 5}}, Frame -> True]

Use Offset:

Wolfram Language code: a = {{0, 0.2, 0.4}, {0.6, 0.8, 1}};
Wolfram Language code: Graphics[Raster[a, {Offset[{10, 10}, {0, 0}], Offset[{-10, -10}, {5, 5}]}], PlotRange -> {{0, 5}, {0, 5}}, Frame -> True]

Raster Styling  (11)

A raster of a scalar matrix uses gray level by default:

Wolfram Language code: a = {{0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1}};
Wolfram Language code: Graphics[Raster[a], Frame -> True, FrameTicks -> False]
Wolfram Language code: Graphics[Raster[a, ColorFunction -> GrayLevel], Frame -> True, FrameTicks -> False]

The values outside the range 0 to 1 are normally clipped to be 0 or 1:

Wolfram Language code: a = {{-0.4, -0.2, 0, 0.2, 0.4, 0.5, 0.6, 0.8, 1, 1.2, 1.4}};
Wolfram Language code: Graphics[Raster[a], Frame -> True, FrameTicks -> False]

Specify the range of values:

Wolfram Language code: a = {{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10}};
Wolfram Language code: Graphics[Raster[a, Automatic, {0, 10}], Frame -> True, FrameTicks -> False]

The values outside the specified range are clipped:

Wolfram Language code: a = {{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10}};
Wolfram Language code: Graphics[Raster[a, Automatic, {2, 8}], Frame -> True, FrameTicks -> False]

An array of pairs of numbers is treated as a gray level with opacity:

Wolfram Language code: a = {{{0, .2}, {0, .4}, {0, .5}, {0, .6}, {0, .8}, {0, 1}}};
Wolfram Language code: Graphics[Raster[a], Background -> Cyan]

A raster of an array of triples uses RGB colors by default:

Wolfram Language code: a = {{{1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{.5, 0, 0}, {0, .5, 0}, {0, 0, .5}}};
Wolfram Language code: Graphics[Raster[a]]
Wolfram Language code: Graphics[Raster[a, ColorFunction -> RGBColor]]

An array of four numbers is treated as having RGB values with opacity:

Wolfram Language code: a = {{{1, 0, 0, 1}, {0, 1, 0, 1}, {0, 0, 1, 1}}, {{1, 0, 0, .5}, {0, 1, 0, .5}, {0, 0, 1, .5}}};
Wolfram Language code: Graphics[Raster[a], Background -> Cyan]

Use Hue values for a scalar matrix:

Wolfram Language code: a = {{0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1}};
Wolfram Language code: Graphics[Raster[a, ColorFunction -> Hue]]

Use a user-defined function:

Wolfram Language code: a = {{0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1}};
Wolfram Language code: Graphics[Raster[a, ColorFunction -> (Blend[{Red, Blue}, #]&)]]

Use a color function with the specified range:

Wolfram Language code: a = {{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10}};
Wolfram Language code: Graphics[Raster[a, Automatic, {0, 10}, ColorFunction -> (Blend[{Red, Blue}, #]&)]]

Use predefined gradients:

Wolfram Language code: a = {{0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1}};
Wolfram Language code: Graphics[Raster[a, ColorFunction -> "AvocadoColors"]]

Generalizations & Extensions  (1)

Any Wolfram Language expression can be applied to a color function:

Wolfram Language code: a = {{x, y, y, z, z, z, x}};
Wolfram Language code: Graphics[Raster[a, ColorFunction -> (Switch[#, x, Red, y, Green, z, Blue]&)]]
Wolfram Language code: b = {{"Tomato", "Gold", "LawnGreen", "SteelBlue"}};
Wolfram Language code: Graphics[Raster[b, ColorFunction -> (ColorData["HTML", #]&)]]

Options  (4)

ColorFunction  (4)

Use gray level for each cell:

Wolfram Language code: Graphics[Raster[{{0, 0.2, 0.4}, {0.6, 0.8, 1}}, ColorFunction -> GrayLevel]]

Color the raster cells using hue values:

Wolfram Language code: Graphics[Raster[{{0, 0.2, 0.4}, {0.6, 0.8, 1}}, ColorFunction -> Hue]]

Use a user-defined color function:

Wolfram Language code: Graphics[Raster[{{0, 0.2, 0.4}, {0.6, 0.8, 1}}, ColorFunction -> (RGBColor[#, #, 1 - #]&)]]

Use a predefined gradient:

Wolfram Language code: Graphics[Raster[{Range[0, 1, .1]}, ColorFunction -> "TemperatureMap"]]

Applications  (3)

Use a raster as wallpaper:

Wolfram Language code: r = Raster[Table[i, {i, 100}, {j, 100}], {Scaled[{0, 0}], Scaled[{1, 1}]}, {1, 100}, ColorFunction -> "Pastel"];
Wolfram Language code: Plot[{Sin[x], Cos[x], Csc[x]}, {x, 0, 10}, Prolog -> r, PlotStyle -> Thick]

Get a test RGB raster using ExampleData:

Wolfram Language code: rgb = Reverse[ExampleData[{"TestImage", "Sailboat"}, "Data"] / 255.];
Wolfram Language code: Graphics[Raster[rgb]]

Convert RGB to grayscale:

Wolfram Language code: gray = Map[{.3, .59, .11}.#&, rgb, {2}];
Wolfram Language code: Graphics[Raster[gray]]

Apply a filter using ListCorrelate, then display it:

Wolfram Language code: ker = {{1, 0, -1}, {1, 0, -1}, {1, 0, -1}};
Wolfram Language code: f = ListCorrelate[ker, gray];
Wolfram Language code: Graphics[Raster[f, Automatic, MinMax[f] / 4, ColorFunction -> "TemperatureMap"]]

Define a simple raster density plot function:

Wolfram Language code: rasterDensityPlot[f_, {xs_, xmin_, xmax_}, {ys_, ymin_, ymax_}, opts : OptionsPattern[rasterDensityPlot]] := Module[{raw, ppts, cf, zmin, zmax}, {ppts, cf} = OptionValue[{PlotPoints, ColorFunction}];raw = Table[f /. {xs -> j, ys -> i}, {i, ymin, ymax, (ymax - ymin) / (ppts - 1)}, {j, xmin, xmax, (xmax - xmin) / (ppts - 1)}];zmin = Min[raw];zmax = Max[raw];Graphics[Raster[raw, {{xmin, ymin}, {xmax, ymax}}, {zmin, zmax}, ColorFunction -> cf], FilterRules[{opts}, Options[Graphics]], AspectRatio -> 1, Frame -> True]]

Set options for the function:

Wolfram Language code: Options[rasterDensityPlot] = Sort@Join[{PlotPoints -> 50, ColorFunction -> "LakeColors"}, Options[Graphics]];

Results:

Wolfram Language code: rasterDensityPlot[x Sin[y], {x, -5, 5}, {y, 0, 10}, ColorFunction -> "AvocadoColors"]
Wolfram Language code: rasterDensityPlot[Sin[x] Sin[ y], {x, -4, 4}, {y, -4, 4}, ColorFunction -> "SunsetColors"]

Properties & Relations  (7)

Rotate can be applied to a raster:

Wolfram Language code: Graphics[Rotate[Raster[Table[{i, j, .5}, {i, 0, 1, .1}, {j, 0, 1, .1}]], Pi / 6]]

Use ArrayPlot when visualizing discrete data:

Wolfram Language code: data = CellularAutomaton[30, {{1}, 0}, 20];
Wolfram Language code: {ArrayPlot[data], Graphics[Raster[data]]}

Use ListDensityPlot when visualizing continuous data:

Wolfram Language code: data = Table[Exp[-(x ^ 2 + y ^ 2)], {x, -1.5, 1.5, .1}, {y, -1.5, 1.5, 0.1}];
Wolfram Language code: {ListDensityPlot[data, FrameTicks -> None], Graphics[Raster[data]]}

Use ReliefPlot to visualize elevation data:

Wolfram Language code: data = Table[Evaluate[Sum[Sin[RandomReal[5, 2].{x, y}], {10}]], {x, 0, 10, .04}, {y, 0, 10, .04}];
Wolfram Language code: {ReliefPlot[data], Graphics[Raster[data, Automatic, {Min[data], Max[data]}]]}

Rasterize can generate a raster graphic from any expression:

Wolfram Language code: Rasterize[x ^ 2 + y ^ 2 == 1, "Graphics"]
Wolfram Language code: Head[First[%]]
Wolfram Language code: Rasterize[Graphics[{EdgeForm[Black], Pink, Disk[]}, ImageSize -> 100], "Graphics"]
Wolfram Language code: Head[First[%]]
Wolfram Language code: Rasterize[Graphics3D[Sphere[], ImageSize -> 100], "Graphics"]
Wolfram Language code: Head[First[%]]

ExampleData contains a number of test images:

Wolfram Language code: Short[ExampleData["TestImage"]]
Wolfram Language code: ExampleData[{"TestImage", "Man"}, "Graphics"]
Wolfram Language code: Head[First[%]]

Many Import formats can produce Raster:

Wolfram Language code: Import["ExampleData/coneflower.jpg", "Graphics"]
Wolfram Language code: Head[First[%]]

Possible Issues  (1)

The first row in the data array is at the bottom of Raster, but at the top of ArrayPlot:

Wolfram Language code: a = {{0, 0.2, 0.4}, {0.6, 0.8, 1}};
Wolfram Language code: {Graphics[Raster[a]], ArrayPlot[a, ColorFunction -> GrayLevel, Frame -> False]}

Neat Examples  (1)

Different planes through the RGB color space:

Wolfram Language code: GraphicsGrid[Partition[Table[Graphics[Raster[Table[{i, j, k} / 16, {i, 16}, {j, 16}]]], {k, 16}], 4]]
