SmoothMesh

SmoothMesh[mesh]

smooths a mesh region mesh by adjusting cells and keeping the overall shape.

Details and Options

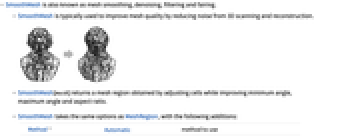

  • SmoothMesh is also known as mesh smoothing, denoising, filtering and fairing.
  • SmoothMesh is typically used to improve mesh quality by reducing noise from 3D scanning and reconstruction.
  • SmoothMesh[mesh] returns a mesh region obtained by adjusting cells while improving minimum angle, maximum angle and aspect ratio.
  • SmoothMesh takes the same options as MeshRegion, with the following additions:
  • Method Automaticmethod to use
  • Possible method settings include "ExplicitLaplacian" and "ImplicitLaplacian".

Examples

open all close all

Basic Examples  (1)

Smooth a mesh:

Wolfram Language code: ℛ = ResourceData["Beethoven"]
Wolfram Language code: SmoothMesh[ℛ]

Scope  (3)

SmoothMesh works on surfaces:

Wolfram Language code: DiscretizeGraphics[ListPlot3D[Table[Sin[j ^ 2 + i], {i, 0, Pi, Pi / 5}, {j, 0, Pi, Pi / 5}]]]
Wolfram Language code: SmoothMesh[%]

Solids:

Wolfram Language code: BoundaryDiscretizeRegion[Dodecahedron[], MaxCellMeasure -> .01]
Wolfram Language code: SmoothMesh[%]

Apply SmoothMesh multiple times:

Wolfram Language code: ℛ = ResourceData["Beethoven"]; NestList[SmoothMesh, ℛ, 3]

Options  (7)

Method  (7)

"ExplicitLaplacian"  (3)

Update vertex positions directly based on the Laplacian:

Wolfram Language code: SmoothMesh[[image], Method -> "ExplicitLaplacian"]

Use the option "UniformLaplace"True to use a uniform Laplacian:

Wolfram Language code: SmoothMesh[[image], Method -> {"ExplicitLaplacian", "UniformLaplace" -> True}]

Use the option "MaxIterations"->n to specify the maximum number of iterations:

Wolfram Language code: SmoothMesh[[image], Method -> {"ExplicitLaplacian", "MaxIterations" -> 5}]

"ImplicitLaplacian"  (4)

Solve a linear system to update vertex positions:

Wolfram Language code: SmoothMesh[[image], Method -> "ImplicitLaplacian"]

Use the option "UniformLaplace"True to use a uniform Laplacian:

Wolfram Language code: SmoothMesh[[image], Method -> {"ImplicitLaplacian", "UniformLaplace" -> True}]

Use the option "MaxIterations"->n to specify the maximum number of iterations:

Wolfram Language code: SmoothMesh[[image], Method -> {"ImplicitLaplacian", "MaxIterations" -> 5}]

Use the option "TimeStep"->t to controls the extent of smoothing applied in each iteration:

Wolfram Language code: SmoothMesh[[image], Method -> {"ImplicitLaplacian", "TimeStep" -> .05}]

Applications  (1)

Denoise a 3D mesh by smoothing out high-frequency surface variations:

Wolfram Language code: ℛ = [image];

Create a mesh with noise:

Wolfram Language code: noisemesh = MeshRegion[MeshCoordinates[ℛ] + RandomReal[{-0.015, 0.015}, Dimensions[MeshCoordinates[ℛ]]], MeshCells[ℛ, 2]]

Apply SmoothMesh:

Wolfram Language code: SmoothMesh[%]
