SolidFixedCondition[pred,vars,pars]

represents a fully constrained solid boundary for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

Details
Details and Options Details and Options
Examples
Basic Examples
Properties & Relations
See Also
Tech Notes
Related Guides
History
Cite this Page

SolidFixedCondition

SolidFixedCondition[pred,vars,pars]

represents a fully constrained solid boundary for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

Details

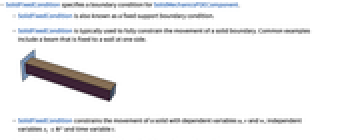

  • SolidFixedCondition specifies a boundary condition for SolidMechanicsPDEComponent.
  • SolidFixedCondition is also known as a fixed support boundary condition.

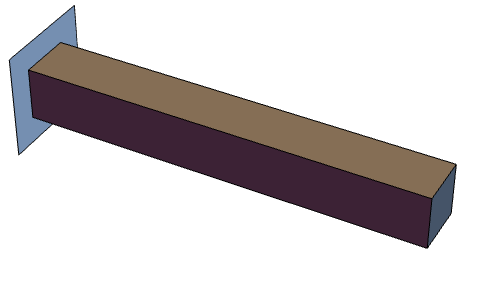

  • SolidFixedCondition is typically used to fully constrain the movement of a solid boundary. Common examples include a beam that is fixed to a wall at one side.
  • SolidFixedCondition constrains the movement of a solid with dependent variables , and , independent variables and time variable .
  • Stationary variables vars are vars={{u[x1,…,xn],v[x1,…,xn],…},{x1,…,xn}}.
  • Time-dependent variables vars are vars={{u[t,x1,…,xn],v[t,x1,…,xn],…},t,{x1,…,xn}}.
  • Frequency-dependent variables vars are vars={{u[x1,…,xn],v[x1,…,xn],…},ω,{x1,…,xn}}.

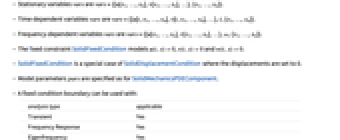

  • The fixed constraint SolidFixedCondition models , and .
  • SolidFixedCondition is a special case of SolidDisplacementCondition where the displacements are set to 0.
  • Model parameters pars are specified as for SolidMechanicsPDEComponent.
  • A fixed condition boundary can be used with:
  • analysis typeapplicable
    TransientYes
    Frequency ResponseYes
    EigenfrequencyYes
    StationaryYes
  • SolidFixedCondition evaluates to a DirichletCondition.
  • The boundary predicate pred can be specified as in DirichletCondition.
  • If the SolidFixedCondition depends on parameters that are specified in the association pars as …,keypi…,pivi,…, the parameters are replaced with .

Examples

open all close all

Basic Examples  (1)

Compute the deflection of a spoon held fixed at the end and with a force applied at the top. Set up variables and parameters:

Wolfram Language code: vars = {{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}; pars = <|"Material" -> ["Silver"]|>;

Set up the PDE and the geometry:

Wolfram Language code: spoon = \!\(\*Graphics3DBox[«5»]\); displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x >= 1 / 10, vars, pars, <|"Force" -> {0, 0, Quantity[-100, "Newtons"]}|>], SolidFixedCondition[x <= -1 / 10, vars, pars]}, {u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}∈spoon];

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot3D[displacement, {x, y, z}∈spoon]

Properties & Relations  (2)

SolidFixedCondition evaluates to DirichletCondition:

Wolfram Language code: SolidFixedCondition[x == 0, {{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <||>]

SolidFixedCondition is a special case of SolidDisplacementCondition. Set up variables and parameters:

Wolfram Language code: vars = {{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}};

Create a fixed constraint:

Wolfram Language code: SolidFixedCondition[x == 0, vars, <||>]

This is the same as a displacement condition with 0 displacement:

Wolfram Language code: SolidDisplacementCondition[x == 0, vars, <||>, <|"Displacement" -> {0, 0, 0}|>]
