SolidMechanicsPDEComponent

SolidMechanicsPDEComponent[vars,pars]

yields solid mechanics PDE terms with variables vars and parameters pars.

Details

SolidMechanicsPDEComponent returns generalized Navier–Cauchy partial differential equations for solid mechanics analysis.
SolidMechanicsPDEComponent returns a sum of differential operators to be used as a part of partial differential equations:

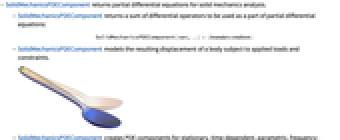

SolidMechanicsPDEComponent models the resulting displacement of a body subject to applied loads and constraints.

SolidMechanicsPDEComponent creates PDE components for stationary, time-dependent, parametric, frequency-response and eigenmode analysis.
SolidMechanicsPDEComponent models solid mechanics phenomena with displacements , and in units of meters [] as dependent variables, as independent variables in units of [], time variable in units of seconds [] and angular frequency in units of radians per second.
SolidMechanicsPDEComponent creates PDE components in two and three space dimensions.
Stationary variables vars are vars={{u[x₁,…,x_n],v[x₁,…,x_n],…},{x₁,…,x_n}}.
Time-dependent or eigenmode variables vars are vars={{u[t,x₁,…,x_n],v[t,x₁,…,x_n],…},t,{x₁,…,x_n}}.
Frequency-dependent variables vars are vars={{u[x₁,…,x_n],v[x₁,…,x_n],…},ω,{x₁,…,x_n}}.
The equations for different analysis types SolidMechanicsPDEComponent generates depend on the form of vars.
The stationary equilibrium equations of the solid mechanics PDE SolidMechanicsPDEComponent with mass density [ $TemplateBox[{InterpretationBox[, 1], {"kg", , "/", , {"m", ^, 3}}, kilograms per meter cubed, {{(, "Kilograms", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ], stress tensor [], strain tensor , displacement vector [] and body load vectors [ $TemplateBox[{InterpretationBox[, 1], {"N", , "/", , {"m", ^, 3}}, newtons per meter cubed, {{(, "Newtons", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ] or [ $TemplateBox[{InterpretationBox[, 1], {"m", , "/", , {"s", ^, 2}}, meters per second squared, {{(, "Meters", )}, /, {(, {"Seconds", ^, 2}, )}}}, QuantityTF]$ ] are based on:

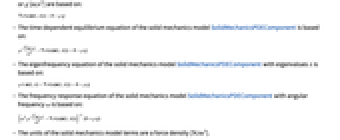

The time-dependent equilibrium equation of the solid mechanics model SolidMechanicsPDEComponent is based on:

The eigenfrequency equation of the solid mechanics model SolidMechanicsPDEComponent with eigenvalues is based on:

The frequency response equation of the solid mechanics model SolidMechanicsPDEComponent with angular frequency is based on:

The units of the solid mechanics model terms are a force density [ $TemplateBox[{InterpretationBox[, 1], {"N", , "/", , {"m", ^, 3}}, newtons per meter cubed, {{(, "Newtons", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ].
The default material model is a linear elastic isotropic material model.
For linear elastic material models, the equilibrium, continuity and output stress measures are Cauchy stresses.
For hyperelastic elastic material models, the equilibrium stress is the first Piola–Kirchhoff stress, the continuity stress is the second Piola–Kirchhoff stress, and the output stress measure is a Cauchy stress.
Conversion between stress measures happens automatically.
The following parameters pars can be given:

parameter	default	symbol
"AnalysisType"	Automatic	none
"BodyLoad"	0	, body force density [ $TemplateBox[{InterpretationBox[, 1], {"N", , "/", , {"m", ^, 3}}, newtons per meter cubed, {{(, "Newtons", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ]
"BodyLoadValue"	0	, body acceleration [ $TemplateBox[{InterpretationBox[, 1], {"m", , "/", , {"s", ^, 2}}, meters per second squared, {{(, "Meters", )}, /, {(, {"Seconds", ^, 2}, )}}}, QuantityTF]$ ]
"CoordinateChart"	-	none
"MassDensity"	-	, density [ $TemplateBox[{InterpretationBox[, 1], {"kg", , "/", , {"m", ^, 3}}, kilograms per meter cubed, {{(, "Kilograms", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ]
"Material"	-	none
"MaterialSymmetry"	"Isotropic"	none
"RegionSymmetry"	None	-
"SolidMechanicsMaterialModel"	"LinearElastic"	none
"SolidMechanicsModelForm"	"Solid"	none

When the "AnalysisType" is Automatic, then the model generated depends on the form of vars.
For eigenfrequency analysis, "AnalysisType" needs to be set to "Eigenmode", and time-dependent variables tvars need to be used. »
"BoundaryLoad" and "BoundaryLoadValue" can be used to model effects of external force fields, such as self-weight. »
If a "Material" is specified, the material constants are extracted from the material data; otherwise, relevant material parameters need to be specified. »

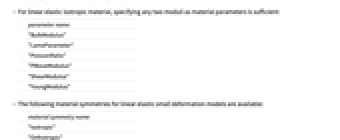

For linear elastic isotropic material, specifying any two moduli as material parameters is sufficient:
parameter name

"BulkModulus"

"LameParameter"

"PoissonRatio"

"PWaveModulus"

"ShearModulus"

"YoungModulus"
The following material symmetries for linear elastic small deformation models are available:
material symmetry name

"Isotropic"

"Orthotropic"

"TransverselyIsotropic"

"Anisotropic"

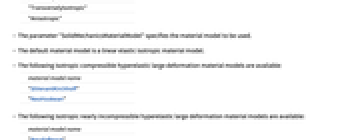

The parameter "SolidMechanicsMaterialModel" specifies the material model to be used.
The default material model is a linear elastic isotropic material model.
The following isotropic compressible hyperelastic large deformation material models are available:
material model name

"StVenantKirchhoff"

"NeoHookean"
The following isotropic nearly incompressible hyperelastic large deformation material models are available:
material model name

"ArrudaBoyce"

"Gent"

"MooneyRivlin"

"NeoHookean"

"Yeoh"

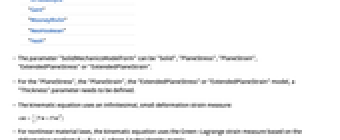

The parameter "SolidMechanicsModelForm" can be "Solid", "PlaneStress", "PlaneStrain", "ExtendedPlaneStress" or "ExtendedPlaneStrain".
For the "PlaneStress", the "PlaneStrain", the "ExtendedPlaneStress" or "ExtendedPlaneStrain" model, a "Thickness" parameter needs to be defined.
The kinematic equation uses an infinitesimal, small deformation strain measure:

For nonlinear material laws, the kinematic equation uses the Green–Lagrange strain measure based on the deformation gradient , where is the identity matrix:

The constitutive equation for the linear elastic material models with elasticity matrix , an initial stress, an initial strain and a thermal strain is given by:

The normal strain components and the shear strain components use Voigt notation with the following order:

The normal stress components and the shear stress components use Voigt notation with the following order:

The "PlaneStrain" model assumes 0 strain in the direction for .
The "PlaneStress" model assumes 0 stresses in the direction for .
"RegionSymmetry""Axisymmetric" uses a truncated cylindrical coordinate system and assumes a displacement of in the direction and . Note that .
The axis of symmetry is the axis.
A "CoordinateChart" uses the same specification as CoordinateChartData.

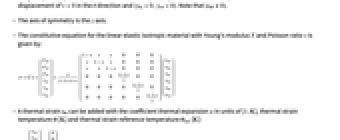

The constitutive equation for the linear elastic isotropic material with Young's modulus and Poisson ratio is given by:

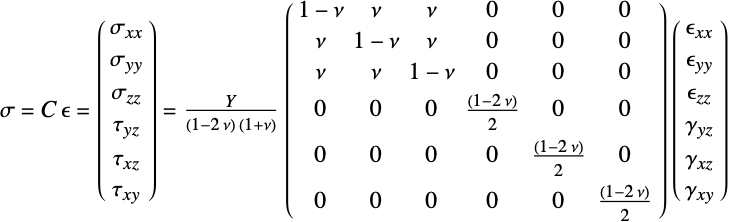

A thermal strain can be added with the coefficient thermal expansion in units of [], thermal strain temperature [] and thermal strain reference temperature []:

The following subparameters can be given for the "LinearElastic" "Isotropic" material model:

parameter	default	symbol
"InitialStrain"	0	, initial strain
"InitialStress"	0	, initial stress []
"PoissonRatio"	Automatic	, Poisson ratio
"ThermalExpansion"	0	, coefficient of thermal expansion []
"ThermalStrainTemperature"	0	, temperature []
"ThermalStrainReferenceTemperature"	0	, temperature []
"YoungModulus"	Automatic	, Young modulus []

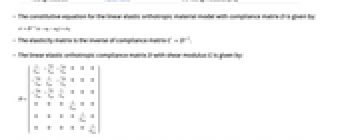

The constitutive equation for the linear elastic orthotropic material model with compliance matrix is given by:

The elasticity matrix is the inverse of compliance matrix .
The linear elastic orthotropic compliance matrix with shear modulus is given by:

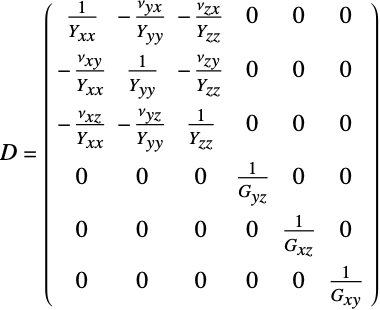

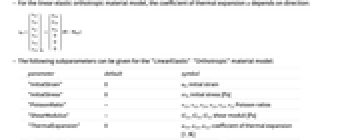

For the linear elastic orthotropic material model, the coefficient of thermal expansion depends on direction:

The following subparameters can be given for the "LinearElastic" "Orthotropic" material model:

parameter	default	symbol
"InitialStrain"	0	, initial strain
"InitialStress"	0	, initial stress []
"PoissonRatio"	-	, , , , , Poisson ratios
"ShearModulus"	-	, , shear moduli []
"ThermalExpansion"	0	, , , coefficient of thermal expansion []
"ThermalStrainTemperature"	0	, temperature []
"ThermalStrainReferenceTemperature"	0	, temperature []
"YoungModulus"	-	, , Young moduli []

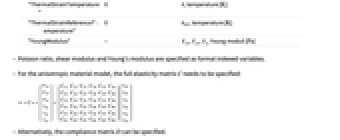

Poisson ratio, shear modulus and Young's modulus are specified as formal indexed variables.
For the anisotropic material model, the full elasticity matrix needs to be specified:

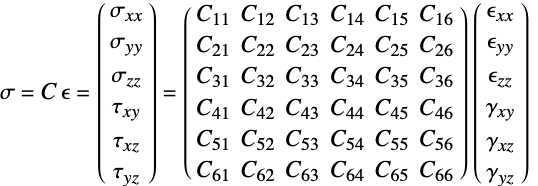

Alternatively, the compliance matrix can be specified.

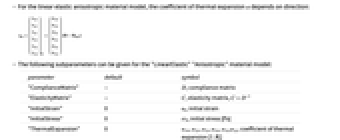

For the linear elastic anisotropic material model, the coefficient of thermal expansion depends on direction:

The following subparameters can be given for the "LinearElastic" "Anisotropic" material model:

parameter	default	symbol
"ComplianceMatrix"	-	, compliance matrix
"ElasticityMatrix"	-	, elasticity matrix,
"InitialStrain"	0	, initial strain
"InitialStress"	0	, initial stress []
"ThermalExpansion"	0	, , , , ,, coefficient of thermal expansion []
"ThermalStrainTemperature"	0	, temperature []
"ThermalStrainReferenceTemperature"	0	, temperature []

Compressible and nearly incompressible hyperelastic material models are available. Nearly incompressible models are the default, when available.
The "ArrudaBoyce" material model is based on the energy density function , where is the number of polymer chains in a network, the number of segments in a single chain, the Boltzmann constant, the absolute temperature, a chain stretch and the Langevin function.
The "Gent" material model is based on the energy density function , where is the first strain invariant, the shear modulus and the limiting value.
The "NeoHookean" material model is based on the energy density function , where is the first Lamé constant, the second constant, the right Cauchy–Green tensor and the deformation gradient.
The compressible "StVenantKirchhoff" material model is based on the energy density function , where is the first Lamé constant, the second constant and the Green–Lagrange strain.
The "MooneyRivlin" material model is based on the energy density function , where are material coefficients and and are the first and second isochoric strain invariants.
The "Yeoh" material model is based on the energy density function , where the are model constants, is the first invariant.
When available, the "Compressibility" of a model can be specified as either "NearlyIncompressibile" or "Compressibile".
Near incompressibility is implemented as a hydrostatic pressure added to the strain energy density function , where is the material's bulk modulus.
Plane strain and plane stress model forms are available for all hyperelastic models.
All hyperelastic material models can make use of a standard reinforcing material model, to model transverse isotropic material, like fiber reinforced materials.
SolidMechanicsPDEComponent uses "SIBase" units. The geometry has to be in the same units as the PDE.
If the SolidMechanicsPDEComponent depends on parameters that are specified in the association pars as …,keyp_i…,p_iv_i,…, the parameters are replaced with .

Examples

open all close all

Basic Examples (3)

Define a solid mechanics PDE model:

Wolfram Language code: SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, Entity["Element", "Tungsten"]]//MatrixForm

Define a symbolic solid mechanics PDE model:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"YoungModulus" -> , "PoissonRatio" -> |>]//MatrixForm

Define a symbolic time-dependent solid mechanics PDE model:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, t, {x, y, z}}, <|"YoungModulus" -> , "PoissonRatio" -> , "MassDensity" -> |>]//MatrixForm

Scope (24)

Basic Uses (4)

Specify a solid mechanics PDE model for a specific material:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"Material" -> Entity["Element", "Tungsten"]|>]

Activate a solid mechanics PDE model:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"Material" -> Entity["Element", "Tungsten"]|>]//Activate

Define a stationary solid mechanics model with a particular material:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"Material" -> ["tungston"]|>]//MatrixForm

Define a model with material values specified:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"YoungModulus" -> Quantity[411.`3., "Gigapascals"], "PoissonRatio" -> 0.28|>]//MatrixForm

Stationary Analysis (3)

Compute the deflection of a spoon held fixed at the end and with a force applied at the top. Set up variables and parameters:

Wolfram Language code:

vars = {{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}};
pars = <|"Material" -> ["Silver"]|>;

Set up the PDE and the geometry:

Wolfram Language code:

spoon = \!\(\*Graphics3DBox[«8»]\);
displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x >= 1 / 10, vars, pars, <|"Force" -> {0, 0, Quantity[-100, "Newtons"]}|>],
	SolidFixedCondition[x <= -1 / 10, vars, pars]}, {u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}∈spoon];

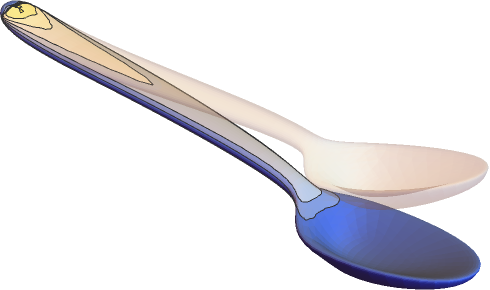

Visualize the displacement:

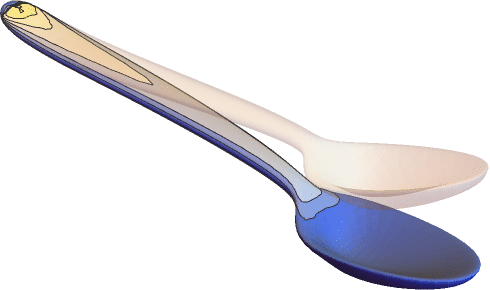

Wolfram Language code: VectorDisplacementPlot3D[displacement, {x, y, z}∈spoon]

Define a symbolic solid mechanics PDE model that considers thermal expansion:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, <|"YoungModulus" -> , "PoissonRatio" -> , "ThermalExpansion" -> , "ThermalStrainTemperature" -> θ, "ThermalStrainReferenceTemperature" -> Subscript[θ, ref]|>]//MatrixForm

Compute the deformation of a beam fixed to a wall under its own self-weight:

Wolfram Language code:

vars = {{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}};
pars = <|"Material" -> Entity["Element", "Titanium"], "BodyLoadValue" -> {0, 0, -9.8}|>;
Ω = Cuboid[{0, 0, 0}, {1, 0.1, 0.1}];
gravityDisplacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, Join[pars, <|
	"BodyLoadValue" -> {0, 0, -9.8}|>]] == {0, 0, 0}, SolidFixedCondition[x == 0, vars, pars]}, vars[[1]], {x, y, z}∈Ω];

Visualize an exaggeration of the deformed beam:

Wolfram Language code: VectorDisplacementPlot3D[gravityDisplacement, {x, y, z}∈Ω]

Stationary Plane Stress Analysis (4)

Compute the displacement of a rectangular steel plate held fixed at the left and with a forced displacement on the right. Set up the region, variables and parameters:

Wolfram Language code:

Ω = Rectangle[{0, 0}, {40 * 10 ^ -3, 30 * 10 ^ -3}];
vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"SolidMechanicsModelForm" -> "PlaneStress", "YoungModulus" -> 200 * 10 ^ 9, "PoissonRatio" -> 0.3, "Thickness" -> 10 ^ -4|>;

Solve the equations:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == {0, 0}, SolidFixedCondition[x == 0, vars, pars], SolidDisplacementCondition[x == 40 * 10 ^ -3, vars, pars, <|"Displacement" -> {-40 / 10 ^ 6, 0}|>]}, {u[x, y], v[x, y]}, {x, y}∈Ω]

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Ω, Rule[...]]

Compute a plane stress case as an extended model. This allows for the computation of the out-of-plane strain and verifies that the out-of-plane stress is 0. A rectangular steel plate is held fixed at the left and with a forced displacement on the right. Set up the region, variables and parameters. The variables now include all three directions:

Wolfram Language code:

Ω = Rectangle[{0, 0}, {40 * 10 ^ -3, 30 * 10 ^ -3}];
vars = {{u[x, y], v[x, y], w[x, y]}, {x, y, z}};
pars = <|"SolidMechanicsModelForm" -> "ExtendedPlaneStress", "YoungModulus" -> 200 * 10 ^ 9, "PoissonRatio" -> 0.3, "Thickness" -> 10 ^ -4|>;

Solve the equations with thee semi-dependent variables:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == {0, 0}, SolidDisplacementCondition[x == 0, vars, pars, <|"Displacement" -> {0, 0}|>], SolidDisplacementCondition[x == 40 * 10 ^ -3, vars, pars, <|"Displacement" -> {-40 / 10 ^ 6, 0}|>]}, {u[x, y], v[x, y], w[x, y]}, {x, y}∈Ω]

Note that now there are three output variables in the list of displacements. Visualize the displacement for the main variables:

Wolfram Language code: VectorDisplacementPlot[displacement[[1 ;; 2]], {x, y}∈Ω, Rule[...]]

Compute the strain:

Wolfram Language code: strain = SolidMechanicsStrain[vars, pars, displacement]

Note, that the strain is a 3 by 3 array. Visualize the out-of-plane strain:

Wolfram Language code: ContourPlot[strain[[3, 3]], {x, y}∈Ω, PlotRange -> All, PlotLegends -> Automatic]

Compute the stress from the strain:

Wolfram Language code: stress = SolidMechanicsStress[vars, pars, strain]

Note, that the stress is a 3 by 3 array. Verify the plane stress condition:

Wolfram Language code: stress[[3, 3]]

Compute the displacement of a rectangular steel plate held fixed at the left and with a pressure applied at the right end. Set up the region, variables and parameters:

Wolfram Language code:

Ω = Rectangle[{0, 0}, {40 * 10 ^ -3, 30 * 10 ^ -3}];
vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"SolidMechanicsModelForm" -> "PlaneStress", "YoungModulus" -> 200 * 10 ^ 9, "PoissonRatio" -> 0.3, "Thickness" -> 10 ^ -4|>;

Solve the equations:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x == 40 * 10 ^ -3, vars, pars, <|"Pressure" -> {3 10 ^ 4, 0}|>], SolidFixedCondition[x == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Ω]

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Ω, Rule[...]]

Compute the displacement of a rectangular steel plate held fixed at the bottom and with pressures applied at the remaining sides. Set up the region, variables and parameters:

Wolfram Language code:

Ω = Rectangle[{0, 0}, {1 / 25, 3 / 100}];
vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"SolidMechanicsModelForm" -> "PlaneStress", "YoungModulus" -> 200 * 10 ^ 9, "PoissonRatio" -> 3 / 10, "Thickness" -> 10 ^ -4|>;

Solve the equations:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x == 1 / 25, vars, pars, <|"Pressure" -> {0, 2 * 10 ^ 8}|>] + SolidBoundaryLoadValue[y == 3 / 100, vars, pars, <|"Pressure" -> {2 * 10 ^ 8, 0}|>] +
	SolidBoundaryLoadValue[x == 0, vars, pars, <|"Pressure" -> {0, -2 * 10 ^ 8}|>], SolidFixedCondition[y == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Ω]

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Ω, Rule[...]]

Compute the strain:

Wolfram Language code: strain = SolidMechanicsStrain[vars, pars, displacement]

Verify that the normal strain in the direction is about 0:

Wolfram Language code: MinMax[strain[[1, 1]][[0]]["ValuesOnGrid"]]

Visualize the normal strain in the direction:

Wolfram Language code: VectorDisplacementPlot[{displacement, strain[[1, 1]]}, {x, y}∈Ω, Rule[...]]

Verify that the normal strain in the direction is about 0:

Wolfram Language code: MinMax[strain[[2, 2]][[0]]["ValuesOnGrid"]]

Visualize the normal strain in the direction:

Wolfram Language code: VectorDisplacementPlot[{displacement, strain[[2, 2]]}, {x, y}∈Ω, Rule[...]]

Find the shear strain:

Wolfram Language code: MinMax[strain[[1, 2]][[0]]["ValuesOnGrid"]]

Visualize the normal strain in the - direction:

Wolfram Language code: VectorDisplacementPlot[{displacement, strain[[1, 2]]}, {x, y}∈Ω, Rule[...]]

Stationary Plane Strain Analysis (3)

Define a 2D plane strain PDE model:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y], v[x, y]}, {x, y}}, <|"Material" -> Entity["Element", "Iron"], "SolidMechanicsModelForm" -> "PlaneStrain", "Thickness" -> 1|>]

Define an extended plane strain PDE model:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[x, y], v[x, y], 0}, {x, y, z}}, <|"Material" -> Entity["Element", "Iron"], "SolidMechanicsModelForm" -> "ExtendedPlaneStrain", "Thickness" -> 1|>]

Compute a plane strain case as an extended model. This allows for the computation of the out-of-plane stress and verifies that the out-of-plane strain is 0. Set up the region, variables and parameters. The variables now include all three directions:

Wolfram Language code:

Ω = Rectangle[];
pars = <|"SolidMechanicsModelForm" -> "ExtendedPlaneStrain", "YoungModulus" -> 30 * 10 ^ 3, "PoissonRatio" -> 3 / 10, "Thickness" -> 1|>;
vars = {{u[x, y], v[x, y], 0}, {x, y, z}};

Set up the solid mechanics PDE component:

Wolfram Language code: op = SolidMechanicsPDEComponent[vars, pars]

Set up the PDEs:

Wolfram Language code:

pde = {op == {0, 0}, SolidFixedCondition[x == 0, vars, pars], SolidDisplacementCondition[x == 1, vars, pars, <|"Displacement" -> {0.1, None}|>]};

Solve the PDE:

Wolfram Language code: displacement = NDSolveValue[pde, {u[x, y], v[x, y], 0}, {x, y}∈Ω]

Compute the strains from the displacements:

Wolfram Language code: strain = SolidMechanicsStrain[vars, pars, displacement]

Note that the strain is a 3×3 array. Verify the plane strain condition:

Wolfram Language code: strain[[3, 3]]

Compute the stress from the strain:

Wolfram Language code: stress = SolidMechanicsStress[vars, pars, strain]

Note that the stress is a 3×3 array. Visualize the out-of-plane stress:

Wolfram Language code: ContourPlot[stress[[3, 3]], {x, y}∈Ω, PlotRange -> All, PlotLegends -> Automatic]

Time-Dependent Analysis (3)

Define a time-dependent solid mechanics model for a particular material:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, t, {x, y, z}}, <|"Material" -> ["Silver"]|>]//MatrixForm

Simulate a time-dependent force on a beam. Set up a region, variables and a material:

Wolfram Language code:

Ω = Cylinder[{{0, 0, 0}, {10, 0, 0}}, 1];
tvars = {{u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, t, {x, y, z}};
pars = <|"Material" -> ["Iron"]|>;

Set up the PDE model:

Wolfram Language code: top = SolidMechanicsPDEComponent[tvars, pars];

Create a time dependent force at the right end of the beam:

Wolfram Language code: Subscript[Γ, load] = SolidBoundaryLoadValue[x == 10, tvars, pars, <|"Force" -> {0, 0, -Sin[2π t]500}|>];

Fix the beam on the left:

Wolfram Language code: Subscript[Γ, wall] = SolidFixedCondition[x == 0, tvars, pars];

Set up zero initial conditions and the initial velocity condition:

Wolfram Language code:

ics = {u[0, x, y, z] == 0, v[0, x, y, z] == 0, w[0, x, y, z] == 0, Derivative[1, 0, 0, 0][u][0, x, y, z] == 0, Derivative[1, 0, 0, 0][v][0, x, y, z] == 0, Derivative[1, 0, 0, 0][w][0, x, y, z] == 0};

Solve the time-dependent PDE and monitor the progress:

Wolfram Language code:

tEnd = 5;
measure = AbsoluteTiming[
	Monitor[MaxMemoryUsed[
	transientDisplacement = NDSolveValue[{top == Subscript[Γ, load], Subscript[Γ, wall], ics}, {u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, {x, y, z}∈Ω
	, {t, 0, tEnd}, MaxStepSize -> 0.05
	, EvaluationMonitor :> (monitor = Row[{"t = ", CForm[t]}])]] / 1024. ^ 2
	, monitor]];
Print["Time -> ", measure[[1]], "
Memory -> ", measure[[2]]]

Visualize the -displacement over time at a query point:

Wolfram Language code: Plot[transientDisplacement[[3]] /. {x -> 10, y -> 0, z -> 0}, {t, 0, tEnd}]

Simulate a time-dependent force on a cross section of a spoon considering a Rayleigh damping model. Set up a region, variables and a material:

Wolfram Language code:

vars = {{u[t, x, y], v[t, x, y]}, t, {x, y}};
pars = <|"Material" -> Entity["Element", "Copper"], "MassDamping" -> 40, "StiffnessDamping" -> 0.0004, "Thickness" -> 0.001, "SolidMechanicsModelForm" -> "PlaneStress"|>;

Set up the PDE and solve while monitoring progress:

Wolfram Language code:

AbsoluteTiming[Monitor[displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x >= 1 / 10, vars, pars, <|"Force" -> {0, Quantity[-20, "Newtons"]}|>],
	SolidFixedCondition[x <= -1 / 10, vars, pars], {u[0, x, y] == 0, v[0, x, y] == 0, Derivative[1, 0, 0][u][0, x, y] == 0, Derivative[1, 0, 0][v][0, x, y] == 0}}, {u, v}, {x, y}∈[image], {t, 0, 0.05}
	, EvaluationMonitor :> (monitor = Row[{"t = ", CForm[t]}])]
	, monitor]]

Visualize the -displacement over time at a query point:

Wolfram Language code: Plot[Evaluate[displacement[[2]][t, 0.17, 0.01]], {t, 0, 0.05}]

Visualize the displacement:

Wolfram Language code:

frames = Table[VectorDisplacementPlot[Evaluate[Through[displacement[t, x, y]]], {x, y}∈[image], PlotRange -> {All, {-0.055, 0.045}}, VectorSizes -> Full],
	{t, 0, 0.05, 0.0025}];
ListAnimate[frames, SaveDefinitions -> True]

Eigenmode Analysis (2)

Define an eigenmode solid mechanics model for a particular material:

Wolfram Language code:

SolidMechanicsPDEComponent[{{u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, t, {x, y, z}}, <|"Material" -> ["tungston"], "AnalysisType" -> "Eigenmode"|>]//MatrixForm

Compute the eigenmodes of an iron bracket. Set up the region, variables and a material:

Wolfram Language code:

Ω = RegionDifference[Cuboid[{0, 0, 0}, {1, 1, 1}], Cuboid[{1 / 10, 1 / 10, 0}, {1, 9 / 10, 1}]];
tvars = {{u[t, x, y, z], v[t, x, y, z], w[t, x, y, z]}, t, {x, y, z}};
pars = <|"Material" -> ["Iron"], "AnalysisType" -> "Eigenmode"|>;

Compute the eigenvalue and modes:

Wolfram Language code:

{evals, evecs} = NDEigensystem[{SolidMechanicsPDEComponent[tvars, pars] == {0, 0, 0}}, {u, v, w}, t, {x, y, z}∈Ω, 10];

Visualize the seventh to tenth eigenmode:

Wolfram Language code:

mr = DiscretizeRegion[Ω];
Show[MeshRegion[5 * Table[Apply[if, m], {m, MeshCoordinates[mr]}, {if, #}] + MeshCoordinates[mr], MeshCells[mr, MeshCells[mr, {2, All}]]], Graphics3D[Style[mr, LightGray]]]& /@ evecs[[7 ;; 10]]

Hyperelastic Material Model (2)

Set up the variables and the model parameters for a piece of rubber that is held fixed at the left and a pressure is applied on the right. A neo-Hookean hyperelastic material model is used:

Wolfram Language code:

vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"SolidMechanicsMaterialModel" -> "NeoHookean", "Thickness" -> 1, "ShearModulus" -> 5 10 ^ 8, "LameParameter" -> 10 ^ 9|>;

Set up the geometry:

Wolfram Language code: Ω = RegionDifference[Rectangle[], Disk[{1 / 2, 1 / 2}, 1 / 4]];

Set up the equation and solve for the displacement:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x == 1, vars, pars, <|"Pressure" -> {9 * 10 ^ 8, 0}|>], SolidFixedCondition[x == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Ω];

Visualize the deformed body over the original shape of the body:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Ω, VectorSizes -> Full]

Set up the variables and the model parameters for a neo-Hookean hyperelastic material model:

Wolfram Language code:

vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"SolidMechanicsMaterialModel" -> "NeoHookean", "Compressibility" -> "Compressible", "LameParameter" -> 10 ^ 6, "ShearModulus" -> 5000, "SolidMechanicsModelForm" -> "PlaneStress", "Thickness" -> 0.01|>;

Create the PDE model with boundary conditions:

Wolfram Language code:

displacement2D = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x == 1, vars, pars, <|"Force" -> {Quantity[300, "Newtons"], 0}|>]
	, SolidFixedCondition[x == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Rectangle[{0, 0}, {1, 1}]];

Show the actual displacement:

Wolfram Language code: VectorDisplacementPlot[displacement2D, {x, y}∈Rectangle[{0, 0}, {1, 1}], VectorSizes -> Full]

Compute the strain:

Wolfram Language code: strain = SolidMechanicsStrain[vars, pars, displacement2D]

Compute the stress:

Wolfram Language code: stress = SolidMechanicsStress[vars, pars, strain, displacement2D]

Fiber Reinforced Material Model (1)

Set up the variables and the model parameters for a fiber-reinforced piece of rubber that is held fixed at the left and a pressure is applied on the right. A neo-Hookean hyperelastic material model is used:

Wolfram Language code:

vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"ReinforcementDirectionVector" -> Normalize[{1, 1}], "SolidMechanicsMaterialModel" -> "NeoHookean", "Thickness" -> 1, "ShearModulus" -> 5 10 ^ 8, "LameParameter" -> 10 ^ 9|>;

Set up the geometry:

Wolfram Language code: Ω = RegionDifference[Rectangle[], Disk[{1 / 2, 1 / 2}, 1 / 4]];

Visualize the fiber reinforcement in the geometry:

Wolfram Language code:

StreamPlot[pars["ReinforcementDirectionVector"], {x, y}∈Ω, StreamMarkers -> "Segment", StreamColorFunction -> None, StreamStyle -> Black]

Set up the equation and solve for the displacement:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == SolidBoundaryLoadValue[x == 1, vars, pars, <|"Pressure" -> {9 * 10 ^ 8, 0}|>], SolidFixedCondition[x == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Ω];

Visualize the deformed body over the original shape of the body:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Ω, VectorSizes -> Full]

Compute the strain:

Wolfram Language code: strain = SolidMechanicsStrain[vars, pars, displacement]

Compute the stress:

Wolfram Language code: stress = SolidMechanicsStress[vars, pars, strain, displacement]

Compute the von Mises stress:

Wolfram Language code: vms = VonMisesStress[vars, pars, stress]

Visualize the von Mises stress:

Wolfram Language code: VectorDisplacementPlot[{displacement, vms}, {x, y}∈Ω, VectorSizes -> Full]

Multi-material Models (1)

A compliance matrix needs to be specified as a matrix. This is also true when a compliance matrix of a multi-material model is to be specified. This example shows how to do that. Specify two compliance matrices:

Wolfram Language code:

material1 = {{5.00, -1.55, -1.55, 0.00, 0.00, 0.00}, {-1.55, 5.00, -1.55, 0.00, 0.00, 0.00}, {-1.55, -1.55, 5.00, 0.00, 0.00, 0.00}, {0.00, 0.00, 0.00, 13.10, 0.00, 0.00}, {0.00, 0.00, 0.00, 0.00, 13.10, 0.00}, {0.00, 0.00, 0.00, 0.00, 0.00, 13.10}};
material2 = {{7.69, -2.62, -2.62, 0.00, 0.00, 0.00}, {-2.62, 7.69, -2.62, 0.00, 0.00, 0.00}, {-2.62, -2.62, 7.69, 0.00, 0.00, 0.00}, {0.00, 0.00, 0.00, 20.62, 0.00, 0.00}, {0.00, 0.00, 0.00, 0.00, 20.62, 0.00}, {0.00, 0.00, 0.00, 0.00, 0.00, 20.62}};

Create a multi-material compliance matrix, where material 1 is to be used for values in the geometry where , and material 2 is used in all other cases:

Wolfram Language code: complianceMatrix = MapThread[Piecewise[{{#1, y <= 0}}, #2]&, {material1, material2}, 2];

Note that the compliance matrix now is a matrix:

Wolfram Language code: MatrixQ[complianceMatrix]

Look at a specific entry:

Wolfram Language code: complianceMatrix[[2, 3]]

Set up the parameters to make use of the multi-material compliance matrix:

Wolfram Language code:

pars = <|"MaterialModel" -> "LinearElastic", "MaterialSymmetry" -> "Anisotropic", "MassDensity" -> Piecewise[{{8960, y <= 0}}, 8908], "ComplianceMatrix" -> complianceMatrix|>;

Create the solid mechanics PDE component:

Wolfram Language code: SolidMechanicsPDEComponent[{{u[x, y, z], v[x, y, z], w[x, y, z]}, {x, y, z}}, pars]

Non-axis-aligned Material Model (1)

For anisotropic elastic material that is not axis aligned, an orientation matrix can be specified to adjust the material to that. This also works with thermal expansion and is shown here. Variables and parameter are set up:

Wolfram Language code:

vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"ModelForm" -> "PlaneStrain", "EngineeringStrain" -> False, "MaterialSymmetry" -> "Anisotropic", "OrientationMatrix" -> RotationMatrix[-ArcTan[x, y]], "ElasticityMatrix" -> {{(y (1 - ν)/(1 - 2 ν) (1 + ν)), (y ν/(1 - 2 ν) (1 + ν)), 0}, {(y ν/(1 - 2 ν) (1 + ν)), (y (1 - ν)/(1 - 2 ν) (1 + ν)), 0}, {0, 0, (y/2 (1 + ν))}} /. ν -> 1 / 3, "ThermalExpansion" -> {{0, 0}, {0, 1 / 10}},
	"ThermalStrainTemperature" -> 1,
	"Thickness" -> 1|>;

Solve the PDE:

Wolfram Language code:

displacement = NDSolveValue[{SolidMechanicsPDEComponent[vars, pars] == {0, 0}, SolidDisplacementCondition[y == 0, vars, pars, <|"Displacement" -> {None, 0}|>], SolidFixedCondition[x == 1 && y == 0, vars, pars]}, {u[x, y], v[x, y]}, {x, y}∈Annulus[{0, 0}, {1, 2}, {0, π / 2}]];

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[displacement, {x, y}∈Annulus[{0, 0}, {1, 2}, {0, π / 2}]]

Applications (1)

Geotechnical (1)

When modeling soil in geotechnical applications, the Young modulus can change with the depth of the soil. This example explores a position-dependent Young's modulus. We use a rectangular slab of soild that is 100 meters wide and 100 meters deep:

Wolfram Language code:

Ω = Rectangle[{0, -100}, {100, 0}];
RegionPlot[Ω, PlotStyle -> Brown]

Next, we set up variables and parameters. At this point, we have a symbolic Young modulus :

Wolfram Language code:

vars = {{u[x, y], v[x, y]}, {x, y}};
pars = <|"YoungModulus" -> Y, "PoissonRatio" -> 1 / 3, "SolidMechanicsModelForm" -> "PlaneStrain", "Thickness" -> 100|>;

Set up the PDE:

Wolfram Language code: op = SolidMechanicsPDEComponent[vars, pars];

We have a force in the negative direction acting on part of the top:

Wolfram Language code: load = SolidBoundaryLoadValue[y == 0 && 25 <= x <= 75, vars, pars, <|"Force" -> {0, -10 ^ 8}|>];

On the left- and right-hand side we constrain the movement in the direction; in the direction, the soil is able to move freely. At the bottom, the soil can move in the direction but not in the direction. This models a scenario where the soil is "standing" on a harder ground that does not move:

Wolfram Language code:

bcs = {SolidDisplacementCondition[x == 0 || x == 100, vars, pars, <|"Displacement" -> {0, None}|>], SolidDisplacementCondition[y == -100, vars, pars, <|"Displacement" -> {None, 0}|>]};

Set a constant Young modulus:

Wolfram Language code: baseYoungModulus = 50 * 10 ^ 6;

Solve the PDE on a refined mesh with the Young modulus set to baseYoungModulus:

Wolfram Language code:

constantYDisplacement = NDSolveValue[{op == load, bcs} /. Y -> baseYoungModulus, {u[x, y], v[x, y]}, {x, y}∈Ω, Method -> {"PDEDiscretization" -> {"FiniteElement", "MeshOptions" -> {"MaxCellMeasure" -> 1}}}]

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[constantYDisplacement, {x, y}∈Ω, PlotLegends -> Automatic]

Create a helper function to compute the von Mises stress:

Wolfram Language code:

getVonMisesStress[vars_, pars_, displacement_] := Module[{strain, stress},
	strain = SolidMechanicsStrain[vars, pars, displacement];
	stress = SolidMechanicsStress[vars, pars, strain];
	VonMisesStress[vars, pars, stress]
	]

Compute the von Mises stress for the constant Young modulus:

Wolfram Language code: constantYVonMisesStress = getVonMisesStress[vars, pars /. Y -> baseYoungModulus, constantYDisplacement]

Make a contour plot of the von Mises stress:

Wolfram Language code: ContourPlot[constantYVonMisesStress, {x, y}∈Ω, PlotLegends -> Automatic]

Now we create a Young modulus depending on the depth :

Wolfram Language code: variableYoungModulus = baseYoungModulus + 5 10 ^ 6RealAbs[y]

Visualize the function:

Wolfram Language code: ListLinePlot[Table[{variableYoungModulus, y}, {y, -100, 0}], GridLines -> Automatic, ImageSize -> Medium]

Solve the PDE on a refined mesh with replaced with the variable-depth Young modulus:

Wolfram Language code:

variableYDisplacement = NDSolveValue[{op == load, bcs} /. Y -> variableYoungModulus, {u[x, y], v[x, y]}, {x, y}∈Ω, Method -> {"PDEDiscretization" -> {"FiniteElement", "MeshOptions" -> {"MaxCellMeasure" -> 1}}}]

Visualize the displacement:

Wolfram Language code: VectorDisplacementPlot[variableYDisplacement, {x, y}∈Ω]

Compute the von Mises stress:

Wolfram Language code: variableYVonMisesStress = getVonMisesStress[vars, pars /. Y -> variableYoungModulus, variableYDisplacement]

Visualize the von Mises stress:

Wolfram Language code: ContourPlot[variableYVonMisesStress, {x, y}∈Ω, PlotLegends -> Automatic]

Plot the difference between the von Mises stress of the two models:

Wolfram Language code: ContourPlot[variableYVonMisesStress - constantYVonMisesStress, {x, y}∈Ω, PlotLegends -> Automatic]

Plot the difference between the von Mises stress of the two models with the full plot range:

Wolfram Language code: ContourPlot[variableYVonMisesStress - constantYVonMisesStress, {x, y}∈Ω, PlotLegends -> Automatic, PlotRange -> All]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

SolidMechanicsPDEComponent

Details

Examples

Basic Examples (3)

Scope (24)

Basic Uses (4)

Stationary Analysis (3)

Stationary Plane Stress Analysis (4)

Stationary Plane Strain Analysis (3)

Time-Dependent Analysis (3)

Eigenmode Analysis (2)

Hyperelastic Material Model (2)

Fiber Reinforced Material Model (1)

Multi-material Models (1)

Non-axis-aligned Material Model (1)

Applications (1)

Geotechnical (1)

Text

CMS

APA

BibTeX

BibLaTeX

	parameter name
	"BulkModulus"
	"LameParameter"
	"PoissonRatio"
	"PWaveModulus"
	"ShearModulus"
	"YoungModulus"

	material symmetry name
	"Isotropic"
	"Orthotropic"
	"TransverselyIsotropic"
	"Anisotropic"

	material model name
	"StVenantKirchhoff"
	"NeoHookean"

	material model name
	"ArrudaBoyce"
	"Gent"
	"MooneyRivlin"
	"NeoHookean"
	"Yeoh"

SolidMechanicsPDEComponent

Details

Examples

Basic Examples (3)

Scope (24)

Basic Uses (4)

Stationary Analysis (3)

Stationary Plane Stress Analysis (4)

Stationary Plane Strain Analysis (3)

Time-Dependent Analysis (3)

Eigenmode Analysis (2)

Hyperelastic Material Model (2)

Fiber Reinforced Material Model (1)

Multi-material Models (1)

Non-axis-aligned Material Model (1)

Applications (1)

Geotechnical (1)

See Also

Tech Notes

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
