VertexTextureCoordinates

VertexTextureCoordinates

is an option for graphics primitives that specifies the texture coordinates to assign to vertices.

Details

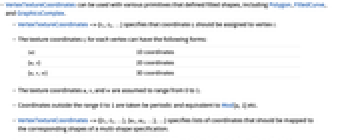

  • VertexTextureCoordinates can be used with various primitives that defined filled shapes, including Polygon, FilledCurve, and GraphicsComplex.
  • VertexTextureCoordinates->{t1,t2,…} specifies that coordinate ti should be assigned to vertex i.
  • The texture coordinates ti for each vertex can have the following forms:
  • {u}1D coordinates
    {u,v}2D coordinates
    {u,v,w}3D coordinates
  • The texture coordinates u, v, and w are assumed to range from 0 to 1.
  • Coordinates outside the range 0 to 1 are taken be periodic and equivalent to Mod[u,1] etc.
  • VertexTextureCoordinates->{{t1,t2,…},{u1,u2,…},…} specifies lists of coordinates that should be mapped to the corresponding shapes of a multi-shape specification.

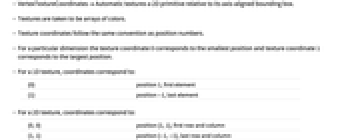

  • VertexTextureCoordinatesAutomatic textures a 2D primitive relative to its axis-aligned bounding box.
  • Textures are taken to be arrays of colors.
  • Texture coordinates follow the same convention as position numbers.
  • For a particular dimension the texture coordinate 0 corresponds to the smallest position and texture coordinate 1 corresponds to the largest position.
  • For a 1D texture, coordinates correspond to:
  • {0}position 1, first element
    {1}position -1, last element
  • For a 2D texture, coordinates correspond to:
  • {0,0}position {1,1}, first row and column
    {1,1}position {-1,-1}, last row and column
  • For a 3D texture, coordinates correspond to:
  • {0,0,0}position {1,1,1}, first row, column, and tube
    {1,1,1}position {-1,-1,-1}, last row, column, and tube
  • The texture coordinates in the interior of the polygon effectively correspond to interpolating between the texture coordinates specified by VertexTextureCoordinates.
  • The texture color corresponding to a texture coordinate is computed by interpolating between neighboring colors in the texture.

Examples

open all close all

Basic Examples  (3)

Specify vertex coordinates for a 1D texture:

Wolfram Language code: Graphics[{Texture[Table[{c, 0, 1 - c}, {c, 0, 1, 1 / 100}]], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0}, {0}, {1}, {1}}]}]

Specify vertex coordinates for a 2D texture:

Wolfram Language code: Graphics[{Texture[[image]], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}]

Specify vertex coordinates for a 3D texture:

Wolfram Language code: data = Table[{r, g, b}, {r, 0, 1, 1 / 20}, {g, 0, 1, 1 / 20}, {b, 0, 1, 1 / 20}];
Wolfram Language code: Graphics3D[{Texture[data], EdgeForm[], Table[With[{pts = RotateRight[#, k]& /@ {{1 / 2, 0, 0}, {1 / 2, 1, 0}, {1 / 2, 1, 1}, {1 / 2, 0, 1}}}, Polygon[pts, VertexTextureCoordinates -> pts]], {k, 3}]}, Lighting -> "Neutral"]

Scope  (5)

The 1D texture coordinates are assumed to range from {0} to {1}:

Wolfram Language code: data = Table[{c, 0, 1 - c}, {c, 0, 1, 1 / 100}];
Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0}, {0}, {1}, {1}}]}]

Specify a portion of 1D texture by using coordinates between {0} and {1}:

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{1 / 3}, {1 / 3}, {2 / 3}, {2 / 3}}]}]

Repeat 1D texture by using coordinate values outside of {0} and {1}:

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{-1}, {-1}, {2}, {2}}]}]

The 2D texture coordinates are assumed to range from {0,0} to {1,1}:

Wolfram Language code: image = [image];
Wolfram Language code: Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}]

Specify a portion of 2D texture by using coordinates within the range of {0,0} and {1,1}:

Wolfram Language code: Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{1 / 3, 1 / 3}, {2 / 3, 1 / 3}, {2 / 3, 2 / 3}, {1 / 3, 2 / 3}}]}]

Repeat 2D texture by using coordinate values outside of {0,0} and {1,1}:

Wolfram Language code: Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {4, 0}, {4, 4}, {0, 4}}]}]

The 3D texture coordinates are assumed to range from {0,0,0} to {1,1,1}:

Wolfram Language code: data = Table[{r, g, b}, {r, 0, 1, 1 / 20}, {g, 0, 1, 1 / 20}, {b, 0, 1, 1 / 20}];
Wolfram Language code: Graphics3D[{Texture[data], EdgeForm[], Polygon[{{0, 0, 0}, {1, 0, 0}, {1, 1, 1}, {0, 1, 1}}, VertexTextureCoordinates -> {{0, 0, 0}, {1, 0, 0}, {1, 1, 1}, {0, 1, 1}}] }, Lighting -> "Neutral"]

Multi-polygons are mapped to sublists of texture coordinates:

Wolfram Language code: Graphics[{Texture[ExampleData[{"Texture", "Wood"}]], Polygon[{{{0, 0}, {0, 1}, {1, 0}}, {{2, 0}, {2, 1}, {1, 0}}}, VertexTextureCoordinates -> {{{0, 0}, {0, 1}, {1, 0}}, {{0, 0}, {1, 0}, {0, 1}}}]}]

Components of filled curves are mapped to sublists of texture coordinates:

Wolfram Language code: a = {{-1, 0}, {0, 1}, {1, 0}}; b = {{0, -2 / 3}, {-1, 0}};
Wolfram Language code: Graphics[{Texture[[image]], FilledCurve[{{BezierCurve[2a], Line[2b]}, {BezierCurve[a], Line[b]}}, VertexTextureCoordinates -> {{{0, 1 / 2}, {1 / 2, 1}, {1, 1 / 2}, {1 / 2, 1 / 12}, {0, 1 / 2}}, {{1 / 4, 1 / 2}, {1 / 2, 3 / 4}, {3 / 4, 1 / 2}, {1 / 2, 7 / 24}, {1 / 4, 1 / 2}}}]}]

Properties & Relations  (1)

Texture coordinates of plot functions can be specified by TextureCoordinateFunction:

Wolfram Language code: ParametricPlot3D[{1.16 ^ v Cos[v](1 + Cos[u]), -1.16 ^ v Sin[v](1 + Cos[u]), -2 1.16 ^ v(1 + Sin[u])}, {u, 0, 2Pi}, {v, -15, 6}, PlotStyle -> Directive[Specularity[White, 30], Texture[ExampleData[{"ColorTexture", "WhiteMarble"}]]], TextureCoordinateFunction -> ({#4, 2#5}&), Lighting -> "Neutral", Mesh -> None, PlotRange -> All]
