Texture

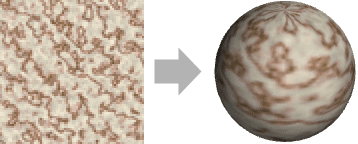

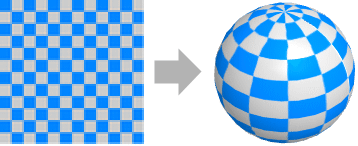

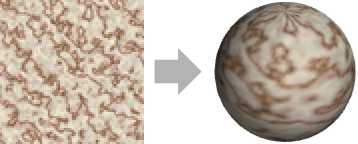

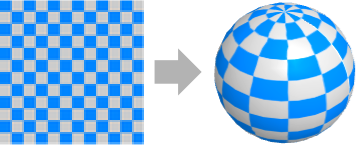

is a graphics directive that specifies that obj should be used as a texture on faces of polygons and other filled graphics objects.

Texture[obj,map]

specifies the projection mapping map to assign to vertices of 3D graphics objects.

Details

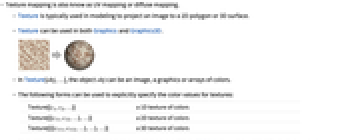

Texture mapping is also know as UV mapping or diffuse mapping.
Texture is typically used in modeling to project an image to a 2D polygon or 3D surface.
Texture can be used in both Graphics and Graphics3D.

In Texture[obj,…], the object obj can be an image, a graphics or arrays of colors.
The following forms can be used to explicitly specify the color values for textures:

	Texture[{c₁,c₂,…}]	a 1D texture of colors
	Texture[{{c₁₁,c₁₂,…},…}]	a 2D texture of colors
	Texture[{{{c₁₁₁,c₁₁₂,…},…},…}]	a 3D texture of colors

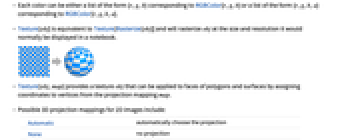

Each color can be either a list of the form {r,g,b} corresponding to RGBColor[r,g,b] or a list of the form {r,g,b,a} corresponding to RGBColor[r,g,b,a].
Texture[obj] is equivalent to Texture[Rasterize[obj]] and will rasterize obj at the size and resolution it would normally be displayed in a notebook.

Texture[obj,map] provides a texture obj that can be applied to faces of polygons and surfaces by assigning coordinates to vertices from the projection mapping map.

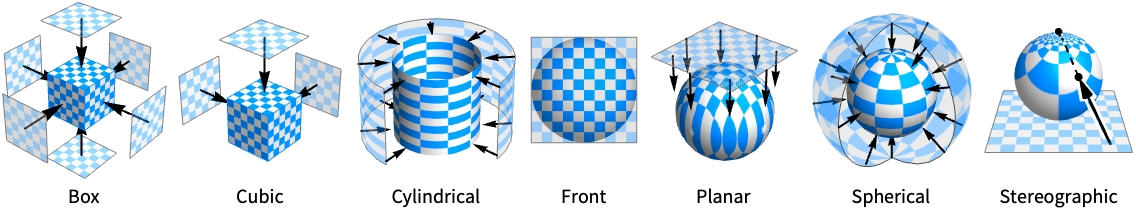

Possible 3D projection mappings for 2D images include:

	Automatic	automatically choose the projection
	None	no projection
	"Box"	box projection
	"Cubic"	cubic projection
	"Cylindrical"	cylindrical projection
	"Front"	planar project on the x–y plane
	"Planar"	planar projection
	"Spherical"	spherical projection

VertexTextureCoordinates can be used to specify a projection mapping for a given graphics primitive.
Opacity can be used with Texture to specify overall opacity of textures.
Texture can be used in FaceForm to texture front and back faces differently.
The colors in Texture are taken to be diffuse colors in their interaction with Lighting.

Examples

open all close all

Basic Examples (4)

Apply a texture to a polygon in 2D:

Wolfram Language code:

Graphics[{Texture[[image]], Polygon[{{0, 0}, {1, 0}, {0.5, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {0.5, 1}}]}]

Apply a texture to a plot:

Wolfram Language code: ParametricPlot[{(v + u) Cos[u], (v + u) Sin[u]}, {u, 0, 2 Pi}, {v, 0, 5}, PlotStyle -> {Opacity[1], Texture[[image]]}]

Apply a texture to a cube in 3D:

Wolfram Language code: Graphics3D[{Texture[[image], "Cubic"], Cube[]}]

Apply a texture to a model:

Wolfram Language code: Graphics3D[{Texture[[image]], EdgeForm[], Polygon[«3»]}]

Scope (20)

Basic Uses (3)

Apply a texture to primitives in 2D:

Wolfram Language code: Graphics[{Texture[[image], "Planar"], #}]& /@ {Triangle[], RegularPolygon[5], Disk[]}

3D:

Wolfram Language code: Graphics3D[{Texture[[image], "Planar"], #}, Lighting -> "Neutral"]& /@ {Tetrahedron[], Icosahedron[], Sphere[]}

Apply a texture to a plot in 2D:

Wolfram Language code: RegionPlot[Sin[x] Sin[y] > 1 / 10, {x, -3, 6}, {y, -3, 6}, PlotStyle -> Texture[[image]]]

3D:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotStyle -> {Texture[[image]]}, Mesh -> False, Lighting -> "Neutral"]

Apply a texture to a GraphicsComplex:

Wolfram Language code:

coords = CirclePoints[{0, 0}, 2, 20];
vtcoords = CirclePoints[{0.5, 0.5}, 0.5, 20];
Graphics[{Texture[[image]], GraphicsComplex[coords, {Polygon[Range[20], VertexTextureCoordinates -> vtcoords]}]}]

Specification (8)

1D texture using a list of RGB colors:

Wolfram Language code: data = Table[{r, 0, 0}, {r, 0, 1, 1 / 100}];

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0}, {0}, {1}, {1}}]}]

1D texture using a gradient ColorData:

Wolfram Language code: data = Table[ColorData["Rainbow", t] /. RGBColor -> List, {t, 0, 1, 1 / 100}];

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0}, {0}, {1}, {1}}]}]

1D texture on a polygon in 3D:

Wolfram Language code:

Graphics3D[{Texture[data], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> "Neutral"]

1D texture on the surface of Plot3D:

Wolfram Language code: Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, PlotStyle -> Texture[data], Lighting -> "Neutral"]

2D texture using a matrix of RGB colors:

Wolfram Language code: data = Table[{r, g, 0}, {r, 0, 1, 1 / 100}, {g, 0, 1, 1 / 100}];

Wolfram Language code:

Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}]

A 3D graphic:

Wolfram Language code:

Graphics3D[{Texture[data], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> "Neutral"]

A plot:

Wolfram Language code: Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, PlotStyle -> Texture[data], Lighting -> "Neutral"]

2D texture using an image:

Wolfram Language code: Graphics[{Texture[[image], "Planar"], Polygon[{{0, 0}, {1, 0}, {1 / 2, 1}}]}]

A 3D graphic:

Wolfram Language code: Graphics3D[{Texture[[image], "Box"], Cube[]}, Lighting -> "Neutral"]

A plot:

Wolfram Language code: Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, PlotStyle -> Texture[[image]], Mesh -> None, Lighting -> "Neutral"]

Use a transparent image:

Wolfram Language code: Graphics[{Texture[[image], "Planar"], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}, Background -> Black]

2D texture using stylized text:

Wolfram Language code: text = Style[" Text ", 300];

Wolfram Language code: Graphics[{Texture[text, "Planar"], EdgeForm[Gray], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}]

A 3D graphic:

Wolfram Language code: Graphics3D[{Texture[text, "Box"], Cube[]}, Lighting -> "Neutral"]

A plot:

Wolfram Language code: Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, PlotStyle -> Texture[text], Mesh -> None, Lighting -> "Neutral"]

2D texture using 2D and 3D graphics:

Wolfram Language code: {t2, t3} = {Graphics[{Blue, Disk[], Red, Rectangle[]}], Graphics3D[{Sphere[], Cuboid[]}]}

Wolfram Language code:

Table[Graphics[{Texture[t], EdgeForm[Gray], Polygon[{{0, 0}, {1, 0}, {1 / 2, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1 / 2, 1}}]}], {t, {t2, t3}}]

A 3D graphic:

Wolfram Language code:

Table[Graphics3D[{Texture[t], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> "Neutral"], {t, {t2, t3}}]

2D texture using plot functions:

Wolfram Language code:

t = ContourPlot[Cos[2x] + y, {x, 0, 2Pi}, {y, 0, 2Pi}, ColorFunction -> "Rainbow", Frame -> False, PlotRangePadding -> None]

A 2D graphic:

Wolfram Language code:

Graphics[{Texture[t], EdgeForm[Gray], Polygon[{{0, 0}, {1, 0}, {1 / 2, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1 / 2, 1}}]}]

A 3D graphic:

Wolfram Language code:

Graphics3D[{Texture[t], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> "Neutral"]

A plot:

Wolfram Language code: Plot3D[Cos[x] + y, {x, 0, 4Pi}, {y, 0, 4Pi}, PlotStyle -> Texture[t], Mesh -> None, Lighting -> "Neutral"]

3D texture using an array of RGB colors:

Wolfram Language code: data = Table[{r, g, b}, {r, 0, 1, 1 / 20}, {g, 0, 1, 1 / 20}, {b, 0, 1, 1 / 20}];

Display the 3D texture by stacking polygons:

Wolfram Language code:

Graphics3D[{Opacity[1 / 3], Texture[data], EdgeForm[], Polygon[Table[{{0, 0, z}, {1, 0, z}, {1, 1, z}, {0, 1, z}}, {z, 0, 1, 1 / 20}], VertexTextureCoordinates -> Table[{{0, 0, s}, {1, 0, s}, {1, 1, s}, {0, 1, s}}, {s, 0, 1, 1 / 20}]]}, Lighting -> "Neutral"]

Cross sections of the 3D texture:

Wolfram Language code:

Graphics3D[{Texture[data], EdgeForm[], Table[With[{pts = RotateRight[#, k]& /@ {{1 / 2, 0, 0}, {1 / 2, 1, 0}, {1 / 2, 1, 1}, {1 / 2, 0, 1}}}, Polygon[pts, VertexTextureCoordinates -> pts]], {k, 3}]}, Lighting -> "Neutral"]

Coordinates (5)

Texture coordinates corresponding to each vertex of Polygon can be specified by VertexTextureCoordinates:

Wolfram Language code: data = Table[{c, 0, 1 - c}, {c, 0, 1, 1 / 100}];

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0}, {0}, {1}, {1}}]}]

Specify a portion of 1D texture by using coordinates between {0} and {1}:

Wolfram Language code:

Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{1 / 3}, {1 / 3}, {2 / 3}, {2 / 3}}]}]

Repeat 1D texture by using coordinate values outside of {0} and {1}:

Wolfram Language code: Graphics[{Texture[data], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{-1}, {-1}, {2}, {2}}]}]

The 2D texture coordinates are assumed to range from {0,0} to {1,1}:

Wolfram Language code: image = [image];

Wolfram Language code:

Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}]

Specify a portion of 2D texture by using coordinates within the range of {0,0} and {1,1}:

Wolfram Language code:

Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{1 / 3, 1 / 3}, {2 / 3, 1 / 3}, {2 / 3, 2 / 3}, {1 / 3, 2 / 3}}]}]

Repeat 2D texture by using coordinate values outside of {0,0} and {1,1}:

Wolfram Language code:

Graphics[{Texture[image], EdgeForm[StandardBrown], Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, VertexTextureCoordinates -> {{0, 0}, {4, 0}, {4, 4}, {0, 4}}]}]

The 3D texture coordinates are assumed to range from {0,0,0} to {1,1,1}:

Wolfram Language code: data = Table[{r, g, b}, {r, 0, 1, 1 / 20}, {g, 0, 1, 1 / 20}, {b, 0, 1, 1 / 20}];

Wolfram Language code:

Graphics3D[{Texture[data], EdgeForm[], Polygon[{{0, 0, 0}, {1, 0, 0}, {1, 1, 1}, {0, 1, 1}}, VertexTextureCoordinates -> {{0, 0, 0}, {1, 0, 0}, {1, 1, 1}, {0, 1, 1}}] }, Lighting -> "Neutral"]

FilledCurve components are mapped to sublists of texture coordinates:

Wolfram Language code: a = {{-1, 0}, {0, 1}, {1, 0}}; b = {{0, -2 / 3}, {-1, 0}};

Wolfram Language code:

Graphics[{Texture[[image]],
	FilledCurve[{{BezierCurve[2a], Line[2b]}, {BezierCurve[a], Line[b]}},
	VertexTextureCoordinates -> {{{0, 1 / 2}, {1 / 2, 1}, {1, 1 / 2}, {1 / 2, 1 / 12}, {0, 1 / 2}}, {{1 / 4, 1 / 2}, {1 / 2, 3 / 4}, {3 / 4, 1 / 2}, {1 / 2, 7 / 24},
       {1 / 4, 1 / 2}}}]}]

Texture coordinates of plot functions can be specified by TextureCoordinateFunction:

Wolfram Language code:

ParametricPlot[{r t Cos[t], r t Sin[t]}, {t, 0, 2Pi}, {r, 0, 1}, PlotRange -> All, Mesh -> False, Axes -> False, PlotStyle -> {Opacity[1], Texture[ExampleData[{"ColorTexture", "Roof"}]]}]

Wolfram Language code:

ParametricPlot[{r t Cos[t], r t Sin[t]}, {t, 0, 2Pi}, {r, 0, 1}, PlotRange -> All, Mesh -> False, Axes -> False, PlotStyle -> {Opacity[1], Texture[ExampleData[{"ColorTexture", "Roof"}]]}, TextureCoordinateFunction -> ({#1, #2}&)]

Wolfram Language code:

Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, PlotStyle -> Texture[ExampleData[{"TestImage", "House"}]], TextureCoordinateFunction -> ({#1, #2}&), Lighting -> "Neutral", Mesh -> None]

Styling (4)

Use Opacity to set overall opacity of textures:

Wolfram Language code:

Table[Graphics3D[{Opacity[o], Texture[[image]], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> "Neutral", Boxed -> False], {o, {1 / 4, 1 / 2, 2 / 3, 1}}]

Use FaceForm to set front and back textures differently:

Wolfram Language code:

vtc = {{0, 0}, {1, 0}, {1, 1}, {0, 1}};
coords = {{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1}, {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}}, {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}}};

Wolfram Language code:

Graphics3D[{FaceForm[Texture[[image]], Texture[[image]]], Polygon[coords, VertexTextureCoordinates -> Table[vtc, {6}]]}, Lighting -> "Neutral"]

Specularity of a textured surface can be set by Specularity:

Wolfram Language code:

Table[ParametricPlot3D[{Cos[u] (3 + Cos[v]), Sin[u] (3 + Cos[v]), Sin[v]}, {u, 0, 2 π}, {v, 0, 2 π}, TextureCoordinateFunction -> ({2#4, #5}&), PlotStyle -> Directive[Specularity[White, s], Texture[ExampleData[{"ColorTexture", "WhiteMarble"}]]], Axes -> False, Lighting -> "Neutral", Mesh -> None, ImageSize -> Small], {s, {5, 20, 50, 100}}]

The colors in textures are taken to be diffuse colors in their interaction with Lighting:

Wolfram Language code:

Table[Graphics3D[{Texture[[image]], Polygon[{{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1},
   {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}},
  {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}},
  ... }, VertexTextureCoordinates ->
  {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
   {{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {{0, 0}, {1, 0}, {1, 1}, {0, 1}}}]}, Lighting -> {{"Point", c, {4, -4, 4}}}, Boxed -> False], {c, {White, Red, Green, Blue}}]

Generalizations & Extensions (1)

Use a list of the form {r,g,b,a} to specify transparency of individual pixels of texture:

Wolfram Language code: data = Table[{1, 0, 0, a}, {u, 0, 1, 1 / 100}, {a, 0, 1, 1 / 100}];

Wolfram Language code:

vtc = {{0, 0}, {1, 0}, {1, 1}, {0, 1}};
coords = {{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0, 0}, {1, 0, 0}, {1, 0, 1}, {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1, 1, 1}, {1, 0, 1}}, {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1, 1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}}, {{0, 0, 1}, {1, 0, 1}, {1, 1, 1}, {0, 1, 1}}};

Wolfram Language code:

Graphics3D[{Texture[data], Polygon[coords, VertexTextureCoordinates -> Table[vtc, {6}]]}, Lighting -> "Neutral", Boxed -> False]

Use the transparency values to create texture with holes:

Wolfram Language code:

data1 = Table[{1, 2 / 3, 0, If[u^2 + v^2 < 1 / 2, 0, 1]}, {u, -1, 1, 1 / 100}, {v, -1, 1, 1 / 100}];
data2 = Table[{0, 0, 1, If[u^2 + v^2 < 1 / 2, 0, 1]}, {u, -1, 1, 1 / 100}, {v, -1, 1, 1 / 100}];

Wolfram Language code:

Graphics3D[{FaceForm[Texture[data1], Texture[data2]], Polygon[coords, VertexTextureCoordinates -> Table[vtc, {6}]]}, Lighting -> "Neutral", Boxed -> False]

Applications (13)

Basic Applications (1)

Show the corresponding mapping to texture coordinates:

Wolfram Language code:

mapPolygon[p : Polygon[_, idx_, VertexTextureCoordinates -> vtc_], img_] :=
	Block[...]

Wolfram Language code:

mapPolygon[Polygon[{{0, 0, 0}, {1, 0, 0}, {0.5, 1, 0}}, {1, 2, 3}, VertexTextureCoordinates ->
  {{0.2, 0.2}, {0.8, 0.2}, {0.5, 0.8}}], [image]]

Wolfram Language code:

mapPolygon[Polygon[{{-100, -100, -100}, {100, -100, -100}, {100, 100, -100}, {-100, 100, -100},
  {-100, -100, -100}, {100, -100, -100}, {100, -100, 100}, {-100, -100, 100}, {100, -100, -100},
  {100, 100, -100}, {100, 100, 100}, {100, -100, 100}, {100, 100 ... 7525, 0.33666666666666667}, {0.9975, 0.33666666666666667}, {0.9975, 0.6633333333333333},
   {0.7525, 0.6633333333333333}, {0.2525, 0.6699999999999999}, {0.4975, 0.6699999999999999},
   {0.4975, 0.9966666666666666}, {0.2525, 0.9966666666666666}}], [image]]

Wolfram Language code:

mapPolygon[Polygon[{{0., 0., 1.}, {-0.2777182317483142, 0.20177410616759886, 0.9392336204772784},
  {-0.5554364634966285, 0.4035482123351977, 0.7270757700126067},
  {-0.7236067977499789, 0.5257311121191336, 0.44721359549995787},
  {0.10607892523233588, 0.3 ... 71705951760442, 0.4450936361588238},
   {0.6328294048239558, 0.4450936361588237}, {0.3, 0.43993157242460157},
   {0.5, 0.43993157242460157}, {0.7, 0.43993157242460157}, {0.9, 0.43993157242460157},
   {0.09999999999999998, 0.43993157242460157}}], [image]]

Environment Maps (3)

Create a realistic background using a spherical texture:

Wolfram Language code: env = {Texture[[image], "Spherical"], Black, Sphere[{0, 0, 0}, 100]};

Wolfram Language code: Graphics3D[{env, Torus[]}, ViewVector -> {{1, 2, 1}, {0, 0, 0}}, Method -> {"RotationControl" -> "Globe"}]

Create a realistic background using a sky box texture:

Wolfram Language code:

env = {Texture[[image]], Black, EdgeForm[], Polygon[{{-100, -100, -100}, {100, -100, -100}, {100, 100, -100}, {-100, 100, -100},
  {-100, -100, -100}, {100, -100, -100}, {100, -100, 100}, {-100, -100, 100}, {100, -100, -100},
  {100, 100, -100}, {100, 100, 100}, {100, -100, 100}, {100, 100 ... 7525, 0.33666666666666667}, {0.9975, 0.33666666666666667}, {0.9975, 0.6633333333333333},
   {0.7525, 0.6633333333333333}, {0.2525, 0.6699999999999999}, {0.4975, 0.6699999999999999},
   {0.4975, 0.9966666666666666}, {0.2525, 0.9966666666666666}}]};

Wolfram Language code: Graphics3D[{env, Torus[]}, ViewVector -> {{-1, -2, 1}, {0, 0, 0}}, Method -> {"RotationControl" -> "Globe"}]

Apply sky box textures to the individual sides of a cube:

Wolfram Language code:

images = {[image], [image], [image], [image], [image], [image]};
sides = {Polygon[{{-100, -100, -100}, {100, -100, -100}, {100, 100, -100}, {-100, 100, -100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}], Polygon[{{-100, -100, -100}, {100, -100, -100}, {100, -100, 100}, {-100, -100, 100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}], Polygon[{{100, -100, -100}, {100, 100, -100}, {100, 100, 100}, {100, -100, 100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}], Polygon[{{100, 100, -100}, {-100, 100, -100}, {-100, 100, 100}, {100, 100, 100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}], Polygon[{{-100, 100, -100}, {-100, -100, -100}, {-100, -100, 100}, {-100, 100, 100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}], Polygon[{{100, -100, 100}, {100, 100, 100}, {-100, 100, 100}, {-100, -100, 100}},
 VertexTextureCoordinates -> {{0.01, 0.01}, {0.99, 0.01}, {0.99, 0.99}, {0.01, 0.99}}]};
env = {Black, EdgeForm[], Riffle[Texture /@ images, sides]};

Wolfram Language code: Graphics3D[{env, Torus[]}, ViewVector -> {{-1, -2, 1}, {0, 0, 0}}, Method -> {"RotationControl" -> "Globe"}]

Astronomy (2)

Create realistic planets and moons using texture maps with MaterialShading:

Wolfram Language code:

celestialMaterial[entity_Entity] :=
	Block[{albedo, normals},
	albedo = entity["CylindricalEquidistantTexture"];
	normals = Image[ResourceFunction[ResourceObject[Association["Name" -> "NormalTexture",
   "ShortName" -> "NormalTexture", "UUID" -> "5fc5ea7f-f287-4d4c-b400-df80515487af",
   "ResourceType" -> "Function", "Version" -> "1.0.0",
   "Description" -> "Generate a no ... ,
   "SymbolName" -> "FunctionRepository`$faee06013a97443aa16264966d8cbdba`NormalTexture",
   "FunctionLocation" -> CloudObject[
     "https://www.wolframcloud.com/obj/f283570d-7972-41db-bf62-7f0a750d8410"]],
  ResourceSystemBase -> Automatic]][GeoElevationData["World", GeoRange -> All, GeoModel -> entity, GeoZoomLevel -> 2], 0.1]];
	MaterialShading[<|"BaseColor" -> Texture[albedo], "SurfaceNormals" -> Texture[normals], "RoughnessCoefficient" -> 1, "MetallicCoefficient" -> 0|>]
	]

Wolfram Language code:

Graphics3D[{celestialMaterial[#], Sphere[]}, Lighting -> "Accent", Boxed -> False, ViewPoint -> Front]& /@ {Entity["PlanetaryMoon", "Moon"], Entity["Planet", "Mars"], Entity["Planet", "Earth"]}

Use the star map as the background:

Wolfram Language code:

Graphics3D[{{Texture[[image], "Spherical"], Black, Sphere[{0, 0, 0}, 100]}, Texture[Entity["Planet", "Earth"]["CylindricalEquidistantTexture"], "Spherical"], Sphere[{0, 0, 0}]}, ViewVector -> {{2, -2, 0}, {0, 0, 0}}, Method -> {"RotationControl" -> "Globe"}, Lighting -> "Accent", Boxed -> False]

Geography (2)

Display geographical data from GeoGraphics on an interactive globe:

Wolfram Language code:

Graphics3D[{Texture[GeoGraphics[GeoBackground -> #, ImageSize -> Large, GeoProjection -> "Equirectangular"], "Spherical"], Black, Sphere[{0, 0, 0}]}, Boxed -> False, ViewPoint -> Front]& /@ {"CountryBorders", "VectorMinimal", "SatelliteWithLabels"}

Style countries with their own flag:

Wolfram Language code:

countries = With[{coords = Reverse /@ First[CountryData[#, "Coordinates"]]},
	{Texture[#["Flag"]], Polygon[coords, VertexTextureCoordinates -> Transpose[Rescale /@ Transpose[coords]]]}
	]& /@ CountryData["SouthAmerica"];
Graphics[{EdgeForm[StandardGray], #}, ImageSize -> Tiny]& /@ countries

Wolfram Language code: Show[%]

Texture Models (1)

Apply a texture to a texture-mapped model:

Wolfram Language code: Graphics3D[{Texture[[image]], EdgeForm[], Polygon[«3»]}, Lighting -> "Neutral"]

Visualizations (2)

Style a plot with a texture:

Wolfram Language code:

ParametricPlot3D[{1.16 ^ v Cos[v](1 + Cos[u]), -1.16 ^ v Sin[v](1 + Cos[u]), -2 1.16 ^ v(1 + Sin[u])}, {u, 0, 2Pi}, {v, -15, 6}, PlotStyle -> Directive[Specularity[White, 100], Texture[ExampleData[{"ColorTexture", "WhiteMarble"}]]], TextureCoordinateFunction -> ({#4, 3#5}&), Lighting -> "ThreePoint", Mesh -> None, PlotRange -> All, Boxed -> False, Axes -> False]

Style a ListSurfacePlot3D with a texture:

Wolfram Language code: bunny = MeshCoordinates[ResourceData["Stanford Bunny"]];

Wolfram Language code:

ListSurfacePlot3D[bunny, MaxPlotPoints -> 35, Mesh -> None, Boxed -> False, Axes -> None, Ticks -> None, TextureCoordinateFunction -> (Normalize[{#1, #2, #3}]&), PlotStyle -> Directive[Specularity[White, 20], Texture[ExampleData[{"ColorTexture", "WhiteMarble"}]]], Lighting -> "Neutral"]

Texture Examples (1)

ExampleData includes grayscale and color texture samples:

Wolfram Language code: Short[ExampleData["Texture"]]

Wolfram Language code: Short[ExampleData["ColorTexture"]]

Use the sample textures with a plot function:

Wolfram Language code:

torus[t_] := ParametricPlot3D[{Cos[u] (3 + Cos[v]), Sin[u] (3 + Cos[v]), Sin[v]}, {u, 0, 2 π}, {v, 0, 2 π}, TextureCoordinateFunction -> ({2#4, #5}&), PlotStyle -> Directive[Specularity[White, 50], Texture[ExampleData[{"ColorTexture", t}]]], Axes -> False, Lighting -> "Neutral", Mesh -> None, Boxed -> False, ImageSize -> 120];

Wolfram Language code: Table[torus[t], {t, {"Ash", "CheetahFur", "Kingwood", "Metal4", "Vavona", "WhiteMarble"}}]

Volume Rendering (1)

Construct a 3D texture from slices of medical images:

Wolfram Language code:

slices = {[image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image]};

Wolfram Language code: data = Developer`ToPackedArray[Map[ImageData, slices]];

Draw cross-sections of the volumetric data:

Wolfram Language code:

Manipulate[Graphics3D[{Opacity[Dynamic[o]], Texture[data], EdgeForm[None],
	Dynamic[{Polygon[{{x, 0, 0}, {x, 1, 0}, {x, 1, 1}, {x, 0, 1}}, VertexTextureCoordinates -> {{x, 0, 0}, {x, 1, 0}, {x, 1, 1}, {x, 0, 1}}], Polygon[{{0, y, 0}, {1, y, 0}, {1, y, 1}, {0, y, 1}}, VertexTextureCoordinates -> {{0, y, 0}, {1, y, 0}, {1, y, 1}, {0, y, 1}}],
	Polygon[{{0, 0, z}, {1, 0, z}, {1, 1, z}, {0, 1, z}}, VertexTextureCoordinates -> {{0, 0, z}, {1, 0, z}, {1, 1, z}, {0, 1, z}}]}]}, Background -> Black, RotationAction -> "Clip"], {{x, 0.5}, 0, 1}, {{y, 0.5}, 0, 1}, {{z, 0.5}, 0, 1}, {{o, 0.75, "opacity"}, 0, 1}]

Properties & Relations (4)

The projection mapping can be specified per object using TextureMapping:

Wolfram Language code: {Graphics3D[{Texture[[image], "Box"], Cube[]}], Graphics3D[{Texture[[image]], Cube[TextureMapping -> "Box"]}]}

The "Spherical" mapping transforms Cartesian points on a surface to spherical coordinates:

Wolfram Language code:

ℛ1 = GeodesicPolyhedron[3];
vtc = Table[
	{r, θ, ϕ} = ToSphericalCoordinates[c];{Rescale[ϕ - Pi / 2, {-Pi, Pi}], 1 - Rescale[θ, {0, Pi}]}, {c, PolyhedronCoordinates[ℛ1]}];
ℛ2 = Append[ℛ1, VertexTextureCoordinates -> vtc]

Wolfram Language code: Graphics3D[{Texture[[image]], EdgeForm[], ℛ2}, Lighting -> "Neutral"]

The "Cylindrical" mapping transforms Cartesian points on a surface to cylindrical coordinates:

Wolfram Language code:

ℛ1 = BoundaryDiscretizeRegion[Cylinder[]];
vtc = Table[
	{ρ, ϕ, z} = CoordinateTransform["Cartesian" -> "Cylindrical", c];{Rescale[ϕ, {-Pi, Pi}], Rescale[z, {-5, 1}]}, {c, MeshCoordinates[ℛ1]}];
ℛ2 = GraphicsComplex[MeshCoordinates[ℛ1], MeshCells[ℛ1, 2], VertexTextureCoordinates -> vtc];

Wolfram Language code: Graphics3D[{Texture[[image]], EdgeForm[], ℛ2}, Lighting -> "Neutral"]

The "Planar" mapping projects 3D points to a 2D plane:

Wolfram Language code:

ℛ1 = GeodesicPolyhedron[3];
vtc = Table[c[[1 ;; 2]], {c, PolyhedronCoordinates[ℛ1]}];
ℛ2 = Append[ℛ1, VertexTextureCoordinates -> vtc]

Wolfram Language code: Graphics3D[{Texture[[image]], EdgeForm[], ℛ2}, Lighting -> "Neutral"]

Possible Issues (1)

Texture mapping is preceded by VertexColors:

Wolfram Language code:

Graphics3D[{Texture[[image]], Polygon[{{-1, -1, -1}, {1, -1, -1}, {1, 1, -1}, {-1, 1, -1}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}},
	VertexColors -> {Red, Green, Blue, Purple}]}, Lighting -> "Neutral"]

Neat Examples (3)

Animated Textures (2)

Create a cube with an animated clock face on each side:

Wolfram Language code:

DynamicModule[{}, Graphics3D[{Dynamic[Texture[clock, "Box"], UpdateInterval -> 1], Cube[]}, Lighting -> "Neutral", Boxed -> False], Initialization :> (clock := Module[{hour, min, sec, ht, mt, st}, {hour, min, sec} = Take[DateList[], -3];ht = Pi / 2 - 2 π hour / 12 - (2 π) min / 720;mt = Pi / 2 - 2 π min / 60;st = Pi / 2 - 2 π Floor[sec] / 60;Graphics[{Thick, Arrowheads[Large], Arrow[{{0, 0}, 0.6{Cos[ht], Sin[ht]}}], Arrow[{{0, 0}, 0.9{Cos[mt], Sin[mt]}}], PointSize[Large], Table[Point[0.9{Cos[i], Sin[i]}], {i, 0, 2Pi, π / 6}], Point[{0, 0}], Circle[], Red, Line[{{0, 0}, 0.85{Cos[st], Sin[st]}}]}]])]

Display an animation mapped to a polygon:

Wolfram Language code:

Graphics[{Dynamic[Texture[frames[[Ceiling[Clock[{1, Length[frames], 1}, 10]]]]], UpdateInterval -> 0.5, Initialization :> (frames = {[image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image]};
	quad = Polygon[{{0, 0}, {2, 0}, {2, 2}, {0, 2}}, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}];)], quad}]

Show multiple animations in the same graphic:

Wolfram Language code:

DynamicModule[{chickens},
	chickens = Table[Translate[quad, pos], {pos, {{5, 6}, {13, 2}, {10, 4}, {6, 1}, {11, 7}, {2, 5}, {3, 2}, {8, 3}, {5, 4}}}];
	Graphics[Table[{With[{idx = i}, Dynamic[Texture[frames[[Mod[Ceiling[2 * Clock[100]] + idx * 27, Length[frames], 1]]]], UpdateInterval -> 0.5]], chickens[[i]]}, {i, Length[chickens]}]]
	]

Textures on Polyhedra (1)

Wolfram Language code:

Manipulate[Graphics3D[{Specularity[White, 20], Texture[ImageCrop[ExampleData[{"ColorTexture", "WhiteMarble"}], {128, 128}]], EdgeForm[Opacity[1 / 10]], (Append[#1, {VertexTextureCoordinates -> With[{n = Length[First[#1]]}, Table[1 / 2 {Cos[2 π i / n], Sin[2 π i / n]} + {1 / 2, 1 / 2}, {i, 0, n - 1}]]}]&) /@ Flatten[PolyhedronData[p, "Faces", "Polygon"]]}, Lighting -> "Neutral"], {{p, "RhombicHexecontahedron", "polyhedron"}, PolyhedronData[]}]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

Texture

Details

Examples

Basic Examples (4)

Scope (20)

Basic Uses (3)

Specification (8)

Coordinates (5)

Styling (4)

Generalizations & Extensions (1)

Applications (13)

Basic Applications (1)

Environment Maps (3)

Astronomy (2)

Geography (2)

Texture Models (1)

Visualizations (2)

Texture Examples (1)

Volume Rendering (1)

Properties & Relations (4)

Possible Issues (1)

Neat Examples (3)

Animated Textures (2)

Textures on Polyhedra (1)

Text

CMS

APA

BibTeX

BibLaTeX

Texture

Details

Examples

Basic Examples (4)

Scope (20)

Basic Uses (3)

Specification (8)

Coordinates (5)

Styling (4)

Generalizations & Extensions (1)

Applications (13)

Basic Applications (1)

Environment Maps (3)

Astronomy (2)

Geography (2)

Texture Models (1)

Visualizations (2)

Texture Examples (1)

Volume Rendering (1)

Properties & Relations (4)

Possible Issues (1)

Neat Examples (3)

Animated Textures (2)

Textures on Polyhedra (1)

See Also

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
