3DS (.3ds)

Background & Context

    • MIME types: application/x-3ds, image/x-3ds
    • Autodesk 3DS file format.
    • Scene description and 3D modeling format.
    • Used for 3D modeling and animation.
    • Native format of Autodesk 3D Studio.
    • Binary file format.
    • Stores 3D objects together with lighting and view point information.

Import & Export

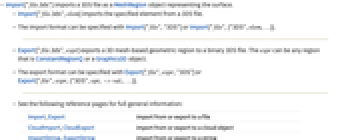

  • Import["file.3ds"] imports a 3DS file as a MeshRegion object representing the surface.
  • Import["file.3ds",elem] imports the specified element from a 3DS file.
  • The import format can be specified with Import["file","3DS"] or Import["file",{"3DS",elem,…}].
  • Export["file.3ds",expr] exports a 3D mesh-based geometric region to a binary 3DS file. The expr can be any region that is ConstantRegionQ or a Graphics3D object.
  • The export format can be specified with Export["file",expr,"3DS"] or Export["file",expr,{"3DS",opt1->val1,…}].
  • See the following reference pages for full general information:
  • Import, Exportimport from or export to a file
    CloudImport, CloudExportimport from or export to a cloud object
    ImportString, ExportStringimport from or export to a string
    ImportByteArray, ExportByteArrayimport from or export to a byte array

Import Elements

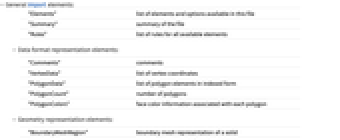

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • Data format representation elements:
  • "Comments"comments
    "VertexData"list of vertex coordinates
    "PolygonData"list of polygon elements in indexed form
    "PolygonCount"number of polygons
    "PolygonColors"face color information associated with each polygon
  • Geometry representation elements:
  • "BoundaryMeshRegion"boundary mesh representation of a solid
    "MeshRegion"mesh representation of a surface
    "Region"region representation of a surface
  • Graphics representation elements:
  • "Graphics3D"3DS file represented as a Graphics3D object
    "GraphicsComplex"3DS file as a GraphicsComplex object
    "PolygonObjects"list of polygon primitives in absolute coordinates
  • Import and Export use the "MeshRegion" element by default for 3DS files.

Examples

open all close all

Basic Examples  (4)

Import a 3D model from 3DS as a MeshRegion object:

Wolfram Language code: Import["ExampleData/seashell.3ds"]

"Summary" properties of the solid model:

Wolfram Language code: Import["ExampleData/seashell.3ds", "Summary"]

Import an example file, rendering it as a 3D graphic:

Wolfram Language code: Import["ExampleData/747.3ds.gz", "Graphics3D", ImageSize -> Medium]

Export a 3D model:

Wolfram Language code: Export["model.3ds", [image]]

Create a solid 3D object using RegionPlot3D:

Wolfram Language code: RegionPlot3D[x ^ 2 + y ^ 2 < z ^ 2, {x, -2, 2}, {y, -2, 2}, {z, -2, 2}, Mesh -> False, Boxed -> False, Axes -> False, ImageSize -> Small, ColorFunction -> "RoseColors"]

Export it to 3DS:

Wolfram Language code: Export["cones.3ds", %]

Scope  (8)

Import  (3)

Import works on a 3DS file:

Wolfram Language code: Import["ExampleData/chain.3ds"]

Any accessible URL:

Wolfram Language code: Import["http://exampledata.wolfram.com/vase.3ds"]

Import provides access to elements in the 3DS file:

Wolfram Language code: Import["ExampleData/seashell.3ds", "Elements"]
Wolfram Language code: {"BoundaryMeshRegion", "Graphics3D", "GraphicsComplex", "MeshRegion", "PolygonColors", "PolygonData", "PolygonObjects", "Region", "Summary", "VertexData"}

Export  (5)

Export works on 3D graphics:

Wolfram Language code: Export["model.3ds", [image]]

Special regions:

Wolfram Language code: Export["sphere.3ds", Graphics3D[Sphere[]]]

Formula regions:

Wolfram Language code: Export["ball.3ds", ImplicitRegion[x ^ 2 + y ^ 2 + z ^ 2 ≤ 1, {x, y, z}]]

Mesh regions:

Wolfram Language code: Export["pyramid.3ds", MeshRegion[{{-1, -1, 0}, {1, -1, 0}, {1, 1, 0}, {-1, 1, 0}, {0, 0, 1}}, Pyramid[{1, 2, 3, 4, 5}]]]

Export to a binary 3DS file:

Wolfram Language code: Export["model.3ds", [image]]

Import Elements  (10)

"BoundaryMeshRegion"  (1)

Give a BoundaryMeshRegion:

Wolfram Language code: Import["ExampleData/spikey.3ds", "BoundaryMeshRegion"]

"Graphics3D"  (1)

Give the Graphics3D object:

Wolfram Language code: Import["ExampleData/spikey.3ds", "Graphics3D"]

"GraphicsComplex"  (1)

Give the GraphicsComplex object:

Wolfram Language code: Import["ExampleData/spikey.3ds", "GraphicsComplex"]

"MeshRegion"  (1)

Give a MeshRegion:

Wolfram Language code: Import["ExampleData/spikey.3ds", "MeshRegion"]

"PolygonColors"  (1)

Give the "PolygonColors" object:

Wolfram Language code: Import["ExampleData/spikey.3ds", "PolygonColors"]

"PolygonData"  (1)

Give the polygon elements in indexed form:

Wolfram Language code: Import["ExampleData/spikey.3ds", "PolygonData"]

"PolygonObjects"  (1)

Give the list of Triangle primitives given in absolute coordinates:

Wolfram Language code: Import["ExampleData/spikey.3ds", "PolygonObjects"] // Short

"Region"  (1)

Give a Region:

Wolfram Language code: Import["ExampleData/spikey.3ds", "Region"]

"Summary"  (1)

Give the "Summary" of properties:

Wolfram Language code: Import["ExampleData/spikey.3ds", "Summary"]

File size:

Wolfram Language code: %["FileSize"]

"VertexData"  (1)

Give the vertex coordinates:

Wolfram Language code: Import["ExampleData/spikey.3ds", "VertexData"]
