AdjacentMeshCells

AdjacentMeshCells[mr,cellspec,d]

gives cells of dimension d adjacent to the cell specified by cellspec in the mesh mr.

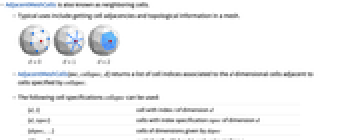

Details

  • AdjacentMeshCells is also known as neighboring cells.

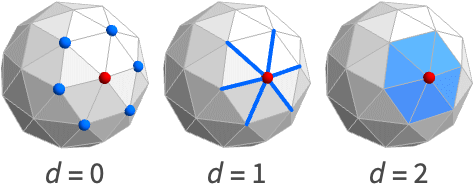

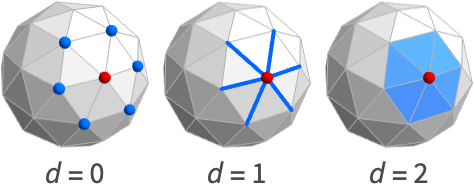

  • Typical uses include getting cell adjacencies and topological information in a mesh.
  • AdjacentMeshCells[mr,cellspec,d] returns a list of cell indices associated to the d-dimensional cells adjacent to cells specified by cellspec.
  • The following cell specifications cellspec can be used:
  • {d,i}cell with index i of dimension d
    {d,ispec}cells with index specification ispec of dimension d
    {dspec,…}cells of dimensions given by dspec
    h[{i1,…}]explicit cell with head h and vertex indices i1, …
    {c1,c2,…}list of explicit cells ci
  • The index specification ispec can have the following form:
  • icell index i
    {i1,i2,…}cells with indices ik
    Allall cells
    pattcells with indices matching the pattern patt
  • The dimension specification dspec can have the following form:
  • dexplicit dimension d
    Allall dimensions from 0 to geometric dimension of region
    pattdimensions matching the pattern patt

Examples

open all close all

Basic Examples  (2)

A list of lines adjacent to the cell {0,2}:

Wolfram Language code: ℛ = MengerMesh[1, MeshCellStyle -> {{0, 2} -> Red}]
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 2}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Find all faces adjacent to the cells that match a pattern:

Wolfram Language code: pattern = {0, _ ? (# < 3&)}; ℛ = VoronoiMesh[RandomReal[1, {10, 2}], MeshCellStyle -> {pattern -> Red}];
Wolfram Language code: AdjacentMeshCells[ℛ, pattern, 2]
Wolfram Language code: HighlightMesh[ℛ, %]

Scope  (5)

Basic Uses  (2)

Specify cells with index and dimension:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, {Tetrahedron[{{1, 2, 3, 5}, {1, 3, 4, 5}}]}]
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 2]

Pattern:

Wolfram Language code: AdjacentMeshCells[ℛ, {_, 1}, 2]

Explicit cells:

Wolfram Language code: AdjacentMeshCells[ℛ, Line[{1, 2}], 2]

A list of cells:

Wolfram Language code: AdjacentMeshCells[ℛ, {{0, 1}, {1, 2}}, 2]

Find the cells of different dimensions adjacent to the cell {0, 1}:

Wolfram Language code: Table[AdjacentMeshCells[[image], {0, 1}, d], {d, {0, 1, 2, 3}}]

Mesh Regions  (2)

The AdjacentMeshCells of a MeshRegion in 2D:

Wolfram Language code: mesh = DelaunayMesh[RandomReal[1, {10, 2}], MeshCellStyle -> {{0, 1} -> Green}]
Wolfram Language code: AdjacentMeshCells[mesh, {0, 1}, 1]

Highlight the cells:

Wolfram Language code: HighlightMesh[mesh, %]

1D:

Wolfram Language code: AdjacentMeshCells[[image], {0, 1}, 1]

3D:

Wolfram Language code: mesh = [image];
Wolfram Language code: AdjacentMeshCells[mesh, {0, 1}, 1]

Highlight the cells:

Wolfram Language code: HighlightMesh[mesh, %]

The AdjacentMeshCells of a BoundaryMeshRegion:

Wolfram Language code: mesh = BoundaryMeshRegion[{{0, 0}, {3, 0}, {3, 3}, {0, 3}, {1, 1}, {2, 1}, {2, 2}, {1, 2}}, Line[{1, 2, 3, 4, 1}], Line[{5, 6, 7, 8, 5}], MeshCellStyle -> {{0, 1} -> Green}]
Wolfram Language code: AdjacentMeshCells[mesh, {0, 1}, 1]

Highlight the cells:

Wolfram Language code: HighlightMesh[mesh, %]

1D:

Wolfram Language code: AdjacentMeshCells[[image], {0, 1}, 0]

3D:

Wolfram Language code: mesh = [image];
Wolfram Language code: AdjacentMeshCells[mesh, {0, 1}, 1]

Highlight the cells:

Wolfram Language code: HighlightMesh[mesh, %]

Polygons & Polyhedra  (1)

AdjacentMeshCells of a Cube:

Wolfram Language code: ℛ = Cube[];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Simplex:

Wolfram Language code: ℛ = Simplex[{{0, 0, 1}, {1, 0, 0}, {1, 0, 1}, {1, 1, 1}}];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Polyhedron:

Wolfram Language code: ℛ = Polyhedron[{{-0.85065080835204, 0., 1.1135163644116066}, {-0.2628655560595668, 0.8090169943749475, 1.1135163644116066}, {-0.42532540417602, 1.3090169943749475, 0.2628655560595668}, {-1.1135163644116066, 0.8090169943749475, -0.262865556059566 ... {{1, 2, 3, 4, 5}, {6, 7, 1, 5, 8}, {9, 10, 6, 8, 11}, {12, 13, 9, 11, 14}, {4, 14, 11, 8, 5}, {3, 15, 12, 14, 4}, {16, 17, 10, 9, 13}, {18, 16, 13, 12, 15}, {19, 18, 15, 3, 2}, {20, 19, 2, 1, 7}, {17, 20, 7, 6, 10}, {16, 18, 19, 20, 17}}];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Triangle:

Wolfram Language code: ℛ = Triangle[{{0, 0}, {1, 1}, {2, 0}}];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Polygon:

Wolfram Language code: ℛ = Polygon[{{1, 0}, {1/2, Sqrt[3]/2}, {-1/2, Sqrt[3]/2}, {-1, 0}, {-1/2, -1/2*Sqrt[3]}, {1/2, -1/2*Sqrt[3]}}];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Line:

Wolfram Language code: ℛ = Line[{{1, 0}, {2, 1}, {3, 0}, {4, 1}}];
Wolfram Language code: AdjacentMeshCells[ℛ, {0, 1}, 1]
Wolfram Language code: HighlightMesh[ℛ, %]

Applications  (8)

Basic Applications  (5)

Adjacent mesh cells of Triangle:

Wolfram Language code: mesh = [image];
Wolfram Language code: cells = AdjacentMeshCells[mesh, {0, 2}, 0]
Wolfram Language code: HighlightMesh[mesh, cells]

Adjacent mesh cells of Cube:

Wolfram Language code: mesh = [image];
Wolfram Language code: cells = AdjacentMeshCells[mesh, {0, 6}, 0]
Wolfram Language code: HighlightMesh[mesh, cells]

Adjacent mesh cells of MengerMesh:

Wolfram Language code: mesh = MengerMesh[2, MeshCellStyle -> {{0, 6} -> Red}];
Wolfram Language code: cells = AdjacentMeshCells[mesh, {0, 6}, 0]
Wolfram Language code: HighlightMesh[mesh, cells]

Adjacent mesh cells of 3D boundary mesh:

Wolfram Language code: mesh = [image];
Wolfram Language code: cells = AdjacentMeshCells[mesh, {0, 12}, 0]
Wolfram Language code: HighlightMesh[mesh, cells]

Get the point adjacency of a Voronoi mesh:

Wolfram Language code: pts = RandomReal[1, {10, 2}];
Wolfram Language code: mesh = VoronoiMesh[pts, MeshCellStyle -> {{0, 12} -> Red}];
Wolfram Language code: cells = AdjacentMeshCells[mesh, {0, 12}, 0]
Wolfram Language code: HighlightMesh[mesh, cells]

Adjacency Queries  (1)

Use AdjacentMeshCells to find all the points that are connected to the point with cell index {0,1}:

Wolfram Language code: AdjacentMeshCells[[image], {0, 1}, 0]

Polyhedra Operations  (1)

Use AdjacentMeshCells to compute the DualPolyhedron of a cuboid:

Wolfram Language code: cube = [image];

Get the adjacent faces for each point:

Wolfram Language code: faces = (Last /@ AdjacentMeshCells[cube, {0, #}, 2])& /@ Range[MeshCellCount[cube, 0]]

Compute the coordinates of the dual:

Wolfram Language code: pts = MeshCoordinates[cube]; fs = And@@@ MeshCells[cube, 2]; coords = Table[Mean[pts[[i]]], {i, fs}]

Construct the dual of the cube:

Wolfram Language code: dual = Polyhedron[coords, faces]
Wolfram Language code: Graphics3D[{Opacity[0.2], cube, dual}]

Topological Operations  (1)

Use MeshConnectivityGraph to test whether a mesh is connected:

Wolfram Language code: ConnectedMeshQ[mesh_] := Block[{a = {{0, 1}}, b}, While[b = Union[Join[a, AdjacentMeshCells[mesh, a, 0]]];b =!= a, a = b]; Length[a] == MeshCellCount[mesh, 0] ]
Wolfram Language code: Table[ConnectedMeshQ[i], {i, {[image], [image], [image], [image]}}]

Properties & Relations  (2)

The cell index {d, k} corresponds to the k^(th) cells of dimension d:

Wolfram Language code: mesh = MeshRegion[{{0, 0}, {1, 0}, {2, 1 / 2}, {2, -1 / 2}}, {Line[{1, 2}], Line[{2, 3}], Line[{3, 4}], Line[{4, 2}]}]
Wolfram Language code: AdjacentMeshCells[mesh, {1, 2}, 1]

AdjacentMeshCells can be found using MeshConnectivityGraph:

Wolfram Language code: mesh = MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, {Tetrahedron[{1, 2, 3, 5}], Tetrahedron[{1, 3, 4, 5}]}]
Wolfram Language code: MeshConnectivityGraph[mesh, {0, 2}]
Wolfram Language code: AdjacencyList[%, {0, 1}]
Wolfram Language code: AdjacentMeshCells[mesh, {0, 1}, 2]

Neat Examples  (1)

AdjacentMeshCells of a Menger mesh:

Wolfram Language code: g = MengerMesh[4]; spec = Thread[List[0, RandomSample[Range[MeshCellCount[g, 0]], 35]]]; cells = AdjacentMeshCells[g, spec, 0];
Wolfram Language code: MeshRegion[g, MeshCellStyle -> Join[{spec -> Red}, Thread[cells -> Green], {{_ ? (# > 0&), All} -> White}], ImageSize -> 200]
